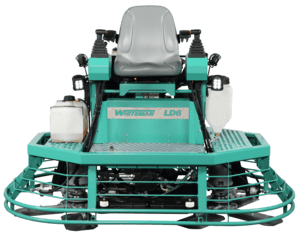

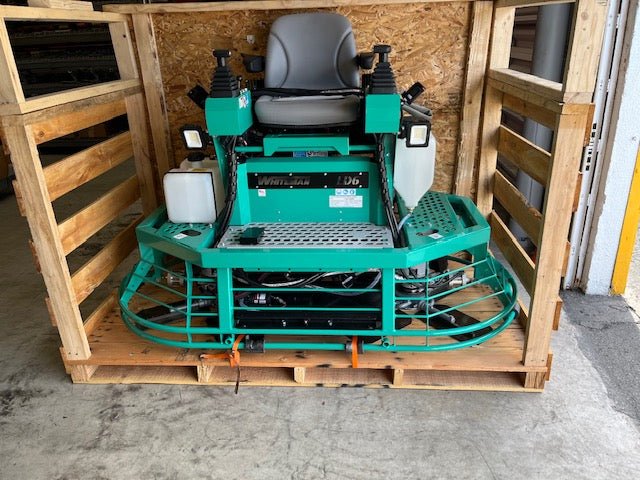

LD6SL Hydrostatic Ride-On Trowel

The LD6SL is the only fully hydrostatic 6' ride-on trowels on the market today. Electro-proportional servo controlled pump and high torque drive motors enable these models to achieve performance levels unmatched in the industry by any 6' ride on trowel on the market today. Proportional hydraulic steering enhances maneuverability while the all new walk around frame design simplifies maintenance and offers easy access to all serviceable components.

Drive System

• 23 HP Vanguard air cooled V twin engine offers the quality, performance and dependability contractors' demand
• Poclain and Parker hydraulic components deliver the efficiency and performance required for panning and finishing
• Fully hydrostatic system offers years of trouble free service

Design

• Proportional hydraulic steering offers quick response with minimal operator effort
• Electric linear acuators control pitch for precision blade pitch control
• Rebuildable spider assemblies reduce maintenance costs
• Non-overlapping design allows the versatility of using blades or pans on the job site
• Standard 36" pans and blade accessories are available
• Improved stability-engine placement lowers overall center of gravity and reduces frame roll

Operating Controls

• Manual hand throttle and pump stroke controls allow operator to set precise engine and rotor RPM
• Ergonomic controls enhance productivity and reduce operator fatigue

Factory Accessories Installed

•  Lighting kit with 6 LED lights, wiring harnesses and required hardware (LD6LK)
•  3 gallon retardant spray system includes tank, spray buttons and required hardware (LD6SK)

Optional Accessory Kits

•  Edger kit coverts the LD6 into an edging trowel (LD6EK)
•  EZ mover options include: EMR2, EMR3, LD6EZM

 Engines using gasoline or LPG fuel should be operated only in areas with adequate ventilation. NEVER operate in confined areas or in areas where the free flow of air is restricted.
