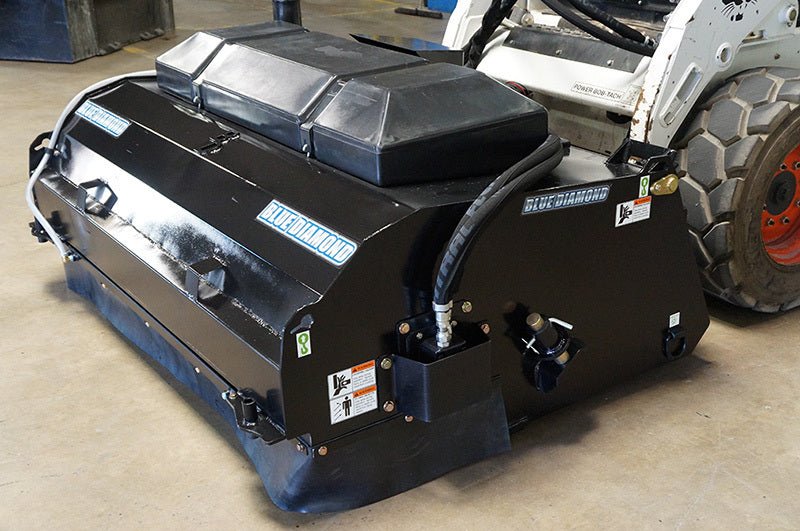

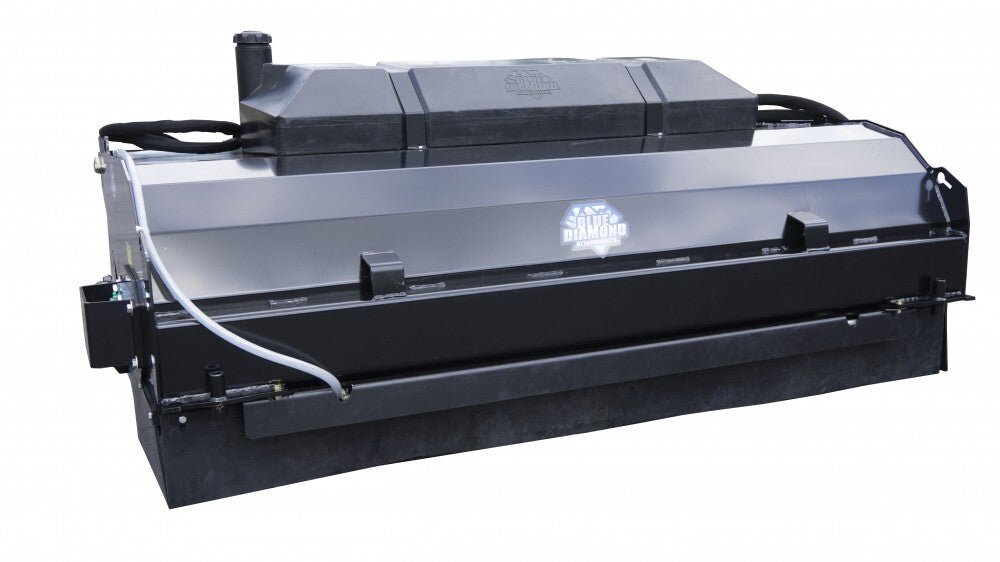

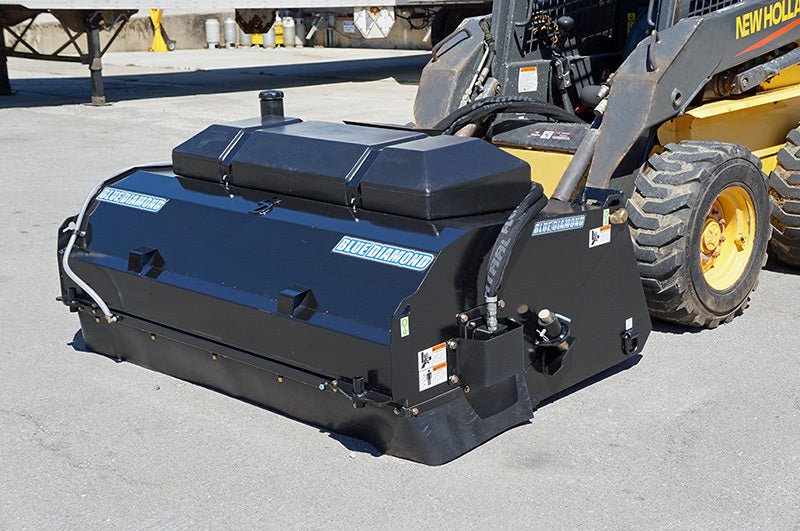

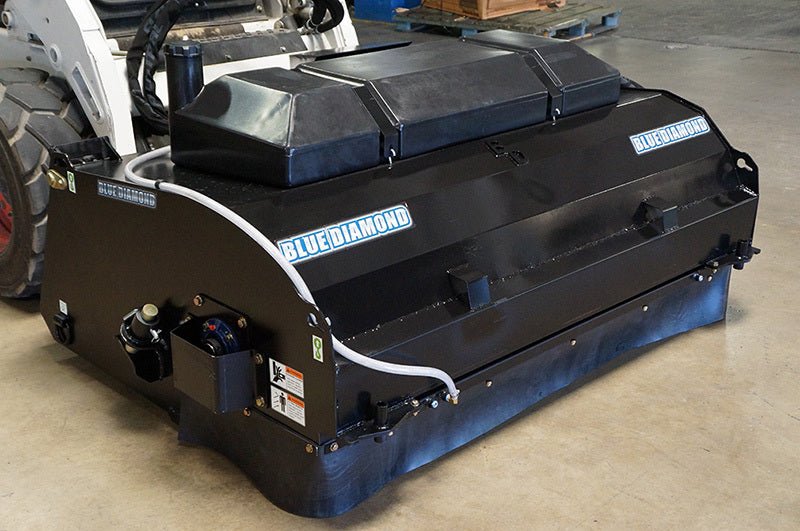

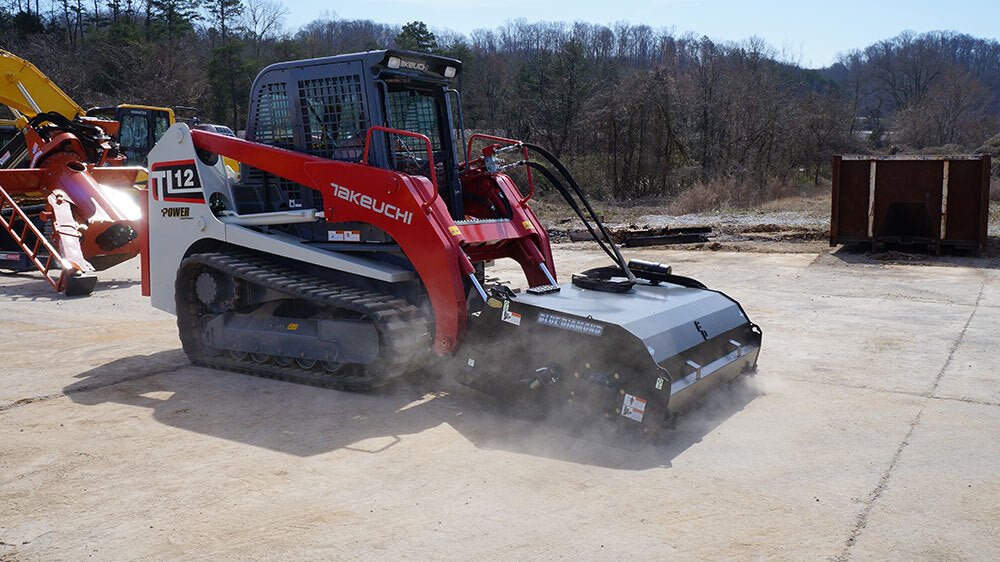

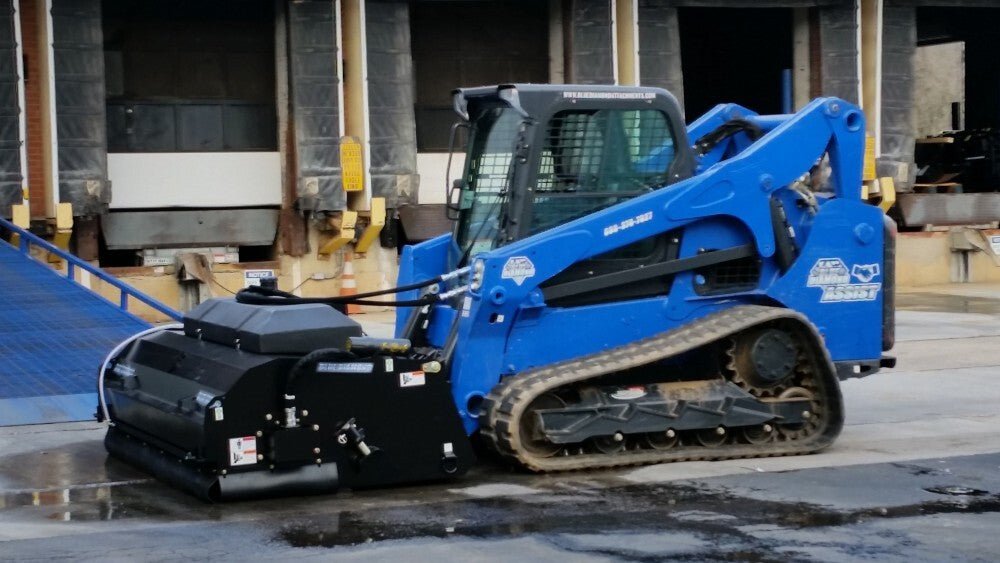

The Blue Diamond® Skid Steer Series 2 Pickup Broom is designed for heavy commercial use.

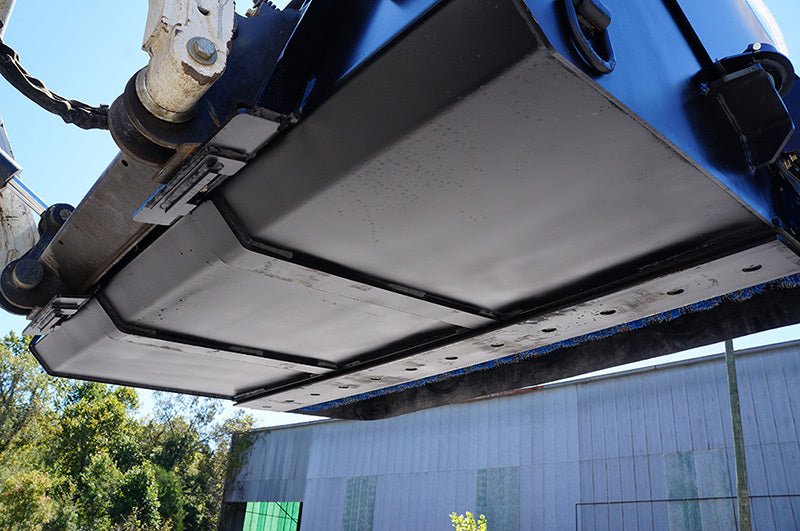

Years of market research lead to this premium broom that will stand up to the rigors of the roadwork industry as well as rental applications. This simple, clean design gives added structure to typical wear areas and damage-prone components such as an optional built-in water kit and heavy reinforcement on the front of the broom shroud. The low profile water tank allows the operator better visibility of the work area thereby reducing accidents. The 26” diameter poly/steel broom is available in 60”, 72”, 84”, and 96” width. An oversized bolt-on 8″ x ¾” double bevel edge protects the ¾” weld in edge from wear and adds strength to the leading edge of the bucket. Wear bars welded to the bottom of the bucket provides strength and protects the bucket from premature wear. Oversize bearings and spindles also set this pickup broom on a new level versus competitive brands! Rental Recommended.

For those that require a high-quality broom, this is the answer!

FEATURES INCLUDE :

  • Heavy 2″ main shaft
  • Oversized 6″ bearings
  • 7″ tall front crash bar
  • Motor and shaft guards
  • Heavy duty dump stops
  • Grease fittings on all pivot points and bearings
  • Steps mounted on back of bucket for entering and exiting the host machine

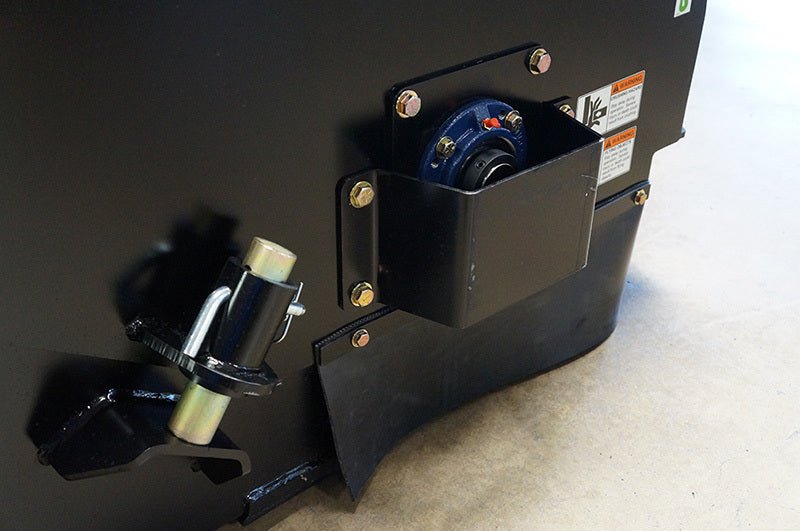

  • 1 1/2″ x 7″ Zinc height adjustment pins with 4 positions

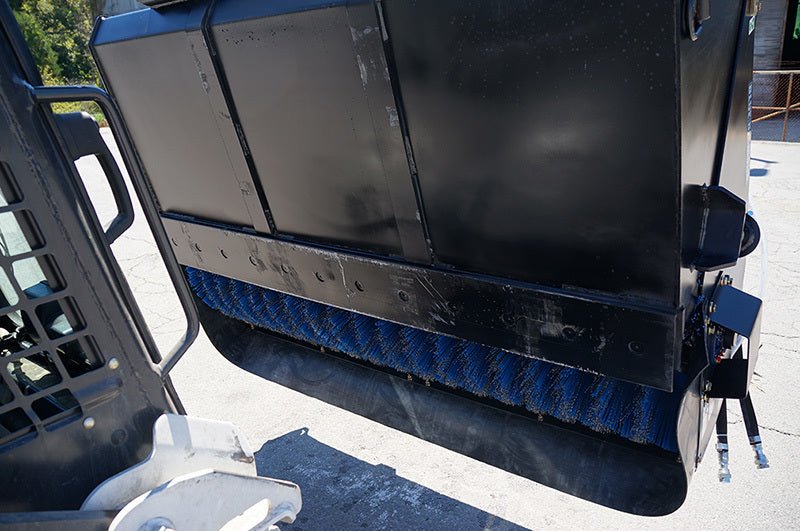

  • Bolt-on rubber skirting to contain debris
  • 28″H x 58″D

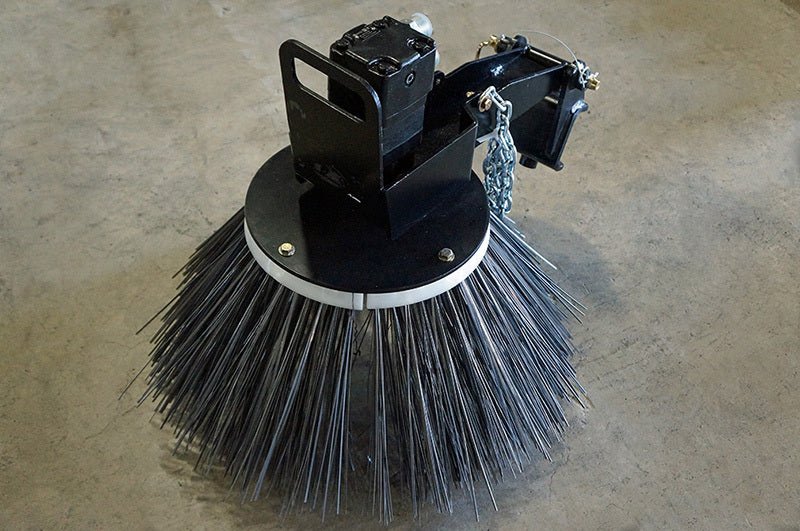

  • Optional gutter brush available

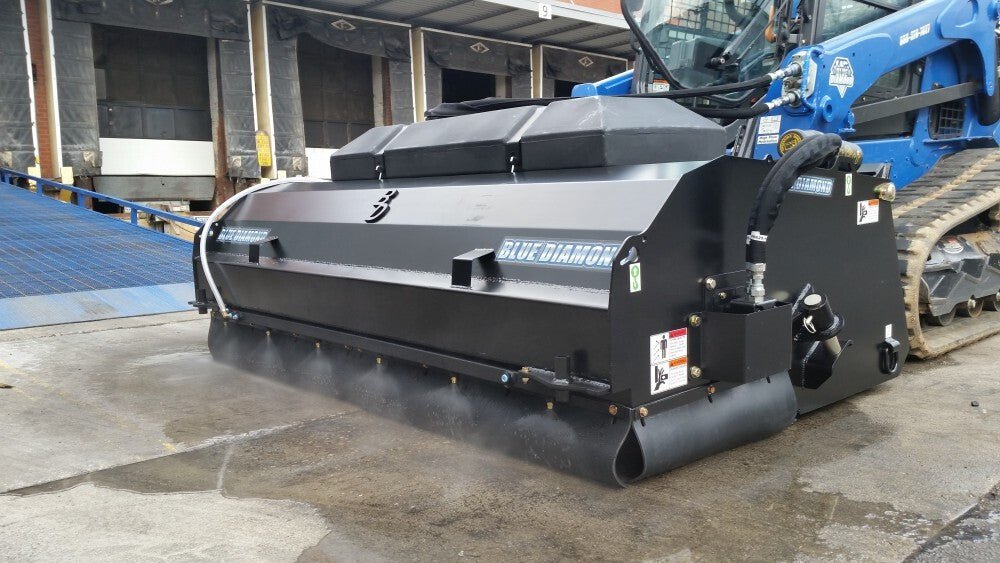

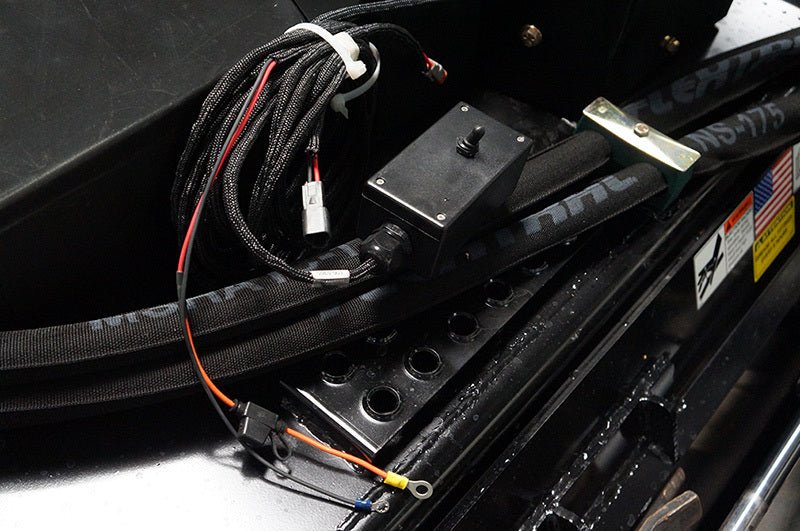

  • Predrilled for optional pressurized water system

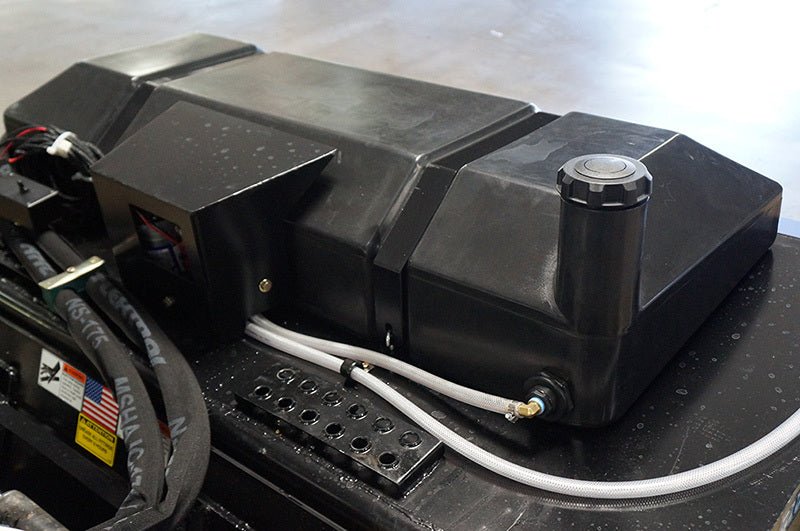

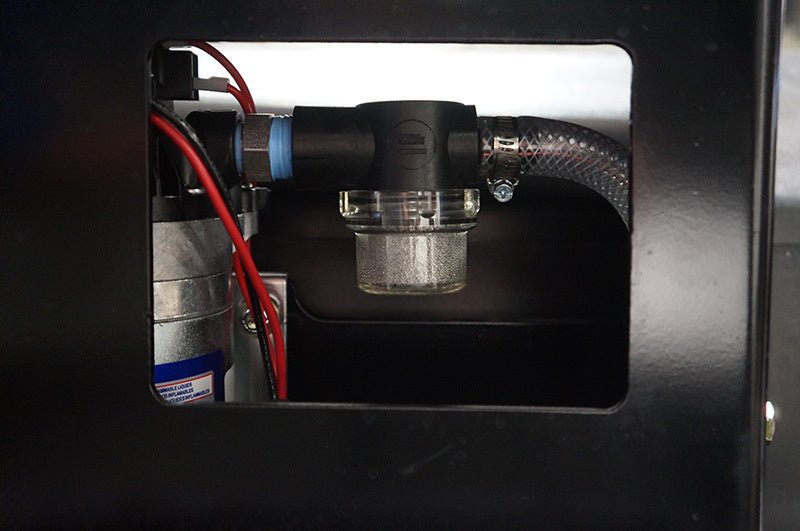

  • Optional 37 gallon low profile pressurized water system kit

PRODUCT SPECS

PART NUMBER SIZE WEIGHT WIRE/POLY WAFERS TOTAL WAFERS WATER RUN TIME FLOW RANGE
116512 60″ 995 lbs 15 wire / 16 poly 31 58 minutes 15-25 GPM
116517 72″ 1,390 lbs 18 wire / 19 poly 37 40 minutes 15-25 GPM
116522 84″ 1,585 lbs 21 wire / 22 poly 43 38 minutes 15-25 GPM
116527 96″ 1,765 lbs 24 wire / 25 poly 49 33 minutes 15-25 GPM
116555 (Optional Gutter Brush) 128 lbs

PART NUMBER MODEL SIZE WEIGHT
316571 Optional Water Tank fits 60" (Includes Harness and Spray Bar) 37 gal 70 lbs
316573 Optional Water Tank fits 72" (Includes Harness and Spray Bar) 37 gal 95 lbs
316576 Optional Water Tank fits 84" (Includes Harness and Spray Bar) 37 gal 120 lbs
316579 Optional Water Tank fits 96" (Includes Harness and Spray Bar) 37 gal 125 lbs
