Economy Spreader Beams
SKU: SBM-10-3
Lead time of 6 weeks

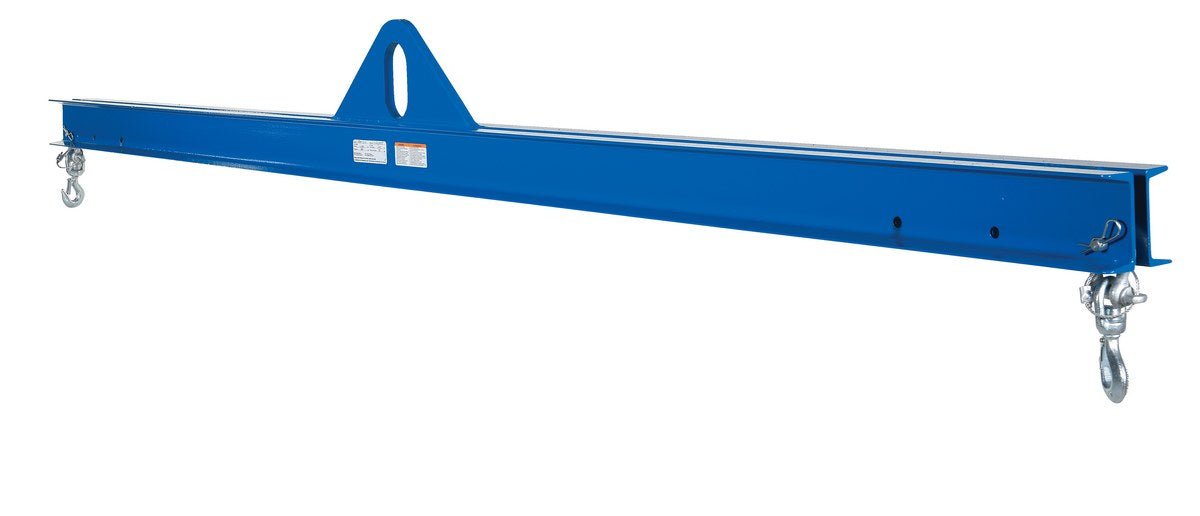

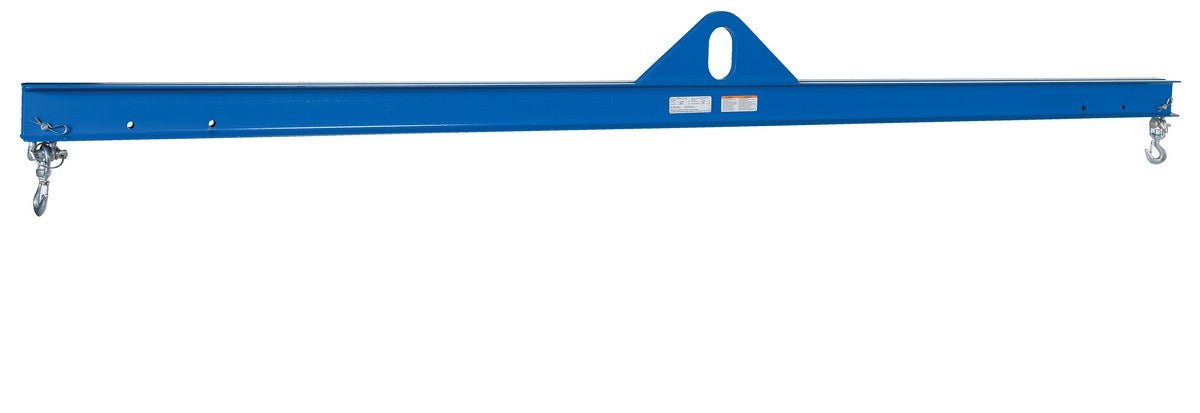

These versatile lifters are ideal for lifting a variety of loads where headroom is limited

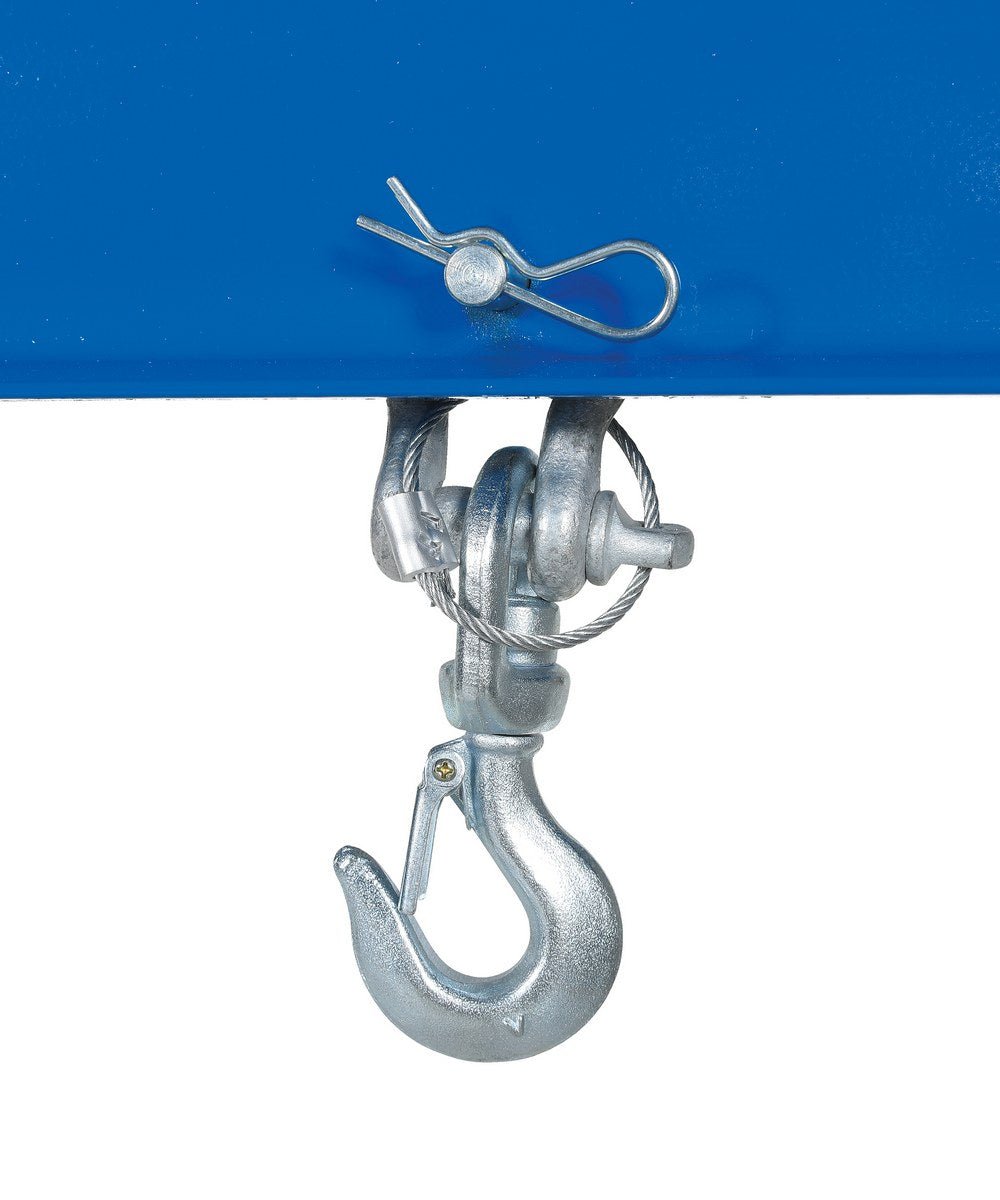

Complies with OSHA and ANSI B30.20 standards. Usable bail is 3" wide, 5" high. Two safety swivel hooks and durable baked-in powder-coat finish for toughness. Heavy-duty welded steel construction.
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
| Economy Spreader Beams | |||||
| Model | PDF's | Min./Max. Spread |
Headroom | Capacity (lbs) |
Wt. (lbs) |
| SBM-10-3 |

|
21"/33" | 14" | 1,000 | 67 |
| SBM-10-4 |
|
33"/45" | 14" | 1,000 | 75 |
| SBM-10-6 |
|
45/69" | 14" | 1,000 | 93 |
| SBM-10-8 |
|
69"/93" | 14" | 1,000 | 105 |
| SBM-10-10 |
|
93"/117" | 14" | 1,000 | 141 |
| SBM-10-12 |
|
117"/141" | 14" | 1,000 | 212 |
| SBM-20-3 |
|
21"/33" | 14" | 2,000 | 54 |
| SBM-20-4 |
|
33"/45" | 14" | 2,000 | 61 |
| SBM-20-6 |
|
45"/69"" | 14" | 2,000 | 103 |
| SBM-20-8 |
|
69"/93" | 14" | 2,000 | 159 |
| SBM-20-10 |
|
93"/117" | 15" | 2,000 | 188 |
| SBM-20-12 |
|
117"/141" | 15" | 2,000 | 268 |
| SBM-40-3 |
|
21"/33" | 14-3/8" | 4,000 | 79 |
| SBM-40-4 |
|
33"/45" | 14-3/8" | 4,000 | 112 |
| SBM-40-6 |
|
45"/69" | 15-3/8" | 4,000 | 147 |
| SBM-40-8 |
|
69"/93" | 18-3/8" | 4,000 | 222 |
| SBM-40-10 |
|
93"/117" | 18-3/8" | 4,000 | 275 |
| SBM-40-12 |
|
117"/141" | 18-3/8" | 4,000 | 295 |
| SBM-60-3 |
|
21"/33" | 15-11/16" | 6,000 | 78 |
| SBM-60-4 |
|
33"/45" | 15-11/16" | 6,000 | 146 |
| SBM-60-6 |
|
45"/69" | 18-11/16" | 6,000 | 187 |
| SBM-60-8 | |
69"/93" | 18-11/16" | 6,000 | 247 |
| SBM-60-10 |
|
93"/117" | 18-11/16" | 6,000 | 305 |
| SBM-60-12 |
|
117"/141" | 18-11/16" | 6,000 | 393 |
KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
