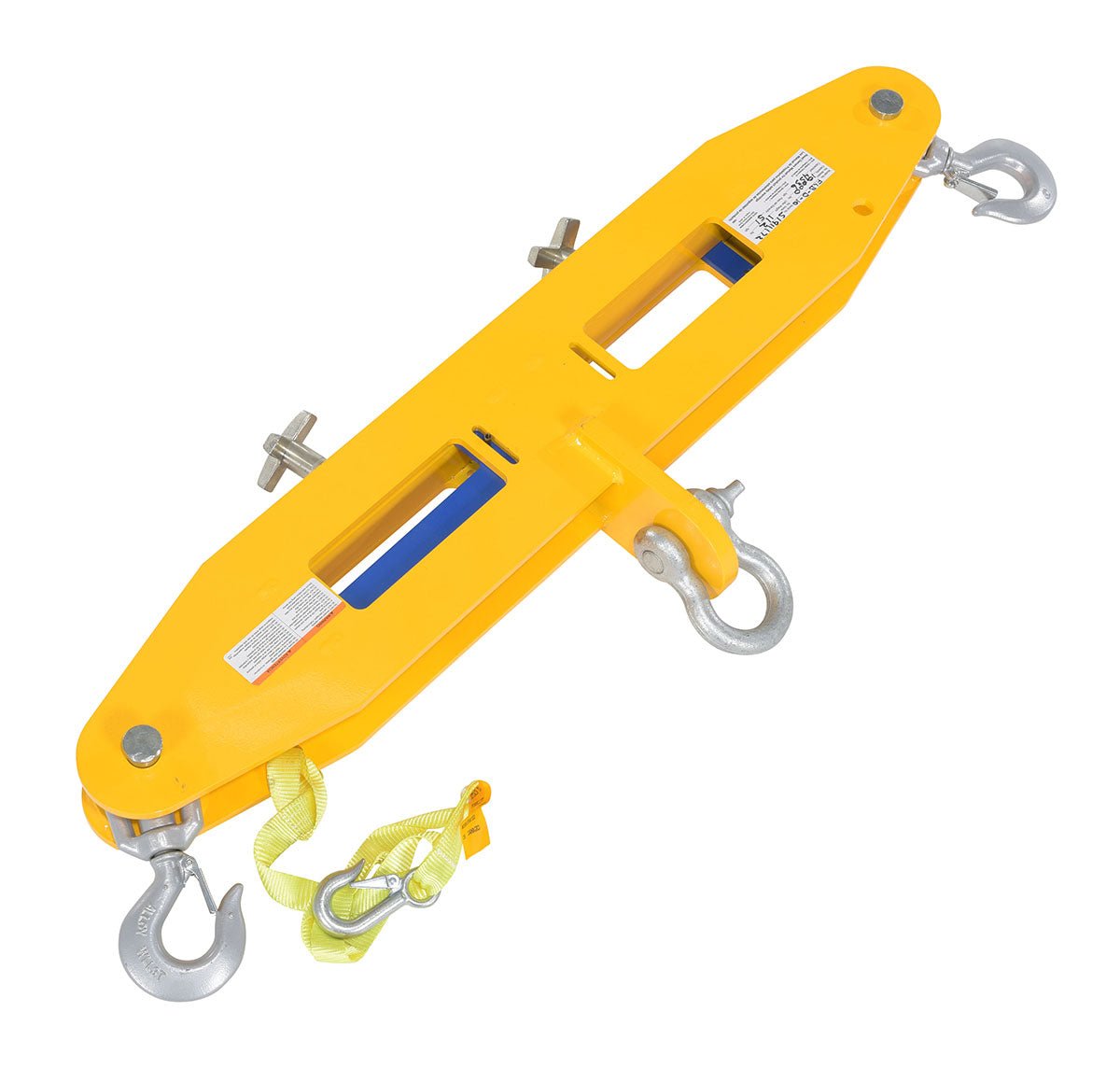

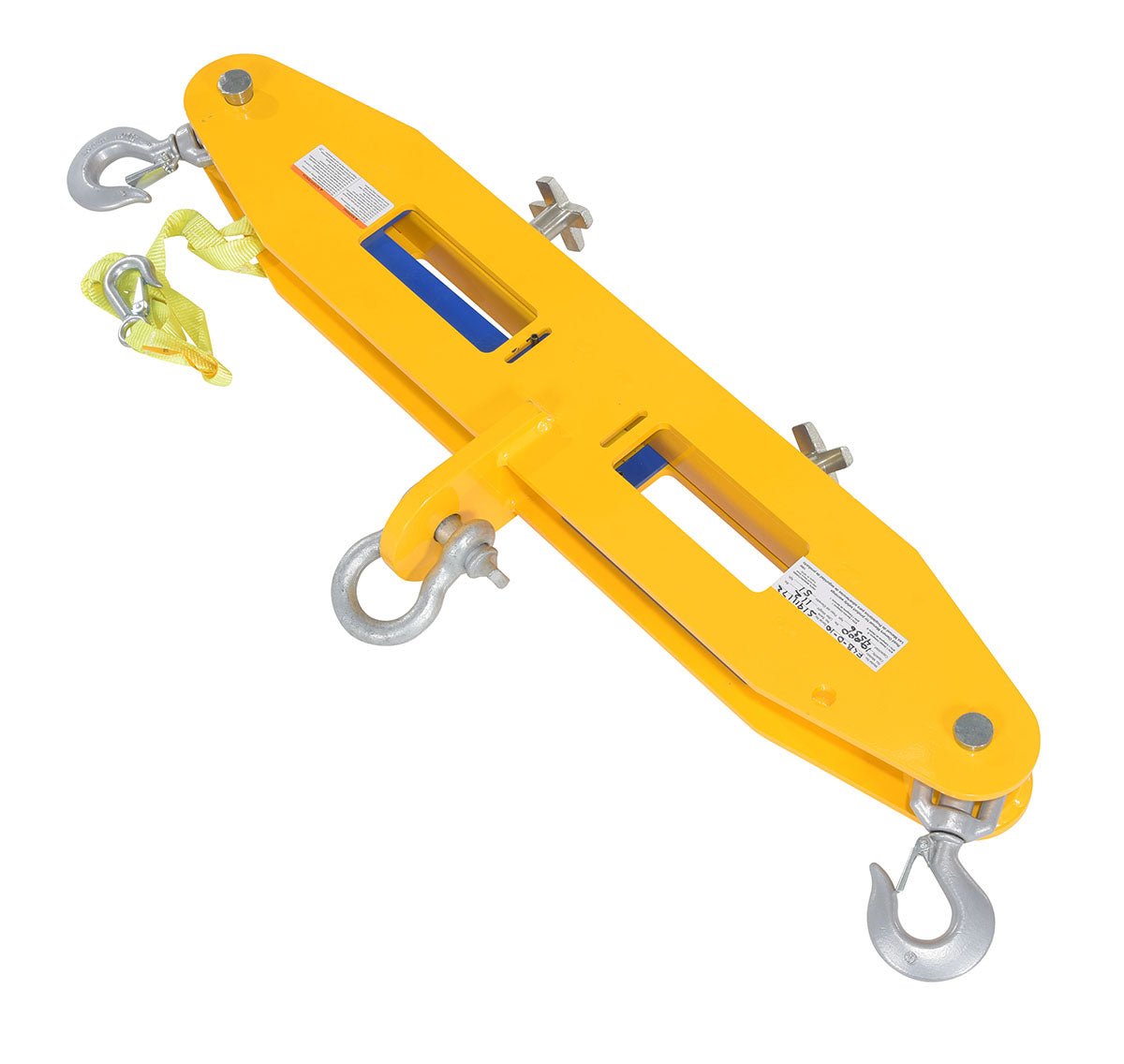

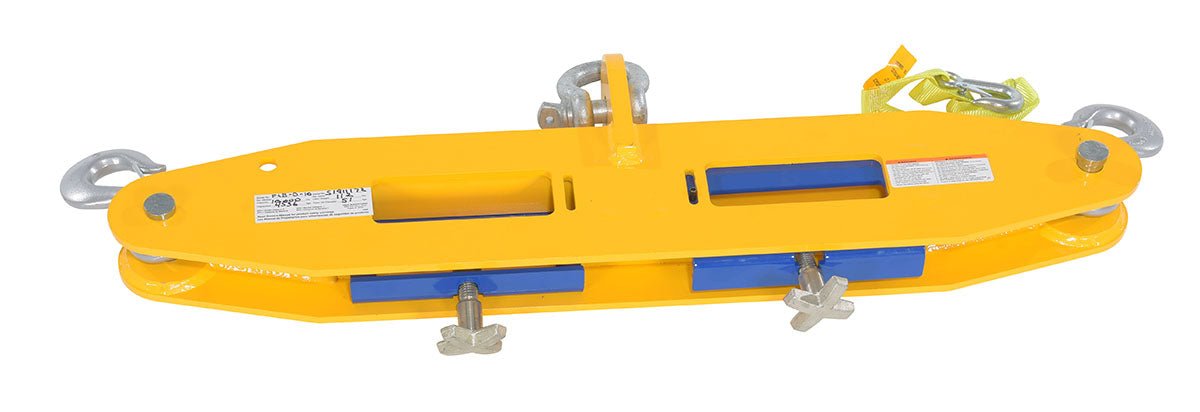

Forklift Lifting Beam
SKU: FLB-D-4
A Forklift Lifting Beam is the perfect asset for maneuvering and transferring heavy objects.
The centrally located hook between two fork pockets allow the user to safely attach to the unit and transport to the desired location. Hooks are also attached to the outside of the unit for a more secure lifting experience. The strong steel construction with a bright finish enables high visibility from both near and far. Secure to the fork truck by means of a 48" long safety restraint and screw clamps.
- Large fork openings for easy attachment
- Durable construction for long term use
- Smooth finish for easy handling
- Yellow surface color for clear visibility
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
| Fork Lifting Beam | ||||
| Model | Overall Size (WxLxH) |
Usable Fork Pocket Size (WxH) | Capacity (lbs) |
Wt. (lbs) |
| FLB-D-4 | 4-7/8"x40"x17-1/16" | 7" x 2-1/2" (13" centers) | 4,000 | 100 |
| FLB-D-6 | 4-7/8"x40"x17-1/16" | 7" x 2-1/2" (13" centers) | 6,000 | 105 |
| FLB-D-10 | 4-3/4"x40"x15" | 7" x 2-1/2" (13" centers) | 10,000 | 112 |
KEY:
= Approval Drawing --
= Warranty --
= Testing Certificate
