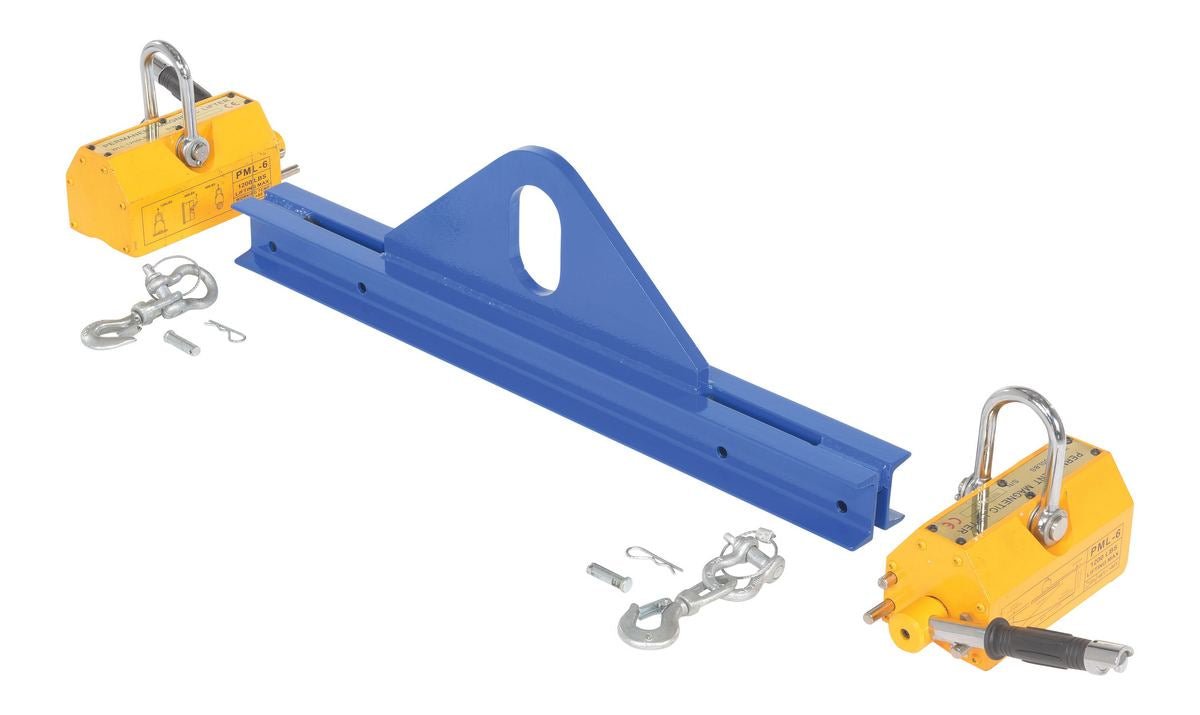

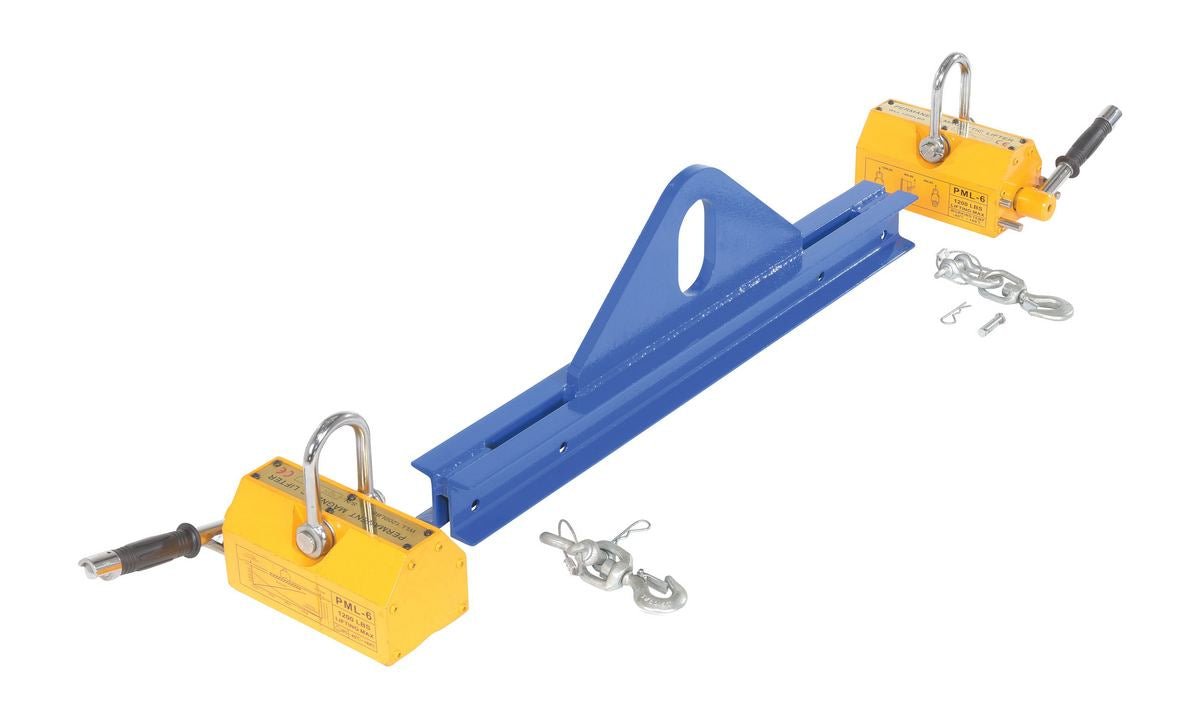

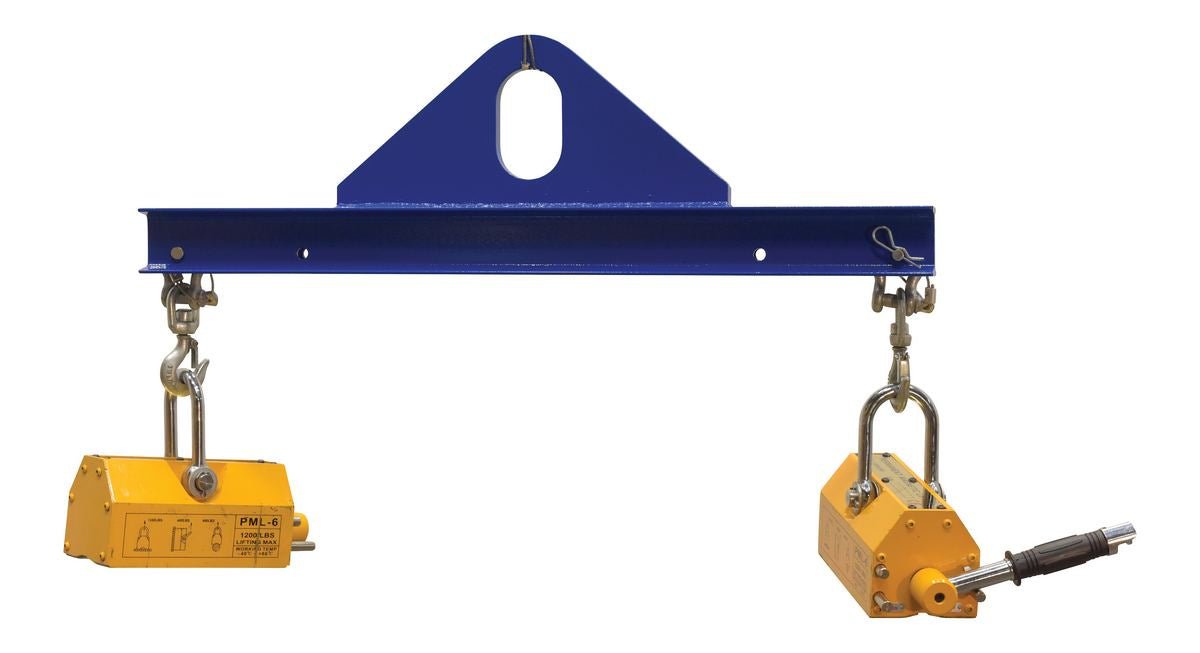

Magnetic Spreader Beams
SKU: SBM-10-3-ML

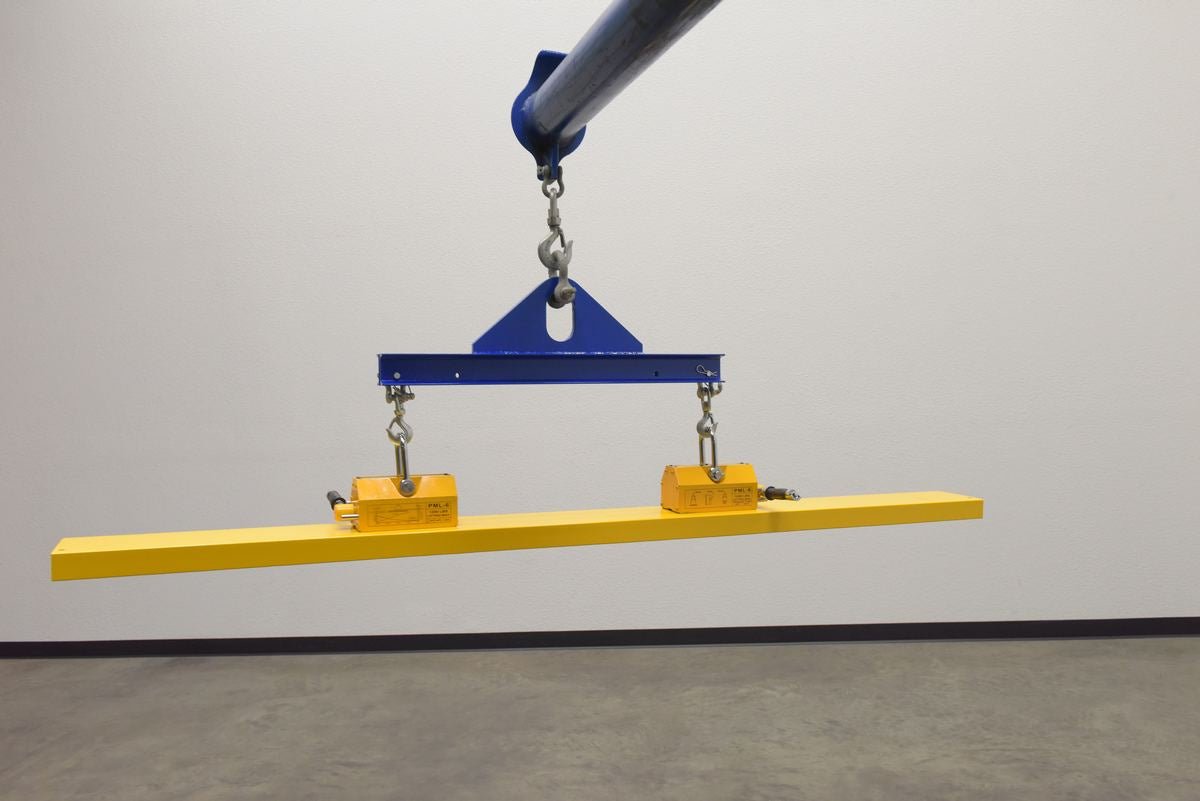

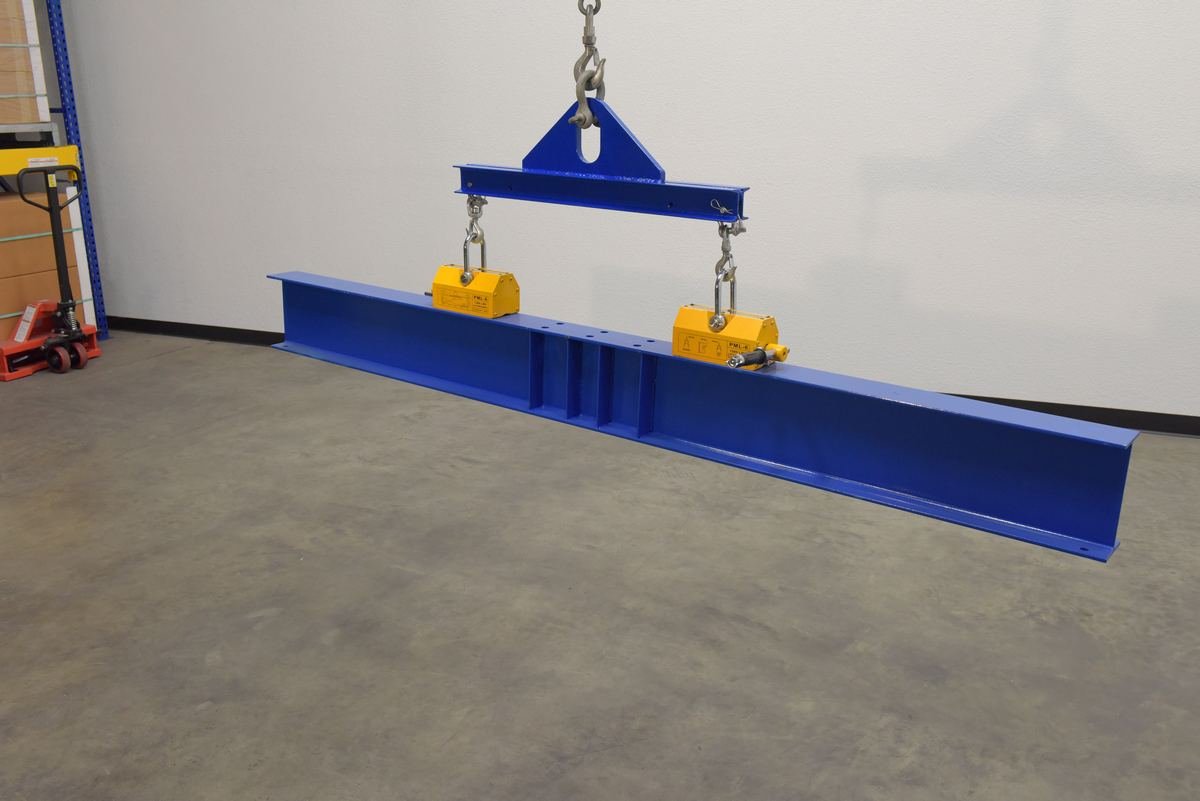

This versatile magnetic Spreader Beam is ideal for lifting a variety of loads where headroom is limited.
The attached magnets allow for easy lifting and transferring of products from workstation to workstation. Powder coated finish limits abrasion and ads durability to the units' longevity.
- Designed to lift and move uneven and awkward loads
- Large capacity for moving objects both big and small
- Includes magnets for lifting versatility
- Steel construction for heavy duty performance
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
| Magnetic Spreader Beams | ||||
| Model | Min./Max. Spread |
Headroom | Capacity (lbs) |
Wt. (lbs) |
| SBM-10-3-ML | 21"/33" | 20 15/16" | 1,000 | 114 |
| SBM-10-4-ML | 33"/45" | 20 15/16" | 1,000 | 122 |
| SBM-10-6-ML | 45/69" | 20 15/16" | 1,000 | 174 |
| SBM-10-8-ML | 69"/93" | 20 15/16" | 1,000 | 186 |
| SBM-10-10-ML | 93"/117" | 20 15/16" | 1,000 | 222 |
| SBM-10-12-ML | 117"/141" | 20 15/16" | 1,000 | 293 |
| SBM-20-3-ML | 21"/33" | 22 11/32" | 2,000 | 122 |
| SBM-20-4-ML | 33"/45" | 22 3/8" | 2,000 | 130 |
| SBM-20-6-ML | 45"/69"" | 22 3/8" | 2,000 | 246 |
| SBM-20-8-ML | 69"/93" | 22 3/8" | 2,000 | 302 |
| SBM-20-10-ML | 93"/117" | 22 3/8" | 2,000 | 331 |
| SBM-20-12-ML | 117"/141" | 22 3/8" | 2,000 | 375 |
