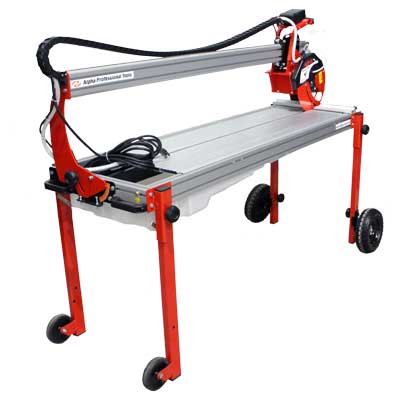

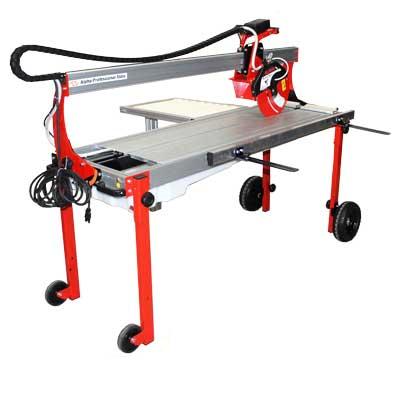

Black Belt Rail Saw BBS-012
Black Belt Rail Saw BBS-012
Wet Rail Saw for Large Format Tiles
Alpha® introduces the black belt rail saw which a professional quality rail is saw, ideal for cutting ceramics, porcelain, glass panel and other materials. It comes with many features such as a rugged aluminum table chassis for a stable operation, and a maintenance-free magnetic-induction water pump that delivers ample water to both sides of blade. This extremely reliable saw is equipped with a 115v-60hz, 9.6amp, 2hp (1.5kw), 2,800 RPM motor with direct drive shaft and accepts 10” & 12” blades.
Features
- Professional Quality Rail Saw, Ideal for Cutting Ceramics, Porcelain, Glass Panel and Other Materials
- Rugged Aluminum Table Chassis for Stable Operation with a Long Life
- Equipped With A 115V-60HZ, 9.6AMP, 2HP (1.5KW), 2,800 RPM Motor with Direct Drive Shaft
- Supports 10” & 12” Blades With 1” And 60mm Arbors
- It Can Cut Up To 2-1/4” Deep in a Single Pass, 3-3/8” With Step Cut
- The Cutting Head’s Mechanical Vertical Tilting System Allows for Cutting Depth Adjustment
- Stainless Steel Head Rails and Adjustable Armored Ball Bearings for Smooth and Precision Movement
- Cutting System’s Side Tilt Capability Eases Up To 45 Degree Cut (Ideal for Miter Cuts)
- Extremely Reliable, Maintenance Free Magnetic-Induction Water Pump Delivers Ample Water to Both Sides of Blade
- Retractable Legs Include a Fall-Protection Device
- Table Handles and Heavy-Duty Wheels Make for Easy Transportation
- Front, Back and Bilateral Blade Guards Minimize Exposure of Blade for Safety and Reduces Water Splash
- Rip Cut Up To 51" (130cm) and Diagonal Cut Up To 33" (84cm)
- Maximum Load 400lbs (180kgs)
- Total Weight 128lbs (58kg)
- One Year Tool Warranty*
| Manual: | Black Belt Saw BBS-012 Manual v0624 |
| Flyer: | Black Belt Saw BBS-012 |
| Flyer: | New From Alpha 2024 |
| Other: | Warranty Information |
| Product Details |
|---|
| Specification | Data |
|---|---|
| Model | BBS-012 |
| Rating | 115Volts |
| Frequency | Single-phase AC, 60Hz |
| Amperage | 9.6A |
| Power | 1200W |
| Max. RPM | 2,800 RPM |
| Max. HP | 2.0 HP (1.5KW) |
| Weight | 128 lbs. (58 kgs) |
| Arbor | 1" (25.4mm) & 60mm |
| Cutting Disc Diameter | 10" / 12" (250mm / 300mm) |
| Max. Cutting Depth | 2-1/4” Single Pass, 3-3/8” Step Cut |
| Max. Cutting Length | Straight 51" (130cm), Diagonal 33" (84cm) |
| Cord | 16.4ft (5m) Single Phase |
| Plug Type | 16A 120V ~ 2P+T |
|
|
