10′ Tech Tripod Kit: 65′ Material Winch, 65′ 3-Way

Name: 10′ Tech Tripod Kit: 65′ Material Winch, 65′ 3-Way
Brand: Safewaze
SKU: 022-11035
Price: 4239.64 USD
Availability: InStock

SKU# 022-11035

$4,239.64 Was: $4,592.93 Save $353.29

Shipping calculated at checkout.

Safe & Secure Payments

Flexible financing available

Discover your options →

PEAC Solutions

Orders $3,000+

Apply Now

Tripod Kits

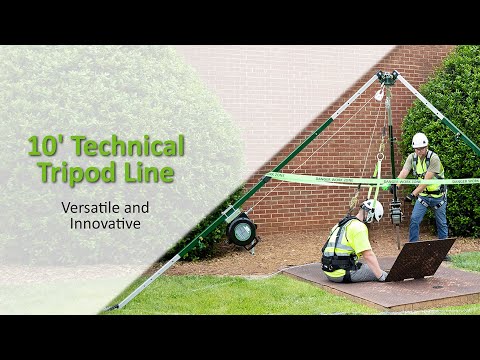

The 10′ Tech Tripod Kit: 65′ Material Winch, 65′ 3-Way is our premium tripod with multiple configurations to fit a wide variety of work zones. The massive stance adjusts up to 18′ to cover confined space, trenches, bridges, mines, rescue, inspections and more. The unique design allows use in over-edge scenarios such as cliffs or vertical walls. This system is lightweight with quick setup and adjustability and includes a multi-function fall protection device plus winch to raise and lower gear.

Features:

Lightweight yet durable aluminum construction
Quick setup with detent pins for easy height and diameter adjustment
Multiple stance configurations fit a variety of work zones, including an over-edge scenario
(7) Individual 5,000 lb. anchor points in head unit with a centered 360° captive eye
Secure foundation with rubber pads on multi-surface steel feet
Equipped with (included):
-65′ 3-Way system for fall protection
-65′ Material winch efficiently moves gear
-(2) Aluminum pulleys
-(2) Steel carabiners
-(2) Universal mounting brackets
-Safety chain and quick link
-Heavy-duty storage bag with wheels for easy transport, multiple handles, padded shoulder strap and labeled pockets for organization

Specifications:

Materials:	Aluminum tripod and head unit, stainless steel captive eye, powder coated steel feet with rubber foot pads, zinc plated steel chain and fasteners, nylon and stainless steel detent pins, aluminum pulleys, plated steel carabiners and mounting brackets
3-Way System Materials:	Aluminum housing, plated steel and stainless steel components, galvanized steel cable, plastic handle
Material Winch Materials:	Powder coated steel device, plated steel components, galvanized steel cable, and plastic handle
Packed Length:	97.2" (247 cm)
Packed Width:	12" (30.5 cm)
Working Height:	Tallest stance 119" (302.3 cm), Shortest stance 53.5" (135.9 cm)
Working Diameter:	Narrowest stance 86.6" (219.9 cm), Widest stance 218" (553.7 cm)
Weight:	133.5 lbs. (60.6 kg)
Tripod Attachment Points:	1 captive eye, 6 anchor points on tripod head
Minimum Breaking Strength:	5,000 lbs.
ANSI Weight Capacity:	130-310 lbs. (59-141 kg)
OSHA Weight Capacity:	Up to 420 lbs. (190 kg)
Maximum Material Capacity:	620 lbs. (281 kg)
ANSI Standards:	Z359.18-2017 Type T, Z359.4-2013, Z117.1-2022, Z359.14-2021
OSHA Standards:	1910.140, 1926.502
