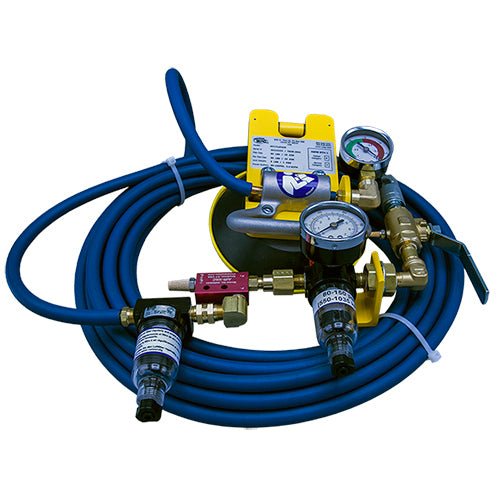

Wood's Powr-Grip Air-Powered Tilter MT1TL6FAIR 50 lb

Wood's Powr-Grip MT1TL6FAIR Air-Powered Tilter Precision Small Load Handling for Production Lines

The Wood's Powr-Grip MT1TL6FAIR is an air-powered vacuum lifter and tilter designed for production and fabrication environments where small load handling demands speed, reliability, and repeatability. Rated for loads up to 50 lbs [23 kg], this unit connects directly to an existing compressed air supply — no dedicated electrical power source required. It is purpose-built for professional equipment operators working in manufacturing, light fabrication, and assembly line applications where controlled tilting and vacuum lifting must be performed safely and efficiently.

Unlike electric-powered alternatives, the MT1TL6FAIR leverages your facility's existing compressed air infrastructure, eliminating additional power cabling and reducing setup complexity on the production floor. The integrated tilter function allows operators to reorient loads without manual repositioning, improving ergonomics and throughput on repetitive tasks.

Key Features & Benefits

Air-Powered Operation

Designed to connect directly to an existing compressed air supply, this lifter requires no electrical hookup, simplifying installation in production environments. Compressed air powers both the vacuum pump (venturi-style) and the tilt actuator, delivering consistent performance without battery dependency or electrical hazards.

Integrated Tilt Function

The built-in tilt actuator allows controlled tilting of secured loads, enabling operators to reorient parts for assembly, inspection, or placement without breaking the vacuum seal or manually handling the load. Tilt speed valves and tilt stop valves provide precise control over tilt rate and end position.

Vacuum Reserve Tank

An onboard vacuum reserve tank maintains suction in the event of a momentary air supply interruption, providing an added layer of safety during load handling. This reservoir helps ensure the load remains secured even during brief fluctuations in compressed air pressure.

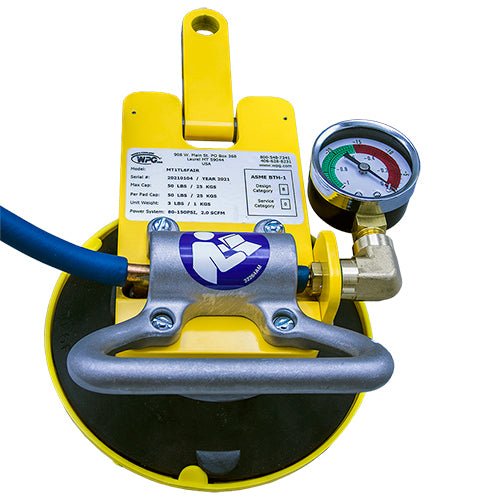

Vacuum Gauge Monitoring

An integrated vacuum gauge gives operators a real-time visual indication of seal integrity throughout the lift and move cycle. Proper gauge reading protocols are outlined in the operating instructions, allowing operators to verify safe vacuum levels before and during load transit.

Durable, Serviceable Design

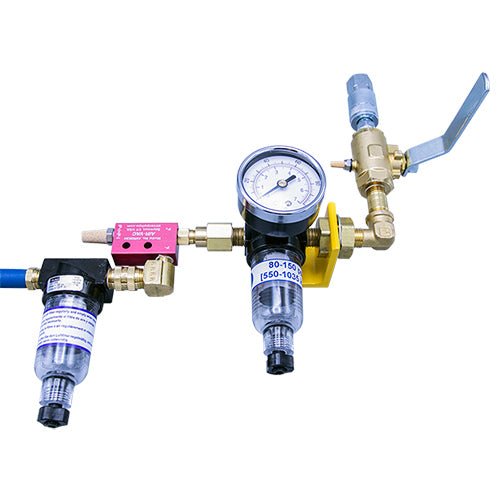

The MT1TL6FAIR is engineered for sustained production-line use with a clearly defined service and maintenance schedule. Key serviceable components include the air filter (available in 1 oz, 2 oz, and 4.4 oz bowl sizes), vacuum pad, tilt actuator, tilt master valve, and vacuum pump — all documented in the dedicated service manual.

Lightweight and Maneuverable

Sized for small load handling up to 50 lbs [23 kg], this unit is well-suited for repetitive pick-and-place or tilt operations where operator fatigue is a concern. The control handle and pad shutoff enable one-operator control throughout the full lift, tilt, and release sequence.

Common Applications

Production Line Part Handling

Ideal for repetitive lifting and tilting of small components on assembly or fabrication lines, improving throughput and reducing manual strain on operators.

Light Fabrication Shops

Used in metal, glass, stone, or composite fabrication shops to handle and orient finished or semi-finished parts without surface damage from mechanical gripping.

Assembly Reorientation

Enables controlled tilting of parts during assembly sequences, allowing precise component placement without manual repositioning or additional fixtures.

Quality Inspection Positioning

Allows inspectors to tilt and reposition small panels or parts to access all surfaces for visual or dimensional inspection without hand contact with finished surfaces.

Packaging and Palletizing

Assists in lifting and tilting small loads into packaging configurations or onto pallets, reducing repetitive-motion injury risk for line workers.

Material Transfer Between Workstations

Facilitates safe, consistent transfer of small production parts between adjacent workstations or fixtures where load orientation must be maintained or changed.

Compatible Materials

• Smooth flat metal panels and fabricated parts
• Glass panels and lites (within rated load capacity)
• Smooth stone and solid surface materials
• Composite and laminate panels with non-porous faces
• Plastic sheet and formed plastic components
• Painted or coated surfaces suitable for vacuum pad contact
• Any non-porous, sufficiently flat load surface within the 50 lb [23 kg] rated capacity

Product Documents

• Operating Instructions
• Service Manual — Compressed Air Power System
• Troubleshooting Guide
• Specifications Sheet

Application Instructions

Before Using the Lifter

1. Read and understand the full operating instructions before operating this equipment.
2. Take all required safety precautions for the work environment and load type.
3. Perform all required pre-use inspections and tests as outlined in the Inspections and Tests section of the operating instructions.
4. Verify that the compressed air supply is connected and that air pressure is within the specified operating range.
5. Confirm that the vacuum pad is in good condition — free of cracks, tears, or contamination — before attaching to any load.

Attaching the Pad to a Load

1. Activate airflow through the compressed air supply valve to begin generating vacuum at the pump (venturi).
2. Position the vacuum pad squarely on the load surface, ensuring the pad contacts the load evenly across its full sealing surface.
3. Press the pad firmly against the load surface to initiate the seal.
4. Read the vacuum gauge to confirm that the vacuum level has reached the safe operating threshold before lifting.
5. Perform the Lifter/Load Compatibility Test and Operational Tests as required prior to the rated load lift.

Lifting and Moving the Load

1. Continuously monitor the vacuum gauge during all lifting and movement operations.
2. Interpret gauge readings according to the guidelines in the operating instructions — do not proceed if vacuum drops below the safe threshold.
3. Control the lifter and load using the control handle, moving smoothly and avoiding sudden accelerations or impacts.
4. In the event of a power failure, follow the power failure procedures outlined in the operating instructions immediately.

Tilting the Load

1. With the load secured at full vacuum, engage the tilt control valve to initiate tilting.
2. Use the tilt speed valves to regulate the rate of tilt to the desired speed.
3. Use the tilt stop valves to arrest tilt motion at the desired angle.
4. Confirm the vacuum gauge remains within safe range throughout the tilt operation.

Landing and Releasing the Load

1. Lower the load gently to the target surface using the hoist or support system.
2. Confirm the load is fully supported and stable before releasing vacuum.
3. Use the pad shutoff to release vacuum and detach the pad from the load surface.
4. Verify the load is fully released before moving the lifter away.

After Using the Lifter

1. Disconnect the compressed air supply.
2. Inspect the vacuum pad and all components for wear or damage.
3. Clean the vacuum pad with mild soap and water as needed.
4. Store the lifter in a clean, dry location per the storage guidelines in the operating instructions.
5. Follow all transport guidelines when moving the lifter between locations.

Technical Specifications

Safety Data Summary

Hazard Information

• This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.
• For more information, visit www.P65Warnings.ca.gov.
• Never operate this lifter without reading and fully understanding the operating instructions.
• Do not lift loads exceeding the rated capacity of 50 lbs [23 kg].
• Do not use on porous, rough, or uneven load surfaces that prevent a complete vacuum seal.
• Monitor the vacuum gauge continuously during all lifting and tilting operations.
• Disconnect the compressed air supply before performing any service or maintenance.
• Never use the bowl drain on air filters to remove liquids — this can cause air leaks.
• In the event of a power failure, follow the power failure procedures in the operating instructions immediately.

Personal Protective Equipment

• Operators should wear appropriate PPE as required by the work environment and applicable safety regulations.
• Eye protection is recommended when working with compressed air systems.
• Safety footwear is recommended when handling suspended loads.

Safe Handling

• Intended for use by professional, trained equipment operators only.
• Service must only be performed by qualified service personnel familiar with the service manual and operating instructions.
• Perform all required pre-use inspections and tests — including the Lifter/Load Compatibility Test, Vacuum Test, and Rated Load Test — before normal operation.
• Service the lifter whenever a deficiency is indicated by routine inspections or tests, and before resuming normal operation.
• Store and transport the lifter per the guidelines in the operating instructions.
• Replace the vacuum pad or air filter elements whenever they show wear, contamination, or reduced performance.

Frequently Asked Questions

Q: What compressed air pressure is required to operate the MT1TL6FAIR?
A: Specific operating pressure requirements are detailed in the Specifications Sheet (PDF linked above). The unit is designed to connect to a standard facility compressed air supply; consult the specifications document or contact Wood's Powr-Grip for the exact pressure range required for your installation.

Q: Can this lifter be used on porous or rough surfaces?
A: No. The vacuum pad requires a sufficiently smooth, non-porous load surface to achieve and maintain an adequate seal. Operating on porous, rough, or uneven surfaces can result in vacuum loss and an unsafe drop of the load. Always perform the Lifter/Load Compatibility Test before each new application.

Q: What happens if the compressed air supply fails during a lift?
A: The MT1TL6FAIR includes a vacuum reserve tank that helps maintain suction during brief air supply interruptions. In the event of a power failure, operators must immediately follow the power failure procedures outlined in the operating instructions to safely manage the suspended load.

Q: How often should the air filters be serviced?
A: Air filters should be inspected regularly and serviced whenever the filter bowl contains liquid or contaminants, or when there is a noticeable increase in the time required to attain full vacuum. The service manual provides step-by-step filter service procedures for 1 oz, 2 oz, and 4.4 oz bowl sizes.

Q: Is this product available for direct purchase, or through dealers only?
A: The Wood's Powr-Grip MT1TL6FAIR is sold exclusively through Authorized Dealers. Diamond Tool Store is an authorized dealer. Contact us for pricing and availability.

Q: What documents are available to support operation and maintenance of this lifter?
A: Wood's Powr-Grip provides a full set of supporting documentation including Operating Instructions, a Compressed Air Power System Service Manual, a Troubleshooting Guide, and a Specifications Sheet. All four documents are available as PDF downloads in the Product Documents section above.
