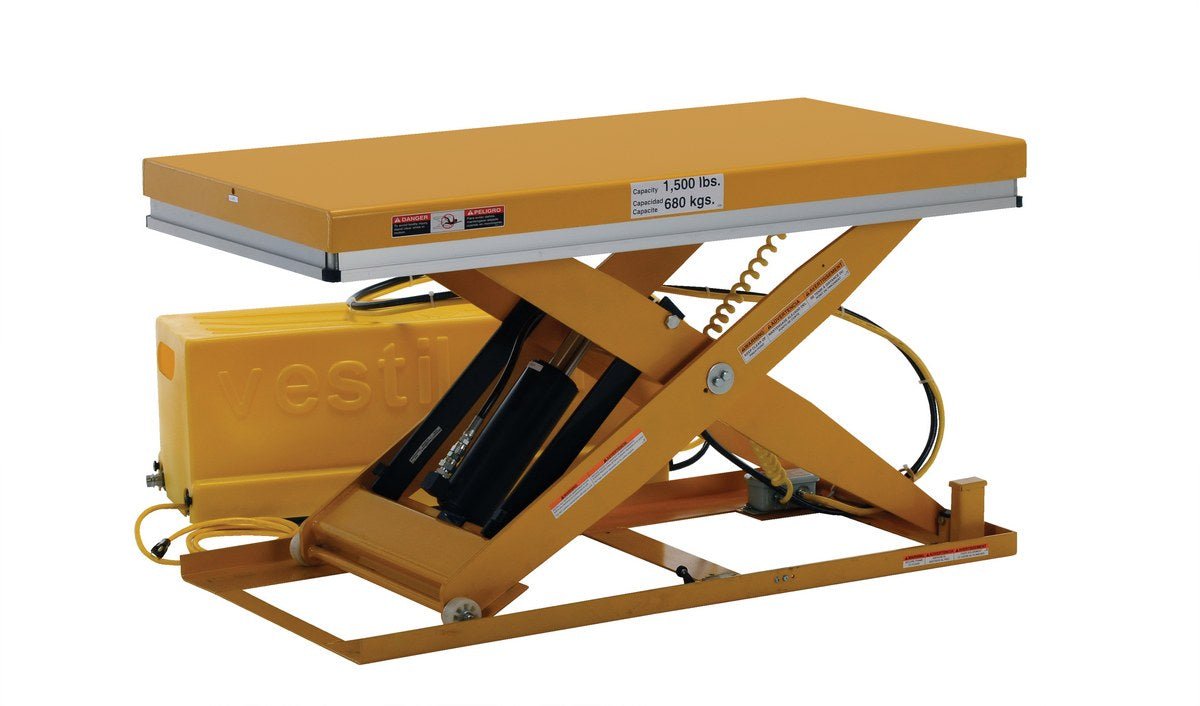

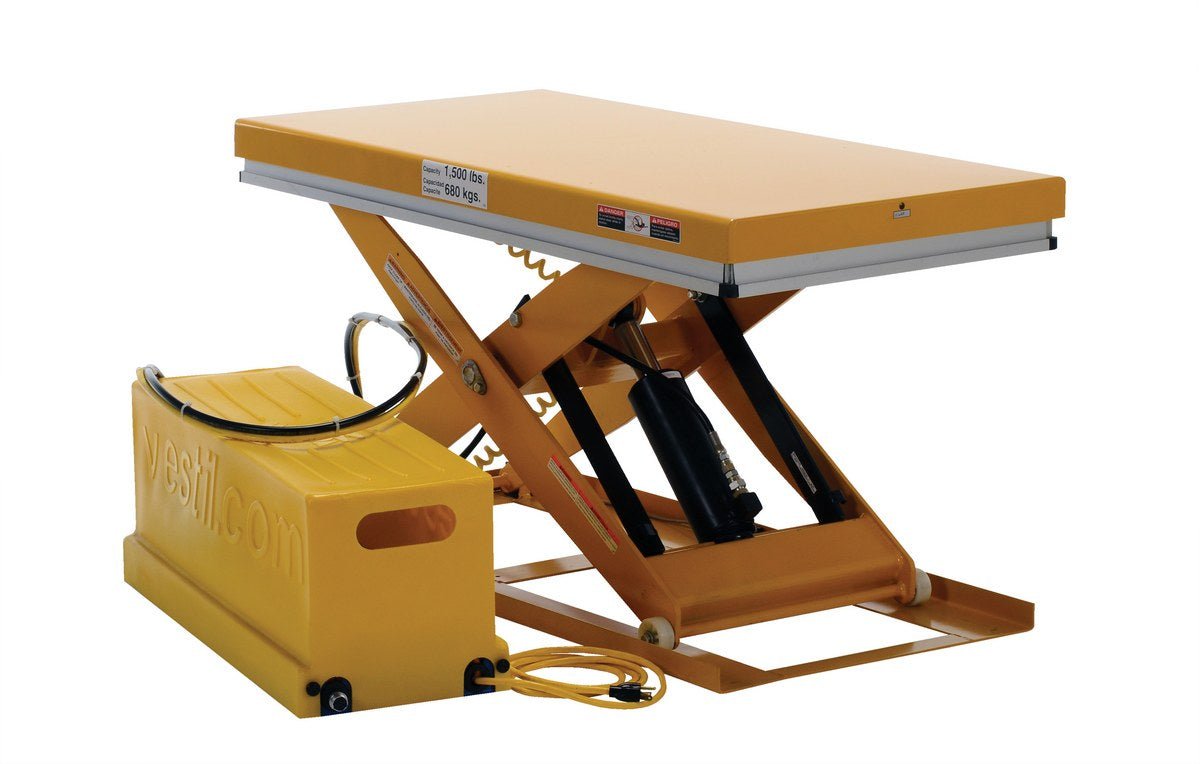

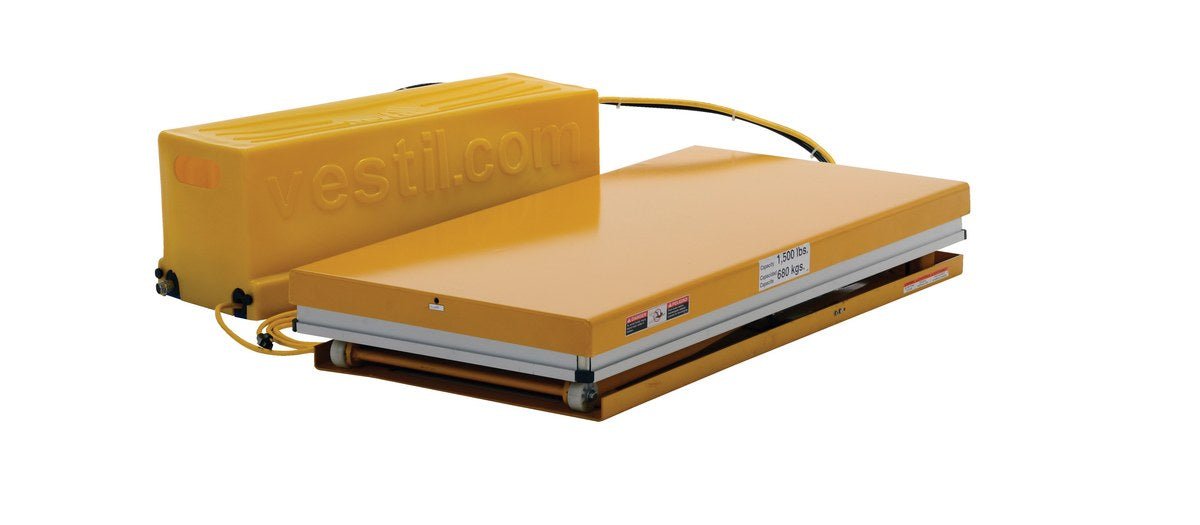

Work Station Electric Hydraulic Scissor Tables
SKU: EHLT-WS-2436-1.5-31

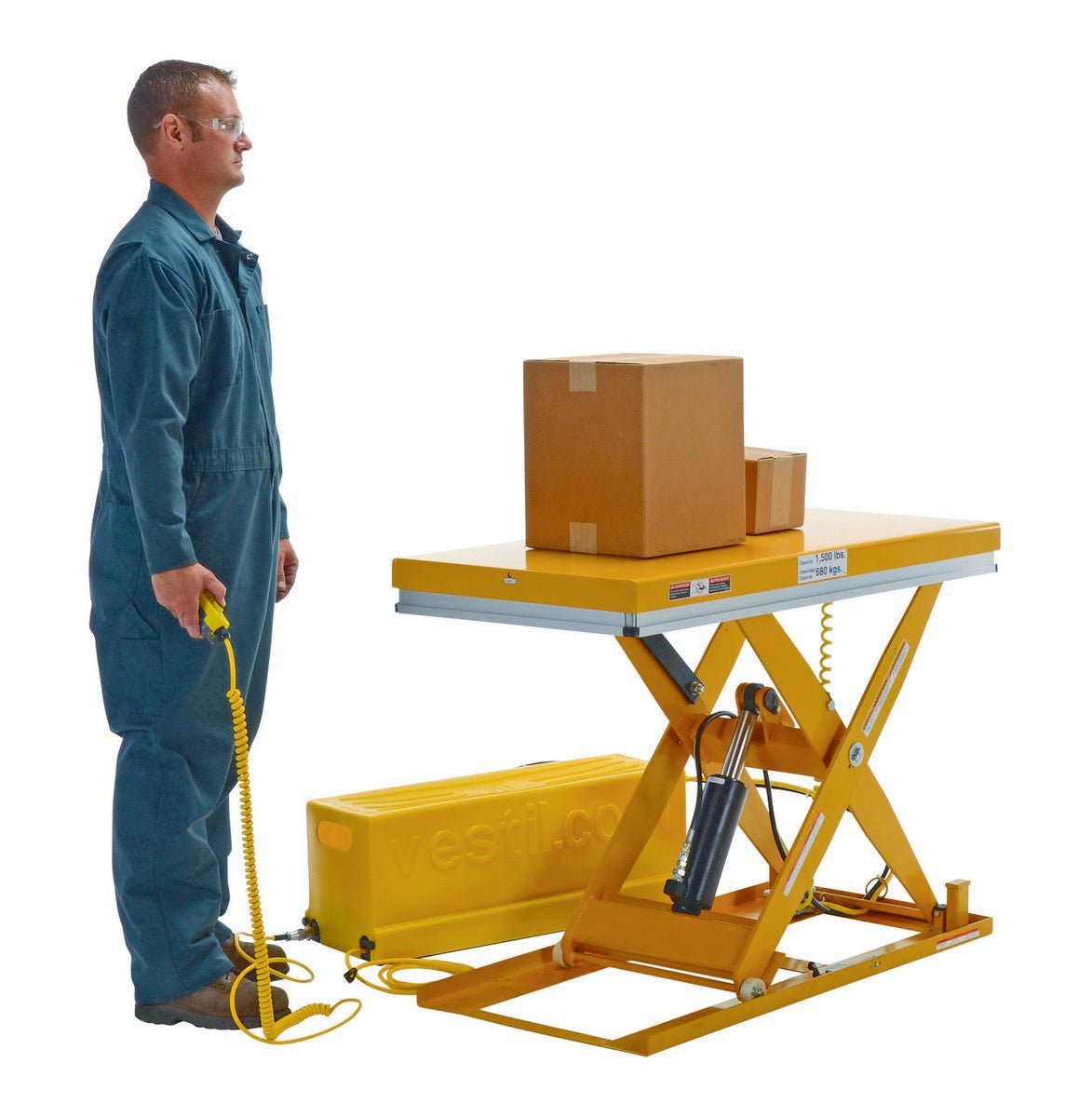

The work station electric hydraulic scissor table is designed to raise products up to an ergonomic working height.

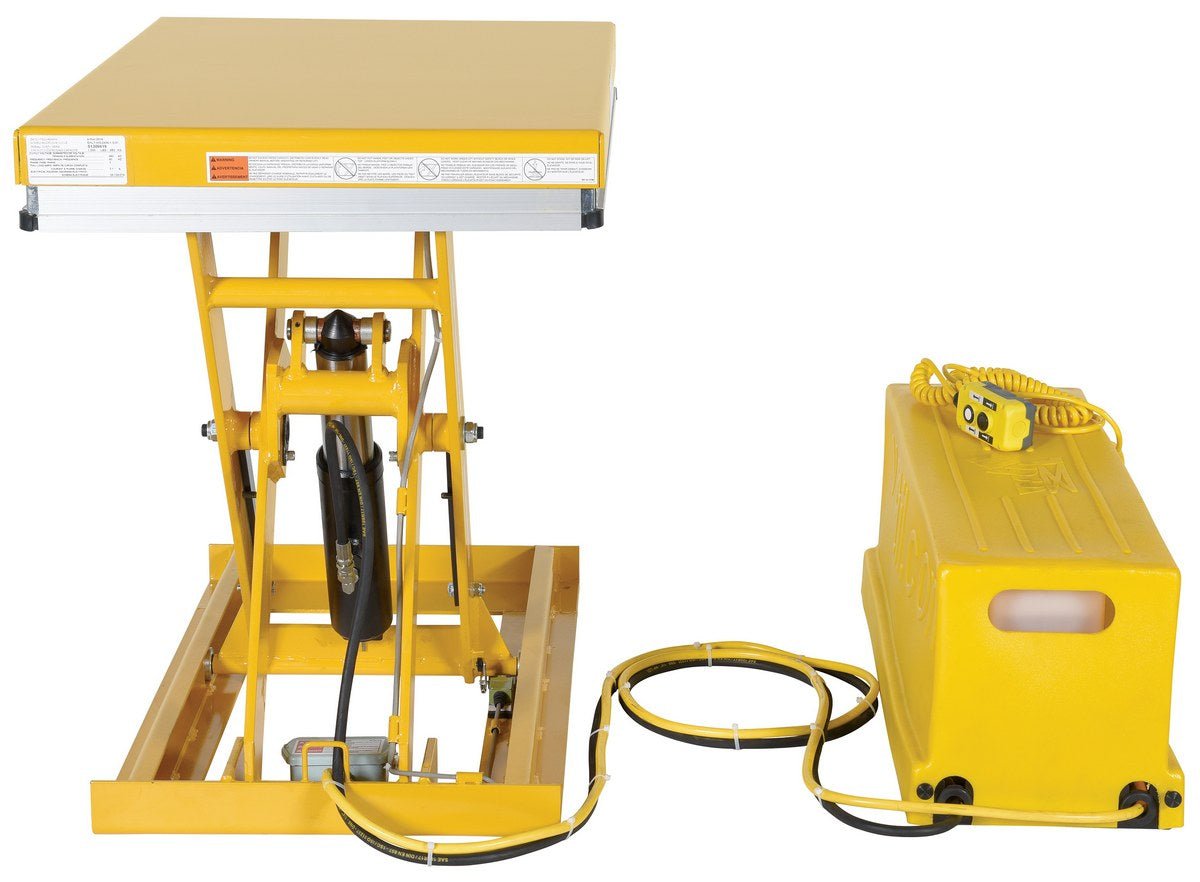

It maximizes safety with minimum space requirements and is ideal for all types of manufacturing and warehouse facilities. The 460V 3-Phase external power unit can be located eight (8) feet away from the unit and comes with a standard hand control. An electric toe guard also comes standard with the unit.
- Design raises products to an ergonomic working height to eliminate fatigue
- Ideal for manufacturing facilities to maximize safety with minimum space
- 13 Second travel time (based on 3 phase motor)
- Steel & Partialy Stainless Steel Models available
- External power can be located 8' away from the unit to ensure safety
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
| Work Station Electric Hydraulic Scissor Lift Tables | ||||||
| Model | Platform Size (WxL) |
Lowered Height |
Raised Height |
Capacity (lbs) |
Travel Time (Sec.) |
Wt. (lbs) |
| EHLT-WS-2436-1.5-31 | 24"x36" | 8-5/8" | 31" | 1,500 | 13 | 385 |
| EHLT-WS-2448-1.5-36 | 24"x48" | 7" | 36" | 1,500 | 13 | 415 |
| EHLT-WS-3248-1.5-36 | 32"x48" | 7" | 36" | 1,500 | 13 | 430 |
| EHLT-WS-4048-1.5-36 | 40"x48" | 7" | 36" | 1,500 | 13 | 457 |
| Stainless Steel Finish | ||||||
| EHLT-WS-2436-PSS | 24"x36" | 7" | 36" | 1,500 | 13 | 407 |
| EHLT-WS-2448-PSS | 24"x48" | 7" | 36" | 1,500 | 13 | 415 |
| EHLT-WS-4048-PSS | 40"x48" | 7" | 36" | 1,500 | 13 | 457 |
| Travel time based on 3 Phase power | ||||||
