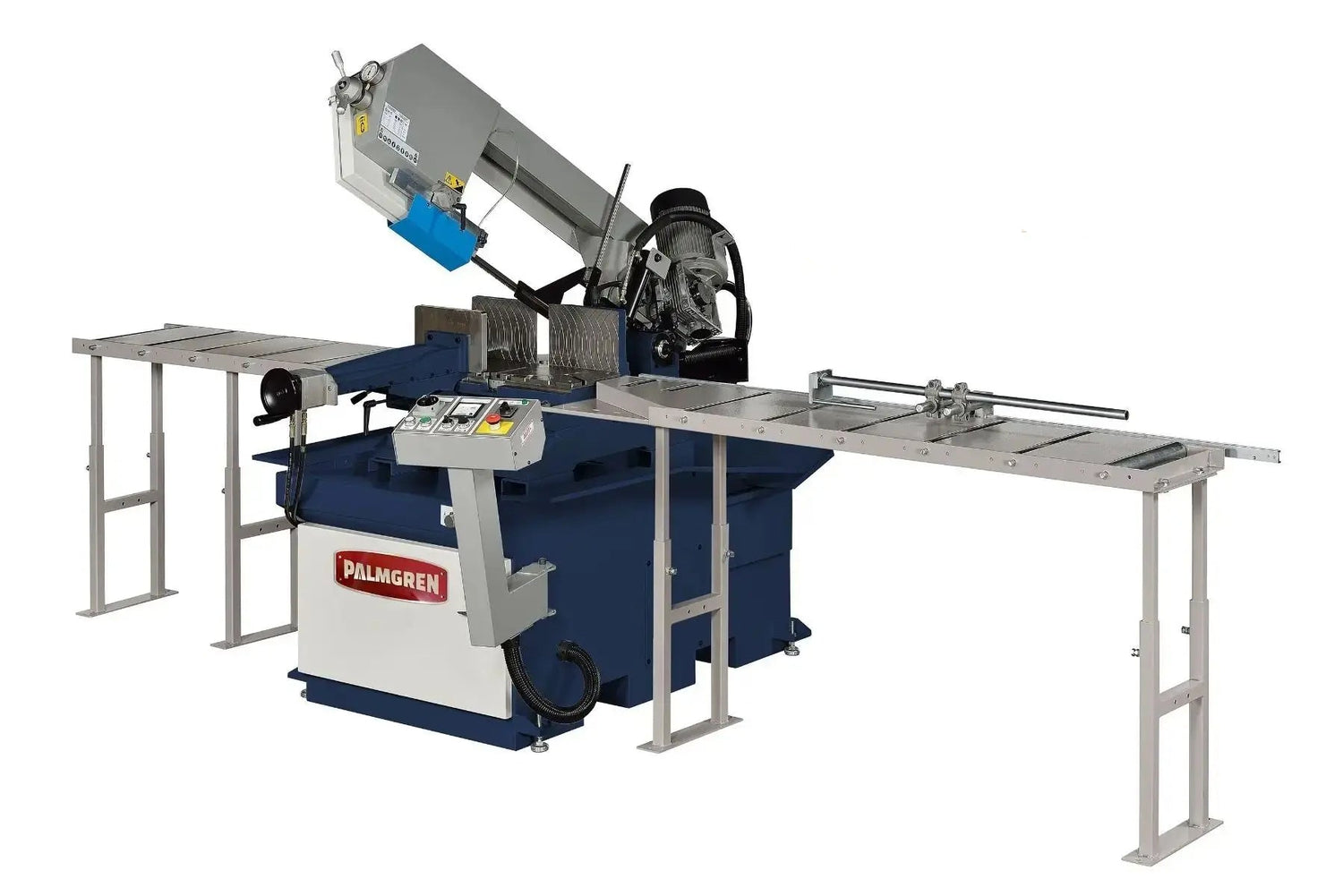

13 Inch Dual Zip-Miter Horizontal Band Saw
Regular price
$17,544.00
Unit price
/
Unavailable
Shipping calculated at checkout.
Interested in financing? Discover your options here.
13 Inch Dual Zip-Miter Horizontal Band Saw is backordered and will ship as soon as it is back in stock.
Safe & Secure Payments.
Designed from the blade out Palmgren’s dual Zip-Miter band saws combine the advantages of a circular cold saw with the speed of an abrasive saw and the capacity of a traditional band saw.
Designed around the blade to deliver maximum squareness and accuracy, large cutting capacities while the workpiece remains fixed and the saw head rotates to the left or right. Ideal for cutting straight or miter cuts on all ferrous and non-ferrous metals in solids, tubing and profiles. A step above conventional band saws our Zip-Miter models have built in deluxe features that deliver longer blade life, faster cutting and greater accuracy resulting in lower costs per cut.
- Miter cuts from 0 to 60 degrees to the right and left
- Precision machined cast saw head for maximum rigidity and vibration dampening performance
- Advanced direct drive gear box and motor maximizes the power of the motor to the blade
- Gear box utilizes a bronze worm gear and hardened and ground worm shaft in an oil bath
- Twin supported head pivot point utilizing tapper roller bearings guarantees ease of operation and very precise cuts
- Rapid positioning vise allows for fast set-ups and maximum clamping force on the workpiece
- Adjustable zero clearance blade guides utilizing a combination of ball bearing and tungsten carbide pads provide maximum support and ensure square accurate cuts
- Large handwheel with electro-magnetic micro switch preset to insure proper blade tension
- Without proper tension the saw will not start and if the blade loosens or breaks during operation the saw will stop
- Fine adjustment hydraulic down feed control is easily adjusted to fine tune the blade speed to the material being cut
- Flood coolant system with the coolant fed through both blade guides to maximize cooling and cleaning of the chips from the blade
- Adjustable work stop for repetitive cuts
- Solid one piece heavy duty steel base
- Safety electrical package includes overload & low voltage protection, safety spring loaded switch, emergency stop button and two speed motor switch
Specifications
| Band Saw Type | Horizontal |
| Cold Saw and Band Saw Saw Type | Manual |
| Country of Origin | TW |
| Cutting Angle | 45° / 60° |
| Cutting Angle Adjustment | Manual |
| Feed | Hydraulic |
| Machine Weight | 1,760 lbs |
| Motor HP | 2 |
| Overall Dimensions (L × W × H) | 87-1/2" × 46-5/8" × 86-1/4" |
| Phase | Three |
| Rectangle @ 0° | 15-3/4" × 12-1/4" |
| Rectangle @ 60° | 7-1/4" × 7-1/4" |
| Round @ 45° | 12-1/4" |
| Round Material Max. @ 0° | 13" |
| Round Material Max. @ 45° | 11-7/8" |
| Round Material Max. @ 60° | 7-1/4" |
| Saw Blade Diameter | 150" × 1-1/4" × 0.043" |
| Sawing Type | Horizontal Band Saws |
| Voltage | 230 V |
| Warranty | 3 Year |
| UPC | 726896832883 |
| Unit of Measure | EA |
| Product Height (in) | 70.1 in |
| Product Length (in) | 89.4 in |
| Product Width (in) | 45.3 in |
| Product Weight (lbs) | 1,936 lbs |
-
