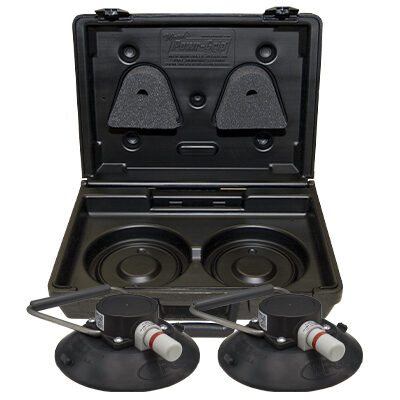

Two 6" Flip Handle Hand Cups for Flat or Curved Surfaces

Wood's Powr-Grip TL6FH2B 6" Flipover Bail Handle Vacuum Hand Cups for Flat and Curved Surfaces (70 lbs / 32 kg per Cup) — Matched Pair of 2 with Carrying Case

The Wood's Powr-Grip TL6FH2B is a matched pair of 6" flipover bail handle vacuum hand cups, sold together with a durable carrying case designed for two-cup coordinated lifts on flat and curved smooth, nonporous surfaces. Each cup features a 6" (15 cm) standard rubber suction pad (Model TL6), a metal bail handle, and an industrial-grade plastic plunger, with a rated load capacity of 70 lbs (32 kg) per cup — supporting coordinated two-person lifts up to 140 lbs combined. The flipover bail handle permits the attached load to swing or change orientation freely when lifted, and its narrow folded profile allows the cup to be attached in tight storage locations where a fixed upright handle would not fit. Operable down to 0°F (-18°C). The TL6FH2B (SKU: 91343, Model: TL6FH) is manufactured by Wood's Powr-Grip and is particularly well-suited for stone slab handling, glass panel installation, and any application requiring two matched cups for balanced two-point lifting.

The TL6FH2B is the matched-pair configuration of the TL6FH — the same cup sold as a Pack of 4 (SKU: 91300). The two-cup matched pair with carrying case is specifically designed for two-person coordinated lifts where each operator uses one cup, providing balanced two-point attachment on a single panel. The carrying case keeps both cups together and protected, making the TL6FH2B the preferred configuration for field crews who carry a dedicated two-cup set for stone, glass, and panel handling on job sites. All TL6FH specifications — pad, capacity, radius, temperature rating, and handle geometry — are identical between the TL6FH2B and the TL6FH Pack of 4.

Key Features & Benefits

Matched Pair of 2 — Designed for Two-Person Coordinated Lifts

The TL6FH2B provides two matched TL6FH cups in a single kit, specifically configured for two-person coordinated lifts where each operator holds one cup at opposite ends or balanced points of a panel. Two-point attachment distributes the load across two vacuum points, improving stability and balance during lifting and positioning — particularly important for large, heavy, or awkward panels where single-cup handling would be unstable. The matched pair ensures both cups are always together and ready for use as a coordinated set.

Flipover Bail Handle — Permits Load to Swing and Change Orientation

The flipover bail handle allows the attached load to swing freely and change orientation during the lift — enabling panel reorientation from horizontal to vertical, balanced hang-point lifting where the load finds its natural balance, and rotation during fabrication or installation. The bail handle’s free-pivot geometry is particularly useful in two-person coordinated lifts where each operator’s cup must independently accommodate the panel’s angle as it is repositioned. This is the opposite of the TL6RH’s offset fixed handle, which prevents swing — choose the TL6FH2B when free orientation change is needed during the lift.

Narrow Folded Profile — Attachment in Tight Storage Locations

When the bail handle is folded flat against the cup body, the TL6FH presents a narrow, low-profile form factor that allows the cup to be attached to panels stored in tight racks, vertical storage slots, stone A-frames, and glass storage systems where a fixed upright handle would prevent the cup from reaching the panel surface. This is a practical operational advantage in stone yards, glass fabrication shops, and glazing operations where panels are stored vertically in tight racks and must be extracted with a vacuum cup before they can be repositioned. The bail handle flips up to its operating position once the cup is attached and the panel is ready to be lifted.

Stone Slab and Panel Handling — Ideal Application

The TL6FH2B is specifically suited for stone slab handling — including granite, marble, quartzite, and engineered stone — where two-person coordinated lifts with matched cups at each end of the slab provide the balanced control needed for safe positioning. Stone slabs are typically stored vertically in tight A-frame racks, making the bail handle’s narrow folded profile essential for attachment in the rack before extraction. The 0°F cold rating ensures reliable performance in outdoor stone yards and cold storage environments.

Durable Carrying Case — Keeps Both Cups Together

The TL6FH2B ships with a durable carrying case sized for both cups, keeping the matched pair together and protected during transport to and from job sites. The carrying case is the key packaging differentiator between the TL6FH2B and the TL6FH Pack of 4 (which ships with vacuum pad protectors) — the case is designed for field crews who carry a dedicated two-cup set as a matched tool kit.

Extended Low-Temperature Rating (0°F / -18°C) — Flat and Curved Surface Compatibility

The TL6FH2B is rated for operation down to 0°F (-18°C), making it suitable for outdoor stone yards, cold storage facilities, and outdoor winter job sites. Rated for both flat and curved smooth, nonporous surfaces with a minimum curved surface radius of 12" (305 mm), covering the full range of stone slab profiles, flat glass panels, and curved architectural elements encountered in professional installation work.

Common Applications

Stone Slab Extraction and Positioning (Primary Application)

Stone fabricators and countertop installers use the TL6FH2B to extract stone slabs from vertical A-frame storage racks and position them for cutting, edging, and installation. The bail handle’s narrow folded profile enables attachment in tight A-frame slots; the two-cup matched pair provides balanced two-point control during extraction and repositioning; and the 0°F cold rating ensures reliable performance in outdoor stone yards year-round.

Two-Person Glass Panel Installation

Glaziers performing two-person glass panel installations use the TL6FH2B to provide each operator with a matched cup at opposite ends of the panel. The bail handle’s free-pivot geometry allows each operator’s cup to independently accommodate the panel’s angle during repositioning, and the 12" minimum radius covers most curved glass profiles encountered in architectural glazing.

Panel Reorientation During Handling

When a panel must be repositioned from horizontal to vertical (or vice versa) during a two-person handling operation, the TL6FH2B’s bail handles allow the load to swing freely through the reorientation at both attachment points simultaneously, maintaining vacuum attachment throughout the reorientation without requiring either operator to detach and reattach their cup.

Tight Storage Rack Extraction — Stone and Glass

For operations where panels are stored in tight vertical racks, A-frames, or slot storage systems, the TL6FH2B’s bail handles fold flat for attachment in the confined space, then flip up to the operating position before lifting. The matched pair ensures both cups are available simultaneously for immediate two-point extraction.

Cold Storage and Outdoor Winter Operations

The 0°F cold rating makes the TL6FH2B suitable for outdoor stone yards, cold storage facility construction, and outdoor winter glazing operations where standard 10°F-rated cups may experience reduced rubber performance.

Compatible Materials

• Granite, marble, quartzite, and natural stone slabs (flat and curved)
• Engineered stone and quartz composite slabs (flat)
• Flat plate glass and float glass
• Tempered and laminated safety glass (flat and curved)
• Curved glass (min. 12" / 305 mm radius)
• Polished ceramic and porcelain tile (flat and curved)
• Smooth painted or coated metal panels (flat and curved)
• Any smooth, nonporous flat or curved surface with min. 12" (305 mm) radius and load ≤ 70 lbs per cup

Not compatible with: rough, textured, or porous surfaces; surfaces with radius tighter than 12" (305 mm); loads exceeding 70 lbs per cup (140 lbs combined for two-cup lift); surfaces contaminated with oil, wax, or debris in the pad contact area; concrete, brick, unpolished stone, wood, or drywall.

Application Instructions

Step 1: Surface and Material Assessment

1. Confirm the surface is smooth and nonporous — do not proceed on rough, textured, or porous surfaces.
2. For curved surfaces, confirm the radius is 12" (305 mm) or greater.
3. Verify the panel weight does not exceed 70 lbs (32 kg) per cup — 140 lbs (64 kg) combined for a two-cup lift.
4. Plan the two attachment points to distribute the load evenly across both cups.

Step 2: Pad Inspection and Preparation

1. Inspect both TL6 suction pads for cuts, cracks, hardening, or contamination. Replace if damaged.
2. Clean the pad contact areas on the work surface — remove dust, oil, moisture, and debris.
3. In cold environments, verify pad flexibility above 0°F (-18°C) before use.

Step 3: Attaching the Cups (Including Tight Storage Locations)

1. Fold each bail handle flat against the cup body to achieve the narrow profile needed for attachment in tight storage racks or confined spaces.
2. Each operator positions their cup at the planned attachment point with full pad perimeter contact.
3. Engage the vacuum mechanism on each cup — with the handle folded, engage the plunger directly on the cup body.
4. Flip each bail handle up to its operating position.
5. Both operators check their red-line vacuum indicators — confirm full vacuum on both cups before lifting.
6. Apply a controlled test load on both cups simultaneously to verify seal integrity before committing to the full lift.

Step 4: Lifting, Reorienting, and Release

1. Both operators lift simultaneously on a coordinated signal — uncoordinated lifting can cause the panel to tilt and stress one cup beyond its rated capacity.
2. The load will swing freely on each bail handle to its natural balance point; allow it to stabilize before moving.
3. Both operators monitor their red-line indicators continuously throughout the lift.
4. For panel reorientation, both operators tilt simultaneously — the load pivots on both bail handles to the new angle.
5. Do not exceed 70 lbs (32 kg) per cup.
6. Both operators lower the load simultaneously to a stable surface before releasing the vacuum.
7. Fold the bail handles flat before storing the cups in the carrying case.

Technical Specifications

Safety Data Summary

Hazard Information

• The bail handle allows the load to swing freely — allow the load to stabilize at its natural balance point before moving; uncontrolled swing can cause the load to strike personnel or structures
• Uncoordinated lifting or lowering by the two operators can cause the panel to tilt and overload one cup beyond its 70 lb rated capacity — always lift and lower simultaneously on a coordinated signal
• Vacuum loss on either cup during a two-person lift can result in sudden load tilt or drop, causing serious injury or property damage
• Overloading beyond 70 lbs (32 kg) per cup may cause sudden cup release without warning
• Use on surfaces with radius tighter than 12" (305 mm) will prevent full pad seal
• Damaged or contaminated suction pads must be replaced before use
• In cold environments, verify pad flexibility and seal integrity before each lift — rubber performance approaches its limit at 0°F (-18°C)
• Do not use above 5,000 ft (1,500 m) elevation

Personal Protective Equipment

• Safety glasses or face shield when handling glass or stone panels
• Cut-resistant gloves rated for glass and stone handling
• Steel-toed safety footwear
• Insulated gloves and appropriate cold-weather PPE when operating at or near 0°F (-18°C)

Safe Handling

• Always lift and lower simultaneously on a coordinated signal — uncoordinated two-person lifts can overload one cup
• Allow the load to stabilize at its natural balance point after lifting before moving
• Both operators must monitor their red-line indicators continuously throughout the lift
• Never exceed the rated 70 lb load capacity per cup
• Fold the bail handles flat and store both cups in the carrying case between uses

Frequently Asked Questions

Q: What is the difference between the TL6FH2B and the TL6FH Pack of 4?
A: Both use the same TL6FH cup — same flipover bail handle, TL6 pad, 70 lb capacity, 12" minimum radius, and 0°F rating. The TL6FH2B is a matched pair of 2 cups with a durable carrying case designed for two-person coordinated lifts as a dedicated matched set. The TL6FH Pack of 4 (SKU: 91300) provides four cups with vacuum pad protectors, suited for operations requiring multiple cups for redundancy or multi-cup lifts. Choose the TL6FH2B for a dedicated two-cup field kit with carrying case; choose the Pack of 4 for higher-volume operations or when more than two cups are needed.

Q: What is the combined lifting capacity of the two cups?
A: Each cup is rated for 70 lbs (32 kg), giving a combined capacity of 140 lbs (64 kg) for a coordinated two-cup lift with one cup per operator. Always lift and lower simultaneously on a coordinated signal — uncoordinated lifting can cause the panel to tilt and overload one cup beyond its individual 70 lb rating.

Q: Why is the flipover bail handle useful for stone slab handling?
A: Stone slabs are typically stored vertically in tight A-frame racks where a fixed upright handle would prevent the cup from reaching the slab face. The bail handle folds flat for attachment in the tight rack space, then flips up to the operating position before lifting. During the lift, the free-pivot bail handle allows the slab to swing to its natural balance point and reorient from vertical storage to horizontal positioning without detaching and reattaching the cups.

Q: Is the TL6 pad interchangeable with other WPG models?
A: Yes. The TL6 pad is shared with the TL6FH Pack of 4 (SKU: 91300), TL6HG (SKU: 91316), TL6RH (SKU: 91320), and TL6RH2B (SKU: 91345), making replacement pads interchangeable across all five models. Replacement TL6 pads are available separately through Wood's Powr-Grip authorized distributors.

Q: Is this product made to order?
A: Yes. This product is made to order and all sales are final. Please confirm your surface type, curved surface radius, and load requirements before placing your order.
