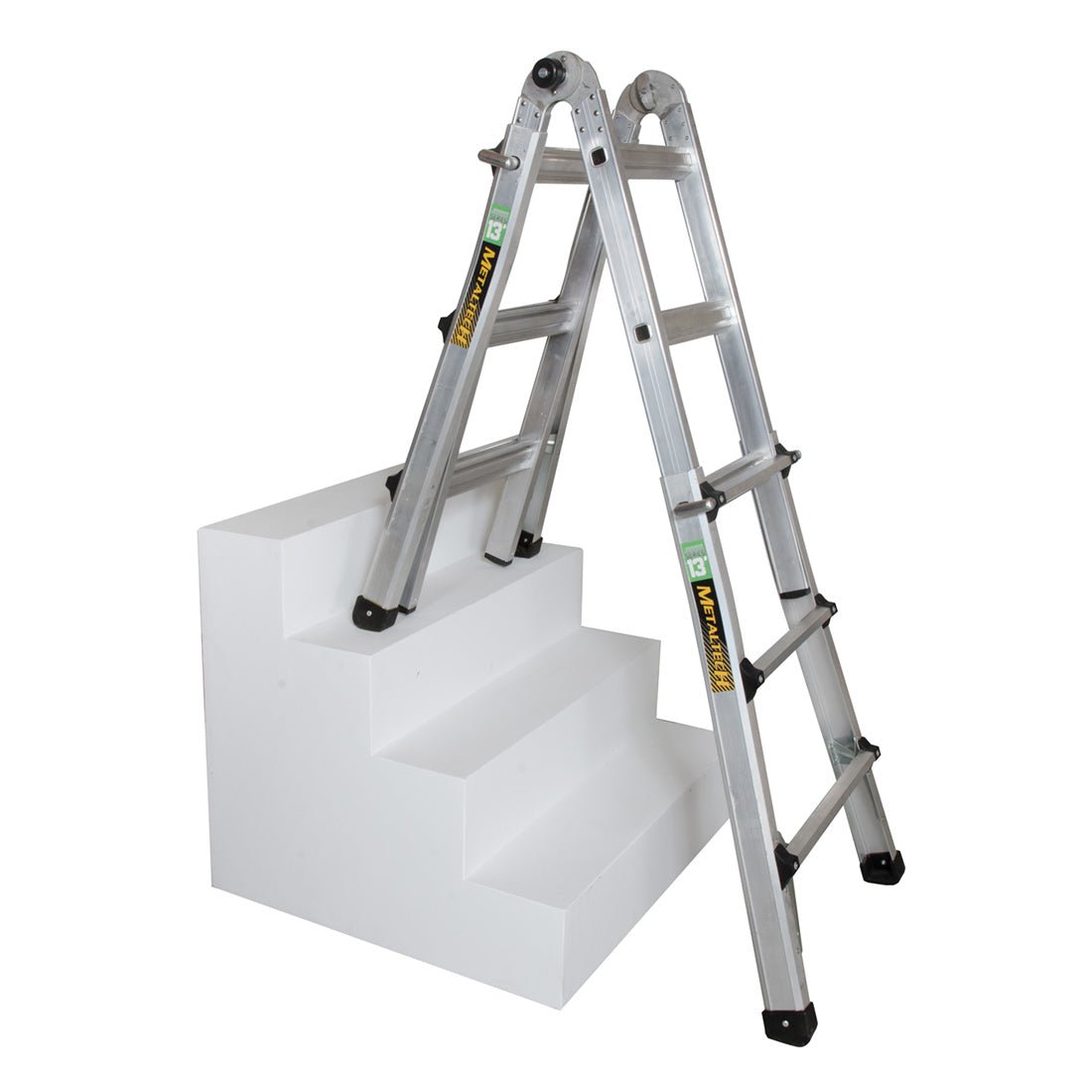

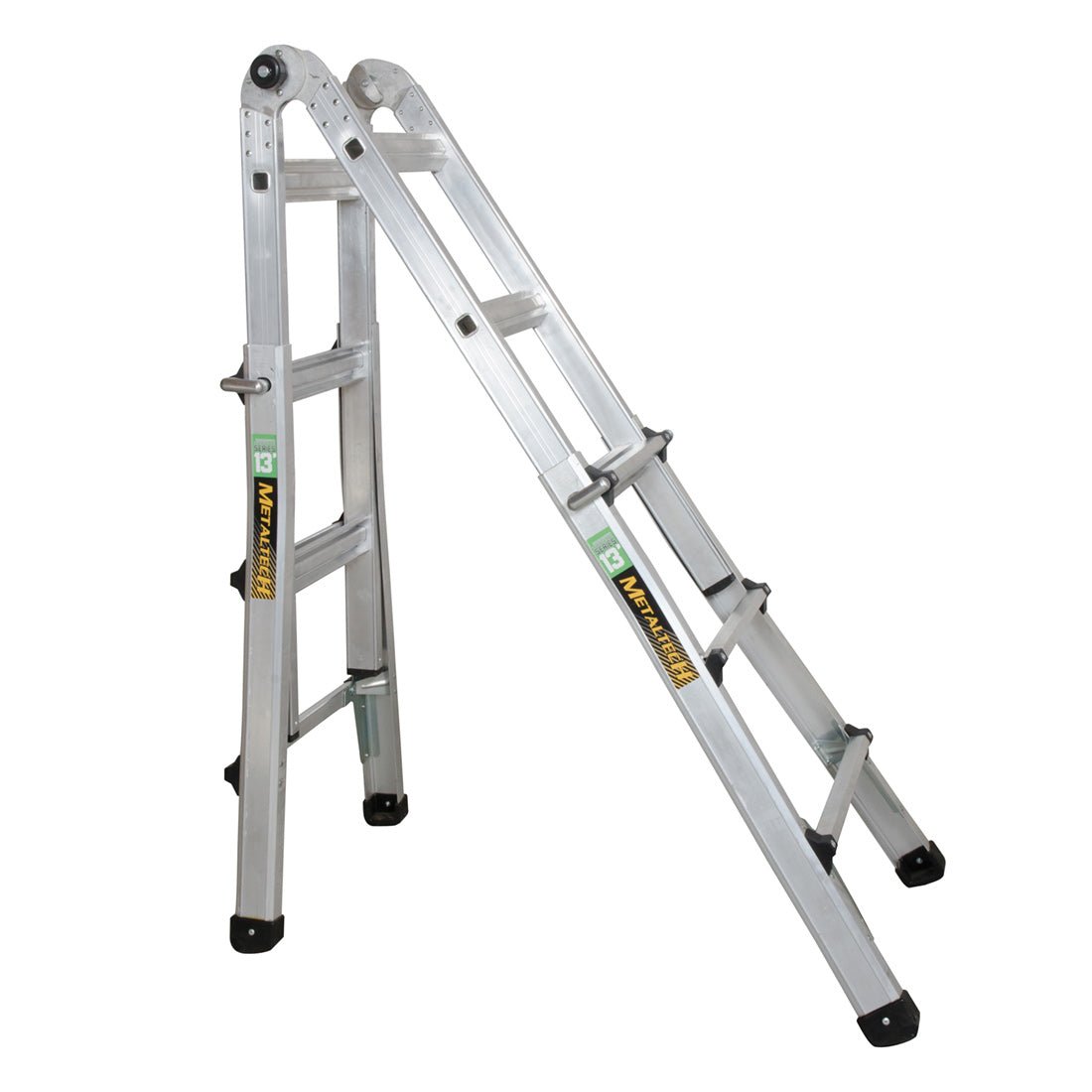

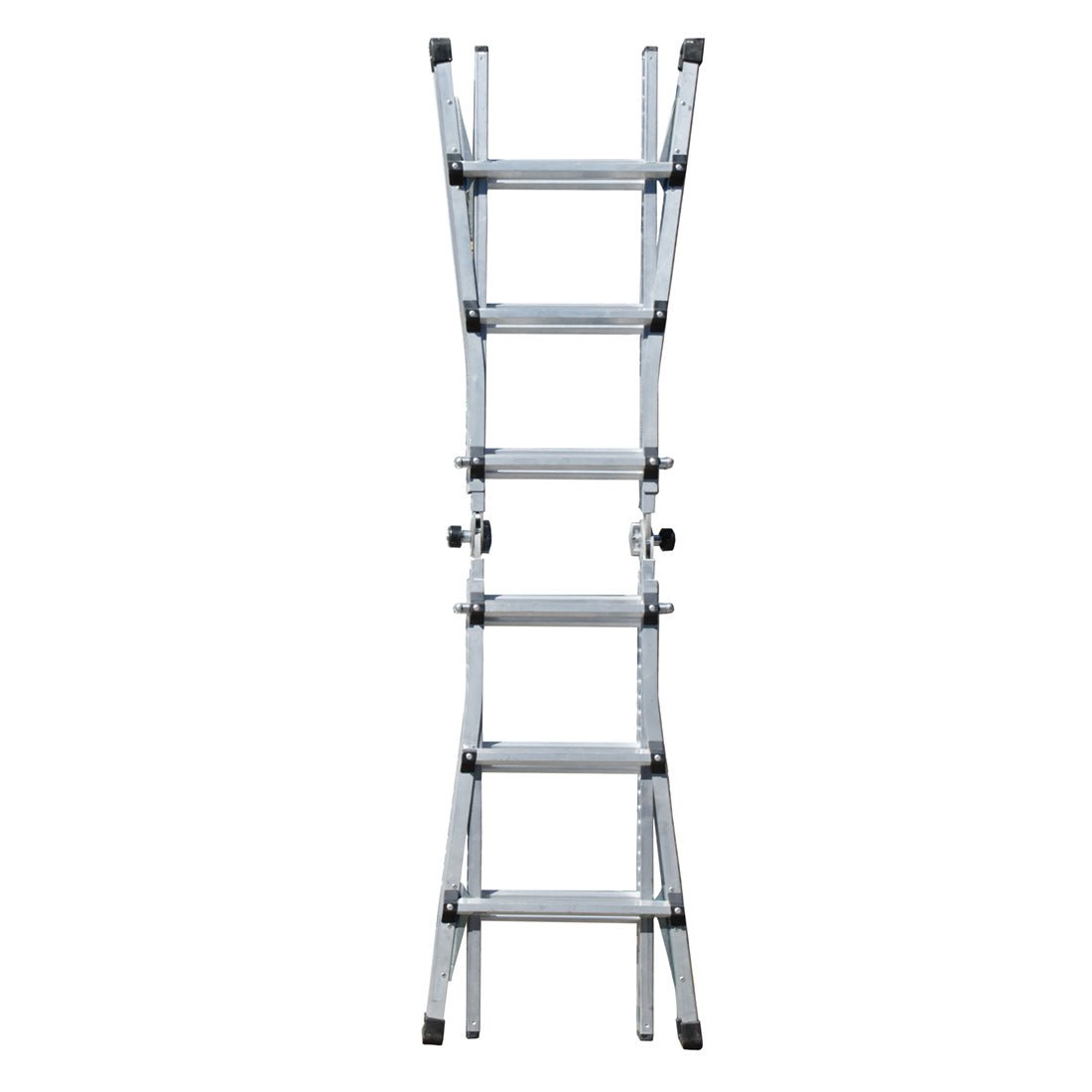

Use as an extension ladder, step ladder, stairway ladder, or 90º wall ladder.
Product Specifications
13’ Ladder
Closed Dimensions: 22.25 X 7.75 X 42.75 in. (56.5 X 19.7 X 108.6 cm)
Weight: 27.6 lb (12.5 kg)
Load Capacity: 300 lb (136 kg)
Material: Aluminum
Ladder Height: 13 ft (4 m)
Maximum Reach: 14 ft. 4 in. (4.4 m)*
Number Of Positions: 19
Highest Standing Level:
Stepladder: 2 ft. 11 in. (0.89 m)
Extension Ladder: 7 ft 9 In. (2.4 m)

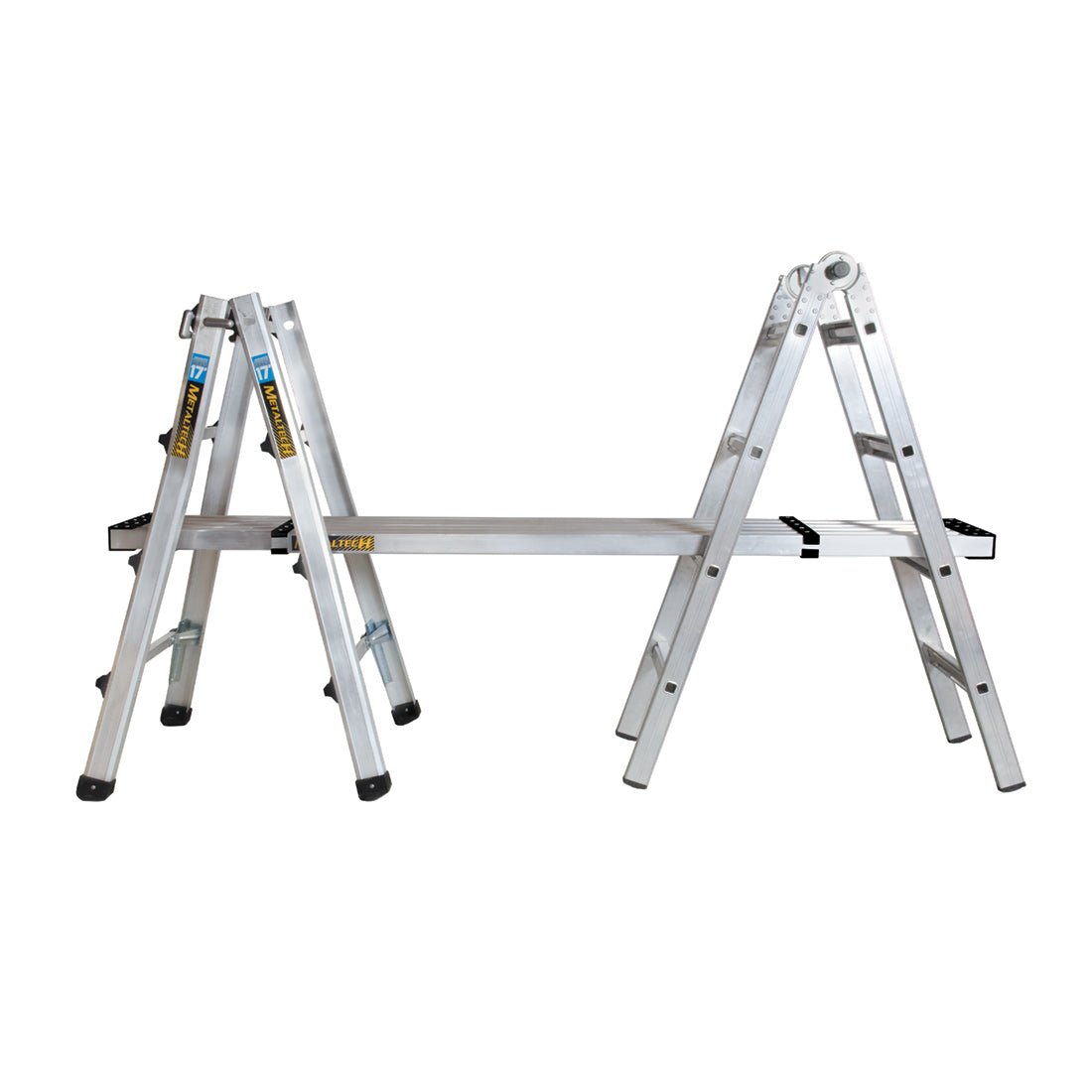

Scaffold Supports: 1 ft. 11 In. (0.58 m)
Standard: ANSI TYPE IA, CSA GRADE 1A AND OSHA
17’ Ladder
Closed Dimensions: 23.5 x 8 x 54.5 in. (59.7 x 20.3 x 138.4 cm)
Weight: 34.5 lb (15.6 kg)
Load Capacity: 300 lb (136 kg)
Material: Aluminum
Ladder Height: 17 ft (5.2 m)
Maximum Reach: 18 ft 1 in. (5.5 m)*
Number Of Positions: 28
Highest Standing Level:
Stepladder: 4 ft 9 in. (1.4 m)
Extension Ladder: 11 ft 7 in. (3.5 m)
Scaffold Supports: 2 ft 11 in. (0.89 m)
Standard: ANSI TYPE IA, CSA GRADE 1A AND OSHA
21’ Ladder
Closed Dimensions: 26.75 x 8.75 x 66.5 in. (67.9 x 22.2 x 168.9 cm)
Weight: 42.3 lb (19.2 kg)
Load Capacity: 300 lb (136 kg)
Material: Aluminum
Ladder Height: 21 ft (6.4 m)
Maximum Reach: 22 ft (6.7 m)*
Number Of Positions: 38
Highest Standing Level:
Stepladder: 6ft 9in. (2.1m)
Extension Ladder: 15 ft 5 in. (3.5 m)
Scaffold Supports: 3ft 10 in. (1.2 m)
Standard: ANSI TYPE IA, CSA GRADE 1A AND OSHA
25’ Ladder
Closed Dimensions: 29.5 x 8 x 78.5 in. (74.9 x 20.3 x 199.4 cm)
Weight: 53.1 lb (24.1 kg)
Load Capacity: 300 lb (136 kg)
Material: Aluminum
Ladder Height: 25 ft (7.6 m)*
Maximum Reach: 26 ft (7.9 m)
Number Of Positions: 49
Highest Standing Level:
Stepladder: 8 ft 7 in. (2.6 m)
Extension Ladder: 20 ft (6.1 m)
Scaffold Supports: 4 ft 9 in. (1.4 m)
Standard: ANSI TYPE IA, OSHA AND CSA US
*Calculated with a 5’9” (1.75 m) person with a vertical 12” (30 cm) reach.
