3000 Series 10" Vertical Panel Saw

For those looking for a 10" panel saw on a budget, look no further. Now have the ability to cut thicker material, like doors, or the convenience of using their 10" table saw blades in a panel saw for way under the $20,000 starting price of other panel saws. The 3000 Series Vertical Panel Saw doesn't require 3 phase power so you don't need to rewire your shop. Now the smaller, value-oriented buyer has the ability to cut with the 10" saw blades like the $20,000+ machines at a fraction of the price. This series is ideal for customers that need to break down sheet goods up to 2½ inches thick with precision cuts. We recommend this saw for all users needing a greater depth of cut or the finer cuts offered by the larger 10"saw blades.

Spec Sheet

We have created the "Model T" for cabinet shops in that we offer an affordable 10" vertical panel saw that most serious cabinet or wood shops can afford without going into debt. The single phase 115 volt saw means that you don't have to rewire your shop for the 230 volt, 3 phase power requirements of other 10" panel saws.

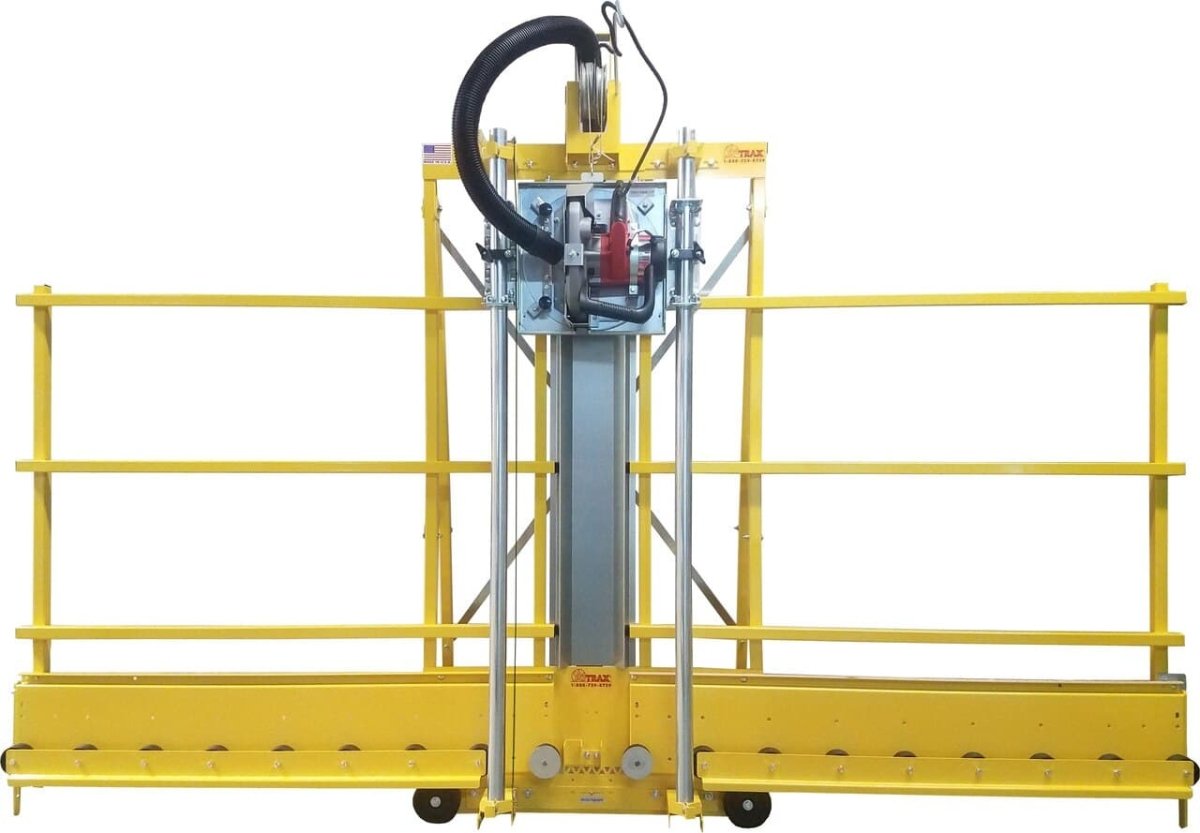

The 3000 Series of vertical panel saws comes in 3 sizes of frames for different crosscutting requirements, 50" cross cut (3052), 62" cross cut (3062) and 74 inch cross cut (3074). It has an unlimited rip cut capability in either direction.

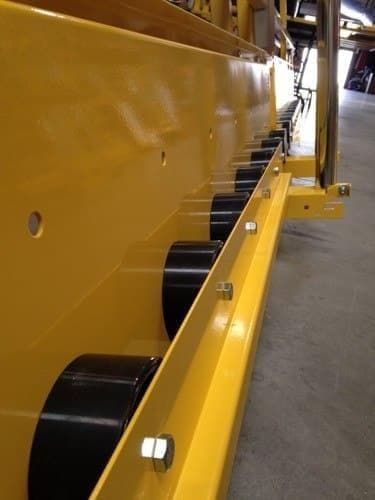

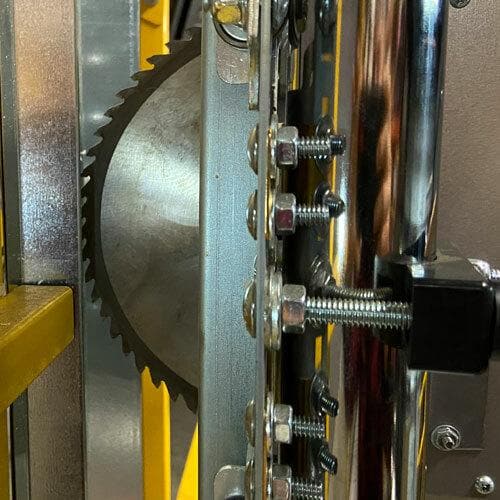

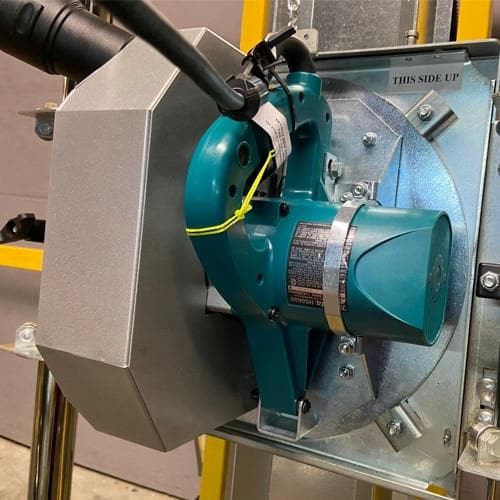

It uses our sealed steel bearings system on our quick release carriage. For 2021 we are transitioning to the Makita 10 inch HS0600 circular saw mounted on a spinning insert plate. It uses steel sleeve covers over the material rollers acting like a suit of armor protecting the rollers from damage.

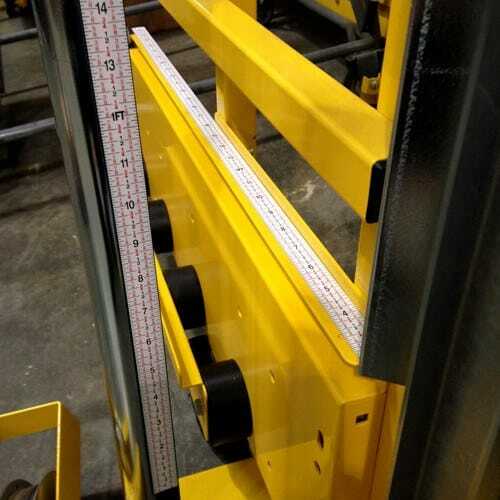

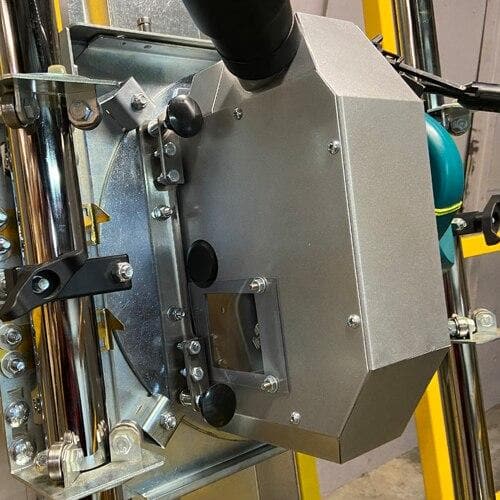

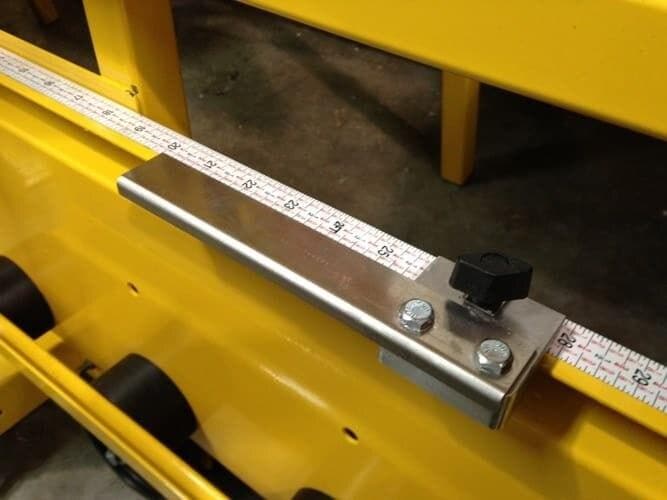

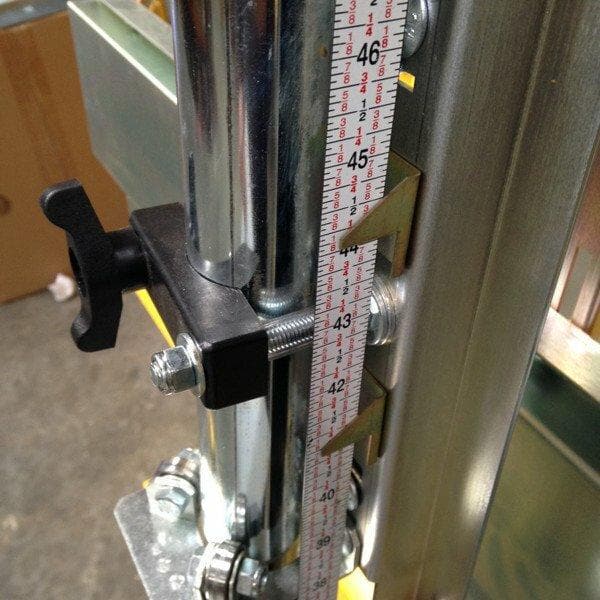

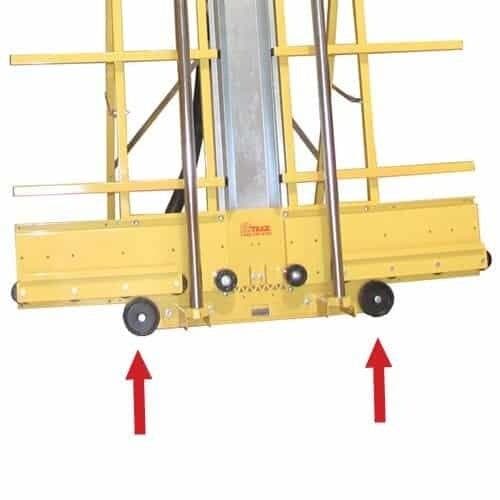

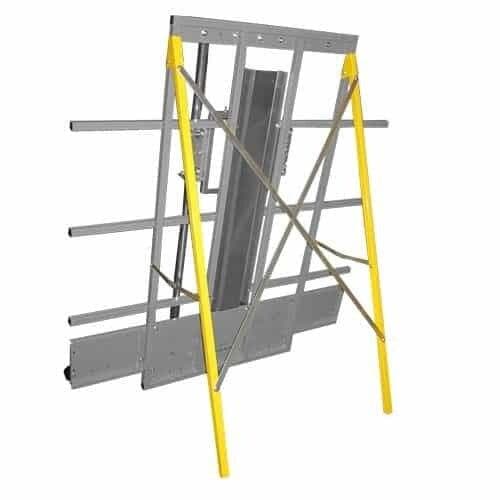

Like all our panel saws, the 3000 Series Vertical Panel Saw is fitted with Saw Trax Mfg., Inc.'s patented Accu-Square alignment system preventing your machine from ever going out of square. The dust system includes a dust shroud around the saw blade like a CNC router, a dust bonnet for the saw, a 12 ft. by 2.5" dust hose and a hose coupler. The folding stand is factory attached saving set up time. The frame wheels allow you to move your machine into place without having to pick it up. The measuring systems include 2 rip pointers with a vertical tape and a horizontal stop with two horizontal tapes. A strip bar is include with the stop to safely cut strips on your machine.

Product Overview

Designed customers who want the convenience of using their 10" saw blades, or want the depth of cut that the 10" saw blade offers, this saw is the perfect choice. It is ideal for cutting thicker material such as doors or to use specialty 10" saw blades for finer cuts on problematic materials such as melamine. The 3000 Series Vertical Panel Saw includes standard features plus an accessory package we would recommend to most customers.

This series unit is ideal for customers that need to break down sheet goods that are up to 2 ½ inches thick with precision cuts.

If you are looking for a deep cut, accurate panel saw to use your 10" saw blades, with unlimited rip cut capability, that is ideal for cutting thicker material, the 3000 Series Panel Saw is what you want. Contact us today!
