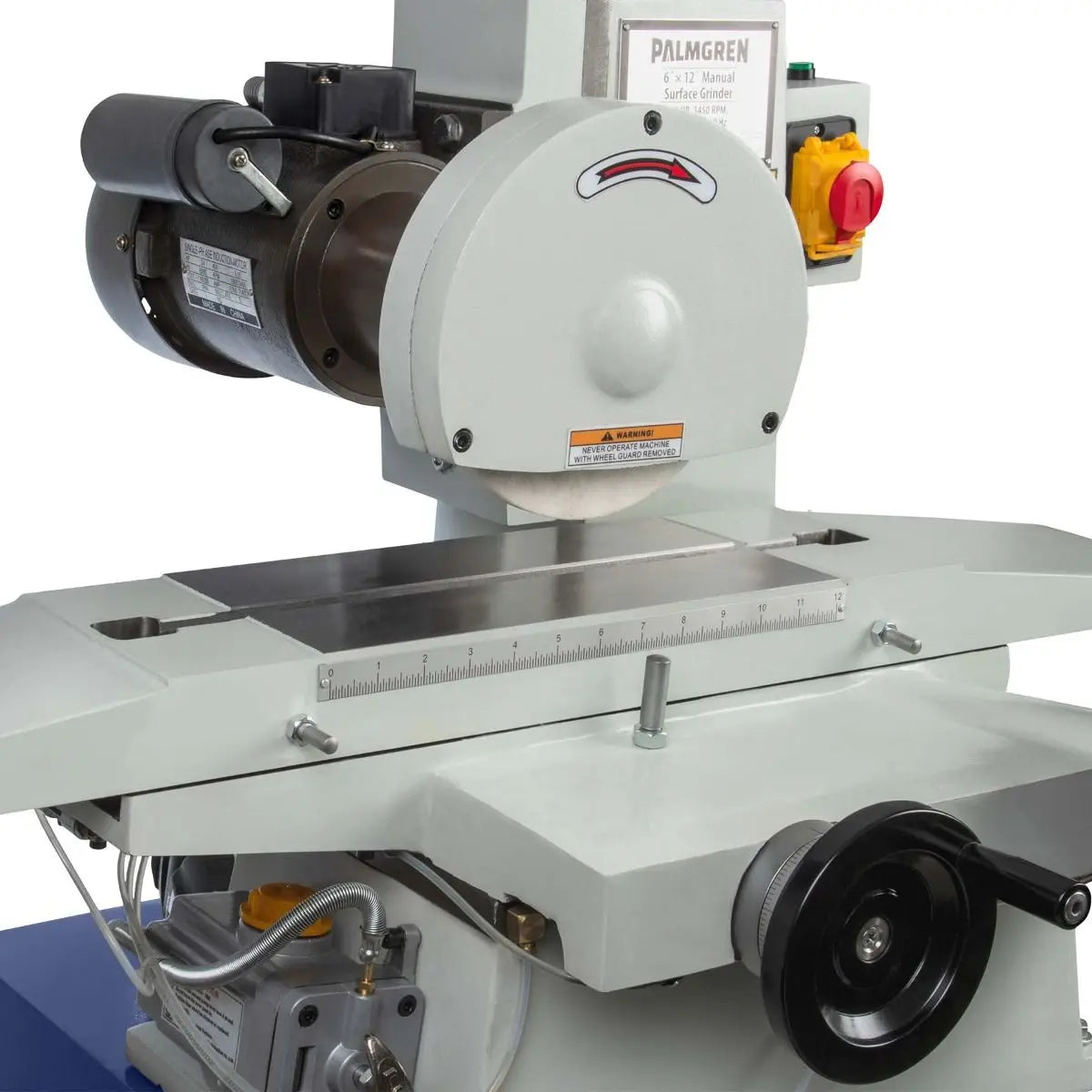

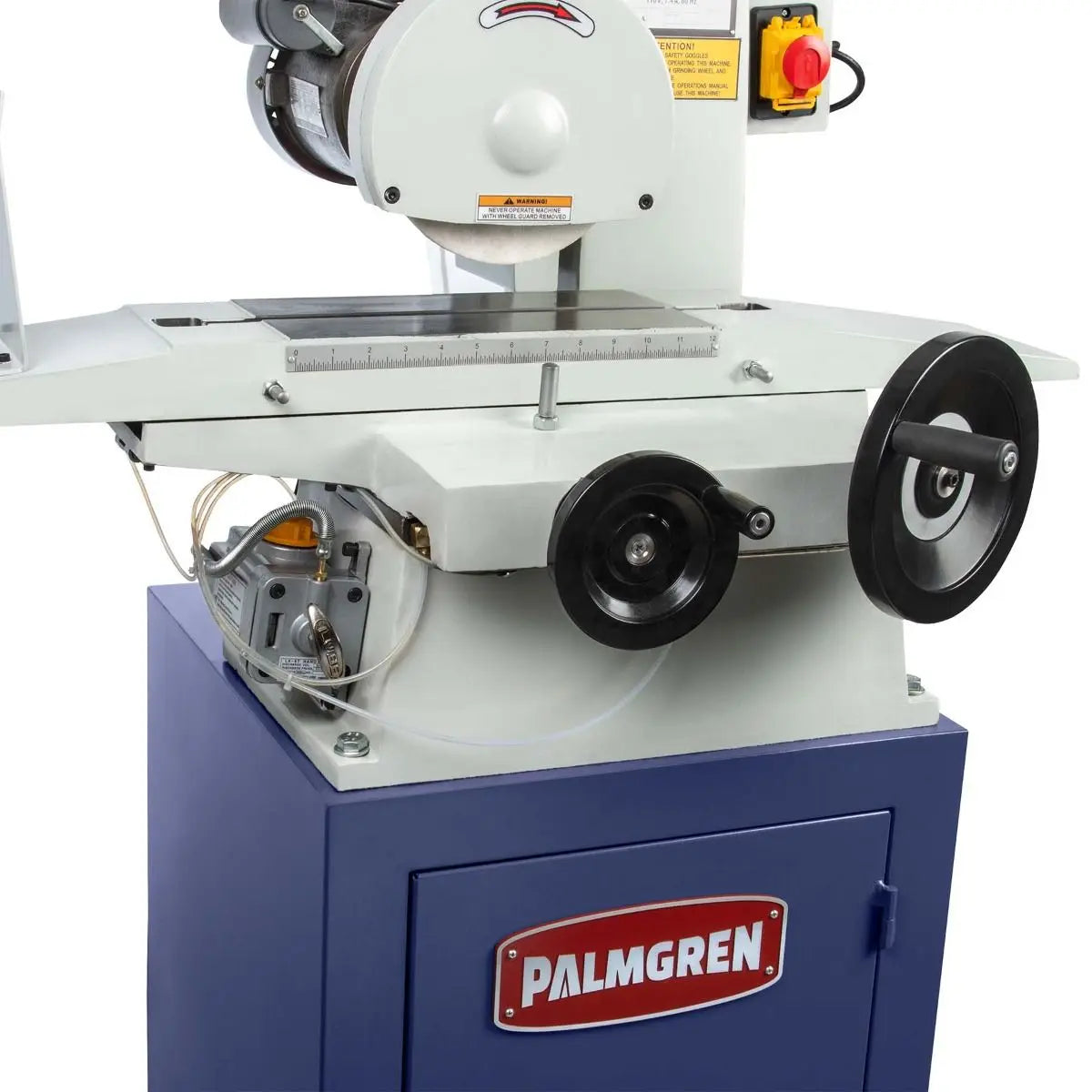

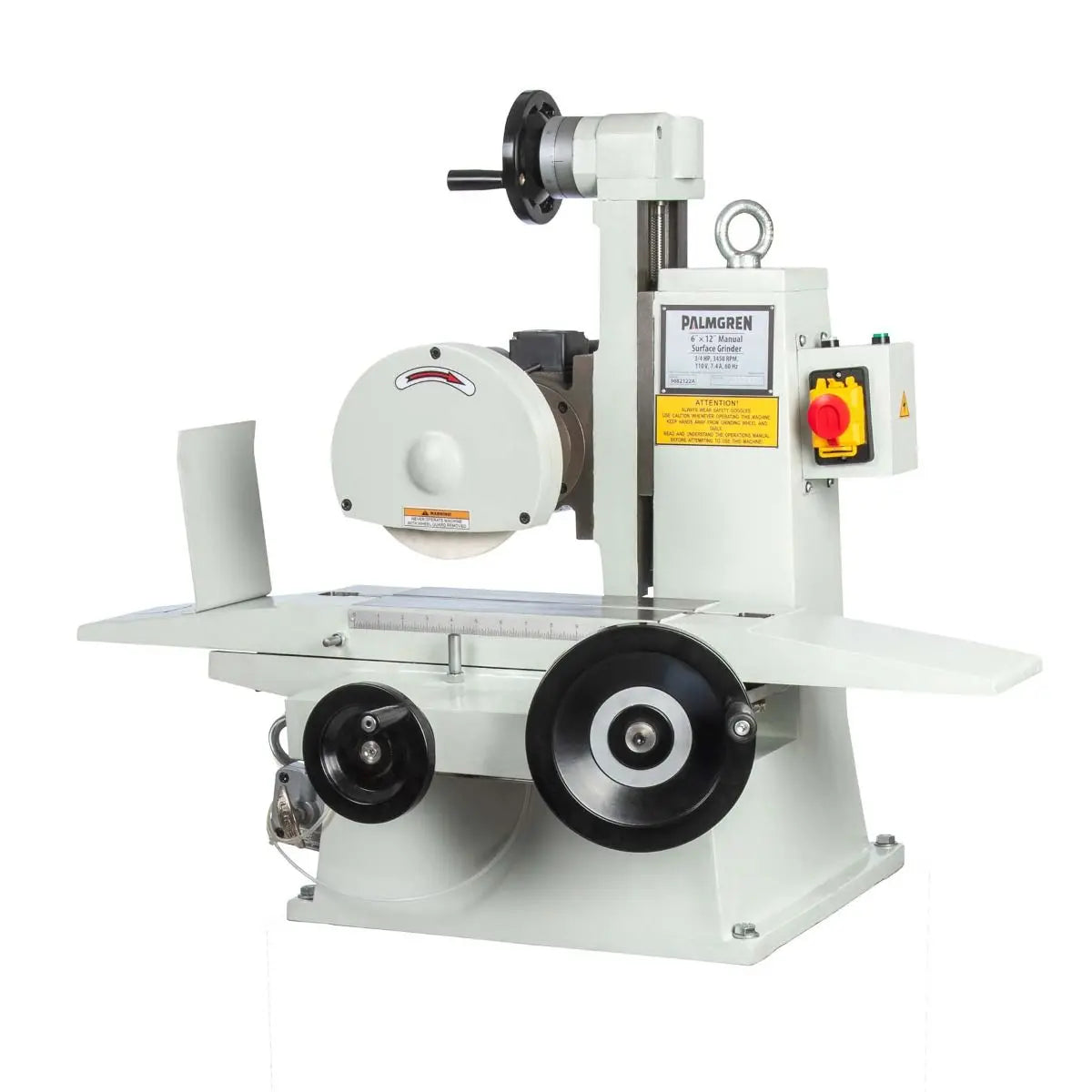

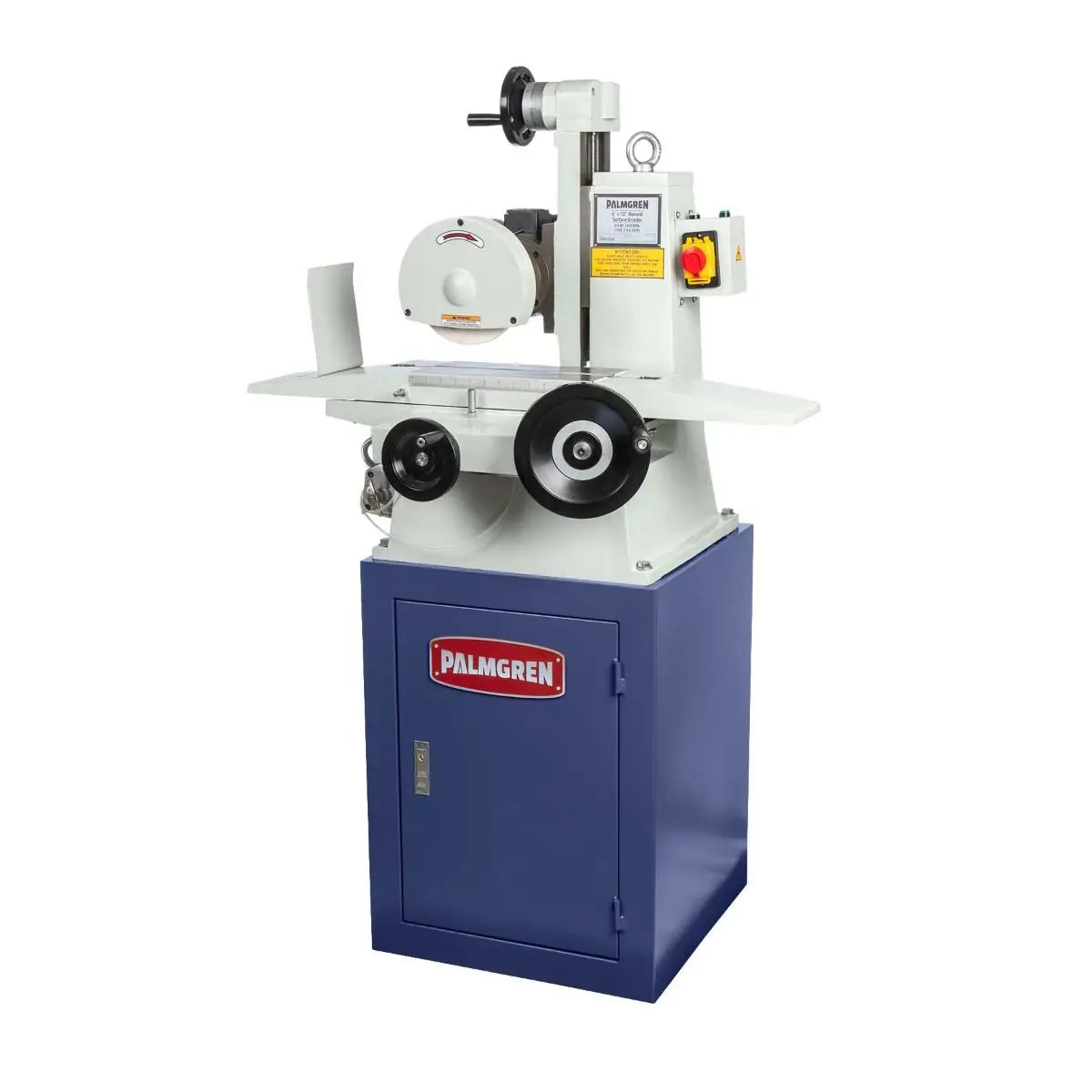

6" X 12" Manual Bench Surface Grinder

Name: 6" X 12" Manual Bench Surface Grinder
Brand: Palmgren
SKU: 9682122
Price: 8333.00 USD
Availability: InStock

Regular price $8,333.00

Shipping calculated at checkout.

Interested in financing? Discover your options here.

Safe & Secure Payments.

This economical 6” x 12” manual surface grinder has many features found on larger units and is a perfect choice for small shops, tool rooms and maintenance shops when close tolerances are needed.

Bring mirror-like finishes to your metalworking projects with this professional grinder.

Meehanite cast iron construction- stress relieved to minimize vibration while maintaining rigidity and accuracy
Rack and pinion mechanism with dove tail ways
Hand scraped ways
Spindle and motor are a direct drive design and are dynamically balanced minimum vibration
Swarf guard
Large easy to read dials
Spiral bevel gear for easy vertical movement of the spindle head
Steel Floor Stand Included
Optional accessory - Permanent Magnetic Chuck

Abrasive Finishing Type	Bench Grinders and Buffers
Bench Grinder and Buffer Drive	Single Speed
Country of Origin	CN
Cross Feed Motor	0.001"
Max. Grinding Length	12-1/2"
Max. Grinding Width	6-11/16"
Motor HP	3/4
Optional Accessories	Item #9670109 Heavy duty steel floor standItem #9682130 Permanent magnetic chuck
Phase	Single
RPM	3600
Table Dimensions	6" x 12"
T-Slot Size/Distance/Quantity	1/2"
Vertical Feed Graduation	0.0005"
Voltage	115
Table to Center of Spindle	11
Wheel Size (Dia x W x Bore)	7" x 1/2" x 1-1/4"
UPC	726896821221
Unit of Measure	Each
Product Height (in)	38.38
Product Length (in)	2.38
Product Width (in)	2.38
Product Weight (lbs)	710
