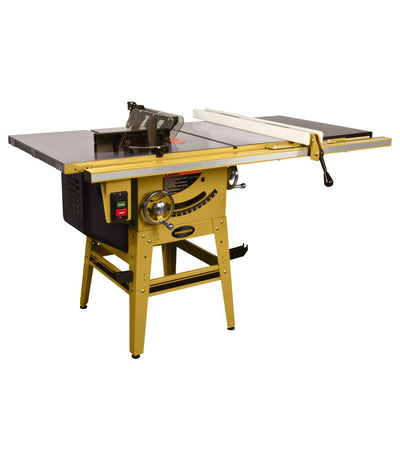

64B, 1.75 HP 115/230V, 50" Fence with Riving Knife
SKU: PM9-1791230K
The 64B table saw, with left tilt arbor, offers 1-3/4 horsepower in dual voltage to meet the demands of the professional contractor.
The transparent blade guard has independent leaves, and the quick release riving knife reduces chance of kickback. A low profile riving knife is included for non-through cuts. An arbor lock is accessed from above the table, eliminating the need for dual blade wrenches. The T-slot miter gauge has rack-and-pinion angle setting, positive stops and extension plate for expanded workpiece support. The 64B has cast iron table and wings with front edge bevel, and the working area is further expanded by the melamine-surfaced wood extension table. The exclusive Accu-Fence® system is available in 30” or 50” rip cut capacity. Storage hooks on the stand keep your accessories within reach.
Features
Accu-Fence® locks to rail without play for increased safety and precision
Blade guard and riving knife have quick release for tool-less mounting and removal
Built-in dust port increases dust collection efficiency
Cast iron trunnion ensures smooth blade positioning
Chrome-trimmed handwheels are ergonomically designed
Micro-adjust miter gauge with extension plate offers wider crosscut support
Precision ground cast iron work surface features a beveled edge for smoother operation
Riving knife maintains close blade proximity to reduce chance of kickback
Specifications
| Stock Number | 1791230K |
|---|---|
| Arbor Diameter (In.) | 5/8 |
| Arbor Speed (RPM) | 3800 |
| Blade Diameter (In.) | 10 |
| Dust Collection Minimum CFM Required (CFM) | 350 |
| Dust Port Outside Diameter (In.) | 4 |
| Gross Weight (Lbs) | 304 |
| Maximum Depth of Cut at 45 Degrees (In.) | 2-1/8 |
| Maximum Depth of Cut (In.) | 2-1/8 or 3-1/8 |
| Maximum Diameter of Dado (In.) | 8 |
| Maximum Rip Left of Blade (In.) | 12 |
| Maximum Rip Right of Blade (In.) | 50 |
| Maximum Width of Dado (In.) | 13/16 |
| Miter Gauge Type | T-Slot with Stops |
| Motor Amps | 6 |
| Motor Phase | 1 |
| Motor Power (HP) | 1-3/4 |
| Motor Voltage (V.) | 115/230 |
| Net Weight (Lbs.) | 293 |
| Overall Dimensions (L x W x H) (In.) | 79-5/8 x 43 x 42 |
| Prewired Voltage (V.) | 115 |
| Prop 65 | None |
| Recommended Circuit Size (Amps.) | 20 |
| Style (Type) | Contractor |
| Table Height from Floor (In.) | 36 |
| Table Size (L x W) (In.) | 44-1/4 x 27 |
| Table Type | Cast Iron |
