Aardwolf Forklift Booms

Forklift Booms for safely attaching a forklift and a slab lifting device

All Sales final on Forklift Booms.

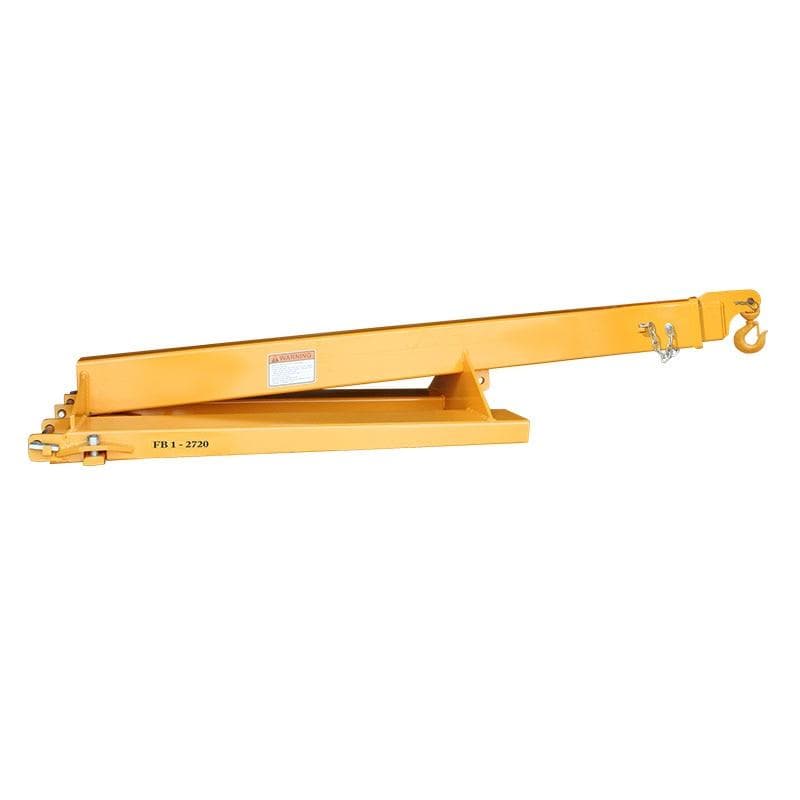

FB1-2720

The Aardwolf Forklift Boom FB-1 is a forklift attachment made from high-grade Australian rectangular tube steel, AS1163-450 LO, which ensures strength, reliability and safety. The FB-1 is the smaller of forklift booms Ardwolf offers and has the lifting capacity over 3,000 pounds and over a 1,000 pounds fully extended. The Aardwolf forklift booms compliment the patented range of Aardwolf lifting clamps. The Forklift Boom FB1-2720 is a telescoping two-section rectangular tube steel boom for use on 2 ton and 2.5 ton forklift trucks. It offers versatility with maximum visibility for the driver.

Features

• Maximum load capacity, fully retracted - 3307 LBS, fully extended - 1102 LBS.

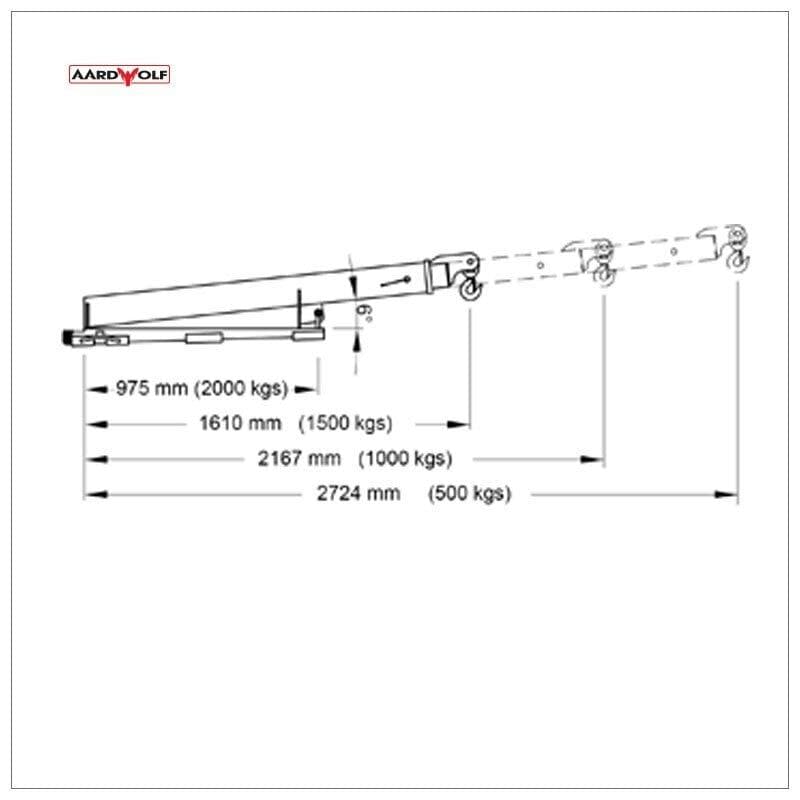

• Manually telescopes from 1.610 M to 2.724 M in 2 increments of 27".
• Boom extension is designed so it cannot be pulled all the way out.
• The boom is firmly secure onto fork blades by two bolts located at the back of each fork pocket and restraint pins.

Specifications

• Weight - 200 Lbs
• Slip on the forks design with fork pockets 6" wide x 2.3" high.
• Fork pockets are 13.3" to centers.
• Packaged Volume: 0.2929 M3.
• Net Weight: 200.6 LBS.
• Gross Weight: 202.8 LBS.

NOTE: Boom lift capacities depends completely on capacity of forklift being used

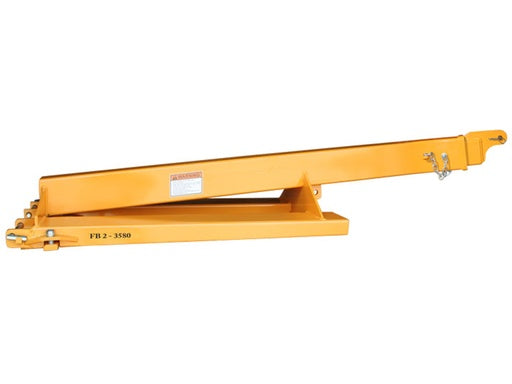

FB2-3580

Aardwolf forklift booms are made from high-grade Australian rectangular tube steel, AS1163-450 LO, which ensures strength, reliability and safety. The Aardwolf forklift booms compliment the patented range of Aardwolf lifting clamps. The FB2- 3580 is a telescoping two section rectangular tube steel boom for use on 3 ton forklift trucks and larger. It offers versatility with maximum visibility for the driver.

Features:

• Maximum load capacity, fully retracted - 3307 LBS, fully extended - 1322.8 LBS.
• Manually telescopes from 2.107 M to 3.580M in 3 increments of 19.3".
• Boom extension is designed so it cannot be pulled all the way out.
• The boom is firmly secure onto fork blades by two bolts located at the back of each fork pocket and restraint pins.

Specifications:

• Weight - 286 Lbs
• Slip onto forks design with fork pockets 6.5" mm wide x 2.6" high.
• Fork pockets are 14.8" to centers.
• Packaged Volume: 0.4053 M3.
• Net Weight: 284.4 LBS.
• Gross Weight: 288.8 LBS.

NOTE: Boom lift capacities depends completely on capacity of forklift being used

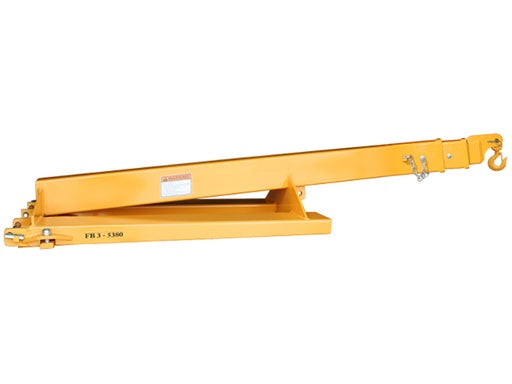

FB3-5380

The FB3-5380 is a telescoping three-section rectangular tube steel boom for use on 3 ton forklift trucks and larger. It offers versatility with maximum visibility for the driver.

Features

• The boom extension is designed so it cannot be pulled all the way out
• The boom is firmly secured onto fork blades by two bolts located at the back of each fork pocket and restraint pins

Specifications

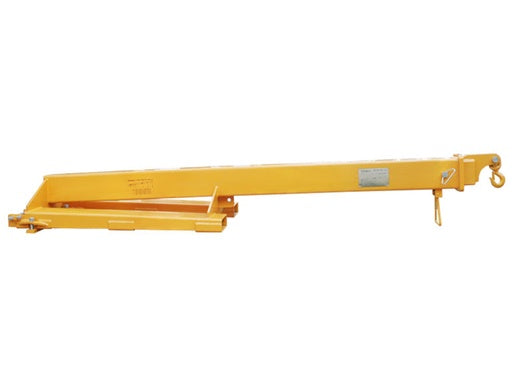

FB4-4800

The Forklift Booms are made from high-grade Australian rectangular tube steel, which ensures strength, reliability and safety. The FB4-4800 is a telescoping two-section rectangular tube steel boom for use on 5 to 8 ton forklift trucks. It offers versatility with maximum visibility for the driver.

Features

• The boom extension is designed so it cannot be pulled all the way out
• The boom is firmly secured onto fork blades by two bolts located at the back of each fork pocket and restraint pins

Specifications

Note: Boom lift capacity depends completely on the capacity of the forklift being used

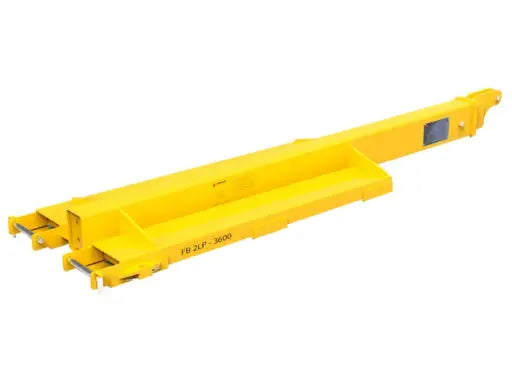

FB2LP-3600

The Forklift Boom FB2LP-3600 has a low profile design specifically intended for unloading marble and granite sheets from closed van containers where height is a critical factor. The FB2LP-3600 is a telescoping two-section rectangular tube steel boom built to comply with current safety guidelines and manufactured from heavy gauge Australian rectangular tube steel, AS1163-450 LO, which ensures strength, reliability and safety.

Features

• The boom extension is designed so that it cannot be pulled all the way out
• The boom is firmly secured onto fork blades by two bolts located at the back of each fork pocket and restraint pins

Specifications

Note: Three alternatives for attaching the Aardwolf Lifters to the forklift boom:

• Combo Swivel, Chain, Lifting Lug. Allows flex between the boom and load. Prevents slab breakage when traversing rough terrain. Also allows the lifter to be lowered down into confined spaces, such as when lifting a short slab from a racking system.

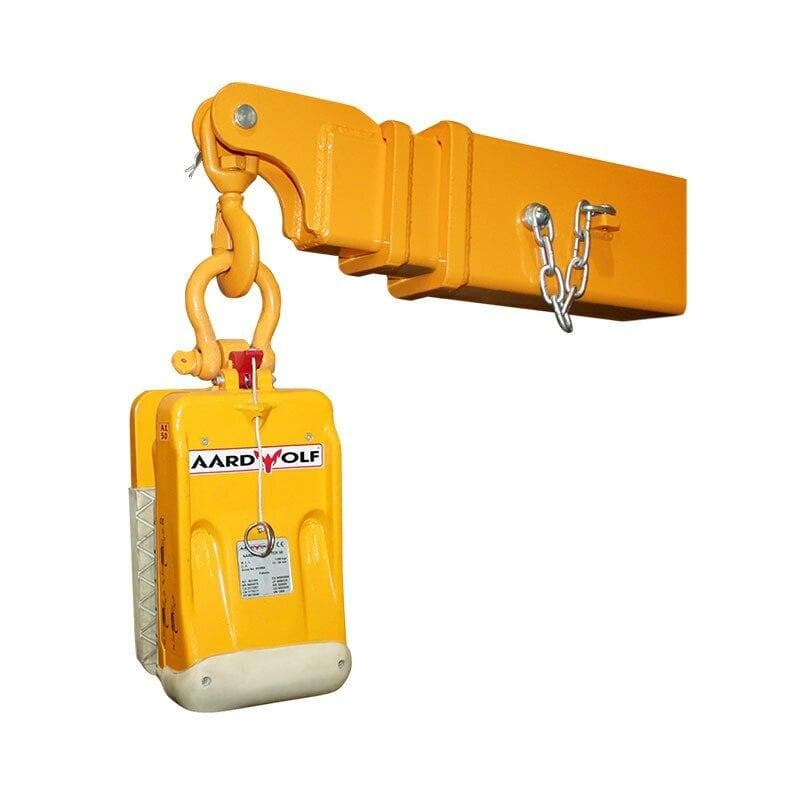

• Forged Aluminium Swivel Shackle. A compact swivel shackle that attaches directly to the forklift boom and Aardwolf lifting clamp. Gives operators maximum lift within a shipping container.
• Bow Shackle 3.0T. General purpose. Useful in many applications for safe and secure attachments.
• Boom lift capacities depend completely on the capacity of the forklift being used.

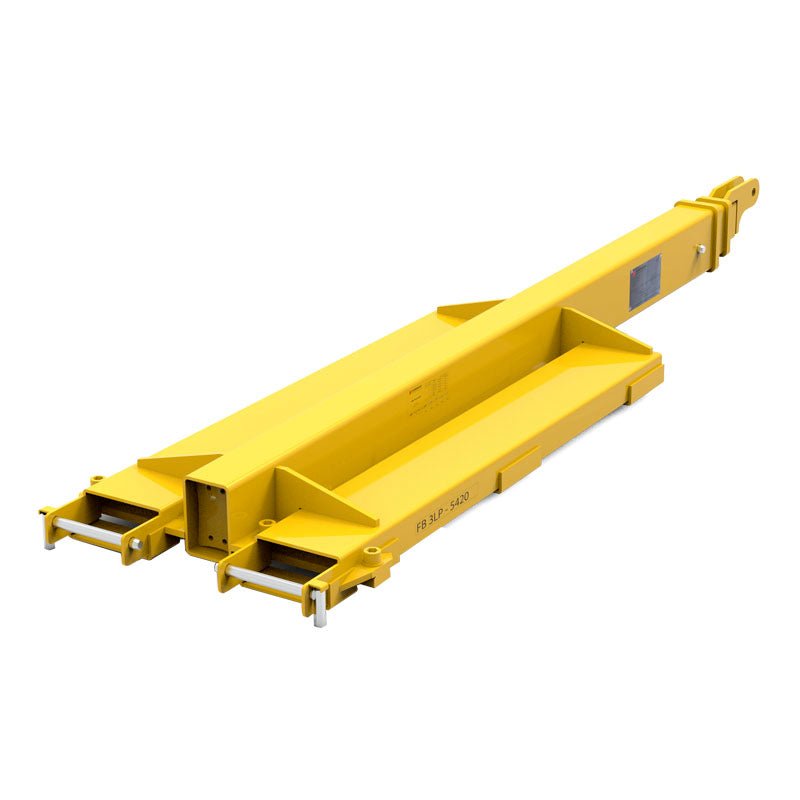

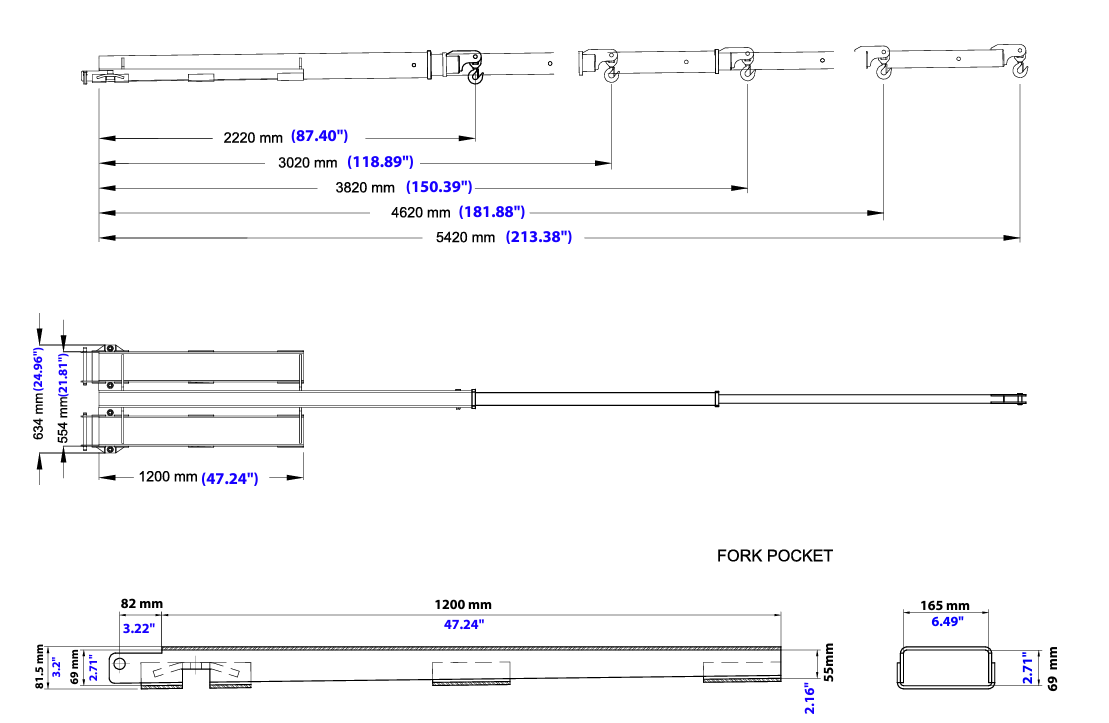

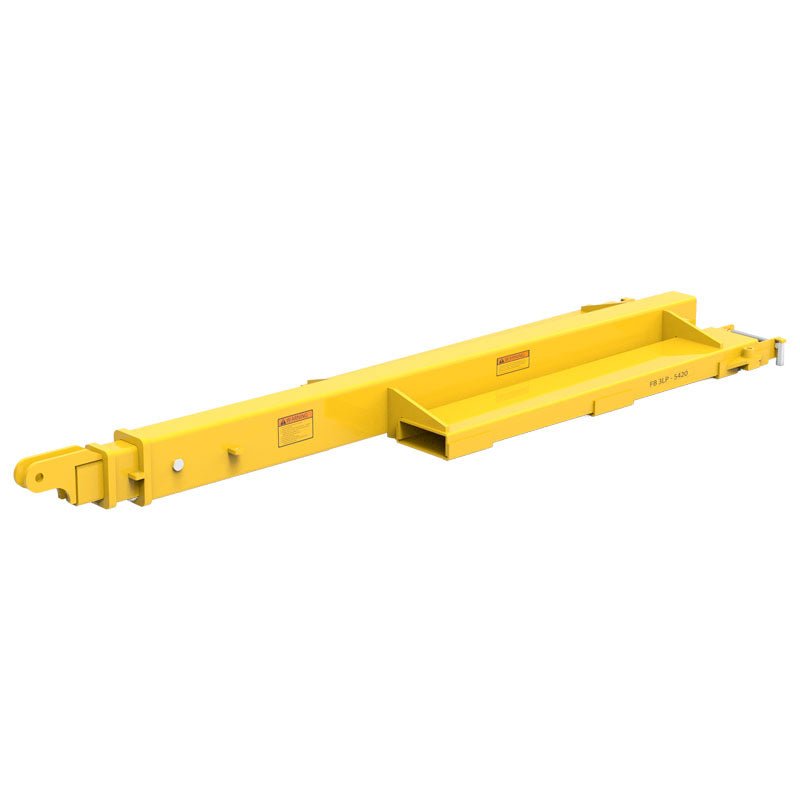

FB3LP-5420

The Forklift Boom FB3LP-5420 has a low profile design specifically intended for unloading marble and granite sheets from closed van containers where height is a critical factor.
The FB3LP-5420 is a telescoping two-section rectangular tube steel boom built to comply with current safety guidelines and manufactured from heavy gauge Australian rectangular tube steel, AS1163-450 LO, which ensures strength, reliability and safety.

Features

• The boom extension is designed so that it cannot be pulled all the way out
• The boom is firmly secured onto fork blades by two bolts located at the back of each fork pocket and restraint pins
• Durable powder-coat finish

Specifications

Note: Three alternatives for attaching the Aardwolf Lifters to the forklift boom.

• Combo Swivel, Chain, Lifting Lug. Allows flex between the boom and the load. Prevents slab breakage when traversing rough terrain. Also allows the lifter to be lowered down into confined spaces such as when lifting a short slab from a racking system.
• Forged Aluminum Swivel Shackle. A compact swivel shackle that attaches directly to the forklift boom and Aardwolf lifting clamp. Gives operators maximum lift within a shipping container.
• Bow Shackle 3.0T. General purpose. Useful in many applications for safe and secure attachments.
• Boom lift capacities depend completely on the capacity of the forklift being used.

CALL FOR PRICE
