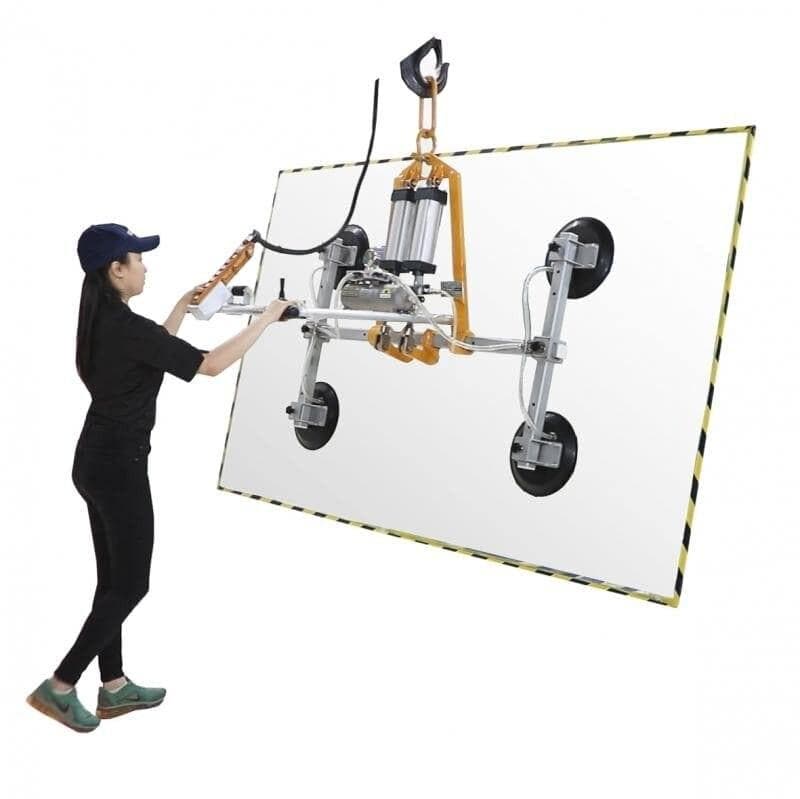

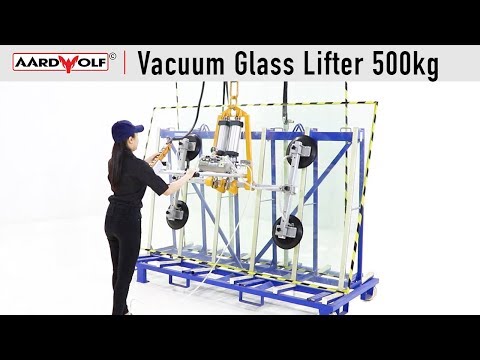

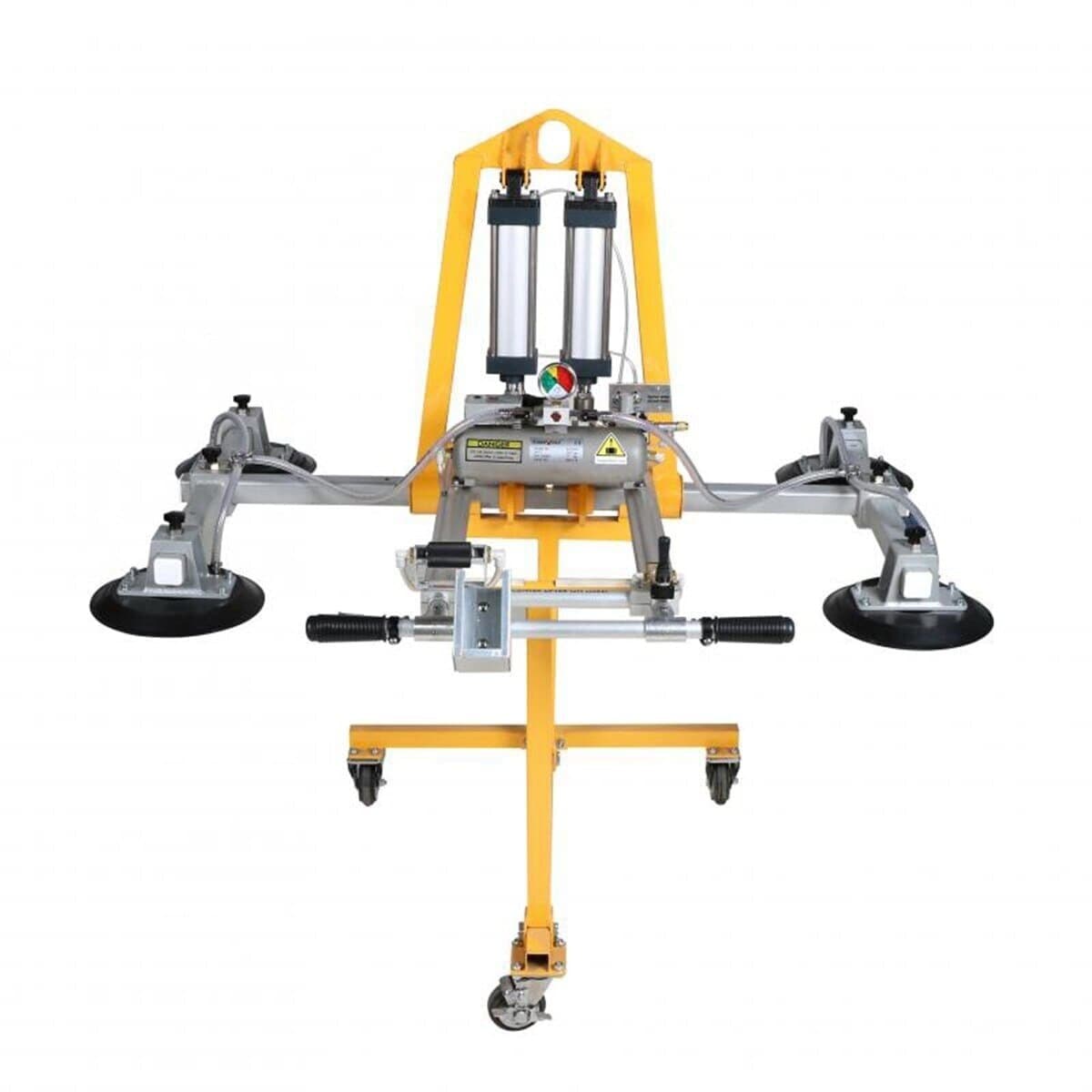

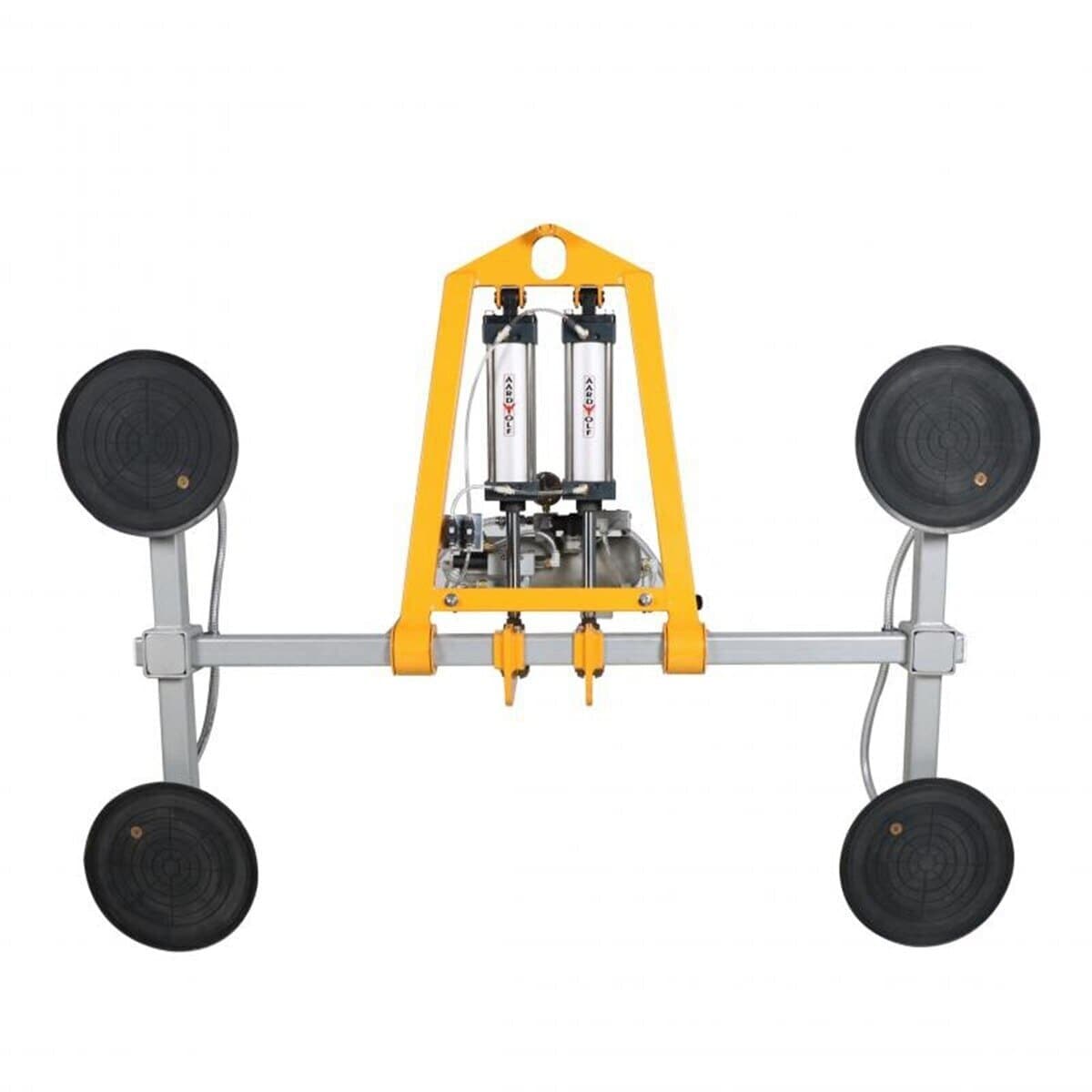

Vacuum Glass Lifter AVGLP4 is a 4 pad vacuum lifter used to move glass panels over 800 pounds!

Pneumatically powered, the Vacuum Glass Lifter AVGLP4 is able to lift glass panels, even panels with a rough surface with a weight of up to 400kg. It features a rugged construction with the added ability to lift and tilt the panel materials.

General

Pneumatically powered, the Vacuum Glass Lifter is able to lift glass panels, even panels with a rough surface with a weight of up to 400kg. It features a rugged construction with the added ability to lift and tilt the panel materials.

Features

  • Pneumatic vertical-horizontal tilting from 0 to 90°.
  • A stainless steel vacuum tank ensures safety in the event of an unexpected power outage.
  • Automatic vacuum pumping if vacuum loss occurs.
  • Acoustic and visual alarm system.
  • Attach/release material with an ON/OFF slide valve.

Specifications


Metric
Imperial
Number of pad -
Pad diameter Seal to seal: 280 mm 11"
Working load limit Vertical: 200 kg
Horizontal: 400 kg
441 lb
882 lb
Net weight 79 kg 174 lb
Packaging dimensions L.1480xW.380xH.960 mm 58.2"x15"x37.8"
  • Battery information for the alarm system
Power supply 3.7V Lipo battery
Battery capacity 2000 mAh x 1
Standby time 720 hours
Charging cycle 1000 times
Charging time 2 hours
Non-stop working time 7 hours
6-month warranty -
  • Compressed air requirement
Air consumption 180 liters/minute
Supply air pressure 5 bars (72 psi)
