All Plastic Beam Bolster | OCM | Beam Bolster | Construction Material

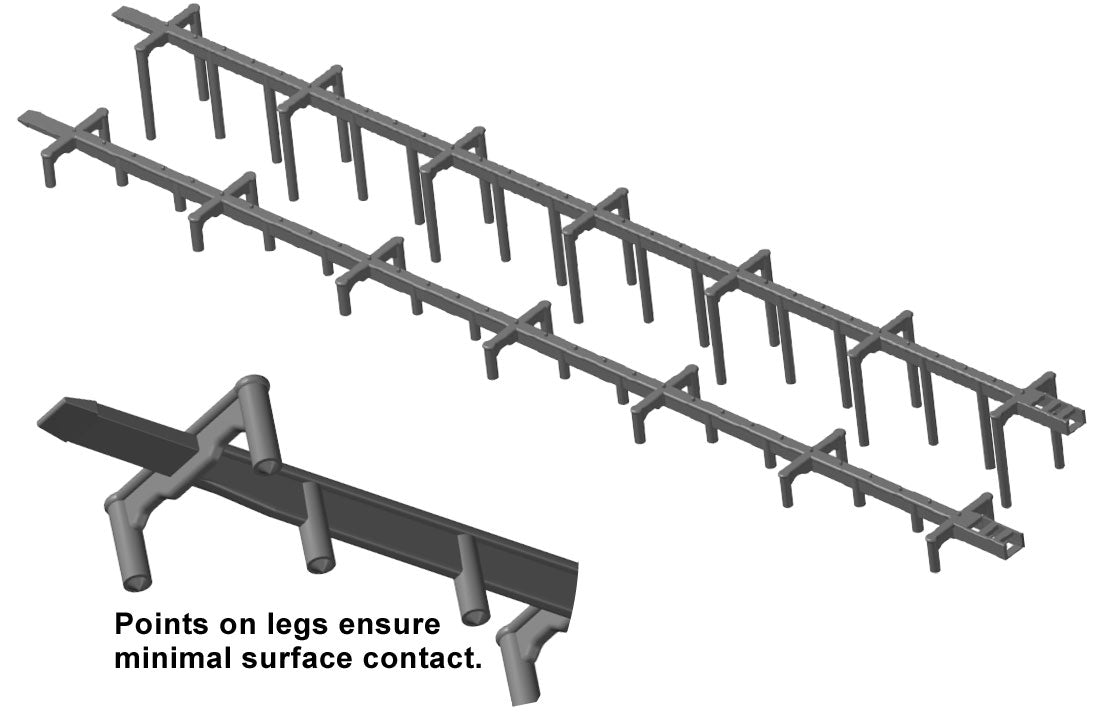

OCM All Polymer Composite Beam Bolster (BBCOMP) is designed to support heavier loads encountered in forming concrete beams, segmental bridge sections, core wall form side spacers, and other applications requiring traditional Steel Beam Bolster.

OCM All Polymer Composite Beam Bolster eliminates corrosion concerns while providing unparalleled strength capacity. BBCOMP is also flexible enough to form circles for side spacers without cracking, kinking, or breaking. BBCOMP ends are connectable achieving any lengths desired for larger projects.

Features

Approved for use in DOT and Commercial projects.
Meets CRSI Requirements for all Classes of corrosion protection.
Manufactured in 8 heights from 3/4" to 3".
Polycarbonate material produces improved load capacity.
Supports any bar diameter.
Individual sections easily snap together to form continuous lengths.
All Polymer Composite Beam Bolster is assembled in 60" lengths and bundled for easy placing, storage and shipping.

OCM Part No.	Height	Bundle Qty (lf)	Skid Qty (lf)	Bundles Per Skid
BBCOMP-75	3/4"	100	13,200	48
BBCOMP-100	1"	100	13,200	48
BBCOMP-125	1-1/4"	100	12,000	48
BBCOMP-150	1-1/2"	100	9,600	48
BBCOMP-175	1-3/4"	100	7,200	48
BBCOMP-200	2"	100	7,200	48
BBCOMP-250	2-1/2"	100	6,000	48
BBCOMP-275	2-3/4"	100	6,000	48
BBCOMP-300	3"	50	4,800	48
BBCOMP-350	31/2"	50	2250	48
BBCOMP-400	4"	50	2000	48
