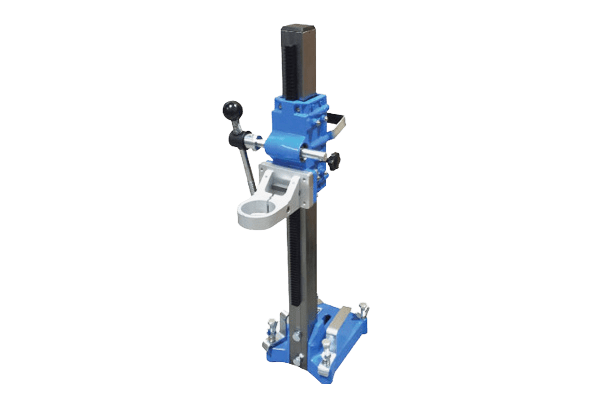

- Magnesium column
- Replaceable steel rack
- Replaceable polymer guides
- Dual side raise/lower
- 60mm replaceable collar
- Dual doughnut holders
- Adjustable leveling screws
- Can be used with HCD2200 or DMC6D drills
TECHNICAL SPECS
Model
HCDDS
Column Size
2" x 2"
Column Length
24"
Mounting Type
Bolt Down Base
Weight
6lbs

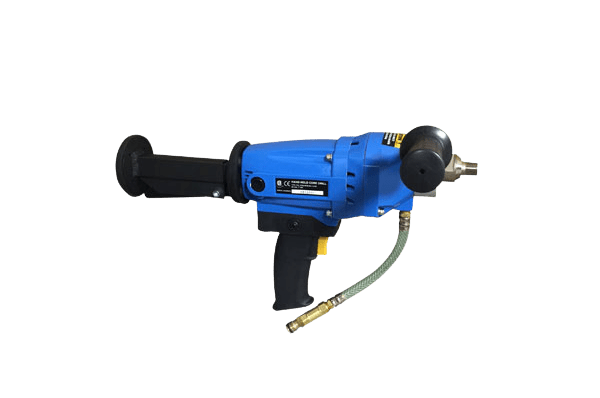

"THE MONGOOSE DRILL" DESIGNED TO DRILL UP TO 6" DIAMETER MONGOOSE BITS AND 3" DIAMETER WET BITS
- Adjustable length shoulder stock
- Locking trigger
- Slip clutch for operator safety
- 16' - 14 gauge SJT cord
- Molded carry case
- Water feed with shutoff
- 18mm thread w/ adapters
- 360 degree adjustable side handle
- Tool kit included
TECHNICAL SPECS
Model
HCD2200
RPM
0-2200 RPM variable
AMPS
13A
Voltage
110V
Weights
9lbs (4kg)
A HEAVY-DUTY DRILL YOU CAN TRUST ON THE JOB SITE
- Wet and dry drilling capability
- Magnesium alloy construction for minimal weight and maximum strength
- Improved cooling and increased durability
- Soft start electric motor
- Current and thermal overload protection
- Load warning system and indicator light 3 speed oil bath gearbox
- Mechanical clutch
- Integrated water feed system
- Can be mounted to a rig for larger drilling jobs
- Two-in-one spindle for both 1-1/4" UNC and 1/2"BSP
- Built-in anti-seize ring
- Anti-vibration side handle reduces operator stress
- GFCI
- Included wrench
- 5/8"-11 bit adapter
- Tool case
- Water feed
- Vacuum port
TECHNICAL SPECS
Power Input
110V-120V: 1700W (15A)
Voltage
110V-120V~ 50Hz-60Hz
No Load min-1
930 / 1520 / 4270
Hand-held Capacity
3" (80mm)
Rig-Mounted Capacity
6" (152mm)
Spindle Thread External
1-1/4" UNC
Spindle Thread Internal
1/2" BSP
Neck Diameter
60mm
Soft Start & Overload Protection
Included
Mechanical Safety Clutch
Included
Protection Class
Class with PRCD
Dimensions
437mm x 115mm x 289mm
Net Weight
14lbs (6.4kg)

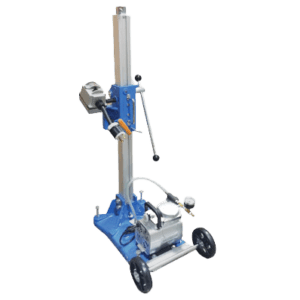

THIS FULL SIZE COMBINATION STAND HANDLES UP TO A 14`` BIT INCLUDES STAND, VACUUM PUMP SWITCH BOX AND SPACER BLOCK
TECHNICAL SPECS
Max Bit Diameter
14"
Column Length
42"
Column Diameter
3" x 3"
Weight without Motor
112lbs
Motor Options
Milwaukee 4094 or 4096
Motor Weight
24lbs
Motor
110c 20 amp
Vacuum Pump
110v 4 amp
