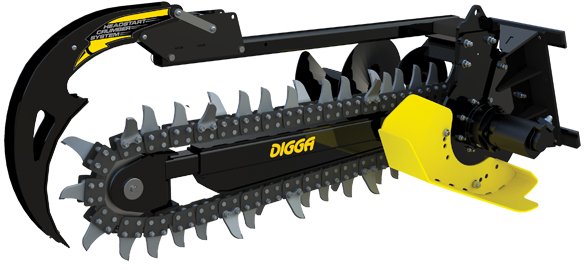

Bigfoot Xd Trencher

Bigfoot Xd Trenchers For Excavators, Skid Steer Loaders & Backhoes

Manufactured in-house to highest industry quality, we can ensure the reliability and performance with the peace of mind you expect from a Digga product. With its innovative features, Digga trenchers are the most user friendly on the market. The Digga Bigfoot XD trencher allows the crumber bar to start in the trench, eliminating the need to get out of the machine to reset the crumber bar (patent pending). A uniquely designed foot can be seen from the cab allowing the operator to see when the trencher is in the correct trenching position - No need for a spotter. A large Spoil Auger completes the Digga crumbing system to clear the spoil faster, increasing efficiency and improving productivity.

The Bigfoot XD trencher features an adjustable depth control foot which ensures the operator trenches at a set depth at all times. Three different chain options are also available for trenching in different ground conditions from general earth, to rocky ground, concrete, asphalt, and frozen ground.

Features

• Headstart Crumber System (patent pending)
• Adjustable Skid Foot to maintain constant digging depth
• Skid Foot is visible from the cab
• Frame can be side shifted for digging close to permanent structures
• 3 different Chain options, Earth, Combo, and Diggatac
• Industry Leading Warranty

Ideal Use & Machine Suitability

• Pipe laying for irrigation, underground power and communications, road repairs, and general construction
• Excavators up to 8 ton, skid steer loaders, backhoes

SPECS XD 900 XD 1200 XD 1200 HF XD 1500 HF CUTTING DEPTH UP TO 36" UP TO 48" UP TO 48" UP TO 60" CUTTING WIDTHS 6"/8"/10"/12" 6"/8"/10"/12" 6"/8"/10"/12" 6"/8"/10"/12" FOOT DEPTH PRESETS 18"/24"/30"/36" 24"/32"/40"/48" 30"/40"/48"/60" RECOMMENDED FLOW 16-30 GPM 28-45 GPM MOTOR TYPE 2K BELL EATON 6K BELL EATON MAX PRESSURE - DO NOT EXCEED 3500 PSI @ 16 GPM 3500 PSI @ 34 GPM MAX FLOW - DO NOT EXCEED 25 GPM @ 2900 PSI 45 GPM @ 2800 PSI MAX CONTINUOUS POWER 34 HP 67 HP LENGTH 76” 100” 100” 106” HORIZONTAL HEIGHT 26" 31” 31” 33” WIDTH 48" 48" 48" 45" WEIGHT 575 LBS 855 LBS 935 LBS 1016 LBS
