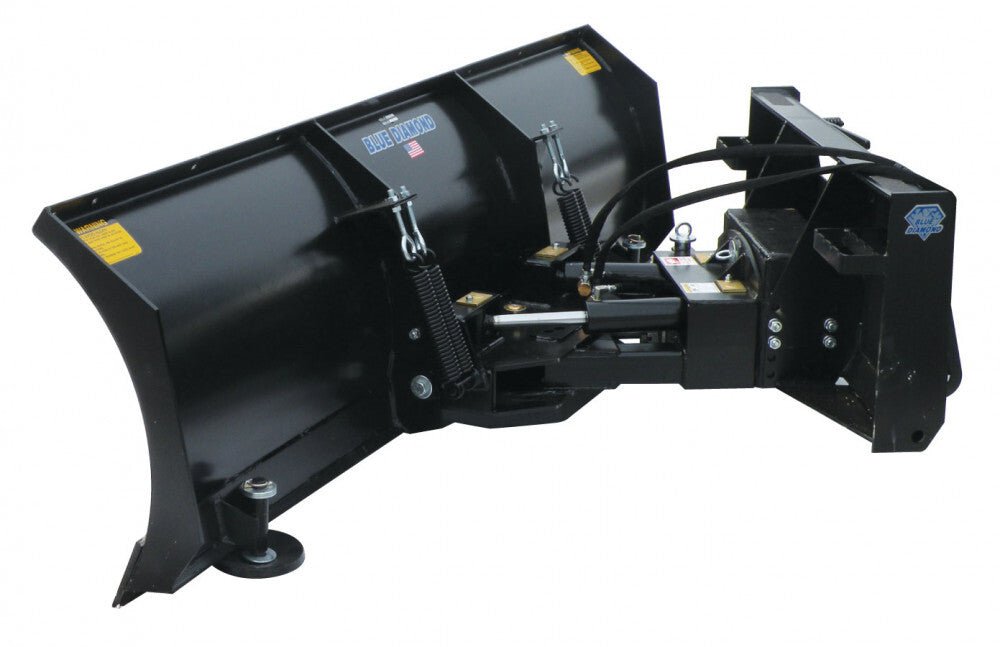

STANDARD DUTY SERIES 2 MULTI-PURPOSE BLADE
At 28” tall, this blade is purpose-built for large applications and has an optional 8” height extension that can be bolted on for more capacity. The curved back keeps the material rolling for maximum efficiency. Adjustable skid shoes allow the cutting edge to land perfectly every time. The full-trip mouldboard protects the operator and equipment from hidden obstacles or curbs. These blades have a trip-lockout pin that can be installed when using the blade for dirt applications.
PART NUMBER | STRAIGHT WIDTH | ANGLED WIDTH | ANGLE | HEIGHT | WEIGHT |
---|---|---|---|---|---|
123470 | 84” | 72 1/2" | 30° | 28" | 901 lbs. |
123475 | 96” | 82 7/8" | 30° | 28" | 946 lbs. |
123480 | 108” | 93 3/8" | 30° | 28" | 986 lbs. |
123485 | 120” | 104 1/8" | 30° | 28" | 1,016 lbs. |
