Bolt-on SafeLink Post Baseplate
SKU# 019-8034
$108.06 off
$61234
$72040
Unit price
/
Make a Selection
Shipping calculated at checkout.
Couldn't load pickup availability
Safe & Secure Payments.

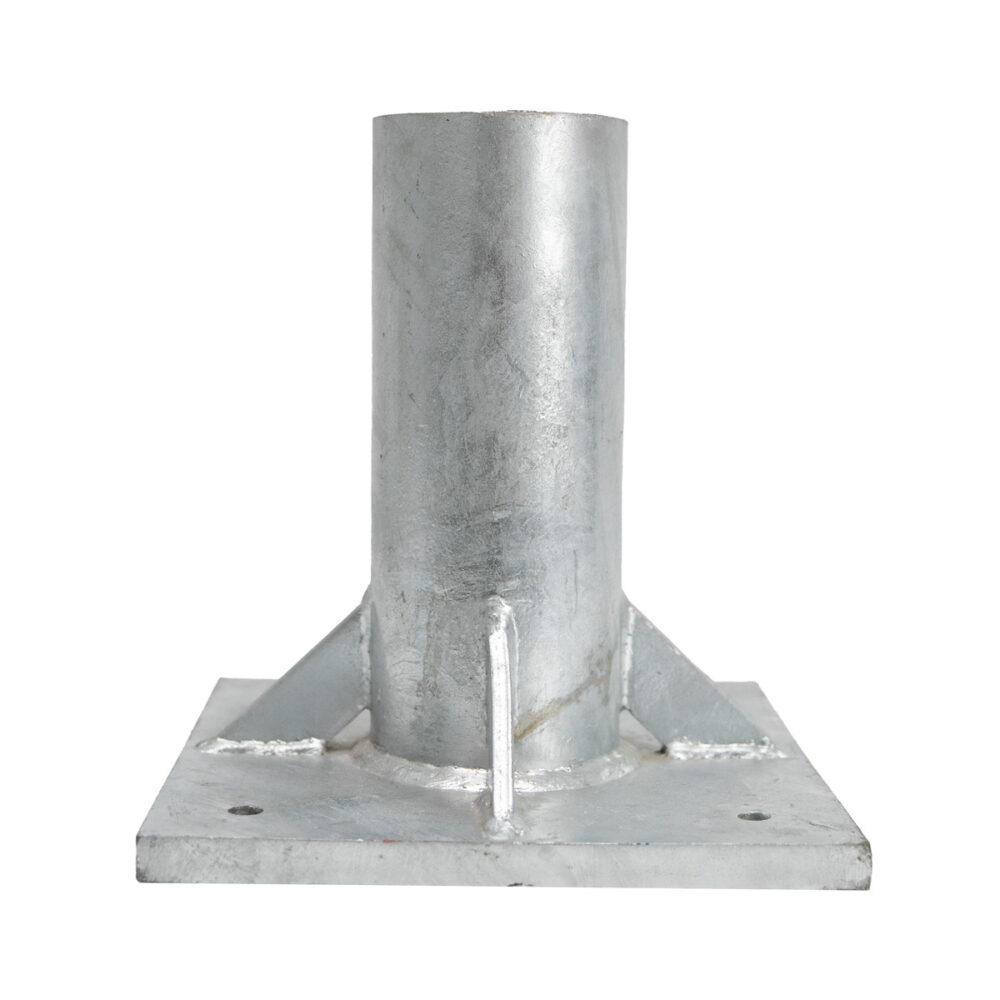

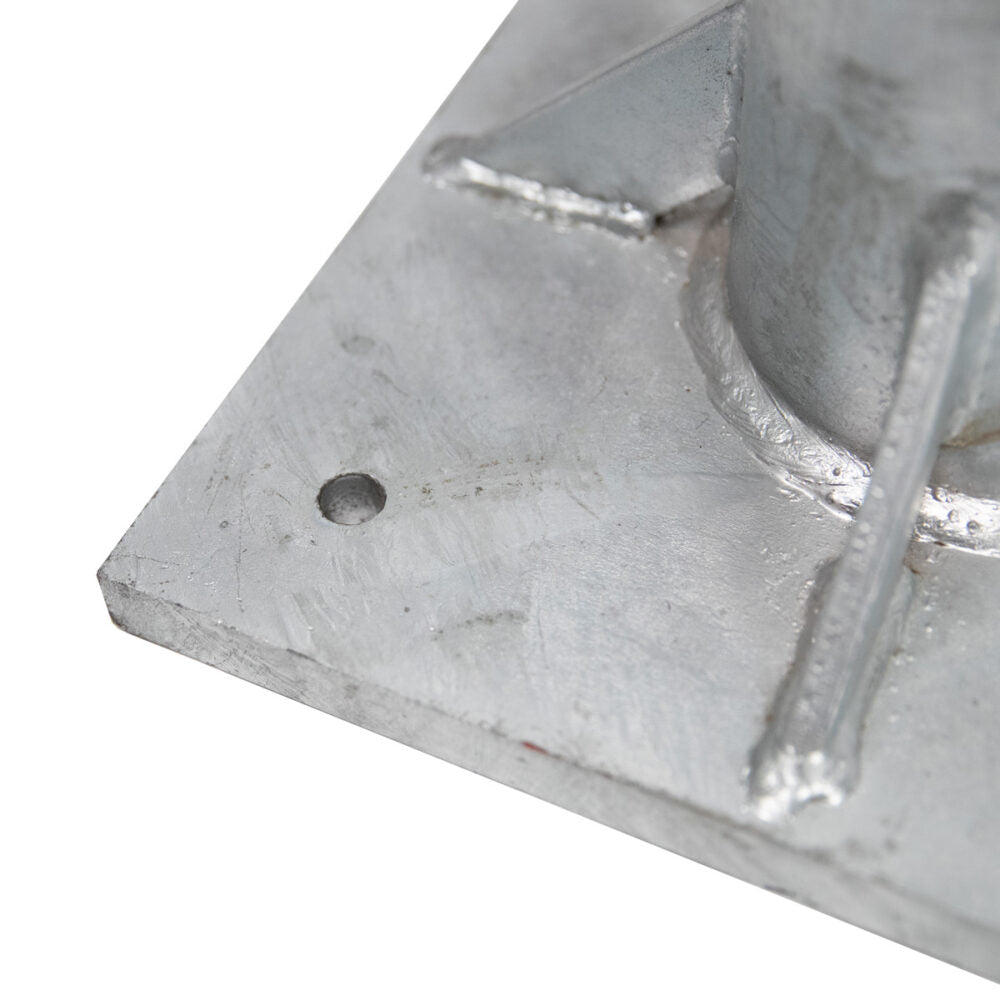

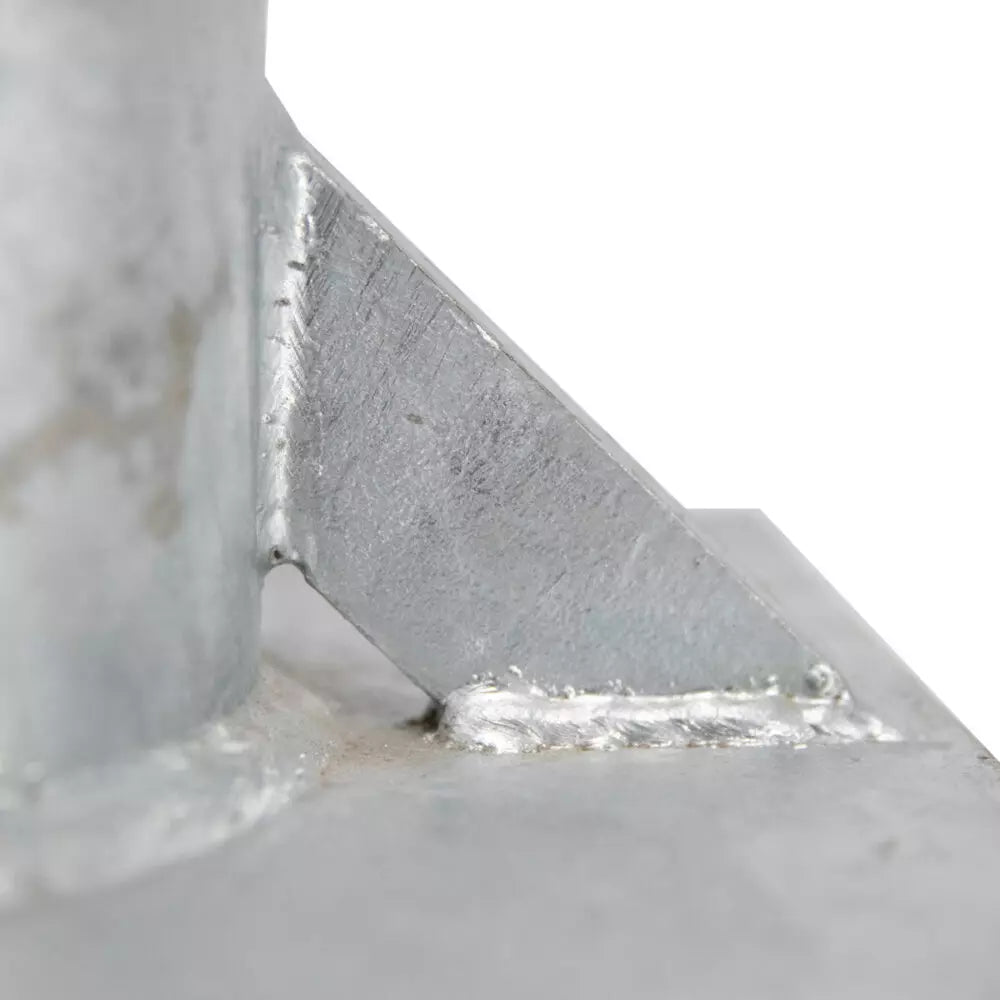

Bolt-on SafeLink Post Baseplate
$61234
$72040
Unit price
/
Make a Selection
SafeLink Bases
The Bolt-on SafeLink Post Baseplate is designed for use with the Safewaze SafeLink HLL System. Mounts securely to steel or concrete structures and used with our 7.5′ aluminum post.
Features:
- Use with FS-EX5501-5 aluminum post
- For concrete installations (in 3000 PSI concrete or higher):
- (4) 1/2” diameter anchor rods with epoxy or
- (4) 1/2” diameter concrete mechanical anchors - For steel installation:
- (4) 1/2” grade 8 bolts with locking hardware
Specifications:
| Materials: | 3/4" (19.05 mm) galvanized plate steel |
| Weight: | 53 lbs. (24 kg) |
| Height: | 12.8" (325.1 mm |
| Base Dimensions: | 12" (304.8 mm) x 12" (304.8 mm) |
| Minimum Breaking Strength: | 5,000 lbs. (22 kN) |
| ANSI Weight Capacity | 130-310 lbs. (59-141 kg) |
| OSHA Standards: | 1926.502, 1910.66 |
