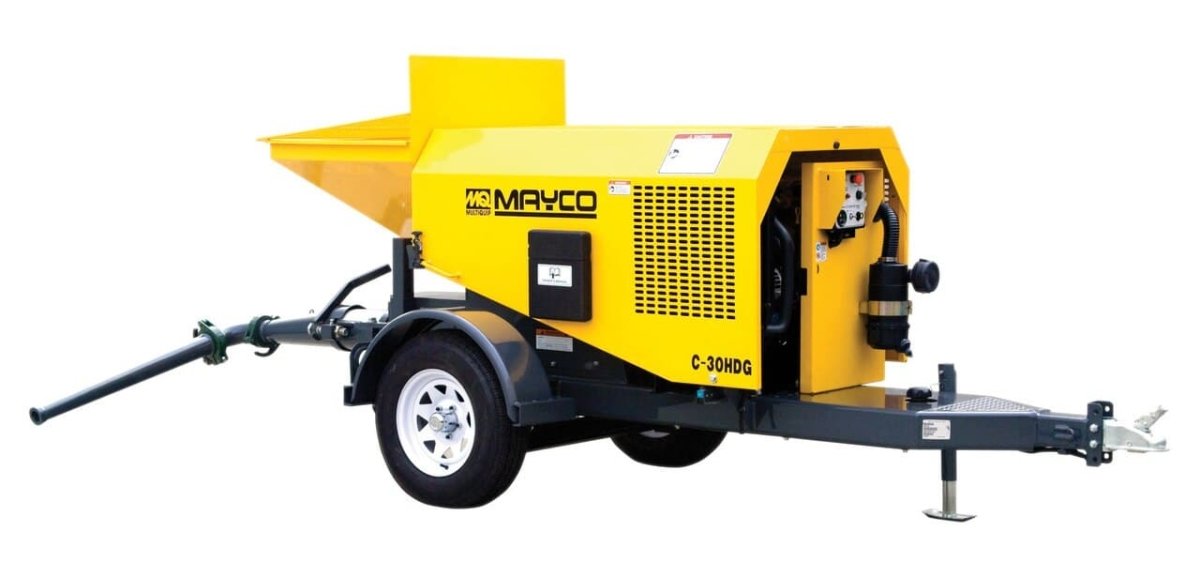

C30HDGA Ball-Valve Concrete Pump

SKU C30HDGA

Original price $43,529.41 - Original price $43,529.41
Original price
Call To Order
CTO - $43,529.41
Current price Call To Order
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

C30HDG Ball-Valve Concrete Pump - Call for pricing and availability.  Wireless remote and other accessories are available.

Zenith Z416 Gamma 45 HP Gasoline Engine

The C30HDGA grout & concrete pump offers uncompromising engine performance with excellent fuel efficiency in a quiet, smooth pumping package.

  • Pumps up to 25 cubic yards (19 cubic meters) per hour
  • Maximum aggregate size of 1/2-inch minus (12 mm)
  • 45-hp (33.5 kW) fuel-injected Zenith gasoline engine ensures quiet, efficient performance
  • Standard 2-function 125-foot (37.5 meters) hardwired remote. Multi-function radio remote with full volume control (Optional).
  • Fully-enlclosed piston lubrication box and central lubrication grease station
  • Standard equipment includes a 3-inch (76 mm) x 90 degree pipe elbow, 3 x 2 x 28-inch reducer, and two 3-inch couplings (all raised ends)
  • Excellent choice for small-aggregate concrete pumping, masonry grout, shotcrete, pressure grouting, and more
Unit Specifications
Pump Type Reciprocating piston
Hopper Capacity 6 ft³ 0.17 m³
Material Hose Diameter 3 in 76 mm
Pumping Specifications
Volume Output
per Hour*
25 yd³ 19 m³
Concrete Piston Face Pressure 500 psi
Max. Aggregate Size 0.5 in 12 mm
* These figures will vary due to concrete mix design, line size, and job site conditions.
Dimensions & Weights
Overall Length 144 in 3658 mm
Overall Width 59 in 1499 mm
Overall Height 65 in 1651 mm
Operating Weight 2920 lb 1325 kg
Shipping Weight 178 lb 126.3 kg
Notice: Features and equipment specifications are subject to change without notice.
Features & Accessories
Standard Features 125 ft Remote Cable
Optional Accessories Air or electric vibrator (mounted to hopper screen)
Wireless remote
Wetgun nozzle
Reducers
Steel pipe
Couplings
Concrete/grout hose
3 in Pintle ring
2.5/16 in Ball Hitch
