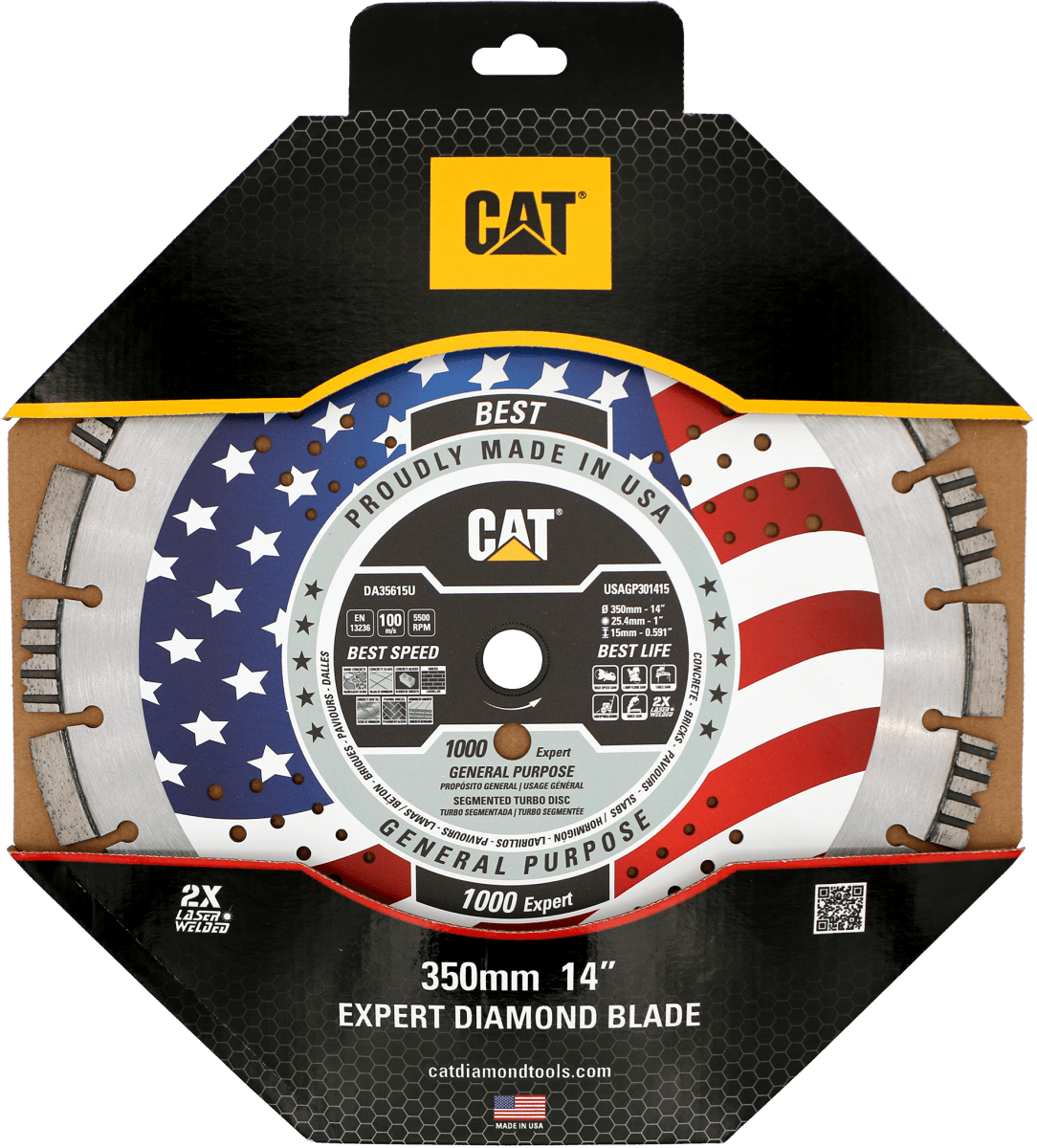

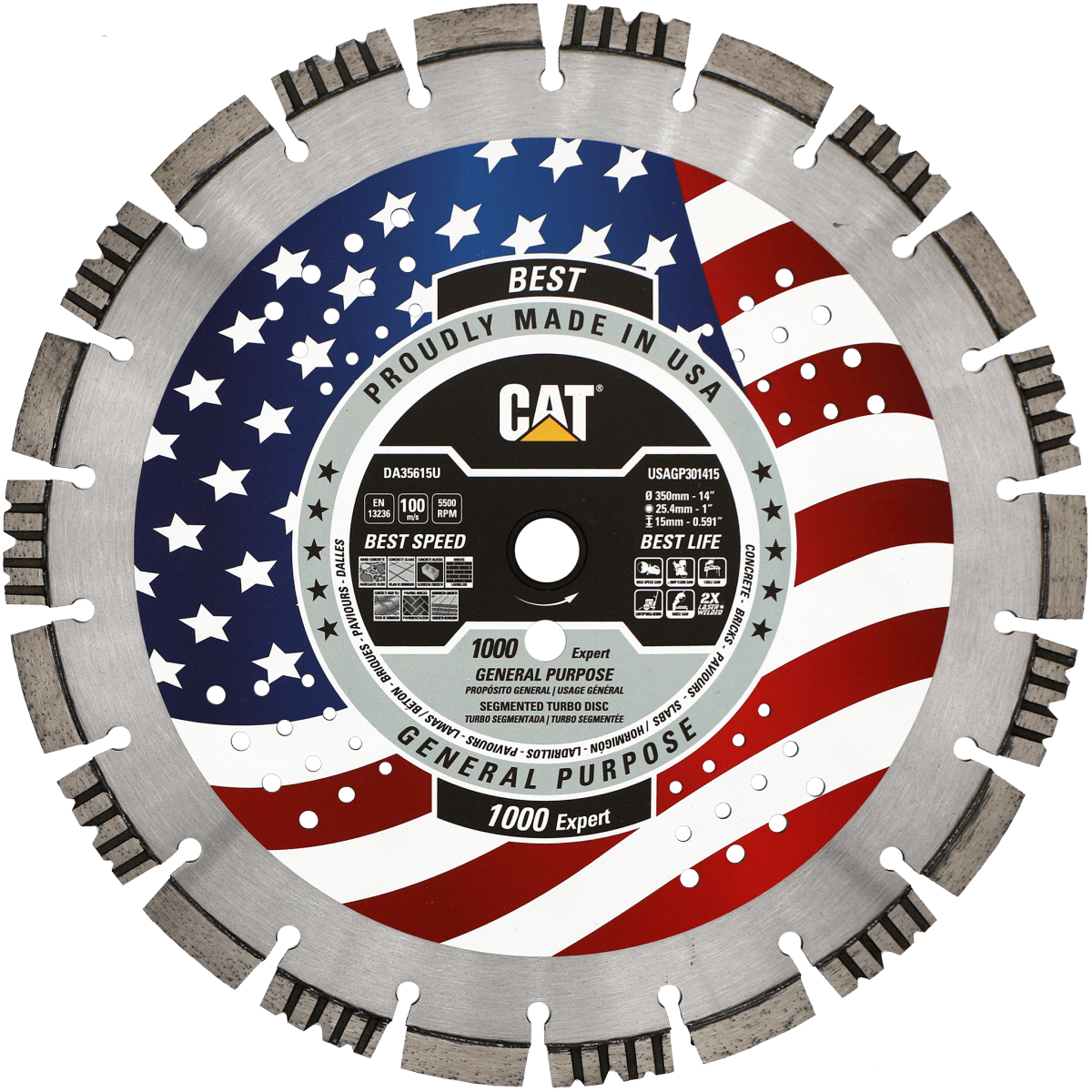

Cat® Expert Diamond Blade - 1000 General Purpose

Cat 1000 Expert Hard Materials 15mm segment height designed for cutting general concrete, pavers, brick, and stone.

Cat® General Purpose blades are designed for intensive use across the 3 performance grades:

Good - 10mm (600 Expert)

Better - 12mm (800 Expert)

Best - 15mm (1000 Expert)

Each individual product has specifically designed segments shape and geometry which complements the diamond grit and bond formulation that has been proven to enhance the cutting performance in terms of fluidity and smoothness of cut, speed and blade life. Cat® General Purpose blades are able to cut a wide span of applications and a multitude of materials. Each increase in performance rating increases the performance in terms of speed and life by use of higher diamond quality and diamond concentration, bond formulation and segment height.

ATTRIBUTES

• ULTIMATE DIAMOND QUALITY & BOND FORMULATION
• ULTIMATE LIFE & SPEED OF CUT
• FULLY HARDENED & HEAT-TREATED STEEL CORE
• VENTED COOLING HOLES FOR RAPID HEAT DISPERSION
• 2X LASER WELDED FOR SAFETY & STABILITY OF SEGMENTS
• UNIQUE TURBO SEGMENT DESIGN FOR AGGRESSIVE CUTTING ACTION
• UNIQUE V TURBO DESIGN CLEARS ABRASIVE FINES FROM THE CUT & GENERATES LESS FRICTION
• KEYHOLE GULLET DESIGN FOR DUST EXTRACTION FROM CUT

  PRODUCT TYPE		DIAMETER		SEGMENT HEIGHT		SEGMENT WIDTH		MAIN ARBOR - BORE		REDUCING RINGS INCLUDED		MACHINES USED SEE KEY
  PART NO	CODE NO	MM	INCH	MM	INCH	MM	INCH	MM	INCH	MM	INCH
  DA35614U	USAGP301215	300	12	15	0.591	3.175	0.125	25.4+P	1+P	20MM	0.78
  DA35615U	USAGP301415	350	14	15	0.591	3.175	0.125	25.4+P	1+P	20MM	0.78
  DA35616U	USAGP301615	400	16	15	0.591	3.175	0.125	25.4+P	1+P	20MM	0.78
  DA35617U	USAGP301815	450	18	15	0.591	3.175	0.125	25.4+P	1+P	20MM	0.78

  Available in USA, non-oSa accredited.




  APPLICATION

  ★★★★

  HEAVILY STEEL REINFORCED CONCRETE, CRITICALLY HARD AGGREGATE CONCRETE (FLINT, CHERT), HARD TO MEDIUM AGGREGATE CONCRETE (CHERT - TRAP ROCK - RIVER GRAVEL), MEDIUM AGGREGATE CONCRETE (TRAPROCK - QUARTZ), SOFT - MEDIUM AGGREGATE CONCRETE (GRANITE - LIMESTONE), CLASS A ENGINEERING BRICK 125 N/MM2, CLAY PIPE - ROOF TILES, CLAY PAVIOURS, QUARRY TILES, TERRACOTTA, PORPHYRY, CLASS B ENGINEERING BRICK 75N/MM2, LIGHT REINFORCED CONCRETE, BASALT, HARD LIMESTONE, LIMESTONE AGGREGATE CONCRETE, LIGHTLY REINFORCED CONCRETE, CONCRETE PAVIOURS - KERBS - SLABS, CONCRETE ROOF TILES - PIPES, HARD FACING BRICK, MEDIUM FACING BRICK.

  ★★★

  DUCTILE IRON, QUARTZITE, REFRACTORY BRICK, SOFT FACING BRICKS, CONCRETE BLOCKS OVER 15N/MM2, HARD SLATE, SOFT SLATE, MARBLE, CONCRETE SCREED.

  ★★

  SOFT SANDSTONE (COARSE GRIT), PLASTER - GROUT, CONCRETE BLOCK UNDER 15N/MM2, THERMAL BLOCK 7 N/MM2.

  KEY

  ★★★★

  CORRECT BOND FOR APPLICATION OPTIMAL PERFORMANCE, SPEED & LIFE

  ★★★

  GOOD MATCH BOND FOR APPLICATION EXCELLENT PERFORMANCE SPEED & LIFE

  ★★

  ACCEPTABLE BOND FOR APPLICATION REDUCED PERFORMANCE, SPEED & LIFE

  ★

  OCCASIONAL USE ONLY - MUCH REDUCED PERFORMANCE, SPEED & SHORT LIFE - GLAZING & PREMATURE WEAR WILL OCCUR
