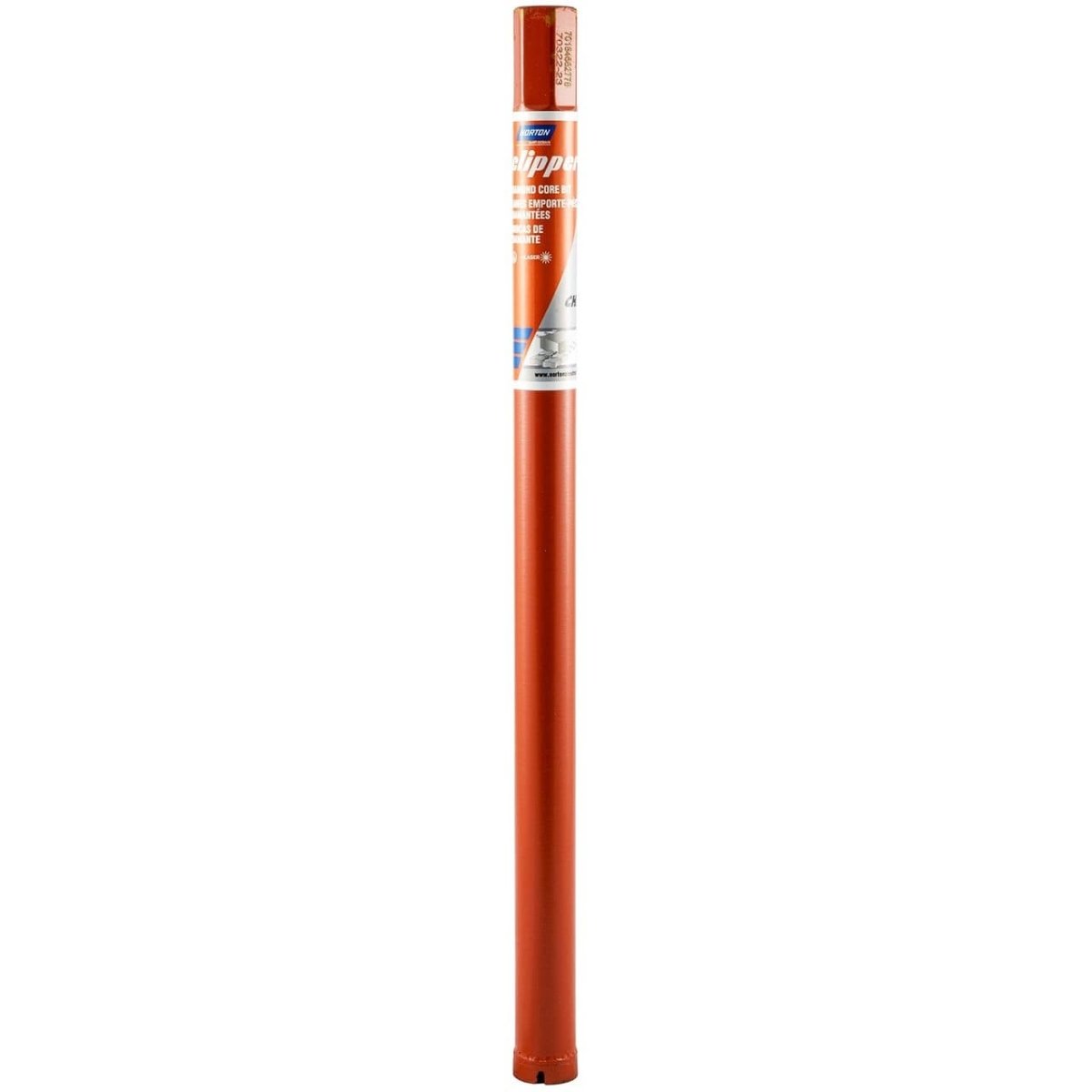

Clipper Charger Critically Hard Wet Segmented Rim Core Bit for fast drilling both wet and dry applications

These Norton Clipper Charger wet bits are equipped with fast drilling segments spaced to prevent segment loss when penetrating tensioned steel cable.
  • Dry/wet/both : Wet
FEATURES & BENEFITS
  • Excellent blend of performance and price
  • Laser welded segments for faster penetration
  • Most aggressive drilling action for general-purpose and masonry applications
  • 16 in. tube length to produce a 13 in. coring depth
1 In. Diameter
SEGMENT THICKNESS NUMBER OF SEGMENTS CONNECTION TYPE MAX OPERATING SPEED RPM PART #
0.125 In. 1 5/8 In.-11 Female 4000 70184682778
1 5/8 In.-11 Female 4000 70184683983
1-1/4 In. Diameter
SEGMENT THICKNESS NUMBER OF SEGMENTS CONNECTION TYPE MAX OPERATING SPEED RPM PART #
0.125 In. 1 5/8 In.-11 Female 3000 70184682779
1 5/8 In.-11 Female 3000 70184683984
1-1/2 In. Diameter
SEGMENT THICKNESS NUMBER OF SEGMENTS CONNECTION TYPE MAX OPERATING SPEED RPM PART #
0.125 In. 1 5/8 In.-11 Female 3000 70184682780
1 5/8 In.-11 Female 3000 70184683985
1-3/4 In. Diameter
SEGMENT THICKNESS NUMBER OF SEGMENTS CONNECTION TYPE MAX OPERATING SPEED RPM PART #
0.125 In. 1 1 1/4 In.-7 Female 2000 70184682781
2 In. Diameter
SEGMENT THICKNESS SEGMENT LENGTH NUMBER OF SEGMENTS CONNECTION TYPE MAX OPERATING SPEED RPM PART #
0.140 In. 0.945 In. 4 1 1/4 In.-7 Female 2000 70184682782
0.945 In. 5 1 1/4 In.-7 Female 2000 70184683987
2.3 In. Diameter
SEGMENT THICKNESS SEGMENT LENGTH NUMBER OF SEGMENTS CONNECTION TYPE MAX OPERATING SPEED RPM PART #
0.140 In. 0.945 In. 5 1 1/4 In.-7 Female 1300 70184682783
0.945 In. 6 1 1/4 In.-7 Female 1300 70184683988
2-1/2 In. Diameter
SEGMENT THICKNESS SEGMENT LENGTH NUMBER OF SEGMENTS CONNECTION TYPE MAX OPERATING SPEED RPM PART #
0.140 In. 0.945 In. 6 1 1/4 In.-7 Female 1300 70184682784
0.945 In. 8 1 1/4 In.-7 Female 1300 70184683989
3 In. Diameter
SEGMENT THICKNESS SEGMENT LENGTH NUMBER OF SEGMENTS CONNECTION TYPE MAX OPERATING SPEED RPM PART #
0.140 In. 0.945 In. 7 1 1/4 In.-7 Female 1300 70184682785
0.945 In. 9 1 1/4 In.-7 Female 1300 70184683990
3-1/2 In. Diameter
SEGMENT THICKNESS SEGMENT LENGTH NUMBER OF SEGMENTS CONNECTION TYPE MAX OPERATING SPEED RPM PART #
0.140 In. 0.945 In. 7 1 1/4 In.-7 Female 1000 70184682786
4 In. Diameter
SEGMENT THICKNESS SEGMENT LENGTH NUMBER OF SEGMENTS CONNECTION TYPE MAX OPERATING SPEED RPM PART #
0.150 In. 0.945 In. 9 1 1/4 In.-7 Female 1000 70184682787
0.155 In. 0.945 In. 11 1 1/4 In.-7 Female 1000 70184683992
4.3 In. Diameter
SEGMENT THICKNESS SEGMENT LENGTH NUMBER OF SEGMENTS CONNECTION TYPE MAX OPERATING SPEED RPM PART #
0.150 In. 0.945 In. 9 1 1/4 In.-7 Female 800 70184682788
4-1/2 In. Diameter
SEGMENT THICKNESS SEGMENT LENGTH NUMBER OF SEGMENTS CONNECTION TYPE MAX OPERATING SPEED RPM PART #
0.150 In. 0.945 In. 9 1 1/4 In.-7 Female 800 70184682789
0.155 In. 0.945 In. 11 1 1/4 In.-7 Female 800 70184683994
5 In. Diameter
SEGMENT THICKNESS SEGMENT LENGTH NUMBER OF SEGMENTS CONNECTION TYPE MAX OPERATING SPEED RPM PART #
0.150 In. 0.945 In. 11 1 1/4 In.-7 Female 800 70184682790
0.155 In. 0.945 In. 13 1 1/4 In.-7 Female 800 70184683995
6 In. Diameter
SEGMENT THICKNESS SEGMENT LENGTH NUMBER OF SEGMENTS CONNECTION TYPE MAX OPERATING SPEED RPM PART #
0.150 In. 0.945 In. 12 1 1/4 In.-7 Female 665 70184682791
0.165 In. 0.945 In. 14 1 1/4 In.-7 Female 665 70184683996
7 In. Diameter
SEGMENT THICKNESS SEGMENT LENGTH NUMBER OF SEGMENTS CONNECTION TYPE MAX OPERATING SPEED RPM PART #
0.165 In. 0.945 In. 16 1 1/4 In.-7 Female 600 70184683997
0.175 In. 0.945 In. 14 1 1/4 In.-7 Female 600 70184682792
8 In. Diameter
SEGMENT THICKNESS SEGMENT LENGTH NUMBER OF SEGMENTS CONNECTION TYPE MAX OPERATING SPEED RPM PART #
0.175 In. 0.945 In. 14 1 1/4 In.-7 Female 500 70184682793
10 In. Diameter
SEGMENT THICKNESS SEGMENT LENGTH NUMBER OF SEGMENTS CONNECTION TYPE MAX OPERATING SPEED RPM PART #
0.200 In. 0.945 In. 18 1 1/4 In.-7 Female 400 70184683999
12 In. Diameter
SEGMENT THICKNESS SEGMENT LENGTH NUMBER OF SEGMENTS CONNECTION TYPE MAX OPERATING SPEED RPM PART #
0.200 In. 0.945 In. 21 1 1/4 In.-7 Female 330 70184684000
0.220 In. 0.945 In. 16 1 1/4 In.-7 Female 400 70184682794
0.945 In. 19 1 1/4 In.-7 Female 330 70184682795
14 In. Diameter
SEGMENT THICKNESS SEGMENT LENGTH NUMBER OF SEGMENTS CONNECTION TYPE MAX OPERATING SPEED RPM PART #
0.220 In. 0.945 In. 22 1 1/4 In.-7 Female 285 70184682796
