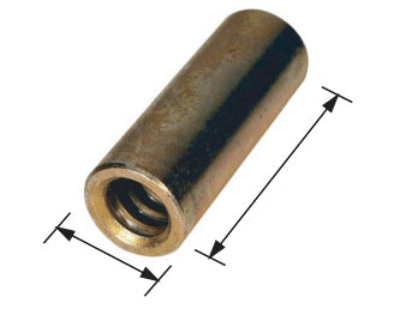

OCM Coil Rod Couplers are made from high strength steel and can develop Ultimate Load of the rod for each diameter available.

Features

  • Can be used to make Coil Rod into 1 continuous length, very versatile
  • Coil Rod Couplers allow for field cut Coil Rod to be made into any desired length
  • OCM has 1/2", 3/4", 1", 1 1/4", and 1 1/2" available in stock
OCM Part No. D Thread L Length Safe Working Load lbs"
50A250CTCP 1/2" 2-1/2" 9,000
75S300CTCP 3/4" 3" 18,000
100S450CTCP 1" 4-1/2" 38,000
125S550CTCP 1-1/4" 5-1/2" 56,000
150S700CTCP 1-1/2" 7" 67,500
Comments: SWL provides a safety factor of apporoximately 2 to 1.
