Counter-Balanced Pallet Master/Servers

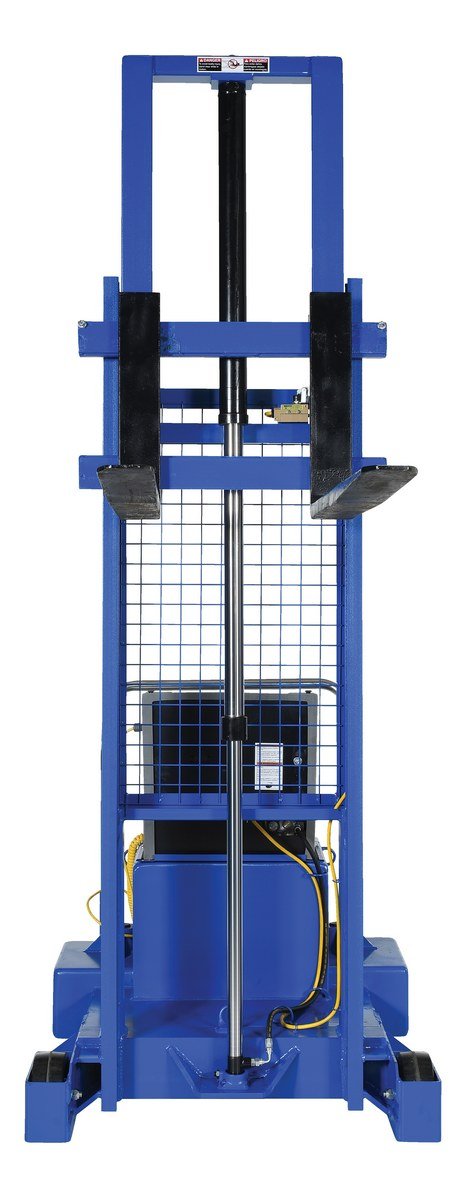

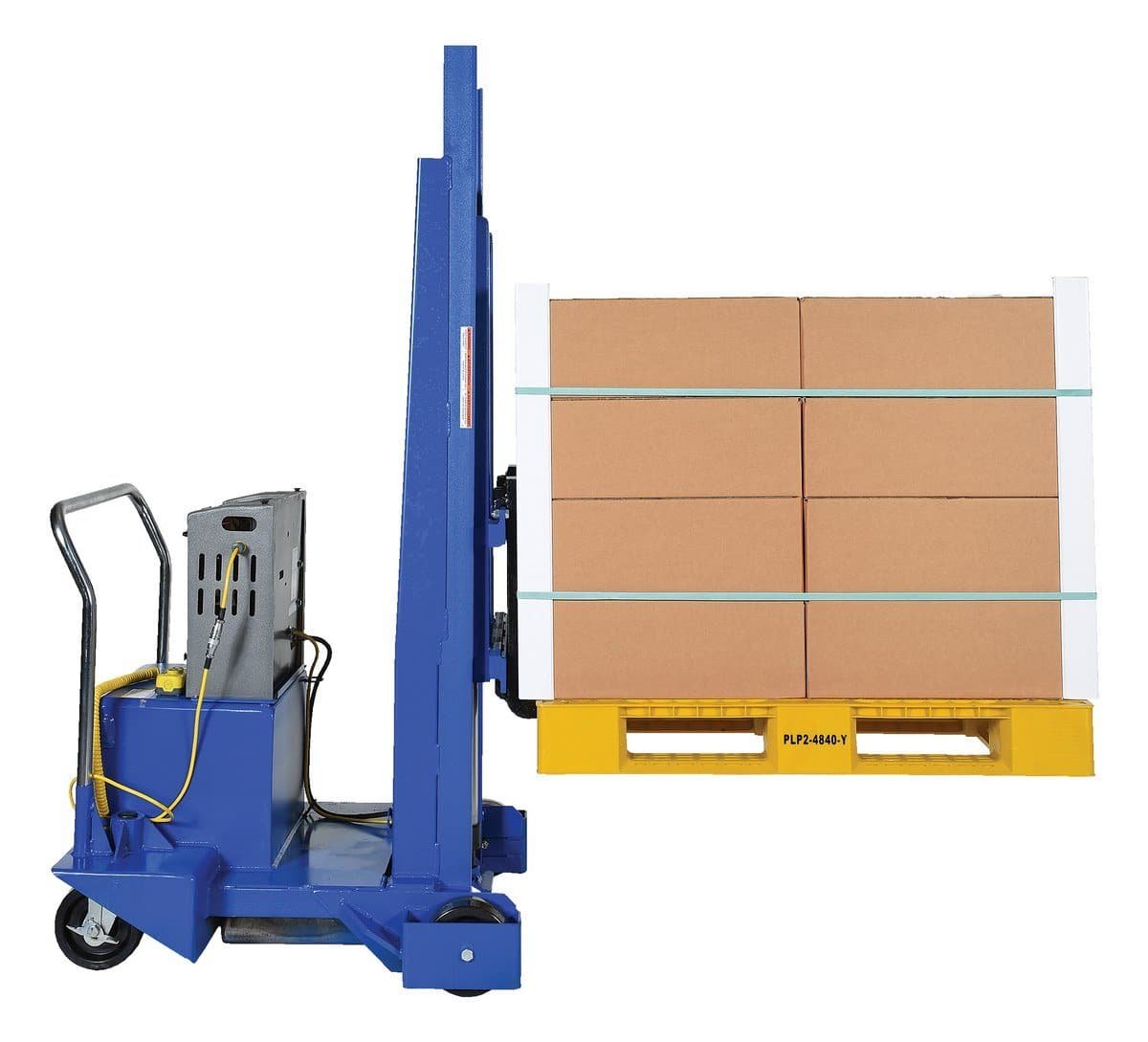

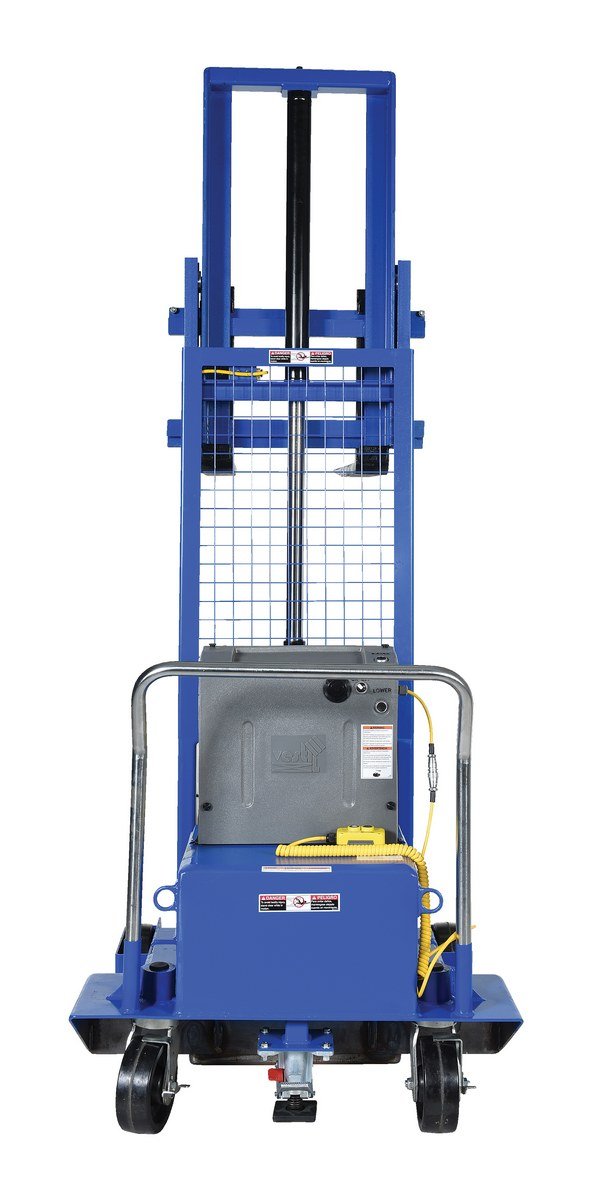

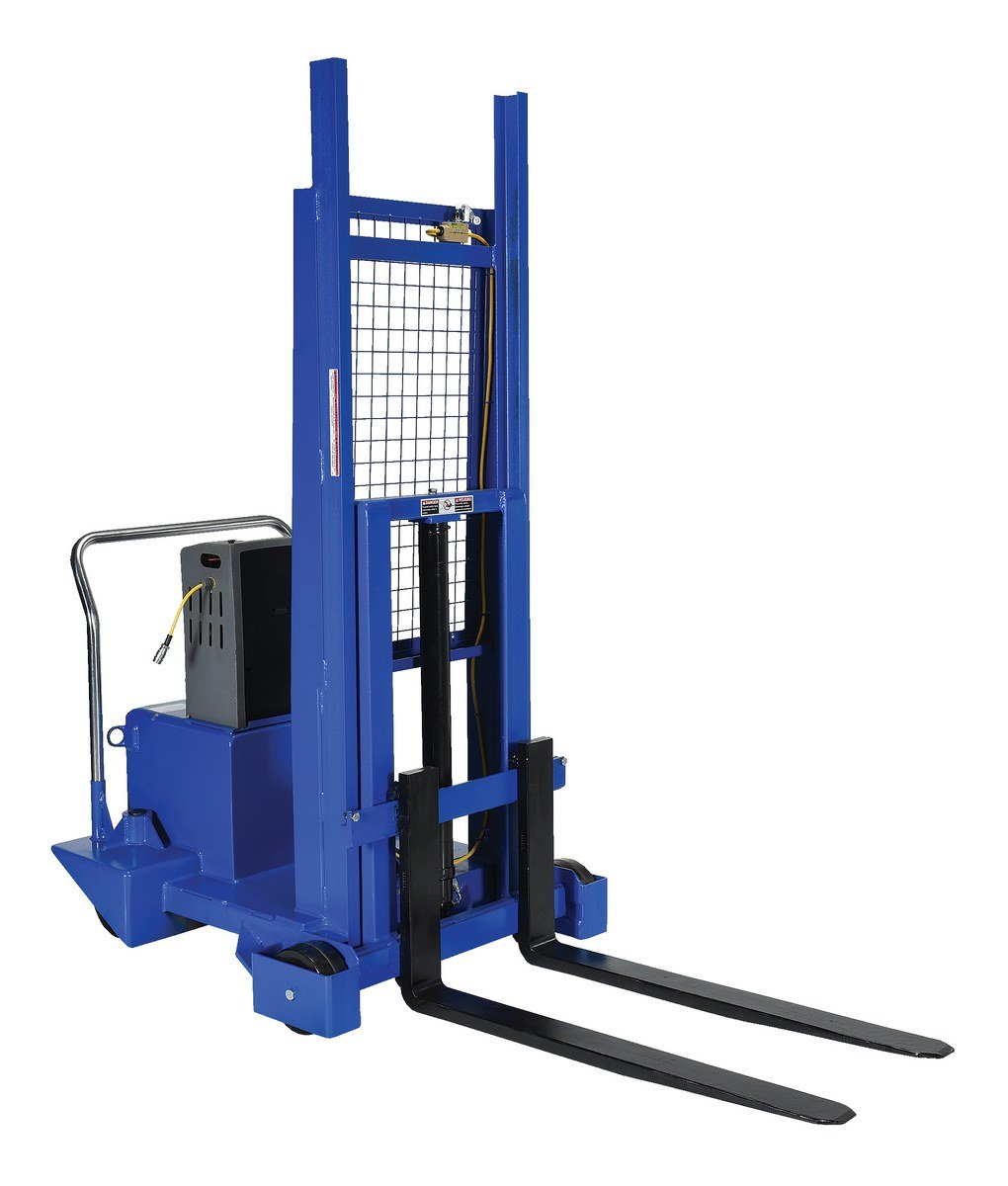

Counter-Balanced Pallet Master/Servers for moving pallets and skids from one workstation to another.
Forks measure 4" wide by 36" long. Features an 18" horizontal load center and adjustable forks from 8" to 27". Units roll easily on 8" x 3" swivel phenolic rear casters. Floor lock standard. Handle height is 41-1/16."
Reduce worker fatigue and injury with our factory installed Power Traction Drive option. An alternative to costly fork trucks, the CM-PMPS-PTDS-E includes combination throttle / direction and auto reverse emergency "belly" switch. This state of the art option allows a single operator to safely and easily move products. Maximum speed is 2.5 m.p.h. 24V DC system.
Three Power Options available:
- Suffix-AC is 115V, 1 Phase power with a push-button hand control.
- Suffix-DC includes one (1) 12V battery, push-button hand control, an on-board charger and battery charge indicator gauge.
- Suffix-AIR feautres reciprocating air/oil power with a heel/toe foot treadle control.
KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
