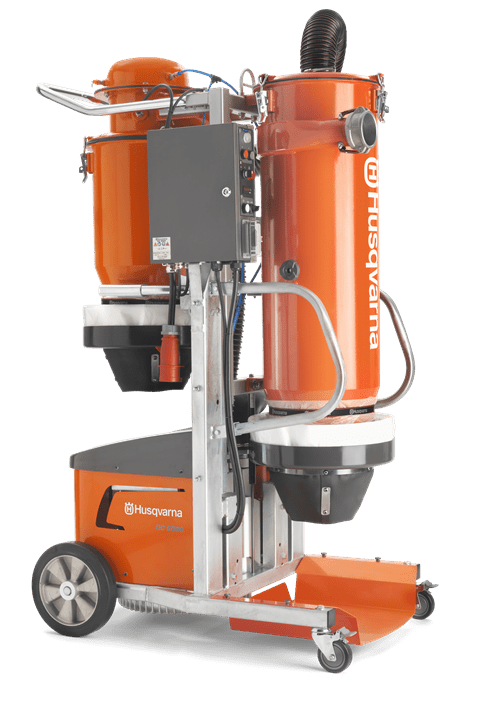

DC 6000 is an effective industrial dust collector to match the highly productive Dual Drive Technology™ grinding machines Husqvarna PG 820, PG 680 and PG 530 3-phase. DC 6000 is developed with unique double shell cyclone technology and automatic filter cleaning.

The cyclone technology enables constant high air flow and high productivity, leaving less dust on floor and thereby saves the user time with cleaning. Possibility to lower the machine makes it easy transport. Can be used for both wet and dry applications.

Phases 3 ph
Air requirement 406 cfm
Rated input power 10.33 hp

FEATURES
Want to take a closer look? Learn more about the product in depth by exploring its features and benefits.

95% separation of dust
Patented double shell cyclone technology, gives more than 95% separation of dust, i.e. only a small amount of dust continues to filter.

High productivity
Thanks to the automatic filter cleaning, you can keep operating without interruptions. The dust collector has a constant high airflow, and leaves minimum dust on the floor.

Low noise and clean working environment
A dust-free environment with low noise makes a better working place. The blower runs quietly and leaves no airborne dust. The HEPA 13 rated filters meets health environment standards. Longopac bags allows fast and dust free disposal into individually sealed plastic bags.

Easy to use
This machine is easy to use and easy to transport - you can lower the machine into transport mode. Thanks to the automatic filter cleaning the dust collector keeps the same efficiency over time. It is also quick and easy to connect the dust collector with your floor grinder, just use the Aux power outlet. It also has a user friendly logical control panel (HMI), which allows automatic and manual purge settings.

or demanding industrial applications
For demanding industrial applications, where high suction and flow are required to eliminate airborne dust.

Motor Specifications

• Phases: 3-phase

• Voltage: 480 V

• Rated Current: 15.9 A

• Frequency: 60 Hz

• Max. Vacuum: 3.05 psi

• Rated Input Power: 10.33 hp

Performance

• Air Requirement: 406 cfm

Dimensions

• Width: 30 in

• Height: 75 in

• Suction Inlet Diameter: 75 mm

• Weight: 670 lbs

Filtration

• Micro Filter Area: 32 ft²
