Double PCD

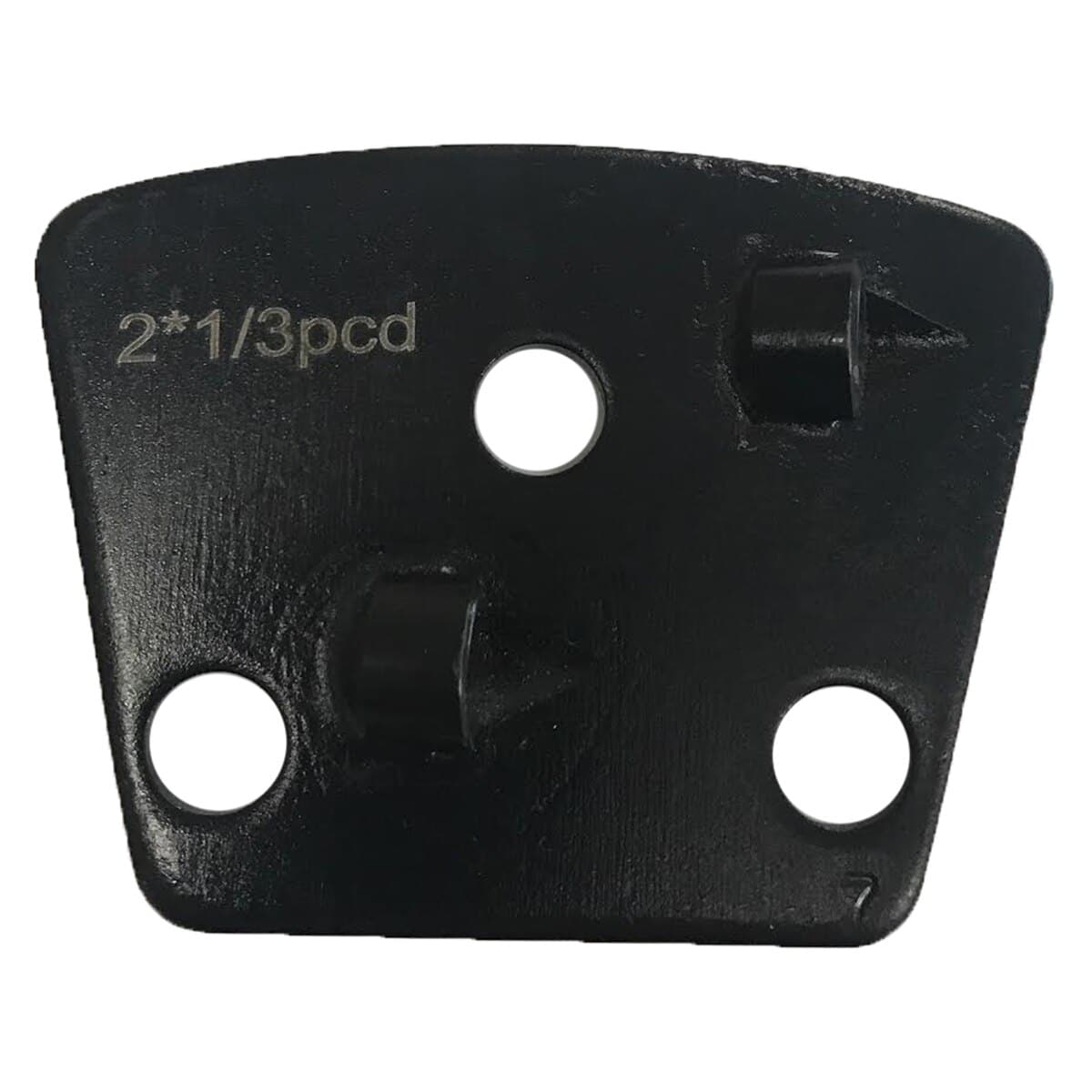

Series 37 - Double PCD Tooling

Description
The 37 Series Double PCD tooling has two offset 7/16" with PCD diamonds. The
Polycrystalline Diamonds (PCD) are very heat and fracture resistant, making them a
great coating removal tool.
Uses
The 37 Series Double PCD tooling is designed for coating removals when heavy
scratching or gouging will not be an issue, such as prepping for epoxy or cementitious
overlays.
Application
The 37 Series Double PCD tooling is the fastest way to remove coatings over 2 mils
in thickness without harsh chemicals or messy shot blasting. Both PCD's (Double and
Single Bar) stand up well to high heat and are fracture resistant.

Technical Data:
Packaging
9 per box
Coverage
Coverage can vary from
surface to surface
depending on roughness,
porosity and density of
the medium being
applied. Application
technique can also vary
the coverage. On flat,
dense surfaces, the
coverage should
generally range from
5,000 to 10,000 square
feet per set. Wet
grinding will usually
extend the life of the
tooling.
Specifications
Bond Color:
N/A
Grit/Velcro Color:
N/A
Bond Matrix:
N/A
Size Available:
3" x 2" Trapezoid
Thickness:
3/16" to 1‚ÅÑ4"
Maximum Speed: 1000
RPM
Use WET or DRY
