Drop-Through Cable Anchor
From
$7768
$9139
Unit price
/
Make a Selection

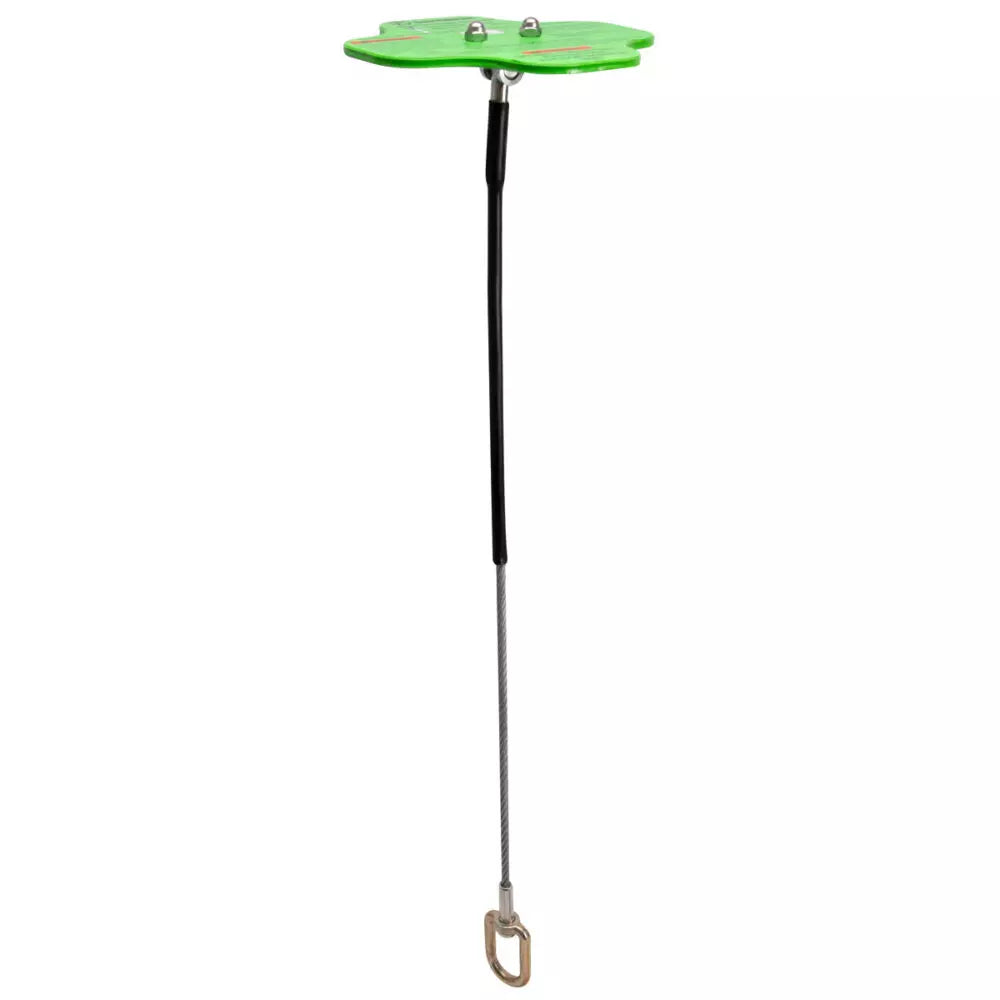

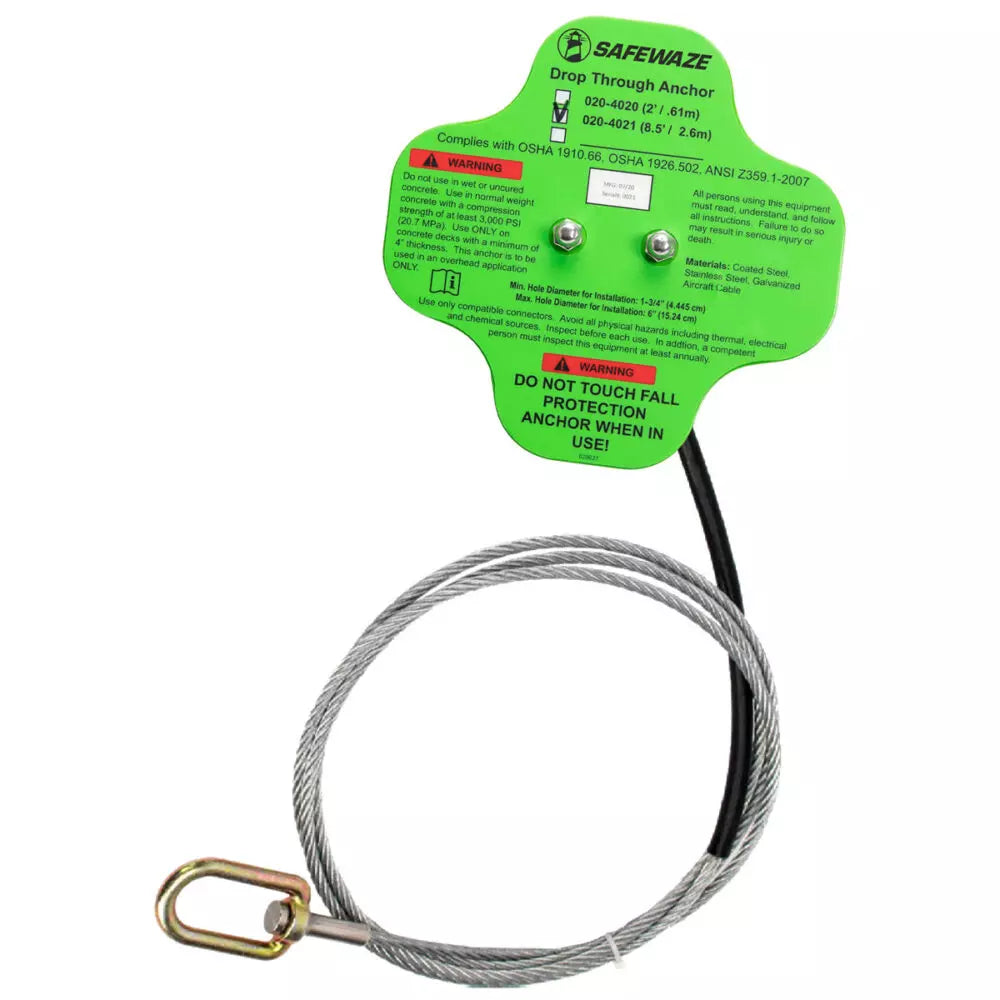

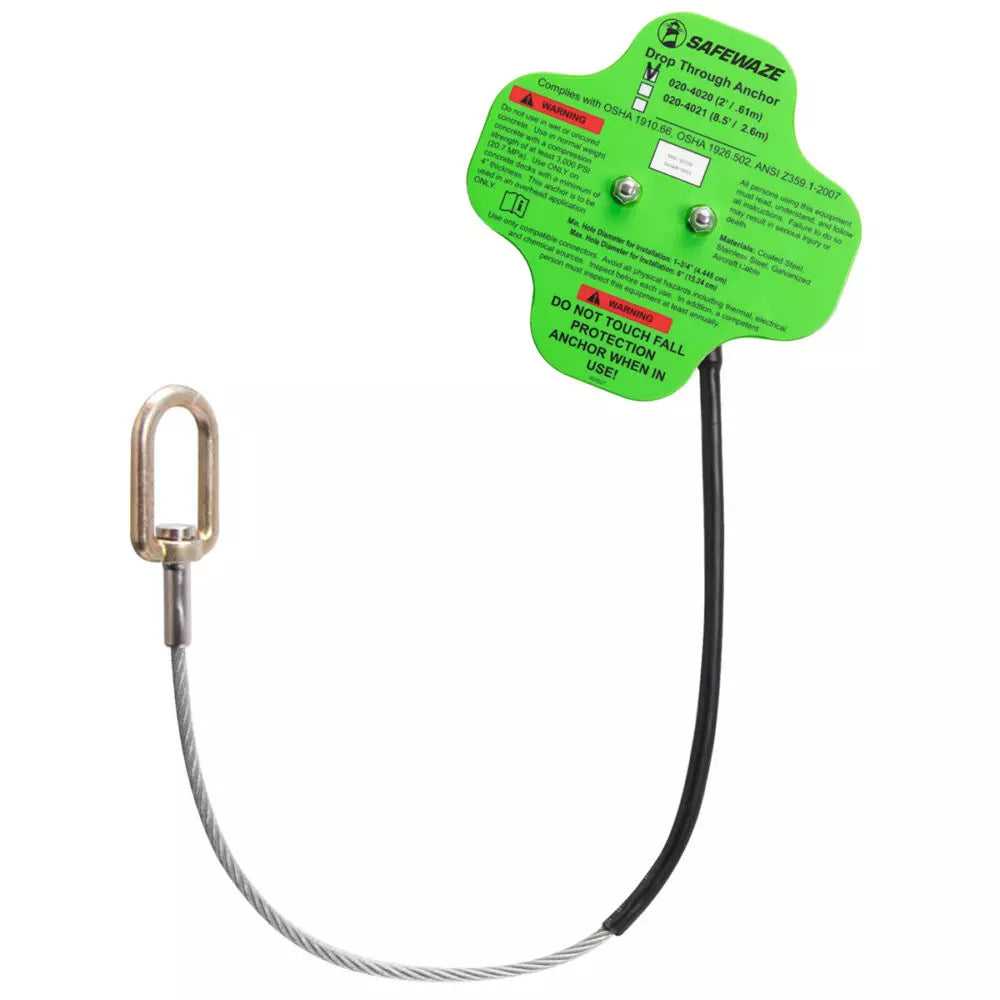

The Drop-Through Cable Anchor is a versatile anchor point for permanent or temporary use.

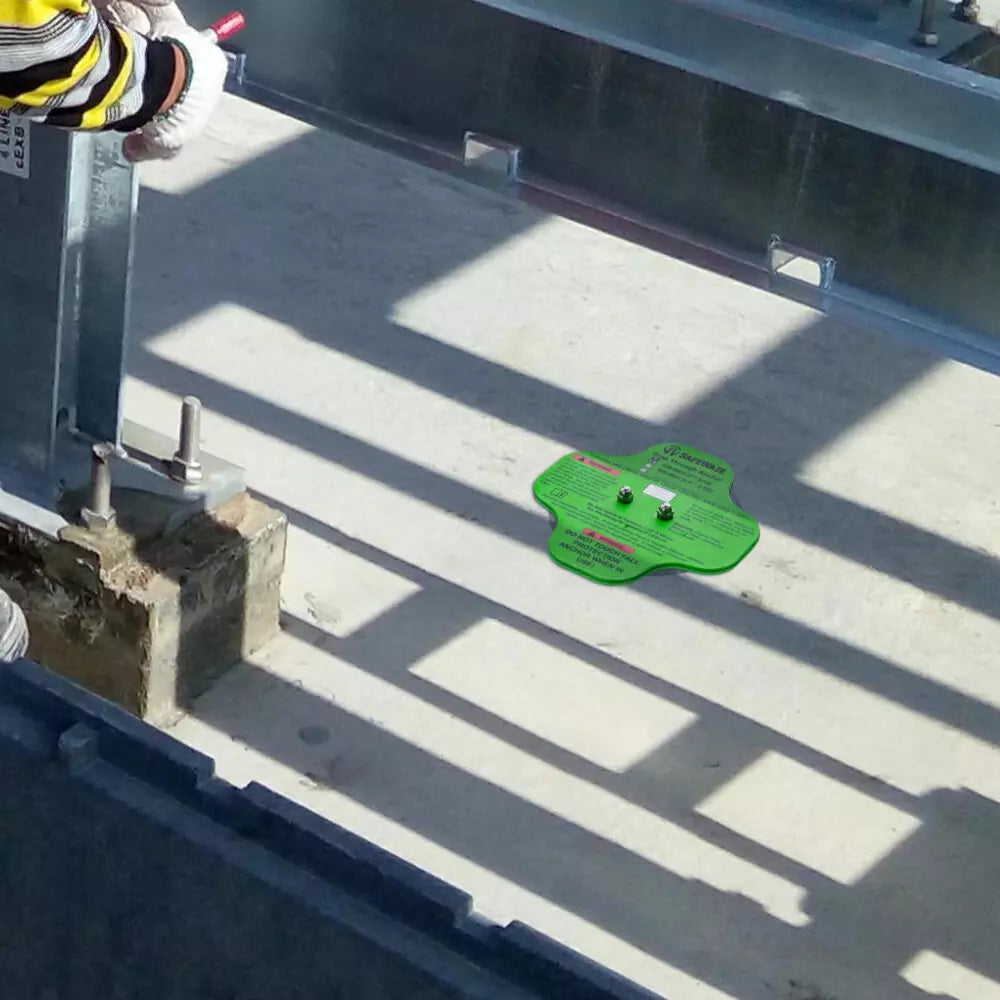

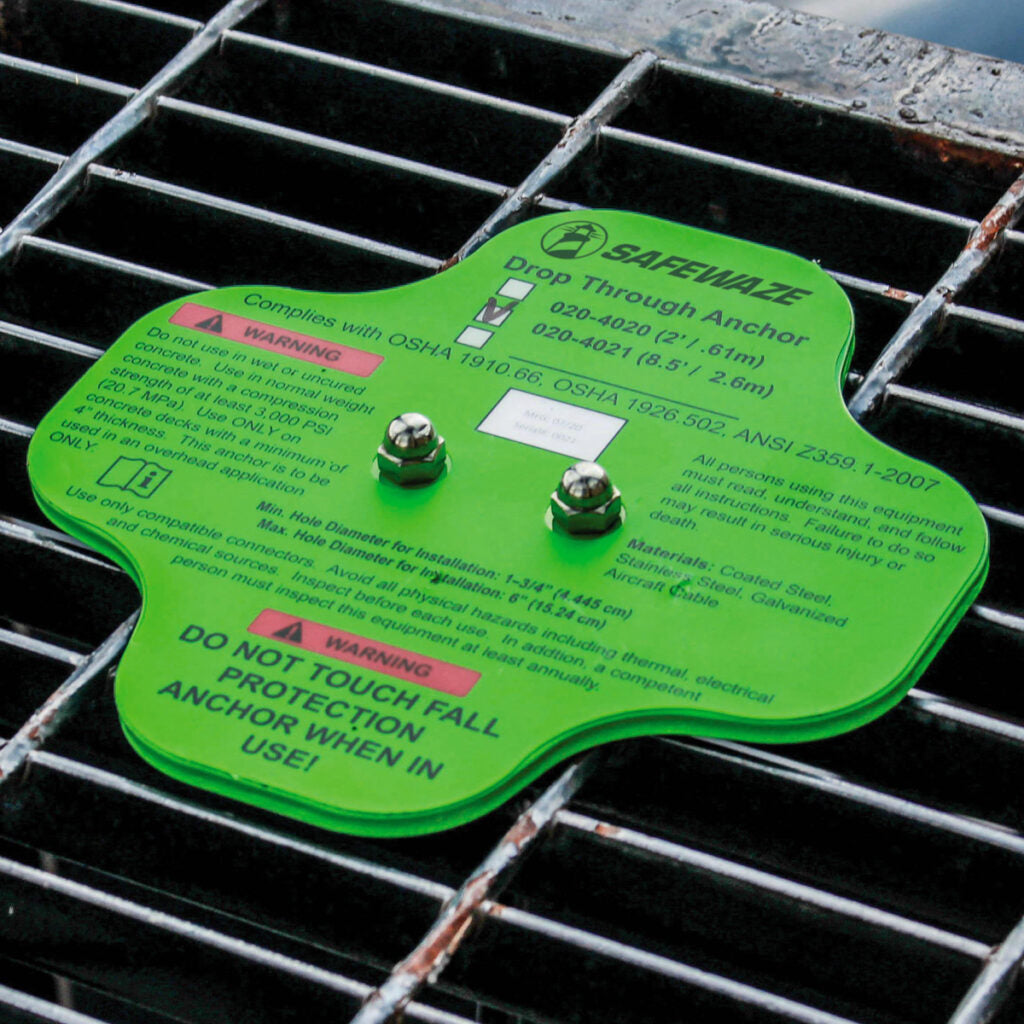

Simply drop the captive eye and cable through openings in concrete, steel decking, grating or any 1-3/4″ hole in a substrate compliant with fall protection requirements.
Features:
- 8" high visibility green steel plate
- Forged steel swiveling connection point
- 1/4" steel cable with wear sleeve
- Accommodates openings from 1.75" to 6"
- Available in two lengths
Specifications:
| Materials: | Coated cable, stainless steel, galvanized steel |
| Weight: | 3.9 lbs. (1.8 kg) / 4.6 lbs. (2.1 kg) |
| Length: | 2.0' (0.6 m) / 8.5' (2.6 m) |
| Minimum Breaking Strength: | 5,000 lbs. |
| ANSI Weight Capacity: | 130-310 lbs. (59-141 kg) |
| OSHA Weight Capacity: | Up to 420 lbs. (191 kg) |
| OSHA Standards: | 1926.502, 1910.140, 1910.66 |
