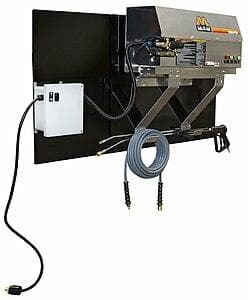

CAW-3004-0ME3 Totally enclosed fan-cooled electric motor with manual thermal overload protection · 4-foot power cord

Designed to attach directly to a wall, this series offers a secure system for use in a wide range of locations. Featuring non-corrosive aluminum construction, it is perfect for high volume cleaning and sanitizing jobs and is especially versatile in factories, wash bays and food processing plants.

Pump: Stainless-steel and brass trapping unloader · Forged brass manifold · Thermal relief valve · External quick connect low pressure detergent injector · Pump accepts incoming water up to 165°F

Motor: Totally enclosed fan-cooled electric motor with manual thermal overload protection · 4-foot power cord

Frame: Aluminum base plate and frame · Aluminum wall-mounting brackets · Aluminum hose and gun/wand holder

Components: Time delay shutdown · Remote mounted electrical box included, must be mounted within 3 ½-feet of unit

Unit Includes: Quick connect nozzles - 0°, 15°, 25° and 40° · 50-foot x 3/8-inch non-marking high pressure hose with quick connects · Professional-grade insulated trigger gun with safety lock-off

Specifications

  • PSI

    3000

  • GPM

    3.9

  • Horsepower/Motor

    8.0 HP, 230V, 3Ø, 22.8A

  • Pump

    General

  • Mi-T-M No.

    3-0440

  • Unloader

    Factory Preset

  • Plug Type

    NEMA L15-30P

  • Lance

    Adjustable, Dual, 36-inch

Weights & Dimensions

  • Net Weight

    193.00 lbs.

  • Shipping Weight

    253.00 lbs.

  • Length

    31.00 in.

  • Width

    17.25 in.

  • Height

    18.00 in.

Options

  • CX-0078 Remote Box

    Adds control box which may be mounted away from unit to control on/off, not available on models with auto start/stop

  • CX-0109 Additional Remote Box

    Additional remote boxes (up to 3)

  • CX-0112 Auto Start/Stop

    When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart

  • CX-0111 460V on 8.0 HP, 3 Phase Models

    For when you have 460V of power available
