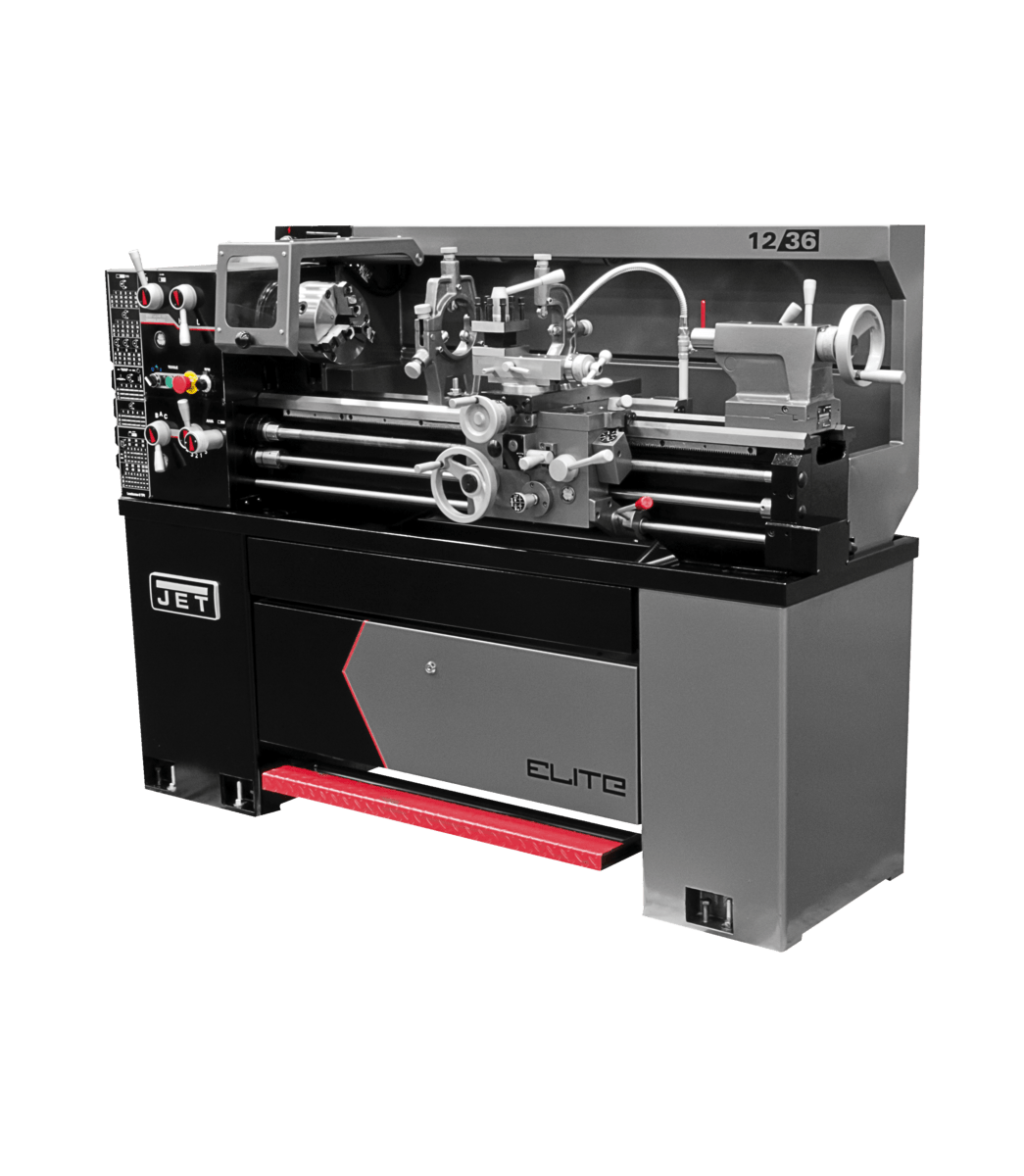

Elite 12" x 36" EVS Lathe With Newall DP700 DRO and Taper Attachment | E-1236VS

by Jet
SKU 892320
Save $4,479.57 Save $4,479.57
Original price $24,038.57
Original price $24,038.57 - Original price $24,038.57
Original price $24,038.57
Current price $19,559.00
$19,559.00 - $19,559.00
Current price $19,559.00

Compact, powerful, perfection. Elite EVS lathes pack large features into compact footprints that make them perfect for schools, small shops, and engineering labs.

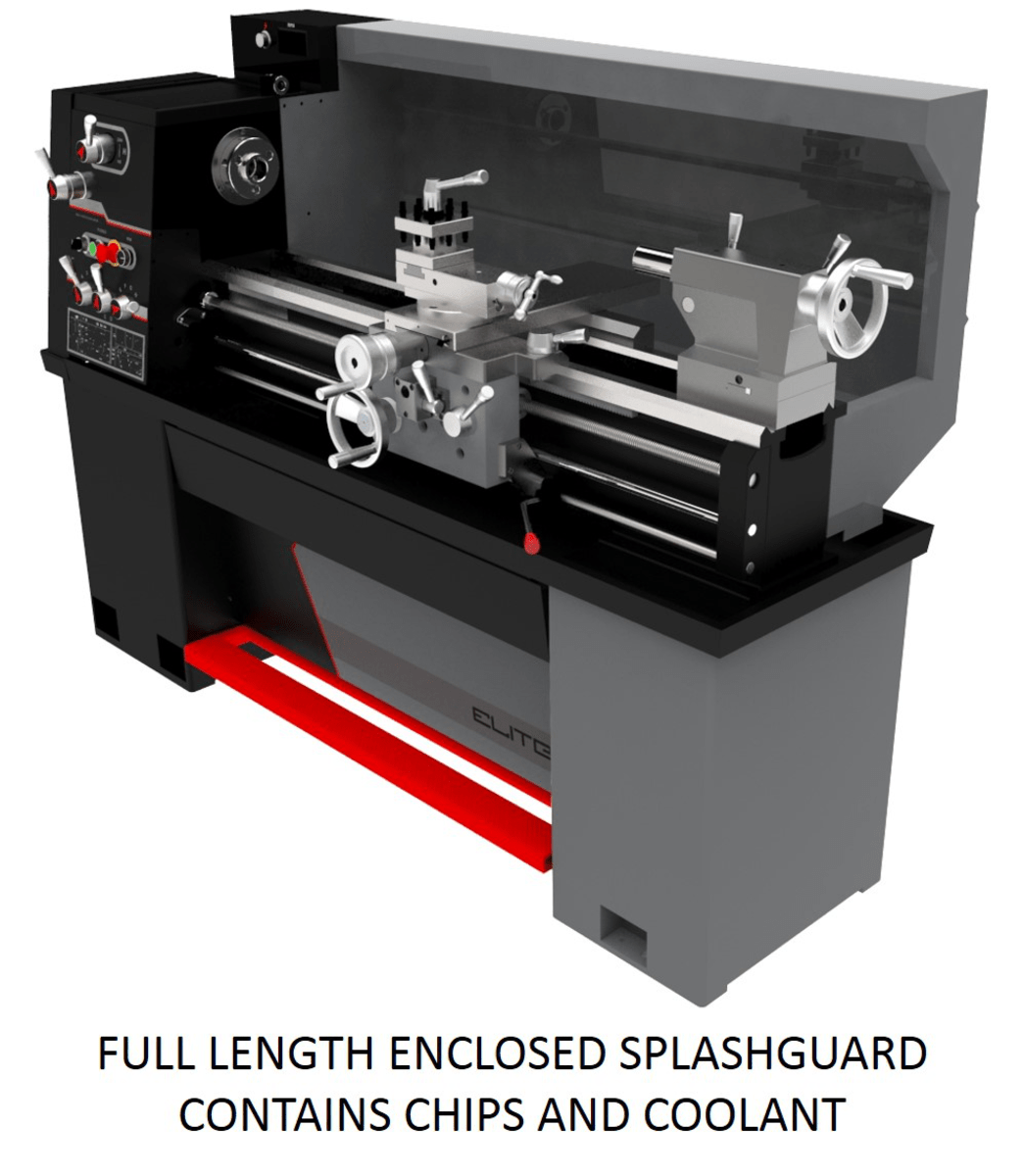

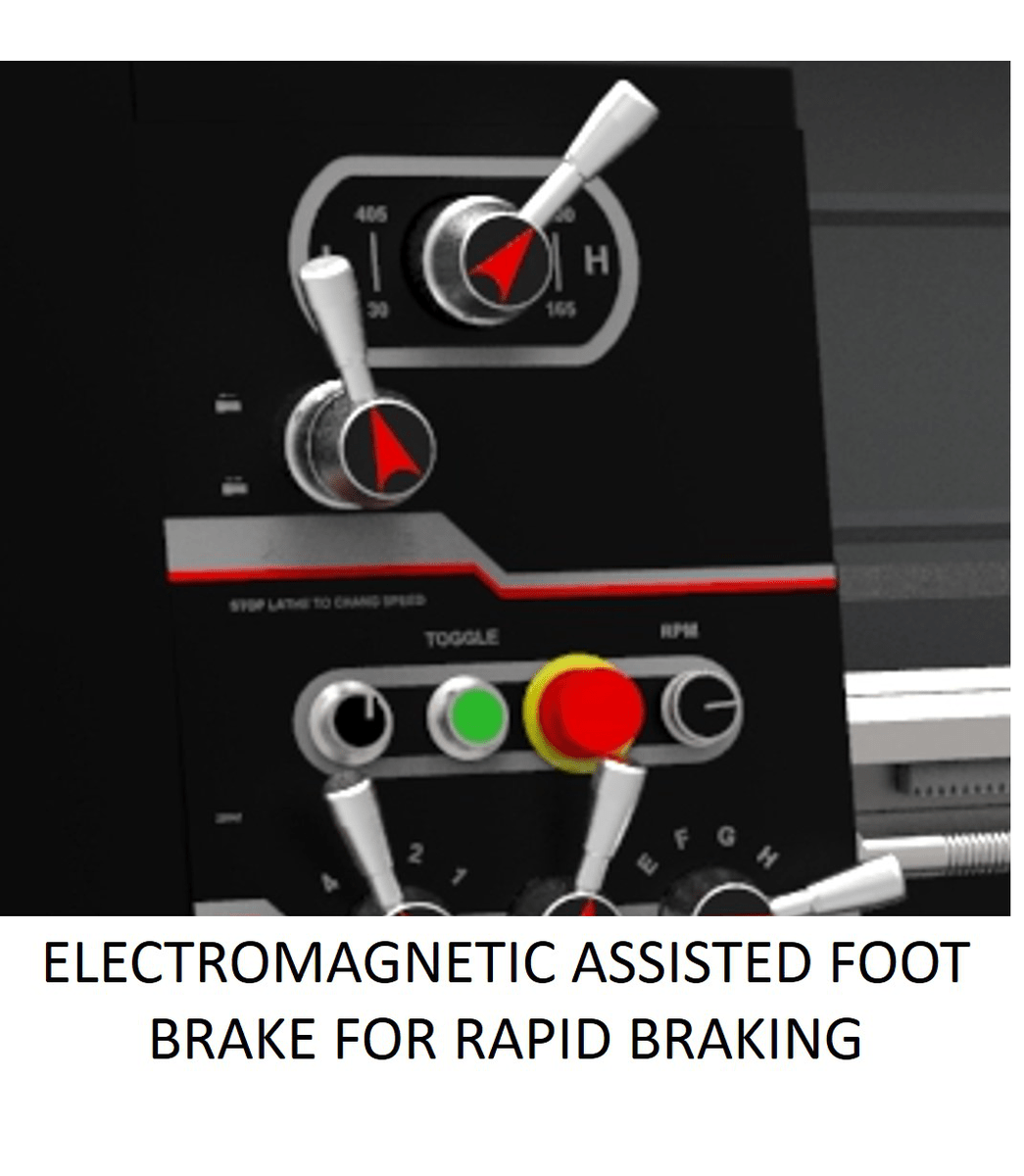

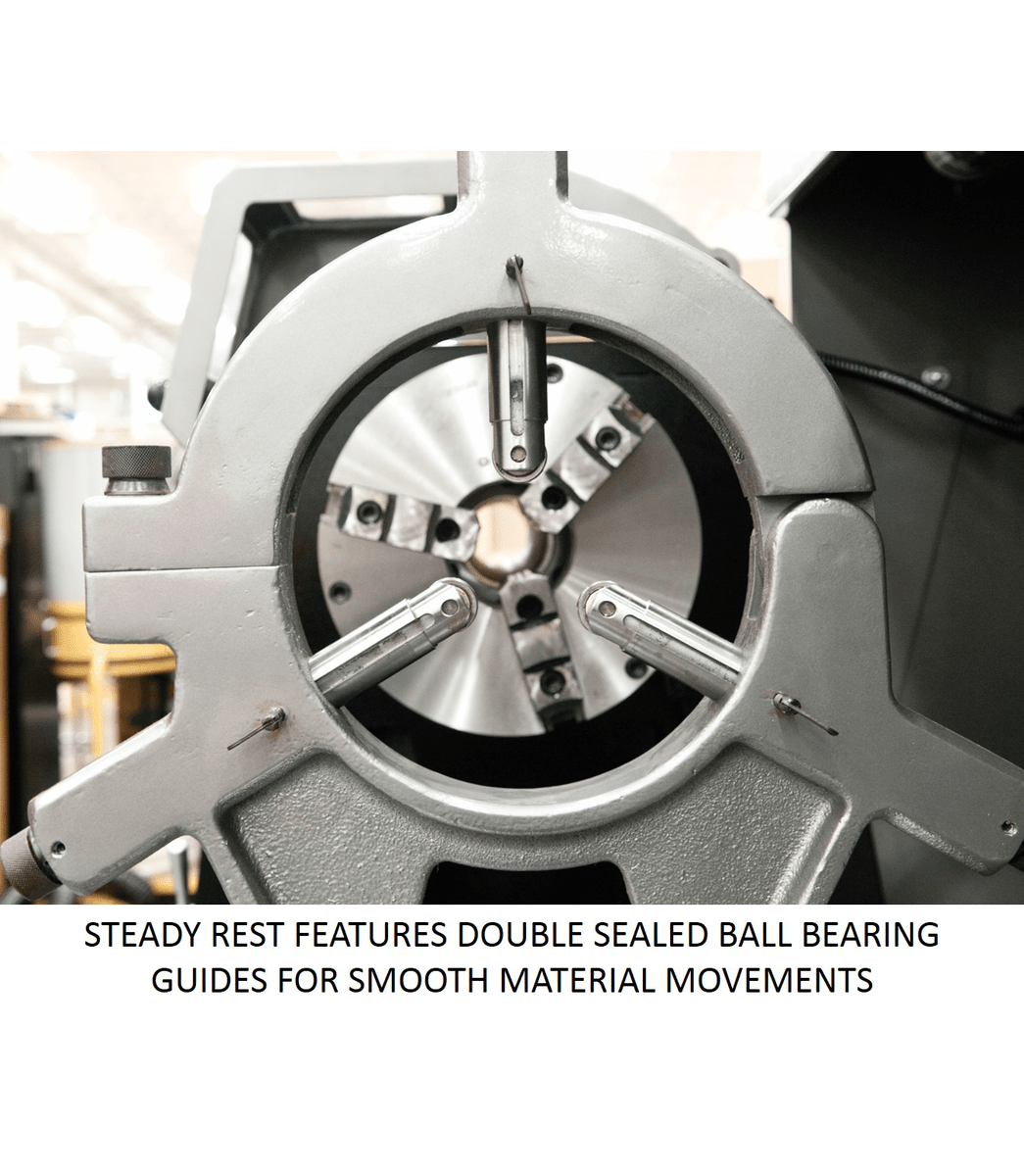

Featuring certified Meehanite® castings, an electro-magnetic brake, three jaw chuck, ball bearing-mounted steady and follow rests, and CNC Style Lighting with enclosed splash guard, these lathes are truly Elite! CSA/CUS Certified.

  • 4-Position Carriage Stop
  • Chuck guards are standard equipment on all ELITE lathes for increased safety
  • Front facing chip pan allows easy chip removal from the front of the machine

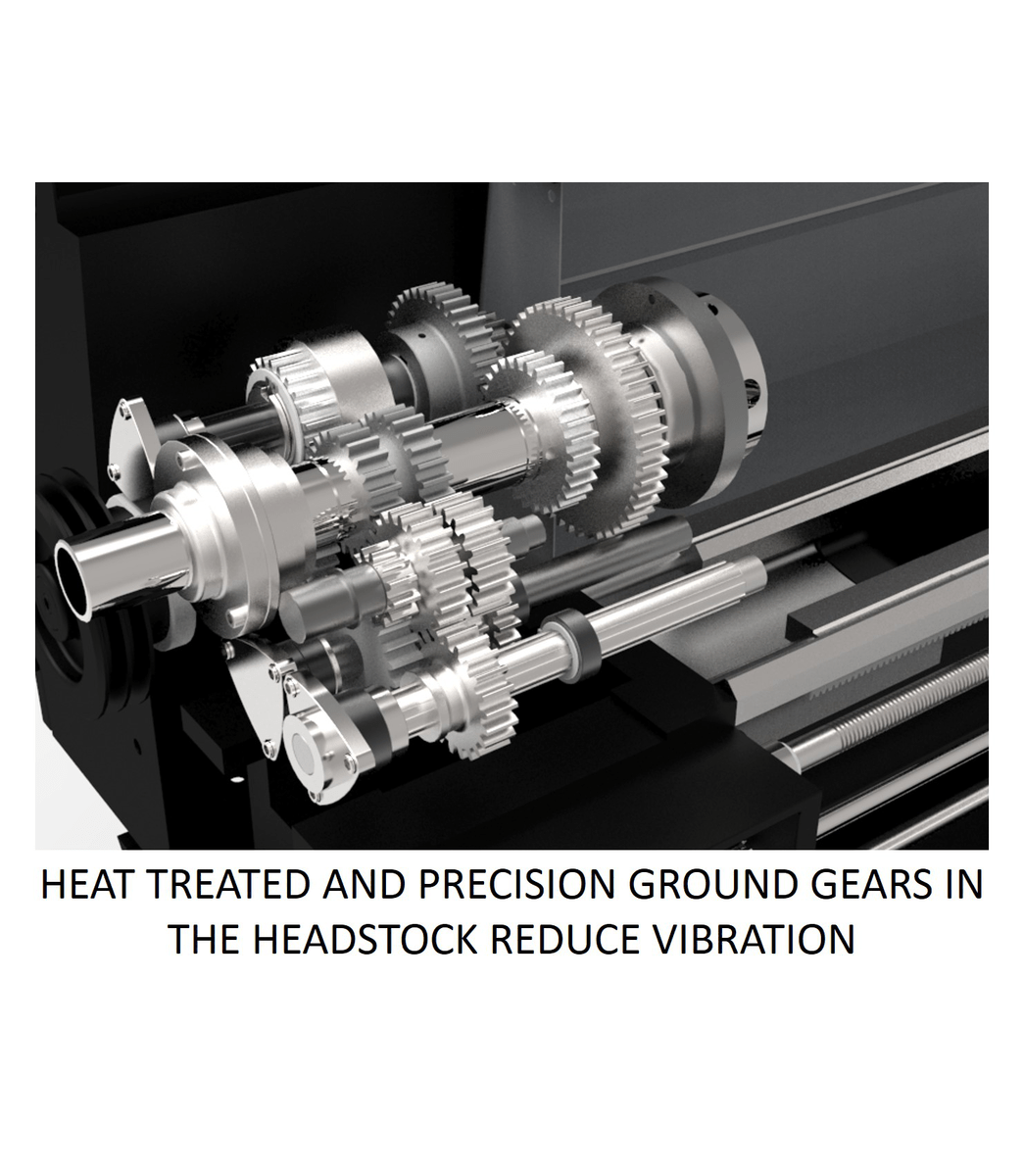

  • Hardened and ground gears in headstock reduce vibration and deflection
  • Integrated locking tool cabinet in stand on 12" Lathe
  • Inverter drive system provides infinitely variable spindle speeds
  • LED RPM readout allows for precise turning speeds
  • Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
Stock Number 892320
Compound Slide Travel (In.) 3-1/2
Drive EVS
Length of Gap (In.) 9-1/2
Max Tool Size (In.) 1/2 x 1/2
Motor (HP) 2HP, 230V,3ph
Number of Inch Threads 34.0000
Number of Longitudinal and Cross Feed Rates 50
Number of Metric Threads 33.0000

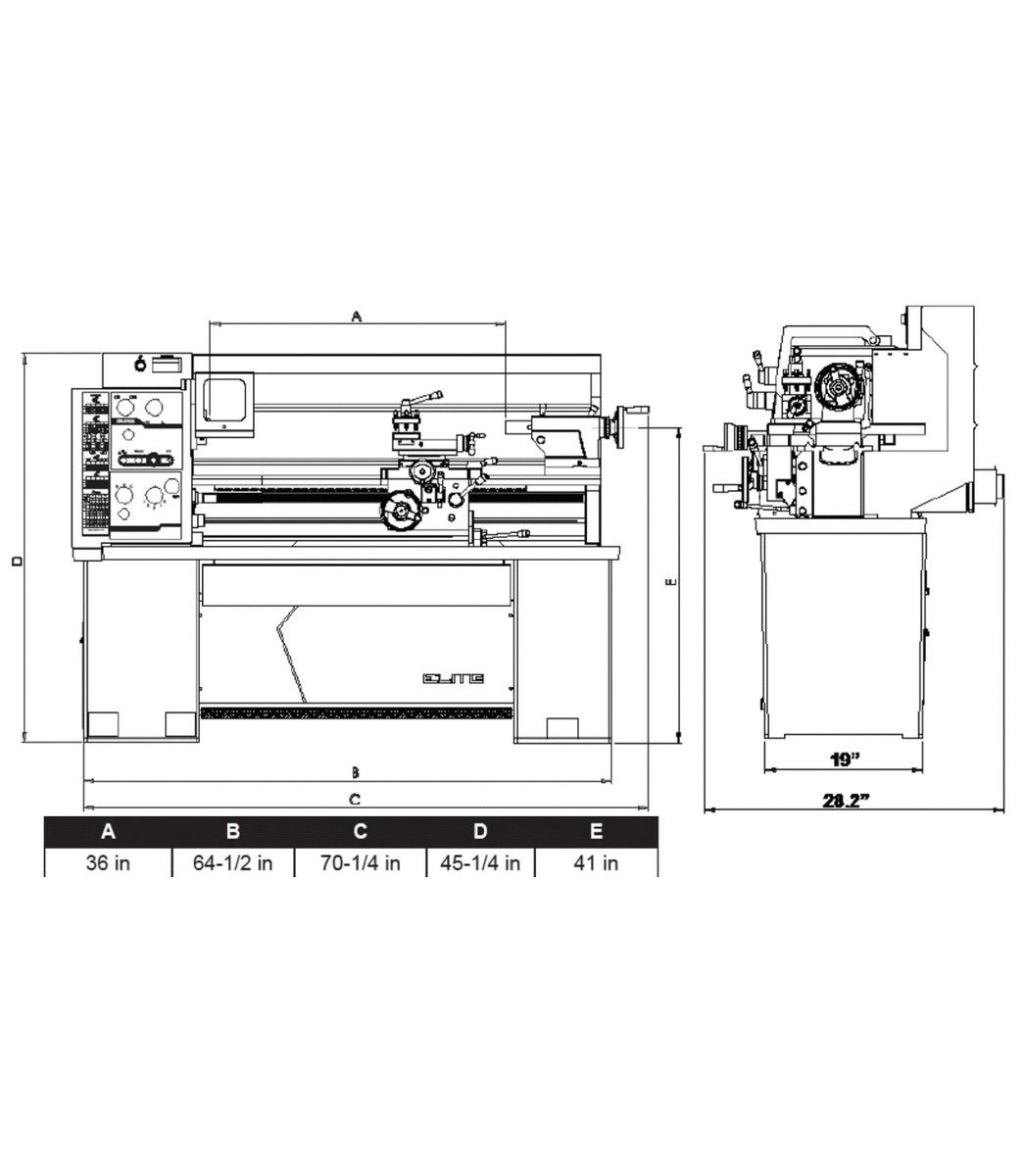

Overall Dimensions (L x W x H) (In.) 71 x 30 x 60
Prop 65 Cancer and Reproductive Harm
Range of Cross Feeds (IPR) 0.0005 - 0.015
Range of Inch Threads (TPI) 2 - 56
Range of Longitudinal Feeds (IPR) 0.0016 - 0.046
Range of Metric Threads 0.5 - 12
Range of Spindle Speeds (RPM) 0 - 2,000
Size 12 x 36
Spindle Bore (In.) 1-9/16
Spindle Mount D1-4
Spindle Taper with Sleeve MT-5
Steady Rest Capacity (In.) 1/4 - 2-1/2
Style (Type) ELITE EVS
Swing Over Bed (In.) 12
Swing Over Cross Slide (In.) 7-5/16
Swing Through Gap (In.) 17-1/2
Tailstock Spindle Travel (In.) 4
Taper in Tailstock Spindle MT-3
Weight (Lbs.) 1212
Width of Bed (In.) 7-1/2
