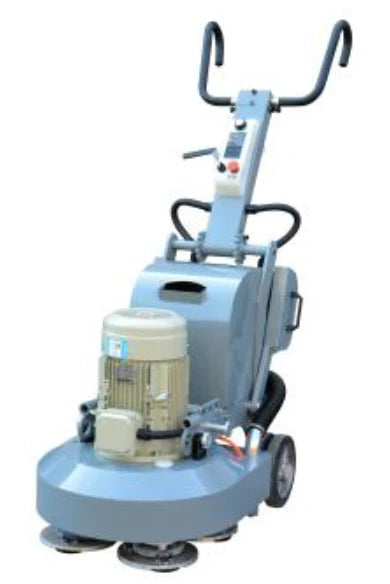

25 Inch Planetary Grinder

The FG-4H25-P is a heavy-duty planetary concrete floor grinder designed for professional surface preparation, coating removal, concrete grinding, and polishing applications. Built with a powerful 10HP motor, variable speed control, and four-head planetary grinding system for consistent performance on demanding jobsites.

Features:

• 25" grinding width
• Four-head planetary grinding system
• 10HP motor with variable speed drive
• 220V single phase power
• 3 phase inverter system
• Adjustable grinding speed from 300-1720 RPM
• Wet and dry grinding capability
• 8 gallon water tank
• Compatible with diamond tooling systems
• Designed for concrete, terrazzo, and stone surfaces

• Precision aluminum casting gearbox for durability and long service life
• Heavy-duty planetary grinding system
• Premium motor and inverter components
• Stainless steel water tank
• External vacuum port for dust-control systems
• Forward and reverse grinding operation
• Emergency stop safety control
• Precision-machined components for reliable performance
• CE certified design standards

Specifications:

• Model: FG-4H25-P
• Voltage: 220V
• Amperage: 25A
• Grinding Width: 25"
• Motor: 10HP
• RPM: 300-1720
• Weight: 780 lbs
