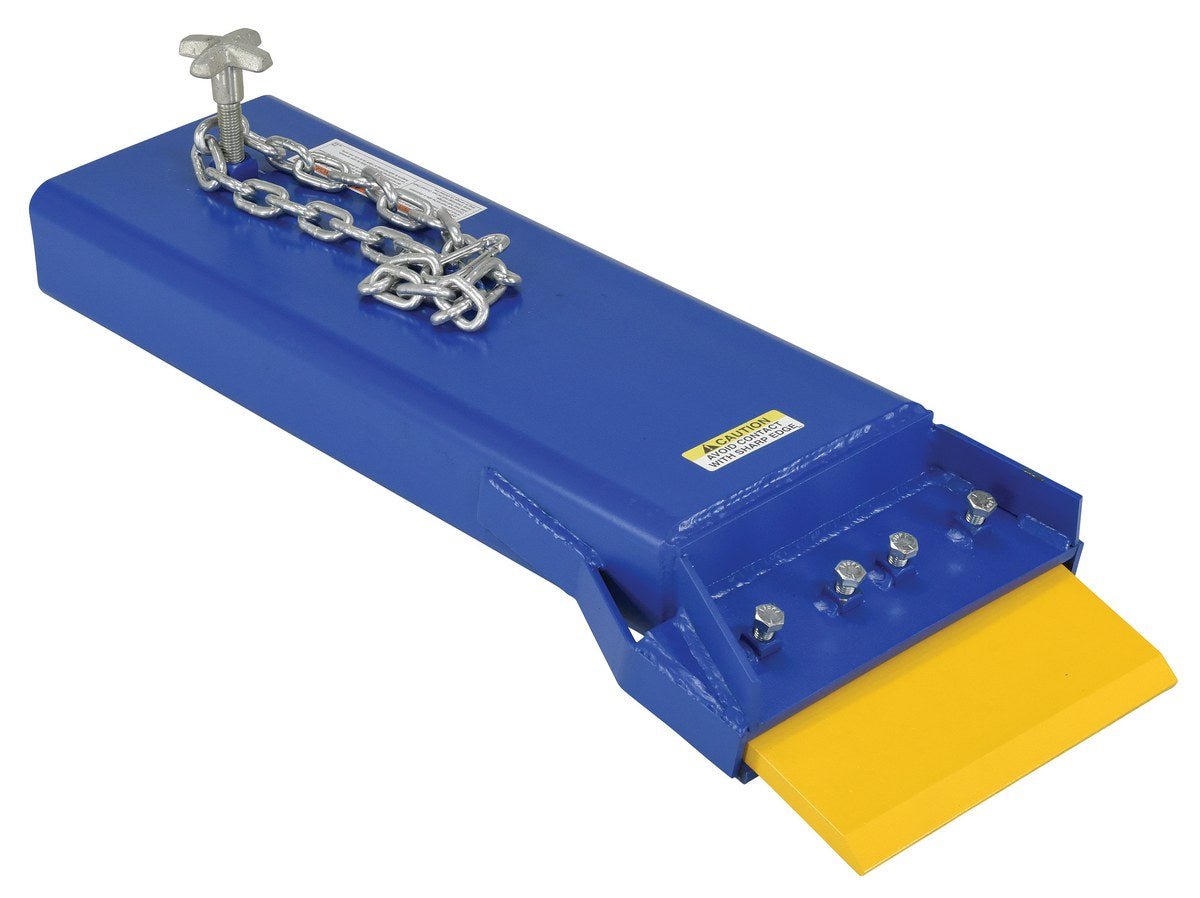

Designed to turn your fork truck into a floor scraper. Works well in paint and finish rooms for removing over sprayed paint from floors.

Simply slide fork into opening and attach safety restraint to carriage for safety. Features hardened scraping blade for long life and durability. Blade is mounted in pivot assembly to allow it to raise up with contact against a crack or rise in the floor. Heavy-duty welded steel construction. Baked-in Powder-coat toughness.

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Fork Truck Floor Scraper
Model Image PDF's Blade
Width
Overall Size
(WxLxH)
Usable Fork
Opening
(WxH)
Wt.
(lbs)
SCRAPE-1 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 12" 13"x36-1/8"x8-7/16" 9-1/4"x3-1/4" 162
