GreenGuard PB4 Waterproofing Protection Board

Kingspan OPTIM-R has a design R-value of 28.

Why choose vacuum insulation panels?

VIPs provide the thinnest possible solution to insulation problems, while also providing an insulating performance that is up to five times better than commonly used insulation materials.

Where can I use phenolic insulation?

It can be used in a variety of ceiling and wall applications, which makes it a great solution for a range of constructions. Find out more information in our technical brochures.

What's the R-value of phenolic insulatoin?

Our Kooltherm insulation achieves a R-value up to 7.4 per inch.

How do I install XPS on my basement wall?

• You can glue or fasten the board to the concrete wall.  When applying the glue, place a minimum of 5 large sections of glue in the 4 corners and one in the center. Install the board to the wall and apply pressure until the glue holds tight. You can find compatible adhesives in our TB11. Kingspan recommends Loctite Power Grab Adhesive.
• You can fasten the board to the wall with 5 Plasti-Grip PMF Anchors from TRUFAST.
• Apply common spray foam to the top and bottom to provide an airtight seal around the XPS board.
• XPS must be covered by a code approved thermal barrier such as drywall. This is for occupied spaces.

Documents

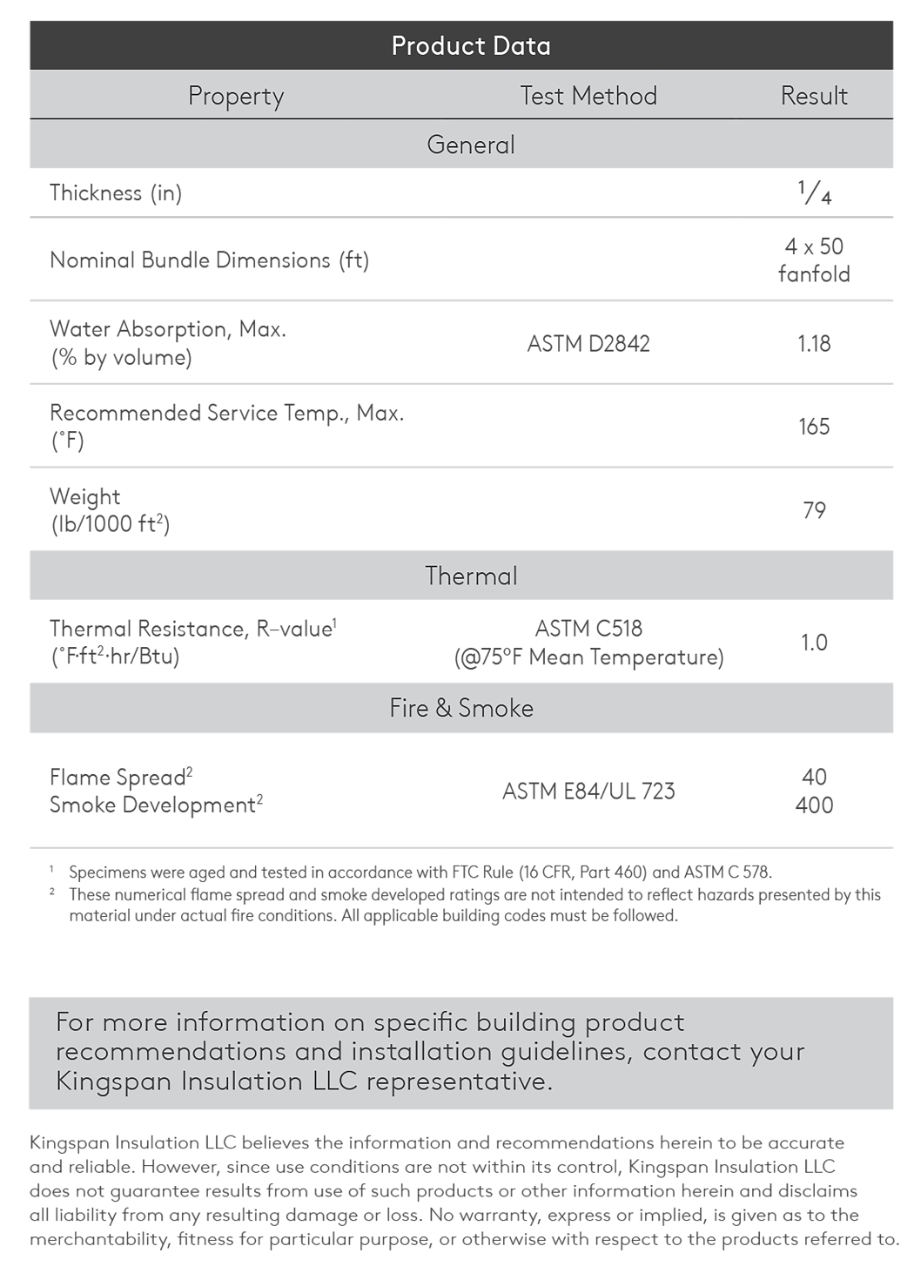

1. Product Data Sheet
2. Safety Data Sheet (SDS)
