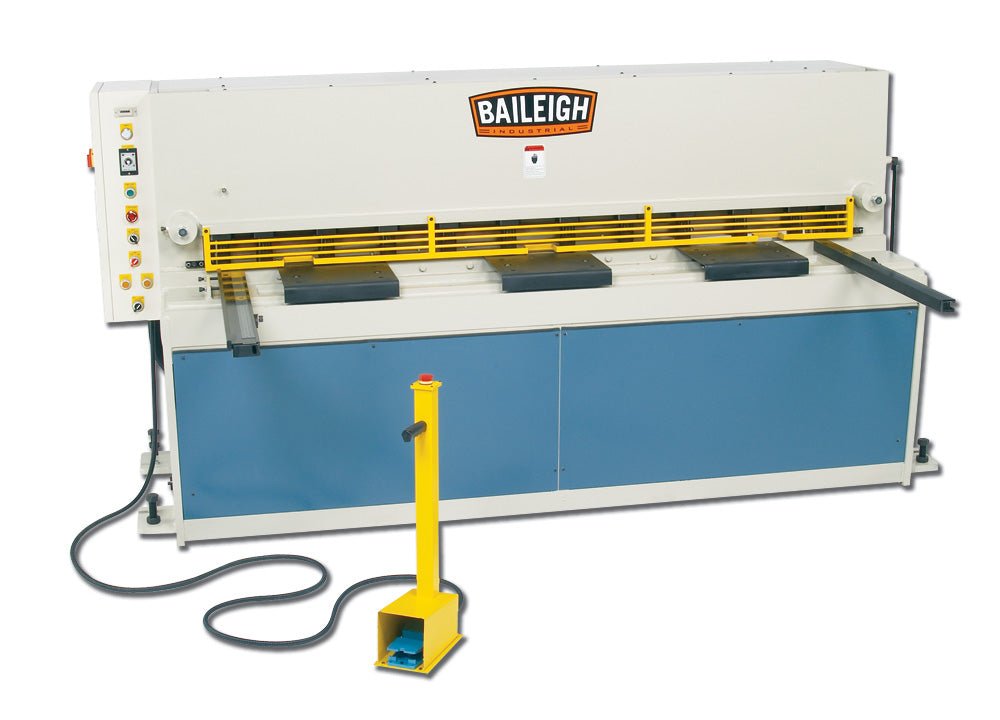

Heavy Duty Hydraulic Sheet Metal Shear SH-8010-HD

SKU 1007202
Save $8,256.21 Save $8,256.21
Original price $46,785.21
Original price $46,785.21 - Original price $46,785.21
Original price $46,785.21
Current price $38,529.00
$38,529.00 - $38,529.00
Current price $38,529.00
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Thanks to its fully welded steel plate construction, this hydraulic shear will offer any shop years of dependable service. The adjustable blade gap and rake angle also ensure accuracy.

  • 80” length.
  • 10 gauge mild steel maximum capacity.

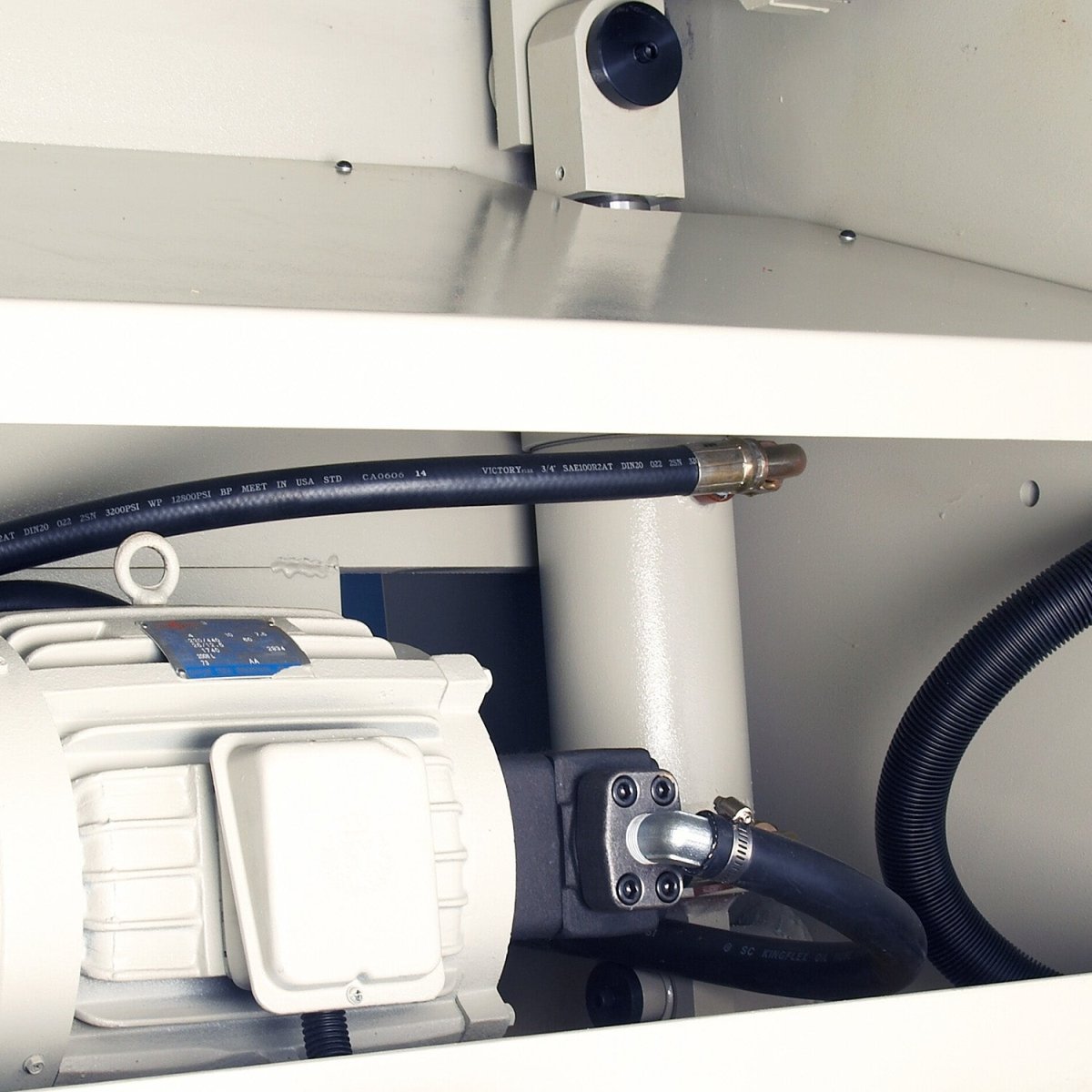

  • 7.5 hp motor runs on 220-volt 3-phase power.

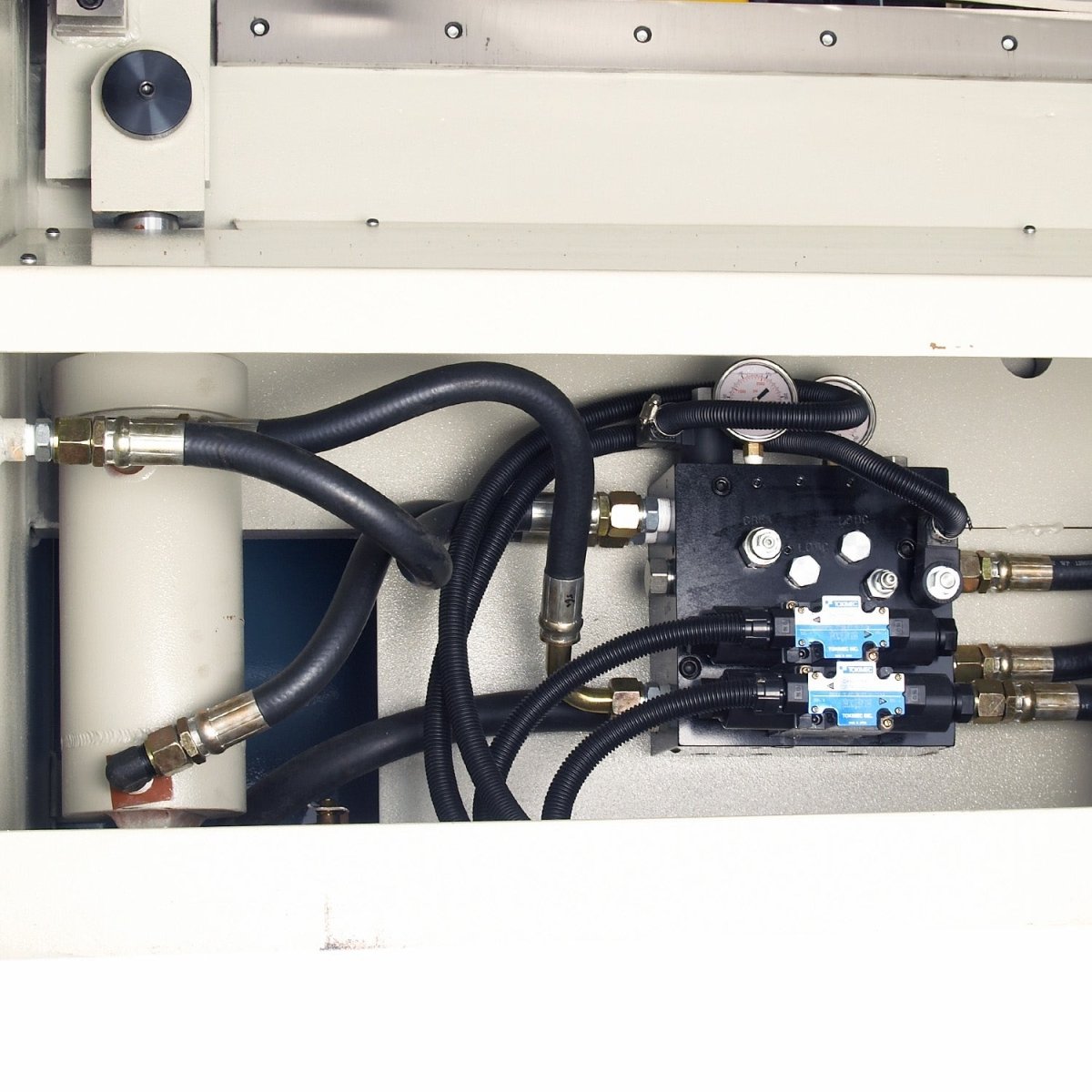

  • Industrial-grade hydraulic system is located in the front for easy fluid changes.
  • Shearing carriage rides on hardened ways and uses heavy-duty bearings to reduce friction.

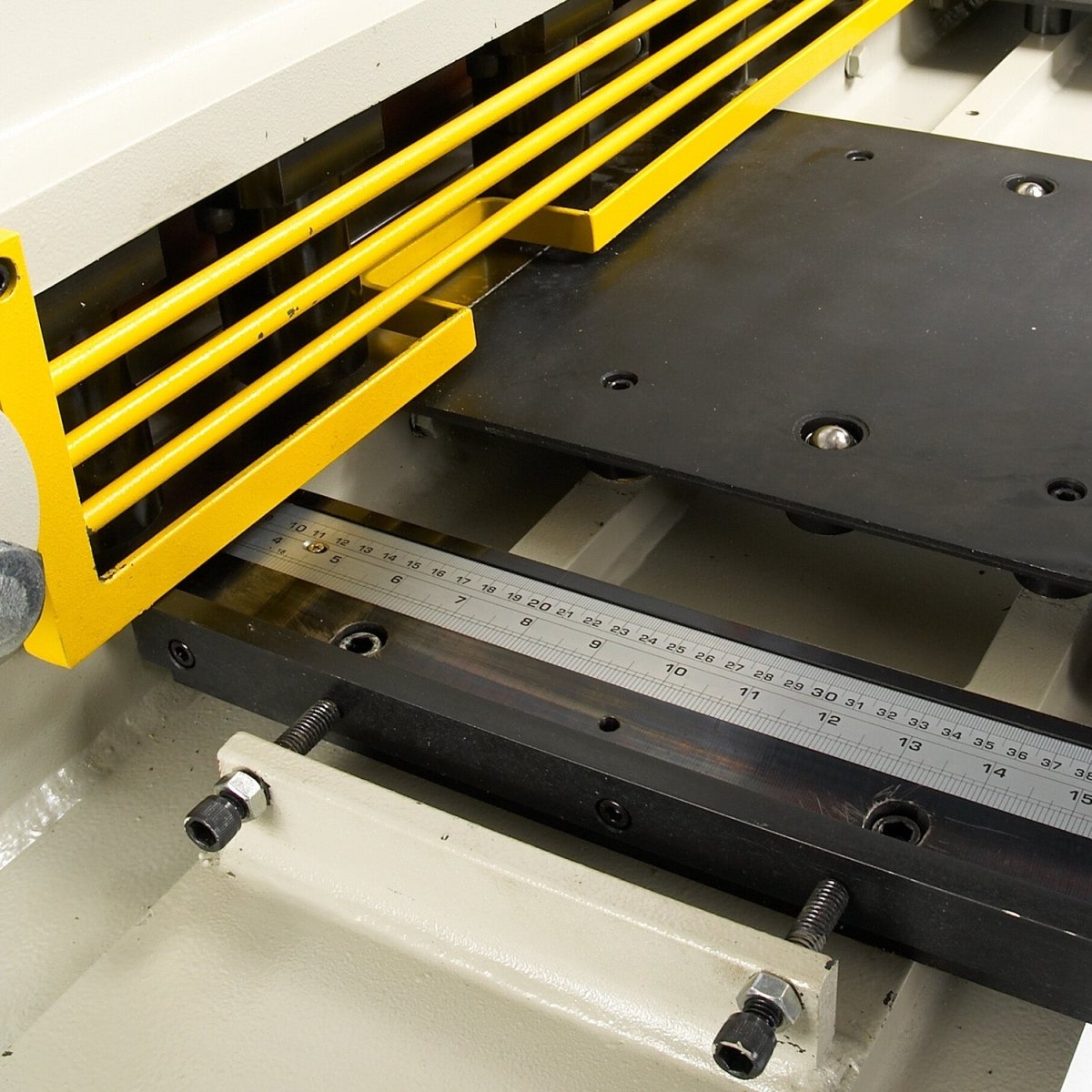

  • Manually adjustable 23.62” backgauge ensures precise repeatability.
  • Heavy duty table with roller bars slides material into the machine more easily.
  • Side gauges keep the cut at 90° (if you so choose) without you needing to make a guiding line on the material.
  • Switch between 3 modes as needed:
    • Jog mode: Inching the blade down to the material.
    • Single cycle mode: One cut for one pedal push.
    • Automatic cycling mode: Continuously cutting for production runs.
  • Adjustable rake angle dial makes it easy to fit your material thickness to minimize burr and put less strain on hydraulics.
  • Convenient blade gap adjustment lets you eliminate folding and twisting.
  • Comes standard with high carbon chromium blades.
  • 2-sided upper blades and 4-sided lower blades can be flipped and resharpened as needed, saving money.
  • Hydraulic hold-downs clamp the sheet solidly to the table, eliminating material lifting and improving blade life.
  • Rigid, fully welded steel plate construction helps prevent flex and gives you many years of accuracy.
  • Shadow line creates a reference line on the material so you know exactly where the cut will be.
  • Covered by a 1-year parts warranty.
  • We stock replacement parts, including blades, in house for fast shipping.
  • Includes lifetime technical support by phone from a team of reps with hands-on metalworking experience.
Item Number SH-8010-HD
Blade Rake Angle .5 to 2.0 degrees
Back Gauge Length 23.62"
Shear Length 80"
Motor 7.5 hp
Thickness (SS) 10 ga. (13 ga.)
Strokes Per Minute 32 – 44
Front Gauge Length 39.37"
Blade Angle 1/2° – 2° Adjustable
Blade Gap Adjustment Manual, Lever Acuated
Power 220V / 3-phase
Shipping Weight 6600lbs
Minimum Material Thickness 24ga
Shipping Dimensions (Inches) 119x48x63

* specifications subject to change without notice.
