HTC D60 Dust Exactor

Original price $13,000.00 - Original price $15,000.00
Original price
$13,000.00 - $15,000.00
Current price $13,000.00
Choose a d 60 Options

HTC D60 - A dust extractor that lets you focus on the floor

The HTC D60 has been especially designed for floor grinding, and in particular together with DURATIQ grinders. It features innovative technology in line with the DURATIQ platform that will benefit users through remote connection capabilities, continuous operation, improved ergonomics, lower service needs and a better working environment. The dust that forms when grinding and polishing must be correctly handled so as not to endanger your health. The HTC D60 does this, but in a way that does not create unnecessary downtime or lost performance during the grinding process.

Remotely connected - Productivity on a new level.
Productivity is closely associated with control. This is why the HTC D60 is equipped with a digital control panel (HMI) where the essential functions of the dust extractor can be monitored. A 3,5-inch LCD display provides clear and sharp information about critical data needed for optimal dust extraction - airflow, under-pressure and filter status. Remotely connect your DURATIQ grinder and you can start and stop work, clean the filters and receive important notifications on the display of your grinder or remote control unit, all so that you can focus on the floor and ultimately save time and money.

Easy to use - At the same time, a real power package.
An important aspect of a good working environment is ergonomics. That heavy machines are perceived as easy to use is something we at HTC keep in mind when developing new machines. The HTC D60 has many ergonomic properties that facilitate day-to-day work for operators when grinding and when transporting the unit. Easier to lift with a forklift. Extra large wheels, both front and back, make a big difference when passing over thresholds, for example. Low height in transport position simplifies moving and loading. The D60 is a robust dust extractor, but even so, it is compact enough to be handled by one operator without assistance.

Name HTC D60 HTC D60 HTC D60
Article Number 160601 160602 160603
Length 1235 mm 1235 mm 1235 mm
Width 680 mm 680 mm 680 mm
Height 1400/1920 mm 1400/1920 mm 1400/1920 mm
Weight 179 kg 179 kg 179 kg
Motor output 5,5 kW 5,5 kW 6,3 kW
Power consumption 30 A 15 A 15 A
Voltage 3x230 V 3x400 V 3x480 V
Frequency 50/60 Hz 50/60 Hz 60 Hz
Max theoretical airflow 530 at 50 Hz / 620 at 60 Hz 530 at 50 Hz / 620 at 60 Hz 620 at 60 Hz
Remote control

  • A digital control panel (HMI) with a 3.5-inch LCD display provides clear and sharp information even at a distance. Read off airflow, under-pressure and filter status at a glance.

  • D60 control panel
    New highly effective filter cleaning function

    New effective filter cleaning function means quicker, repeatable and effective filter cleaning. Easy operation with two buttons. As an option, the function can be automatically operated or via a remotely connected DURATIQ grinder.

  • HTC D60 Automatic filter cleaning
    Automatic filter cleaning

    Choose automatic filter cleaning and the machine will handle filter cleaning on its own as needed.

  • PTFE cone filter
    PTFE-coated conical filter

    Dust on the main filter is removed easier and quicker thanks to the filter's PTFE (teflon) coating. Provides better airflow through the filter and consequently better dust extraction.

  • Lätthanterlig by-pass ventil
    Easily maneuvered bypass valve

    Ergonomically designed bypass valve. Easily open and close the valve with one hand without the risk of injury.

  • Duck Bill Valve
    Safe exhaust valve (Duck bill valve)

    Large duck bill valve (Ø 29cm) with a flexible rubber valve empties the cyclone of dust, safely and effectively. The innovative design with rubber instead of a conventional flap reduces the risk of dust bag puncturing.

  • HTC D60 pre-separator

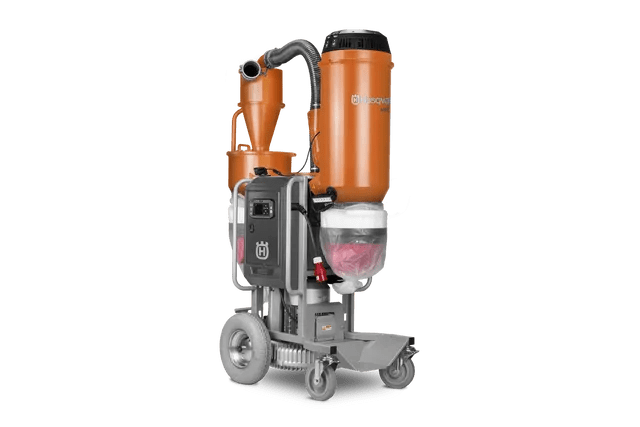

    Integrated pre-separator

    The integrated pre-separator entraps up to 95% of the dust and only the finest dust passes into the main filter. This extends the service life of the main filter.
