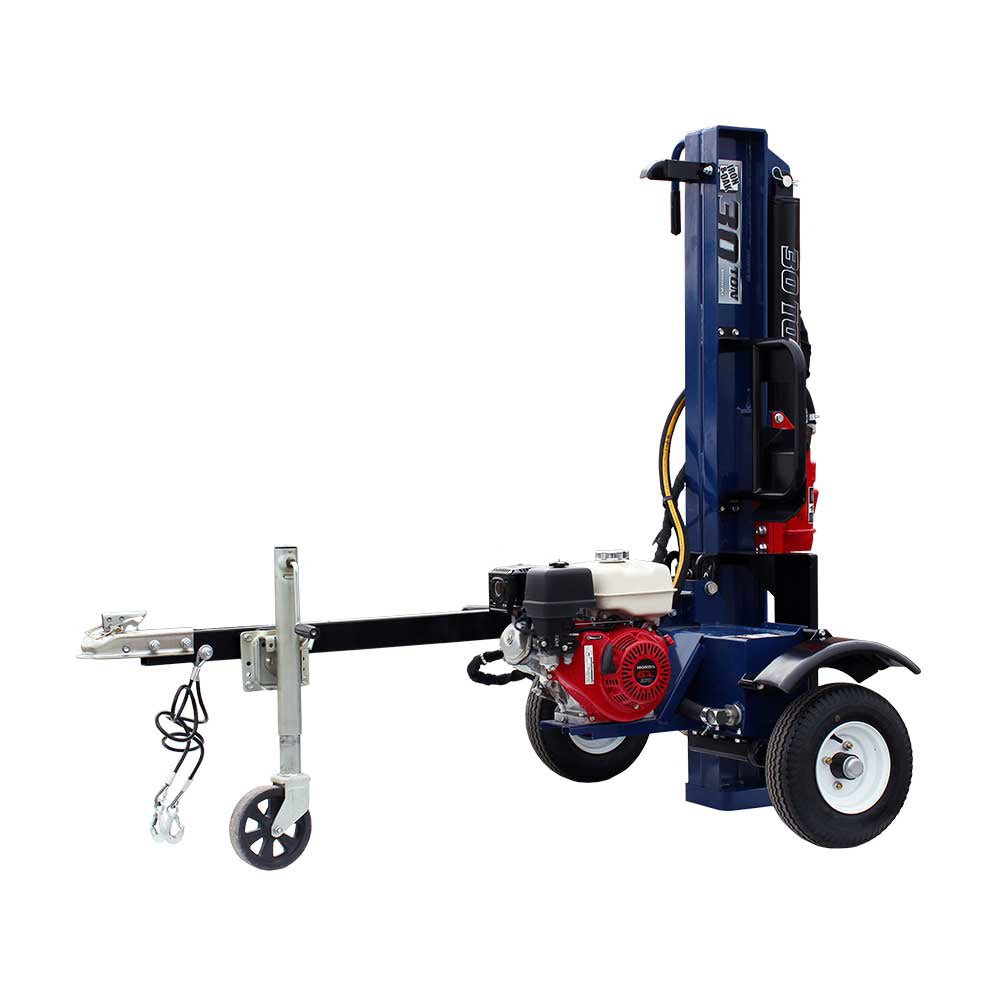

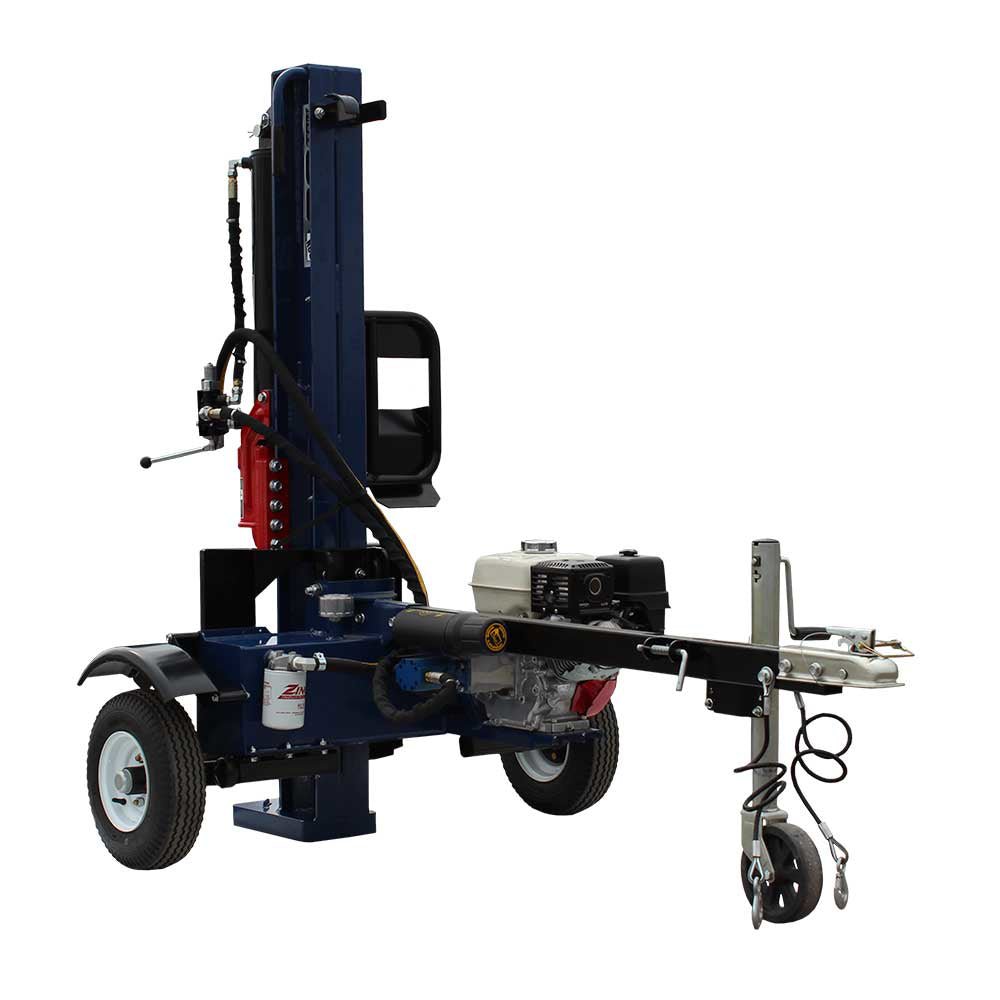

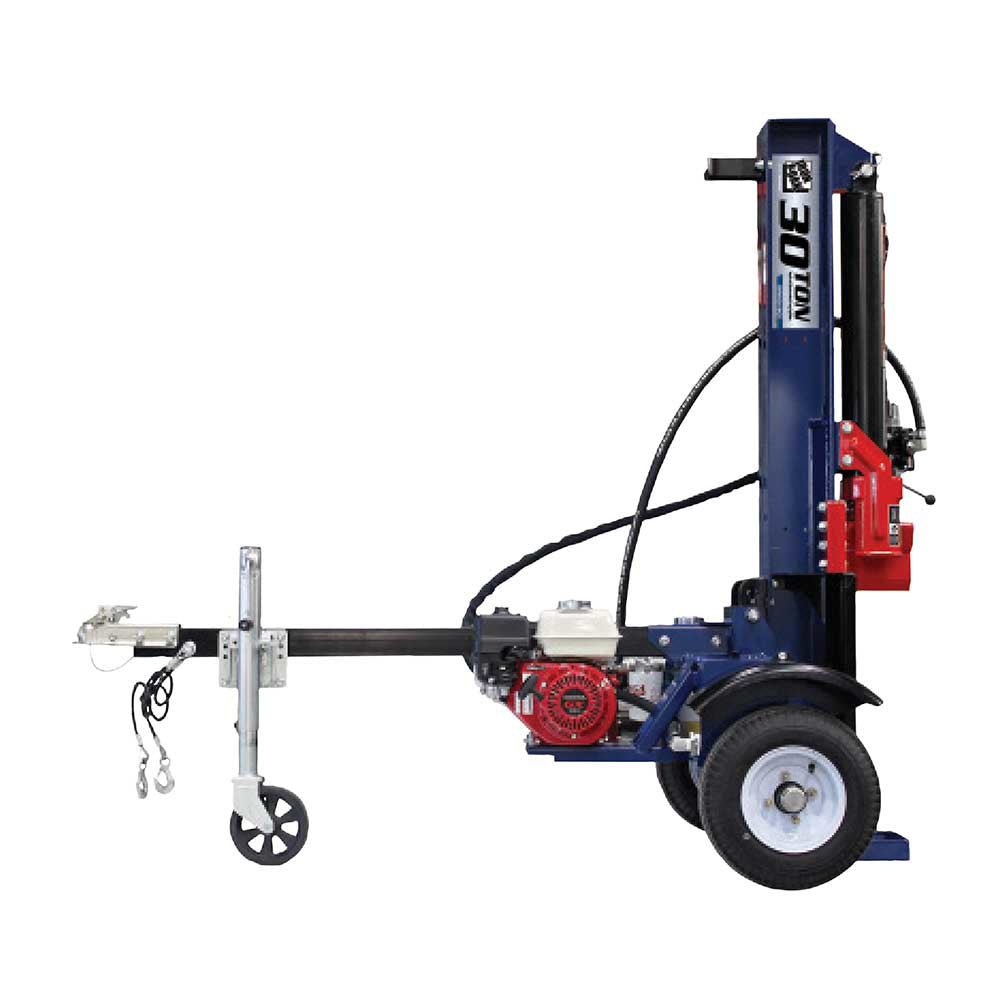

The Iron & Oak 30-ton log splitter allows you to split vertically and horizontally

The 30 tons of pressure allows you to easily split through green logs — ideal for rental properties and homeowners who rely on their splitters often. This commercial-grade model comes standard with bells and whistles such as a log cradle, log dislodger, fenders, and more.

  • Auto latch system locks beam into the horizontal position for safe towing
  • Enhanced handle to assist with transitioning the unit between horizontal and vertical operating positions
  • The 4-stage hydraulic filtration system prevents damage to the hydraulic system by removing metal particles and other micro-particles that can contaminate and damage the machine. Components include a suction strainer, return line filter, breather cap air filter, and magnetic drain plug
  • Offset valve for a better operator position
  • Heavy-duty wedge design with five bolts per side
  • Halite commercial cylinder seals

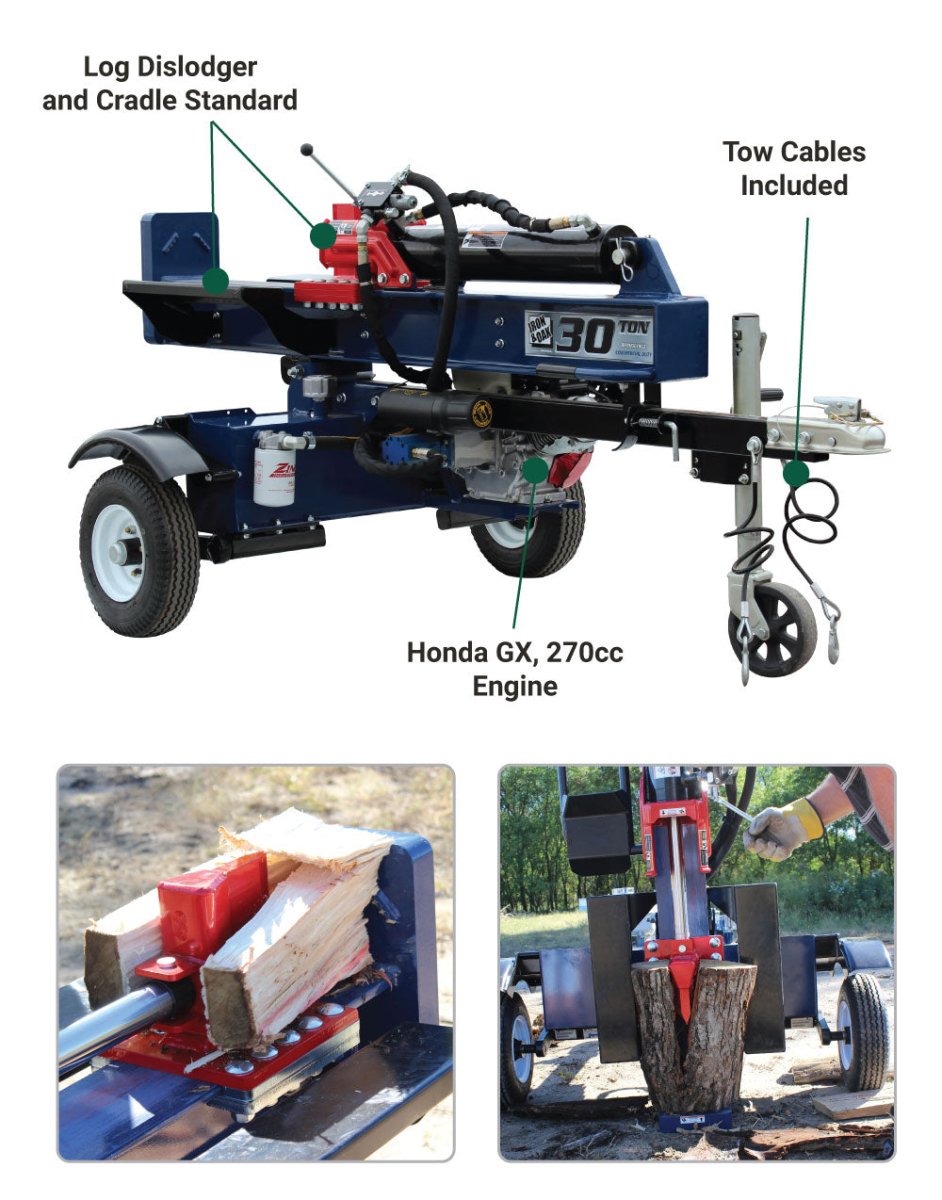

  • Log dislodger and log cradle standard
  • Larger jack wheel makes it easier to move
  • Tow cables included
Product Specifications
Equipment Type Log Splitter (Tow-behind)
Cycle Time 12 Seconds
Cylinder Size 4.5 in. x 24 in. Clevis Type, 1.75-in. Rod
Displacement 270cc
Dry Weight 705 Lbs
Engine Gx270
Engine Brand Honda
Hitch 2 In.
Hydraulic Capacity 10.5 Gal. System Total (tank 9 Gal. System Total)
Log Length 25 in. Max
Operation Horizontal And Vertical
Pump Type 16 Gpm Hi-lo 2 Stage
Splitting Force (Tons) 30 Tons
Splitting Height 32 In.
Tires 4.8 In. X 8.0 In. Highway Rated
Wedge Heavy-duty, 5 Bolts Per Side
