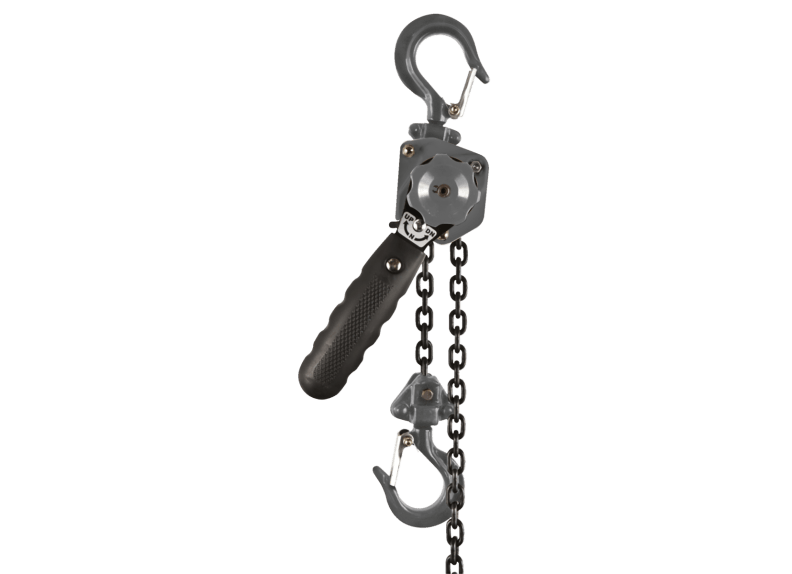

JLP-025A-10 1/4 Ton Mini-Puller, 10' Lift
$21999
$34429
Unit price
/
Make a Selection
JET® JLP-A Series Lever Hoists combine safety, reliability, and durability that are designed to perform in light to medium-duty industrial applications.
The patented Brake Wear Indicator increases safety by letting you know when to replace the friction disks. JET® also offers the option of shipyard hooks, virtually eliminating stretched hooks caused by point or tip loading. The JET® JLP-A Lever Hoist is available in ¼ ton to 6 ton capacities with standard lifts of 5, 10, 15, and 20 feet (custom lifts available). The JET® JLP-A Series is the perfect choice for a contractor grade Lever Hoist.
Features
-
Cast steel safety latches are secured with Allen screws and lock nuts
-
Compact design with smaller body and lightweight design for low headroom applications and use in confined areas
-
Hooks slowly stretch to indicate an overload situation increasing jobsite safety
-
Impact resistant all steel construction for added durability and protection
-
Industrial rated alloy steel hooks rotate 360 degrees for easy rigging
-
Needle bearing design increases efficiency and promotes smooth operation
-
This product complies with ANSI / ASME B30.21 and HST-3 Impact resistant all steel construction for added durability and protection
-
Weston Style, double pawl brake design splits the load to opposite sides of the ratchet gear for greater load security
Specifications
| Stock Number | 287101 |
|---|---|
| Headroom (in.) | 8-1/4 |
| Capacity (Lbs.) | 500 |
| Lift (Ft.) | 10 |
| Load Capacity (Tons) | 1/4 |
| Load Chain Dimensions dia/mm) | 4 x 12 |
| Prop 65 | Cancer and Reproductive Harm |
| Weight (Lbs.) | 5.3 |
| Lever Length (in.) | 6 |
| Lbs. of Pull to Lift Capacity | 60.0000 |
| Ship Yard Hooks | NO |
