MOJAVE SERIES

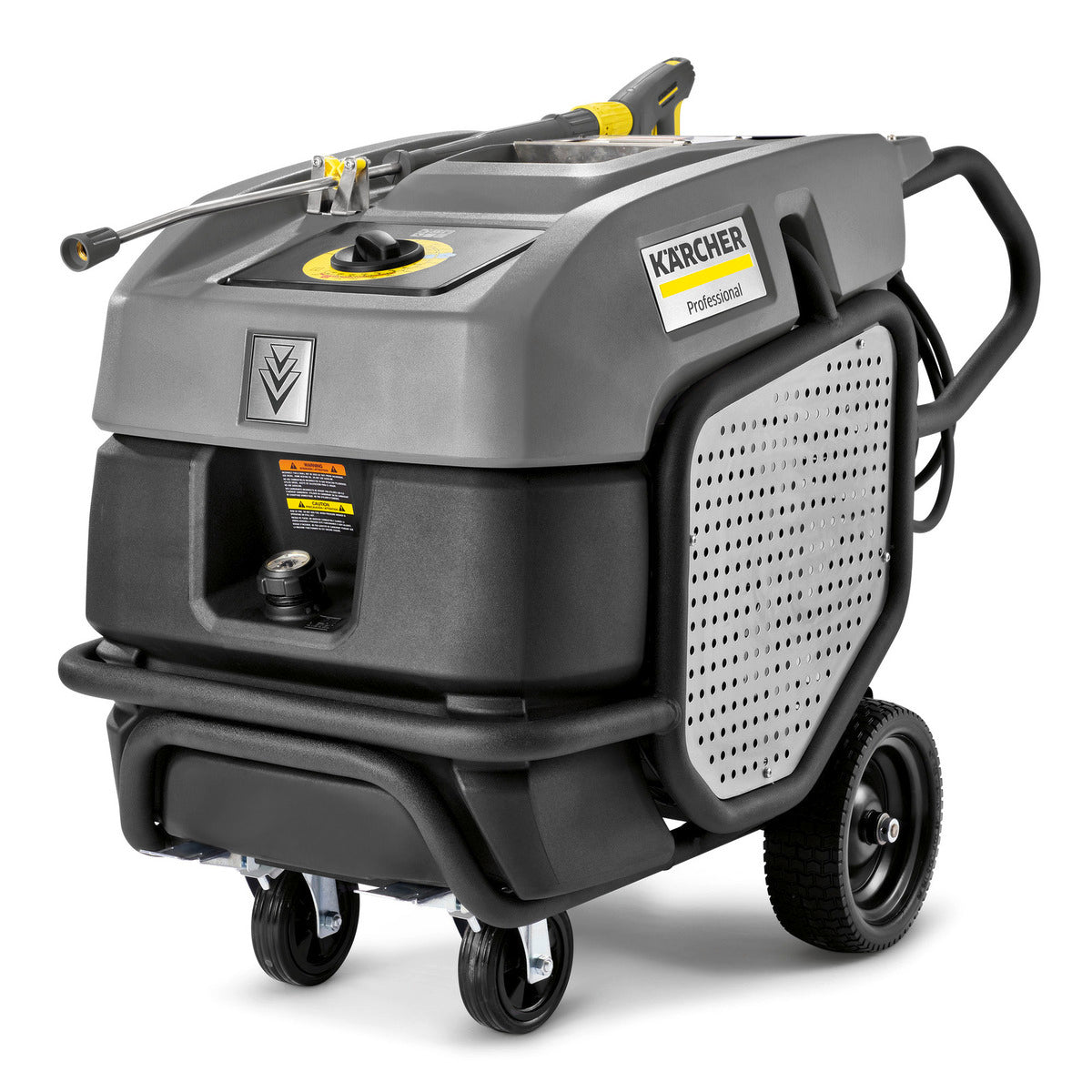

The Kärcher Mojave series is the perfect all-around machine for a variety of applications such as agriculture, automotive, and transportation. The Mojave delivers the highest performance for best cleaning results - all combined in a robust package. Innovative features engineered with high quality components make for a product able to withstand harsh working conditions.
Models
Model | Part No. | GPM | PSI | Motor Type | Electrical | Amps | Steam Mode | Pressure Adjustment |
---|---|---|---|---|---|---|---|---|
HDS 2.2/12 Ed Standard |
1.109-151.0 |
2.2 |
1200 |
2-pole |
120V/1ph |
20 |
No |
n/a |
HDS 3.0/20-4 Ea/Eg Standard |
1.109-153.0 |
3.0 |
2000 |
4-pole |
208-230V/1ph |
26 |
No |
At unloader |
HDS 3.5/30-4 Ea Standard |
1.109-155.0 |
3.5 |
3000 |
4-pole |
230V/1ph |
35 |
No |
At unloader |
HDS 4.0/20-4 Ea Premium |
1.109-157.0 |
4.0 |
2000 |
4-pole |
230V/1ph |
30 |
Yes |
Servo Control |
HDS 4.0/20-4 Eh/Eb Premium |
1.109-158.0 |
4.0 |
2000 |
4-pole |
208-230V/3ph |
24 |
Yes |
Servo Control |
HDS 4.0/20-4 Ec Premium |
1.109-159.0 |
4.0 |
2000 |
4-pole |
460V/3ph |
12 |
Yes |
Servo Control |
HDS 4.0/30-4 Eh/Eb Premium |
1.109-163.0 |
4.0 |
3000 |
4-pole |
208-230V/3ph |
30 |
Yes |
Servo Control |
HDS 4.0/30-4 Ec Premium |
1.109-164.0 |
4.0 |
3000 |
4-pole |
460V/3ph |
14 |
Yes |
Servo Control |
HDS 4.0/30-4 Ef Premium |
1.109-165.0 |
4.0 |
3000 |
4-pole |
575V/3ph |
12 |
Yes |
Servo Control |
HDS 5.0/30-4 Eh/Eb Premium |
1.109-166.0 |
5.0 |
3000 |
4-pole |
208-230V/3ph |
34 |
Yes |
Servo Control |
HDS 5.0/30-4 Ec Premium |
1.109-167.0 |
5.0 |
3000 |
4-pole |
460V/3ph |
16 |
Yes |
Servo Control |
HDS 5.0/30-4 Ef Premium |
1.109-168.0 |
5.0 |
3000 |
4-pole |
575V/3ph |
13 |
Yes |
Servo Control |
SPECIFICATIONS
Technical data
Flow rate (gal/min) | 1.7 / 4 |
Pressure (psi) | 400 - 2000 |
Power (A) | 30 |
Voltage (Ph/V/Hz) | 1 / 230 / 60 |
Weight incl. packaging (lb.) | 550 |
Equipment
- Steam mode
