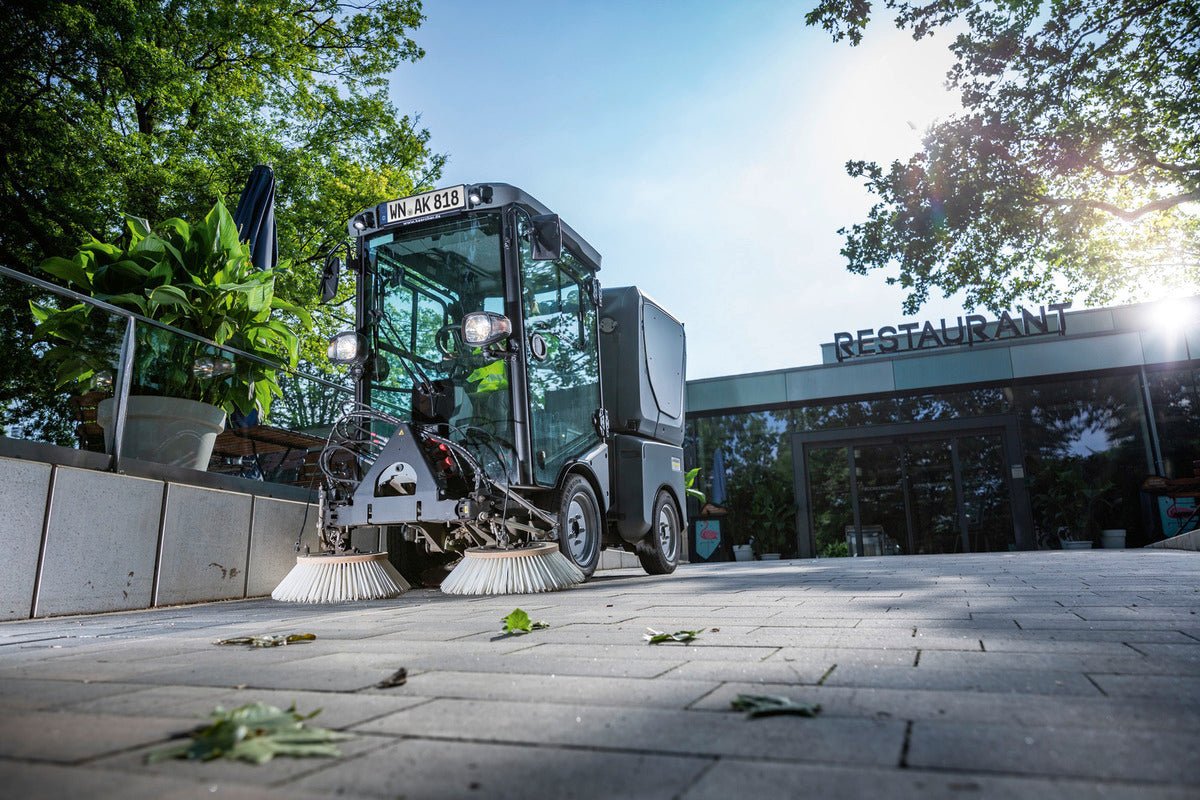

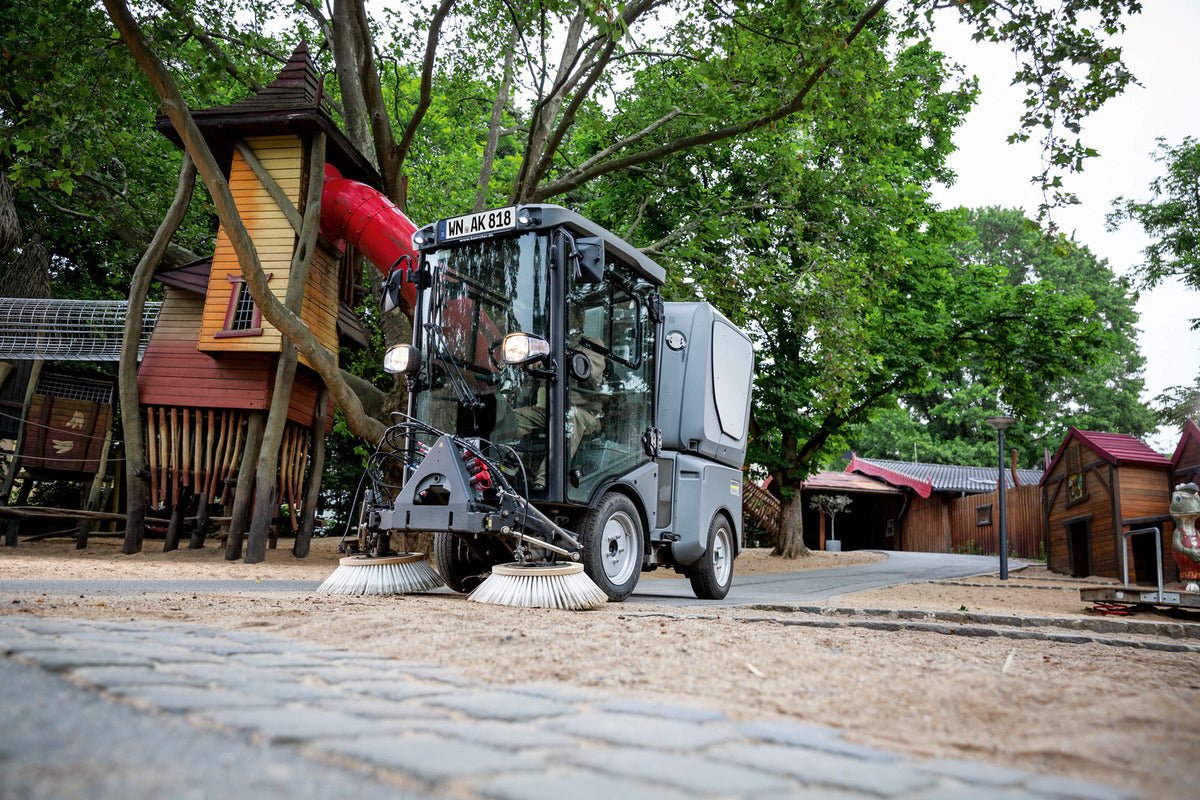

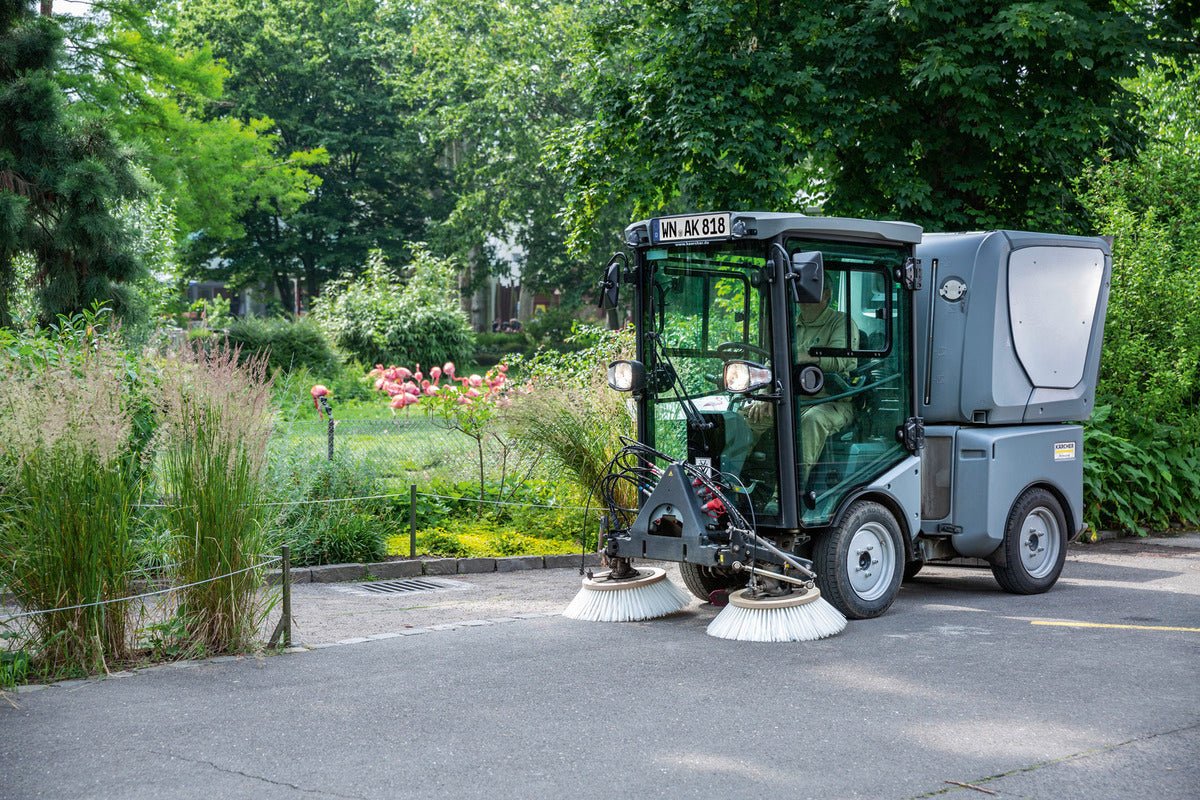

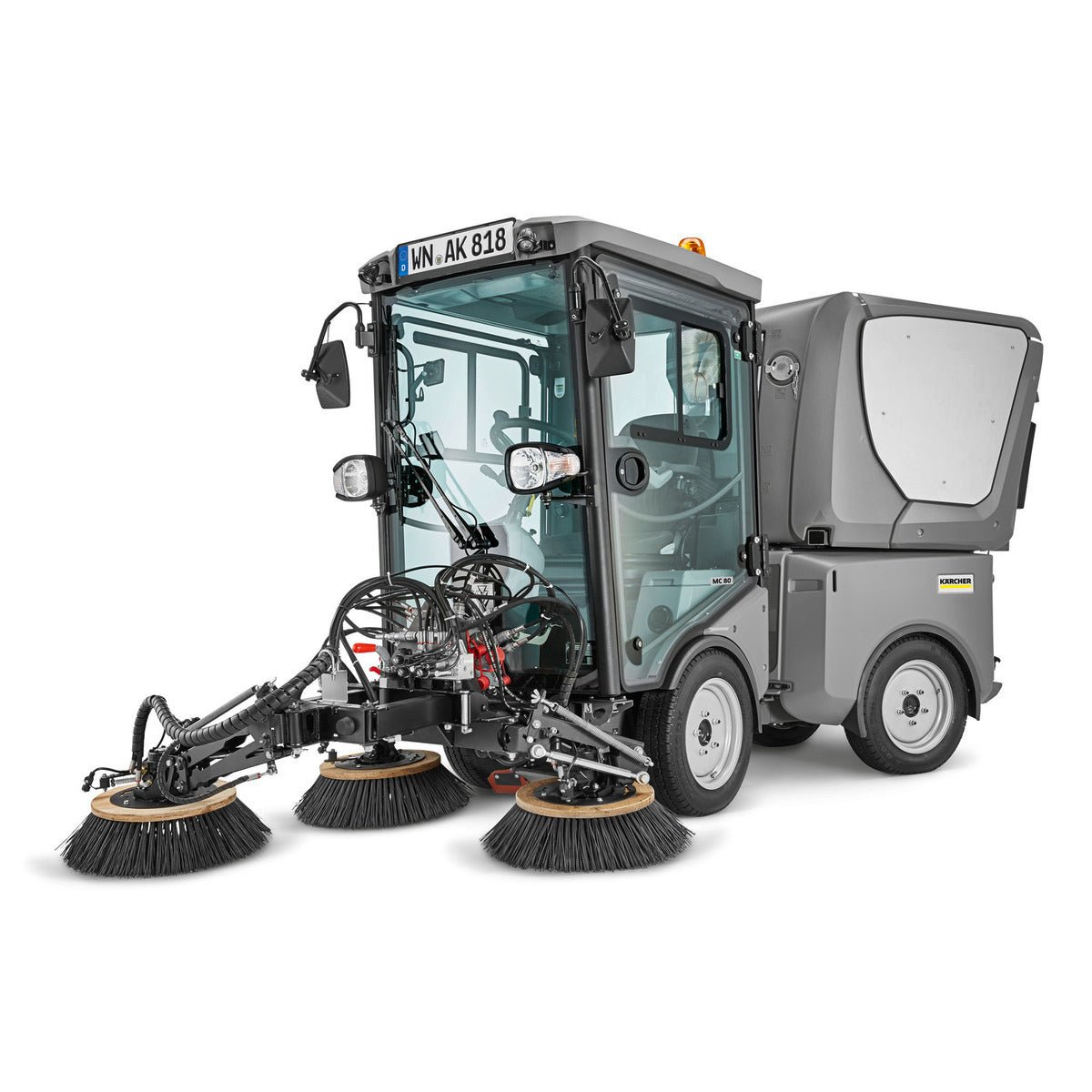

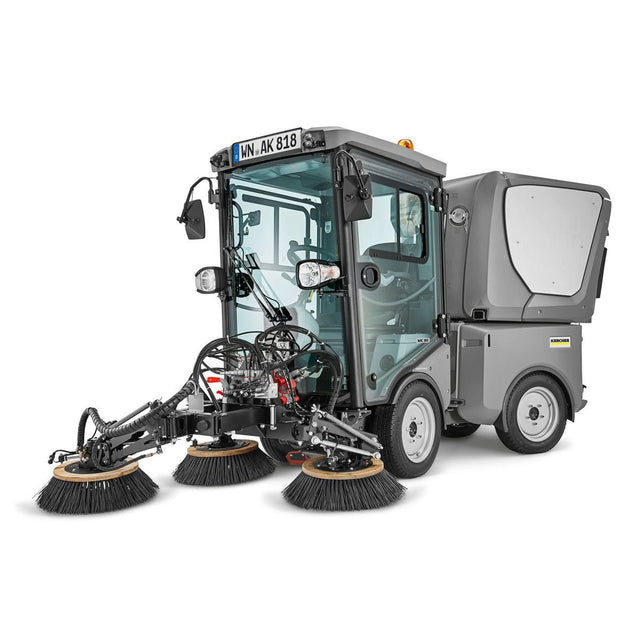

Karcher Municipal City Sweeper MC 80

With the MC 80 the technology of the very large machines is now used in the compact class of the sweepers.

For example, the 800-liter container for swept material with water circulation system is based on computer-aided CFD simulations, the two-brush system has individual brush control with individual lifting, the straight suction channel effectively prevents blockages, and the suction mouth is located in the wheel contour where it is protected from impacts. The excellent standard equipment can be complemented with various attachment kits, such as a 3rd side brush, a weed brush, a wander hose or a high-pressure cleaner. In terms of working comfort, the MC 80 scores well with the largest cab in its class, a perfect all-round view and a transparent and ergonomic layout of the operating elements. Practical details such as a lockable storage compartment, bottle holder and USB charging port are also included.

Includes

Standard MIC42 Features + additional:
Waste Container 1000 l / 1.3 cu yard
Fresh and recirculated water
Manual Suction Hose
High Pressure Washer
2-brush system
Pick-up head
Camera on Suction System

Intuitive operating concept from the 3.5 tons class

Armrest with ergonomically integrated operating panel for intuitive operation. Quick start at the touch of a button. Individual control of all functions possible. Individual brush control and lifting increase precision.

Maximum operating comfort

Largest cab in its class with 360° panoramic view, ergonomic and transparent. Windows on both sides, lockable storage compartment, USB charging port, bottle holder. Entry and exit on both sides for maximum flexibility when working.

The highest standard of sweeping

Easy-to-assemble two brush system with individual control and lifting. 800 liter container for swept material with water circulation system and 185 liter freshwater tank. Optional attachment kits available such as 3rd side brush or weed brush.

• Emission values below EU STAGE V thanks to Common Rail system and diesel particulate filter.
• For applications in urban green zones.
• Lower fuel consumption protects the environment and lowers the operating costs.

Specifications

Technical data

Drive type	Diesel
Traction drive	3-cylinder engine
Motor manufacturer	Yanmar
Engine rating (kW)	26
Diesel particulate filter	yes
Emissions standard	STAGE V
Driving speed (km/h)	25
Working speed (km/h)	15
Climbing ability (%)	25
Working width with two side brushes (mm)	1850
Max. working width with three side brushes (mm)	2240
Waste container (l)	1000
Fresh water tank (l)	190
Emptying height (mm)	1565
Turning radius (mm)	873
Weight, empty (kg)	1875
Total permissible weight (kg)	2500
Weight incl. packaging (kg)	1875
Dimensions (L x W x H) (mm)	3237 x 1070 x 1980

Equipment

• Particulate filter
• Leaf suction hose
• Temperature display
• Elapsed time counter for sweeping gear
• Comfort seat
• Heating and air-conditioning unit
• Heating
• Suction
• Side brush speed, adjustable
• Forwards traction drive
• Backwards traction drive
• Coarse dirt flap
• Hydr. high dump
• Waste container: 1000 l
• Panoramic cab with safety glass, 2 rear mirrors
• Radio system
• Flashing lights
• Dust binding on side brushes and in the suction channel with water spraying system
• Doors, left/right
• Water tank: 100 l
• Outdoor use
