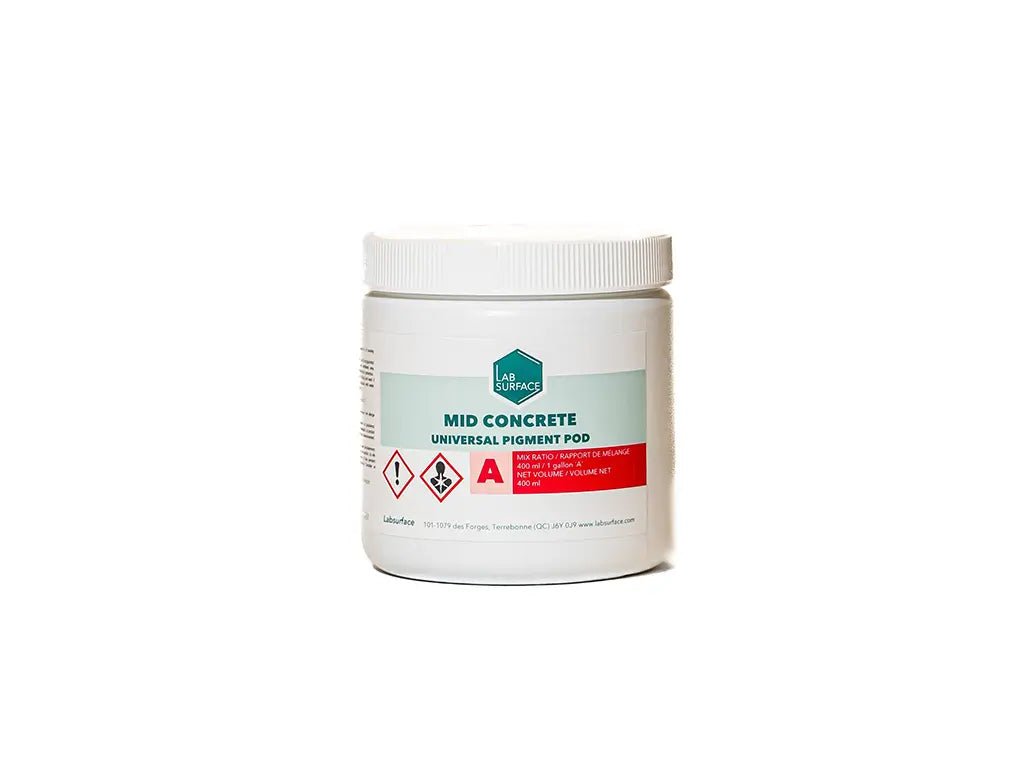

LABTEC Universal Pigment Pods

The LABTEC Universal Pigment Pods are pigment dispersions that are fully compatible with the LABPOX and LABFAST product series.

The same vibrant colors than those on our Standard Color Chart are offered in small pods and ready to be field blended with the LABPOX Clear or LABFAST Clear.

Advantages

• Entirely designed and manufactured by Labsurface ensuring chemical compatibility with Labsurface products
• Minimize inventory levels
• No pigment separation or floating issues
• User friendly viscosity making the product easy to manipulate and to mix
• UV resistant pigments
• Chemically stable
• 100% solids environment friendly

STANDARD COLORS

Colors provided can vary depending on the system being used and normal production tolerance. The color displayed are approximate. Therefore, colors may vary from screen to screen, they are here a global reference.

 Description
 The LABTEC Universal Pigment Pods are 100% solids pigment
dispersions manufactured by Labsurface and designed for the
LABPOX® 30, LABPOX® 40 UV, LABPOX® FAST CURE and the
LABFAST® product series. The LABTEC Universal Pods are
designed to be field blended.
 Uses
 The LABTEC Universal Pigment can be used with the LABPOX®
30, LABPOX® 40 UV, LABPOX® FAST CURE and the LABFAST®
product series for the following applications:
 + Residential, commercial and industrial uses
 + Commercial centers
 + Office buildings
 + Retail stores
 + Residential garages
 + Metallic systems
 + Food/beverage processing and preparation plants
 + Public facilities including hospitals and schools
 + Pharmaceutical companies
 + Manufacturing facilities
 + Warehouses
 Advantages
 + Compatible with LABPOX® 30, LABPOX® 40 UV, LABPOX®
FAST CURE and the LABFAST® product series
 + Entirely designed and manufactured by Labsurface ensuring
chemical compatibility with Labsurface products
 + Possibility to better match some flake blend selections
 + Minimize inventory on hand
 + No pigment separation or floating issues
 + User friendly viscosity making the product easy to
manipulate and to mix
 + UV resistant pigments
 + Chemically stable
 + 100% solids environment friendly
 Technical Data Sheet
 Application Data
 Packaging
1 pod (400 ml)
 MIX RATIOS
EPOXY
POLYASPARTIC
2 pods / 3 US Gal Kit (3 x 3.78 L)
10 pods / 15 US Gal Kit (3 x 18.9 L)
1 pod / 2 US Gal Kit (2 x 3.78 L)
5 pods / 10 US Gal Kit (2 x 18.9 L)
 Color
See standard Color Chart
 Shelf Life
One year, in original unopened factory pails under
normal storage conditions
 VOC Content
<1 g/l
 Surface Preparation
 Refer to the LABPOX® 30, LABPOX® 40 UV, LABPOX® FAST
CURE and the LABFAST® product series technical datasheets for
information pertaining to surface preparation.
 Mixing
 Before final mixing, pre-mix part A at low speed with the
LABTEC Universal Pigment Pod. Mix the pod until the co
lor is perfectly uniform using a mixer at low speed. Then,
mix A and B parts together (2A:1B for the LABPOX® 30, 40
UV and FAST CURE, and 1A:1B for the LABFAST® product
series®) at low speed in a separate container. There is no
need to rebalance the mixing ratios to compensate for the
volume of part A that will exceed its part B counterpart once the
pod has been poured into the part A. The mixing container must
be clean and free of any outside particle. Mix thoroughly for three
minutes using a low-speed drill (300-450 rpm) to minimize the
air entrapment. It is recommended to activate the mixer in the
reverse mode after the first 90 seconds for the liquid to mix from
the bottom of the mixing can to the top. Make sure to scrap sides
and bottom of mixing container so no unmixed material remains.
Only mix the quantity of product required depending on the pot
life and the working time required.
 Tip for safety yellow and other translucent colors
 To get better opacity with the Safety Yellow color and other
translucent colors for epoxy systems only (LABPOX® 30, 40 UV),
it is possible to use two LABTEC Universal Pigment pods for each
US gallon of part A clear instead of one pod for each US gallon.
However, should you consider this option, the equivalent volume
of clear epoxy (2 x 400 ml) needs to be taken out from the contai
ner prior pouring the two pods. The objective is to maintain a
perfectly balanced 2A:1B mixing ratio. Once this step is comple
ted, follow the mixing instructions described above.
