P1 EXV™ Single Row Cup Wheel EXV04CH

Pearl P1 EXV™ Single Row Cup Wheel — Aggressive Grinding & Coating Removal on Concrete and Masonry

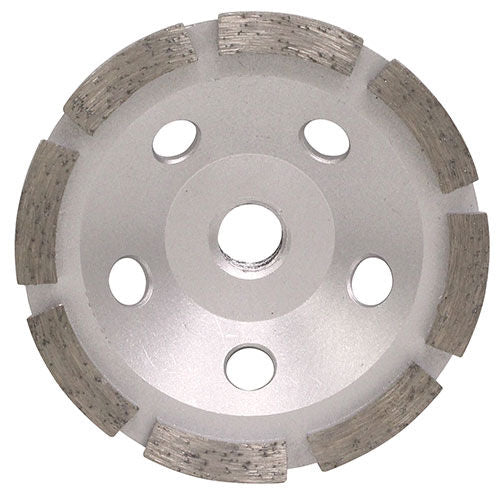

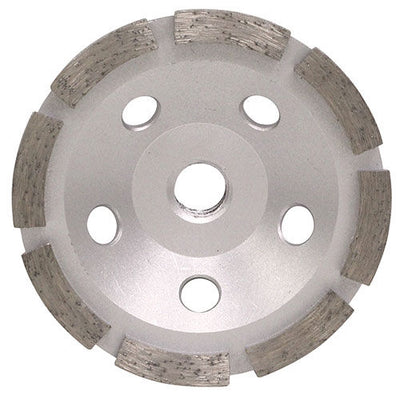

The Pearl P1 EXV™ Single Row Cup Wheel (EXV04CH) is a 4" sintered diamond cup wheel engineered for professional-grade grinding and coatings removal on concrete, block, stone, and other masonry materials. Designed for contractors and trades professionals who demand fast stock removal, the single row segmented configuration delivers a more aggressive grinding action compared to double row alternatives. Compatible with both wet and dry operation, this cup wheel mounts via a standard 5/8"-11 arbor and is built using Pearl's DST (Direct Sintering Technology) for consistent segment performance throughout the wheel's life.

Technical Specifications

Product Attributes

The P1 EXV™ line is available in both single row and double row configurations, as well as 4" and 7" diameters, giving contractors the flexibility to match the wheel to the job. The single row design prioritizes aggressive stock and coating removal over the smoother finish profile of the double row variant, making it the right choice when speed of material removal is the priority.

Key Features & Benefits

Single Row Segmented Design for Aggressive Removal

The single row configuration provides faster stock removal and a more aggressive grinding action than double row cup wheels. This makes it the preferred choice when contractors need to strip coatings or grind down high spots quickly without sacrificing control.

DST – Direct Sintering Technology

Pearl's Direct Sintering Technology bonds the diamond segments directly, producing consistent cutting performance from the first pass to the last. This manufacturing process contributes to the wheel's durability and reliable segment integrity under demanding job site conditions.

Wet or Dry Operation

The EXV04CH is rated for both wet and dry use, giving contractors the flexibility to adapt to job site requirements. Wet grinding helps control dust and extend wheel life, while dry operation allows for use where water is impractical.

Standard 5/8"-11 Arbor Compatibility

The 5/8"-11 threaded arbor is the industry-standard mount for angle grinders, ensuring broad tool compatibility without the need for adapters. This allows for fast wheel changes and straightforward integration into existing tool inventories.

Professional Grade Performance at Competitive Value

The P1 EXV™ series is positioned to deliver professional-grade results at an excellent price point, making it one of the best values in the diamond cup wheel category according to Pearl. Contractors can maintain productivity without overspending on consumables.

Common Applications

Concrete Surface Grinding

Ideal for grinding concrete slabs, floors, and walls to remove high spots, surface irregularities, or prepare surfaces for coatings and overlays.

Coatings Removal

Engineered specifically for coatings removal, the aggressive single row design strips paint, epoxy, and other surface coatings from concrete and masonry efficiently.

Masonry Block Grinding

Suitable for grinding block and other masonry materials, making it useful for surface prep work on block walls and structural masonry elements.

Stone Grinding

Compatible with stone surfaces, allowing contractors to grind and shape natural and manufactured stone in construction and renovation applications.

Compatible Materials

• Concrete
• Block
• Stone
• Other Masonry Materials

Product Documents

• 2026 Pearl Abrasive Product Catalog

Safety Data Summary

Hazard Information

• Use of this abrasive tool generates dust that may contain respirable crystalline silica.
• Repeated and/or substantial inhalation of airborne crystalline silica can cause serious or fatal respiratory diseases, including silicosis.
• California and some other authorities have listed respirable crystalline silica as a substance known to cause cancer.
• Diamond products in the Pearl catalog contain Cobalt, Nickel, and Lead — chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
• Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See www.P65Warnings.ca.gov.

Personal Protective Equipment

• Proper personal protective equipment that has been fit tested to the worker is required.
• Approved respiratory protection must be used to guard against inhalation of respirable crystalline silica dust.

Safe Handling

• Do not use without dust containment and collection systems, or integrated water delivery systems.
• Acceptable work practices and recommendations for dust control methods can be found in 29 CFR § 1910.1053.
• If unfamiliar with the risks associated with grinding concrete, mortar, brick, or block, review the product's material safety data sheet and/or consult your employer, manufacturers/suppliers, or governmental agencies such as OSHA and NIOSH.

Frequently Asked Questions

Q: What is the difference between the single row and double row P1 EXV™ cup wheels?
A: The single row configuration (EXV04CH) is designed for faster stock removal and more aggressive grinding action. The double row configuration is designed for smoother grinding and longer wheel life. Choose single row when aggressive material or coating removal is the priority.

Q: Can this cup wheel be used dry?
A: Yes. The EXV04CH is rated for both wet and dry use. Wet grinding can help with dust control and may extend wheel life, while dry use is suitable where water delivery is not practical.

Q: What grinder arbor size does this cup wheel require?
A: The EXV04CH uses a standard 5/8"-11 threaded arbor, which is compatible with most angle grinders used in the construction trades.

Q: What materials can this cup wheel grind?
A: The EXV04CH is engineered for concrete, block, stone, and other masonry materials. It is not intended for use on metals.

Q: What sizes are available in the P1 EXV™ cup wheel line?
A: The P1 EXV™ row style cup wheels are available in 4" and 7" diameters, and in both single row and double row configurations.
