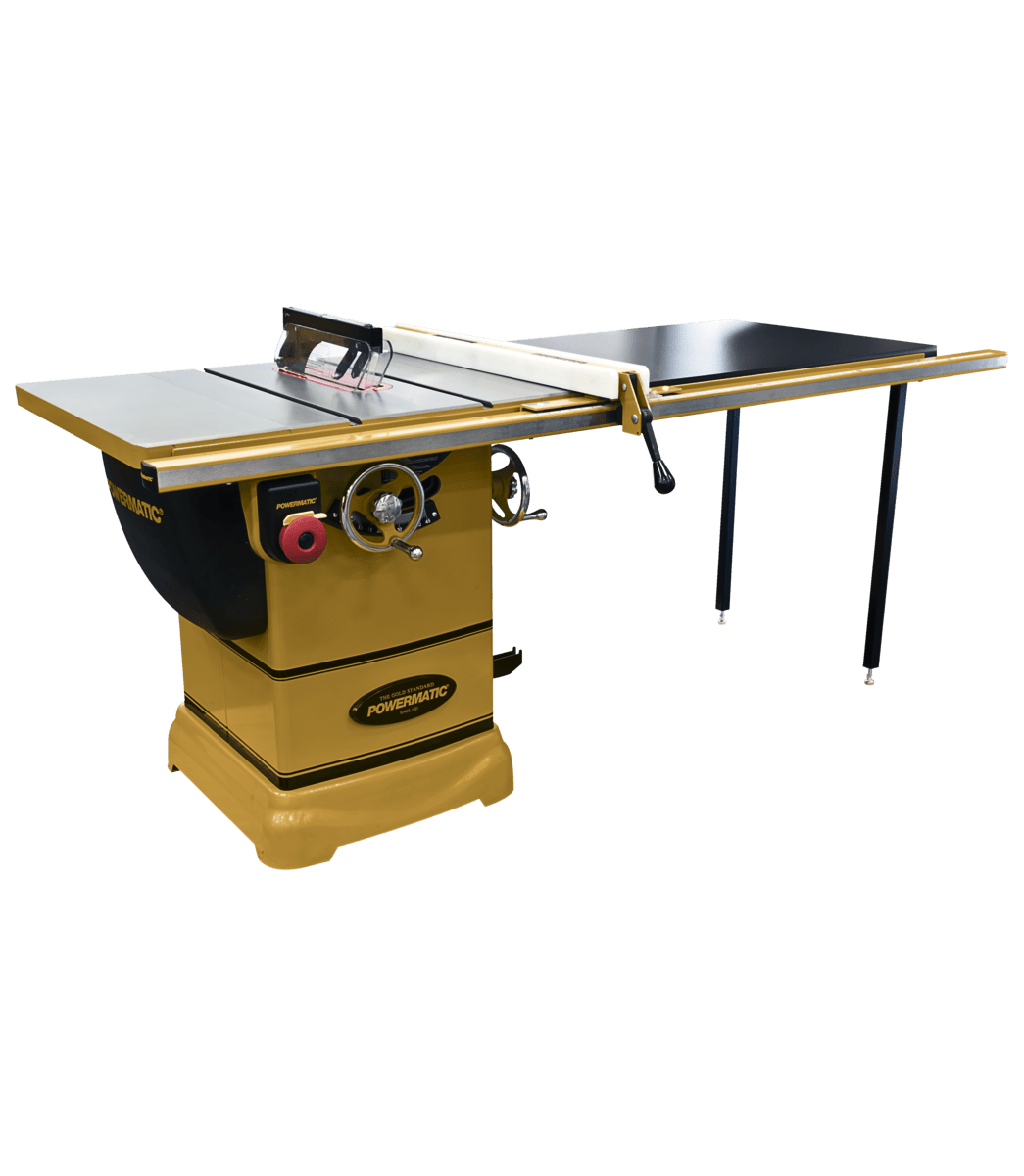

PM1000, 1-3/4HP 1PH Table Saw, w/ 52" Accu-Fence System
SKU# PM9-1791001K
$805.53 off
$3,51900
$4,32453
Unit price
/
Make a Selection
Shipping calculated at checkout.
Couldn't load pickup availability
Safe & Secure Payments.
Finance this today with .png)
Apply Here
PM1000, 1-3/4HP 1PH Table Saw, w/ 52" Accu-Fence System
$3,51900
$4,32453
Unit price
/
Make a Selection
Evolution represents a process that is never fully complete. For a woodworker, inspirations evolve as life experiences shape our creativity
Skills evolve as we share tips and techniques with friends and mentors. And our workshops evolve as we refine our skills. At Powermatic, we're proud to introduce the latest example of our own evolution, the PM1000 cabinet table saw. As with every product Powermatic builds, the PM1000 redefines the limits of design, innovation and durability.
Features
- Blade surround and collection hose provide an unobstructed path, maximizing dust collection
- Arbor lock allows for one handed blade changes with minimal tools
- Conveniently located hands free power switch
- Ergonomically designed 7” handwheels provide momentum, making blade height and bevel adjustments easy
- Exclusive Accu-Fence provides rigidity and precision
- Precision ground cast iron work surface features a beveled edge for smoother operation
- Requires only 115V connection for easy installation
- The poly-V belt drive system reduces vibration and maximizes efficiency
- The sturdy miter gauge pivots 60 degrees to either side, allowing easy adjustment for a full range of cuts
- Toolless guard assembly with independent side leaves is easy to use, maximizing safety
Specifications
| Stock Number | 1791001K |
|---|---|
| Arbor Diameter (In.) | 5/8 |
| Arbor Speed (RPM) | 4200 |
| Blade Diameter (In.) | 10 |
| Dust Collection Minimum CFM Required (CFM) | 350 |
| Dust Port Outside Diameter (In.) | 4 |
| Gross Weight (Lbs) | 289 |
| Maximum Depth of Cut at 45 Degrees (In.) | 2-1/8 |
| Maximum Depth of Cut (In.) | 2-1/8 or 3-1/8 |
| Maximum Diameter of Dado (In.) | 8 |
| Maximum Rip Left of Blade (In.) | 12 |
| Maximum Rip Right of Blade (In.) | 52 |
| Maximum Width of Dado (In.) | 13/16 |
| Miter Gauge Type | T-Slot with Stops |
| Motor Phase | 1 |
| Motor Power (HP) | 1-3/4 |
| Motor Voltage (V.) | 115/230 |
| Net Weight (Lbs.) | 289 |
| Overall Dimensions (L x W x H) (In.) | 43 x 83 x 44 |
| Prewired Voltage (V.) | 115 |
| Prop 65 | Cancer and Reproductive Harm |
| Recommended Circuit Size (Amps.) | 20 |
| Style (Type) | Cabinet |
| Table Height from Floor (In.) | 34-1/4 |
| Table in Front of Saw Blade at Maximum Depth of Cut (In.) | 10 |
| Table Type | Cast Iron |
