Power-Stud®
From
$23779
Unit price
/
Unavailable
STAINLESS STEEL WEDGE EXPANSION ANCHOR

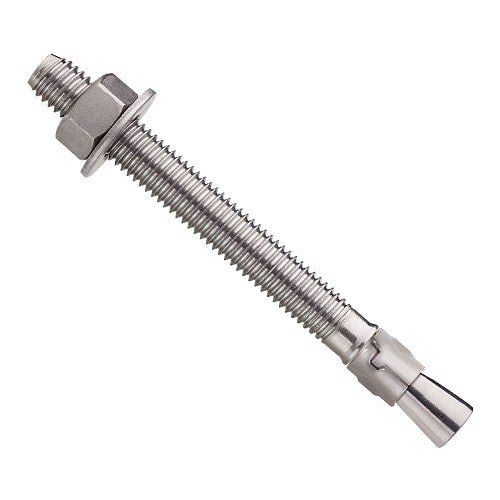

The Power-Stud anchor, is a fully threaded, torque-controlled, wedge expansion anchor. It is available in a threaded version suitable for applications in solid concrete and grout-filled concrete masonry. The threaded version is produced in 304 stainless steel and 316 stainless steel.
GENERAL APPLICATION & USES
APPLICATIONS
- Lighting Standards and Base Plates
- Sills and Support Ledgers
- Retrofit Projects and Machinery Anchorage
- Food and Beverage Facilities
- Water Treatment Plants and Marine Applications
APPROVALS & LISTINGS
APPROVALS
- Tested in accordance with ASTM E488
- Federal GSA Specification Meets the descriptive and proof load requirements of CID A-A-1923A, Type 4
| CATALOG NUMBER | ANCHOR DIAMETER | ANCHOR LENGTH | THREAD LENGTH | ANCHOR MATERIAL | PACK QTY |
|---|---|---|---|---|---|
| 07300-PWR | 1/4" | 1-3/4" | 3/4" | TYPE 304 SS | 100 |
| 07600-PWR | 1/4" | 1-3/4" | 3/4" | TYPE 316 SS | 100 |
| 07302-PWR | 1/4" | 2-1/4" | 1-1/4" | TYPE 304 SS | 100 |
| 07602-PWR | 1/4" | 2-1/4" | 1-1/4" | TYPE 316 SS | 100 |
| 07304-PWR | 1/4" | 3-1/4" | 2-1/4" | TYPE 304 SS | 100 |
| 07604-PWR | 1/4" | 3-1/4" | 2-1/4" | TYPE 316 SS | 100 |
| 07310-PWR | 3/8" | 2-1/4" | 1-1/4" | TYPE 304 SS | 50 |
| 07610-PWR | 3/8" | 2-1/4" | 1-1/4" | TYPE 316 SS | 50 |
| 07312-PWR | 3/8" | 2-3/4" | 1-5/8" | TYPE 304 SS | 50 |
| 07612-PWR | 3/8" | 2-3/4" | 1-5/8" | TYPE 316 SS | 50 |
| 07313-PWR | 3/8" | 3" | 1-7/8" | TYPE 304 SS | 50 |
| 07613-PWR | 3/8" | 3" | 1-7/8" | TYPE 316 SS | 50 |
| 07314-PWR | 3/8" | 3-1/2" | 2-3/8" | TYPE 304 SS | 50 |
| 07614-PWR | 3/8" | 3-1/2" | 2-3/8" | TYPE 316 SS | 50 |
| 07315-PWR | 3/8" | 3-3/4" | 2-5/8" | TYPE 304 SS | 50 |
| 07615-PWR | 3/8" | 3-3/4" | 2-5/8" | TYPE 316 SS | 50 |
| 07316-PWR | 3/8" | 5" | 3-1/8" | TYPE 304 SS | 50 |
| 07616-PWR | 3/8" | 5" | 3-1/8" | TYPE 316 SS | 50 |
| 07320-PWR | 1/2" | 2-3/4" | 1-3/8" | TYPE 304 SS | 50 |
| 07620-PWR | 1/2" | 2-3/4" | 1-3/8" | TYPE 316 SS | 50 |
| 07322-PWR | 1/2" | 3-3/4" | 2-3/8" | TYPE 304 SS | 50 |
| 07622-PWR | 1/2" | 3-3/4" | 2-3/8" | TYPE 316 SS | 50 |
| 07323-PWR | 1/2" | 4-1/2" | 3-1/8" | TYPE 304 SS | 50 |
| 07623-PWR | 1/2" | 4-1/2" | 3-1/8" | TYPE 316 SS | 50 |
| 07324-PWR | 1/2" | 5-1/2" | 4-1/8" | TYPE 304 SS | 50 |
| 07624-PWR | 1/2" | 5-1/2" | 4-1/8" | TYPE 316 SS | 50 |
| 07326-PWR | 1/2" | 7" | 5-5/8" | TYPE 304 SS | 25 |
| 07626-PWR | 1/2" | 7" | 5-5/8" | TYPE 316 SS | 25 |
| 07330-PWR | 5/8" | 3-1/2" | 2" | TYPE 304 SS | 25 |
| 07630-PWR | 5/8" | 3-1/2" | 2" | TYPE 316 SS | 25 |
| 07332-PWR | 5/8" | 4-1/2" | 3" | TYPE 304 SS | 25 |
| 07632-PWR | 5/8" | 4-1/2" | 3" | TYPE 316 SS | 25 |
| 07333-PWR | 5/8" | 5" | 3-1/2" | TYPE 304 SS | 25 |
| 07633-PWR | 5/8" | 5" | 3-1/2" | TYPE 316 SS | 25 |
| 07334-PWR | 5/8" | 6" | 4-1/2" | TYPE 304 SS | 25 |
| 07634-PWR | 5/8" | 6" | 4-1/2" | TYPE 316 SS | 25 |
| 07336-PWR | 5/8" | 7" | 5-1/2" | TYPE 304 SS | 25 |
| 07636-PWR | 5/8" | 7" | 5-1/2" | TYPE 316 SS | 25 |
| 07338-PWR | 5/8" | 8 1/2" | 7" | TYPE 304 SS | 25 |
| 07638-PWR | 5/8" | 8 1/2" | 7" | TYPE 316 SS | 25 |
| 07340-PWR | 3/4" | 4 1/4" | 2-3/8" | TYPE 304 SS | 20 |
| 07640-PWR | 3/4" | 4 1/4" | 2-3/8" | TYPE 316 SS | 20 |
| 07341-PWR | 3/4" | 4 3/4" | 2-7/8" | TYPE 304 SS | 20 |
| 07641-PWR | 3/4" | 4 3/4" | 2-7/8" | TYPE 316 SS | 20 |
| 07342-PWR | 3/4" | 5 1/2" | 3-5/8" | TYPE 304 SS | 20 |
| 07642-PWR | 3/4" | 5 1/2" | 3-5/8" | TYPE 316 SS | 20 |
| 07344-PWR | 3/4" | 6-1/4" | 4-3/8" | TYPE 304 SS | 20 |
| 07644-PWR | 3/4" | 6-1/4" | 4-3/8" | TYPE 316 SS | 20 |
| 07346-PWR | 3/4" | 7" | 5-1/8" | TYPE 304 SS | 20 |
| 07646-PWR | 3/4" | 7" | 5-1/8" | TYPE 316 SS | 20 |
| 07348-PWR | 3/4" | 8-1/2" | 6-5/8" | TYPE 304 SS | 10 |
| 07648-PWR | 3/4" | 8-1/2" | 6-5/8" | TYPE 316 SS | 10 |
| 07349-PWR | 3/4" | 10" | 8-1/8" | TYPE 304 SS | 10 |
| 07352-PWR | 7/8" | 8" | 4-3/4" | TYPE 304 SS | 10 |
| 07361-PWR | 1" | 6" | 2-3/8" | TYPE 304 SS | 10 |
| 07363-PWR | 1" | 9" | 5-3/8" | TYPE 304 SS | 10 |
| 07365-PWR | 1" | 12" | 8-3/8" | TYPE 304 SS | 5 |
