R2D2-7 Shot Blasting Dust Collector
SKU# 8770251150K
$94373
Unit price
/
Make a Selection
Shipping calculated at checkout.
Couldn't load pickup availability
Safe & Secure Payments.
Finance this today with .png)
Apply Here
R2D2-7 Shot Blasting Dust Collector
From
$39375
Unit price
/
Make a Selection
The cartridge filters are automatically cleaned during operation by compressed air.

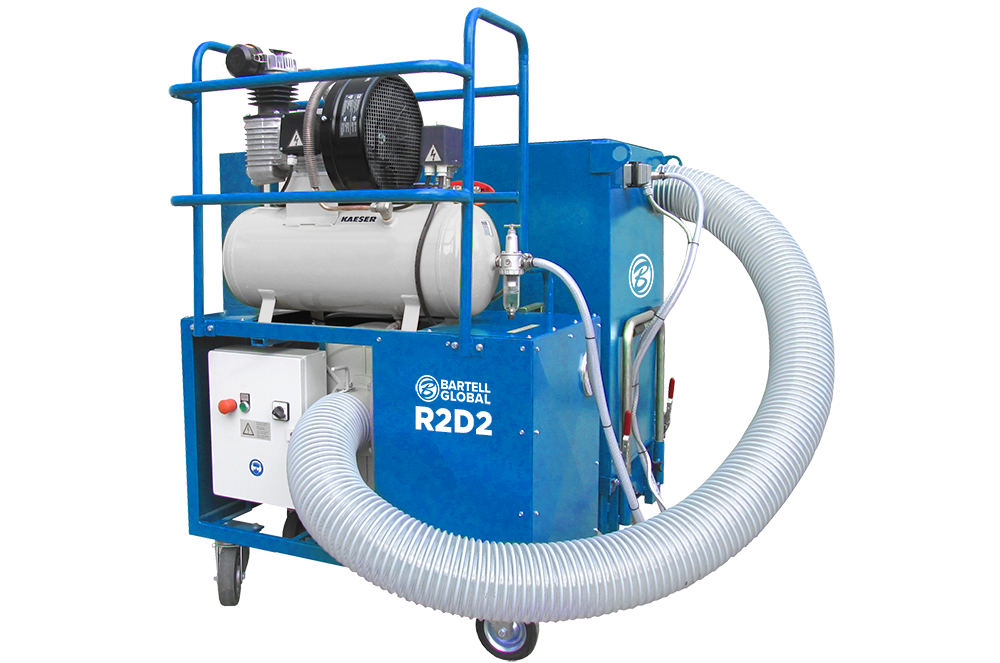

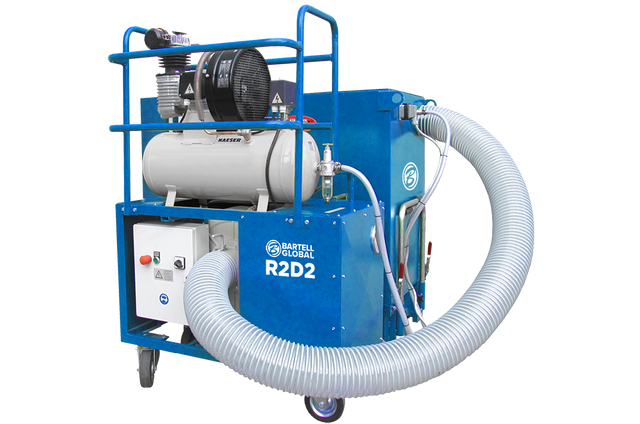

The R2D2 is built in two units for easy transportation. The power unit includes all the electronics and components such as ventilator, motor and compressor. The filter unit includes the filter cartridges and the dust container(s). On site it is easy to connect the two units to form one machine. The filter unit is available in two versions. The first version collects the dust in a wheeled compartment. The second version collects the dust in buckets equipped with plastic bags.
| POWER UNIT | |
|---|---|
| Voltage | 480V |
| Frequency | 60Hz |
| Phase | 3 |
| Current Consumption | 12.2A |
| Motor Rating | 5.5kW |
| Motor Nominal Current | 10.2A |
| Motor RPM | 2935 |
| Weight | 483 lbs (220kg) |
| Height | 61.5" (156cm) |
| Length | 40.2" (102cm) |
| Width | 20.5" (52cm) |
| Air Flow | 1342 ft3/min (38m3/min) |
| Depression | 10150 Pa |
| Ventilator RPM | 6350 |
| FILTER UNIT - CONTAINER | |
| Weight | 379.2 lbs (172kg) |
| Height | 56" (141cm) |
| Length | 43" (108cm) |
| Width | 32" (80cm) |
| Filter Area | 10 m2 (5m x 2m) |
| Filter Cartridges | 5 |
| Capacity Dust Bind | 160 liters (alternative 90 liters) |
| Dust Port Diameter | 50, 70, 125 mm |
| Filter Cleaning | Automatic, Air Pressure |
| COMPRESSOR | |
| Motor Rating | 1.7kW |
| Motor Nominal Current | 2A |
| Motor RPM | 1500 |
