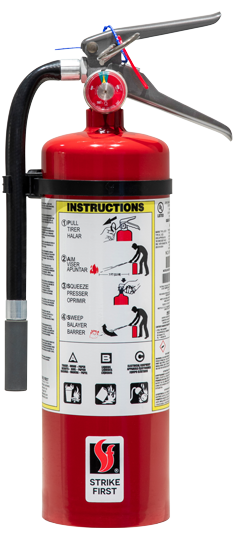

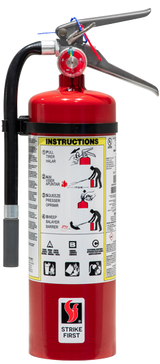

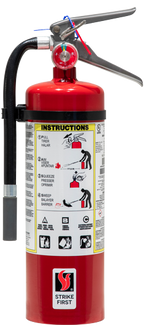

5 Pound Multi-Purpose Dry Chemical Portable Fire Extinguisher - Vertical Back

SF-ABC340 Multi-Purpose Dry Chemical Portable Fire Extinguisher — 3-A:40-B:C Rated, 5 lb. ABC Protection

The Strike First SF-ABC340 is a 5 lb. multi-purpose ABC dry chemical portable fire extinguisher engineered for contractors, trades professionals, and industrial job sites requiring reliable, code-compliant fire suppression across multiple hazard classes. Charged with 90% mono ammonium phosphate (MAP) powder, it effectively combats Class A (wood, paper, cloth), Class B (flammable liquids and gases), and Class C (electrical equipment) fires from a safe 8–10 ft. standoff distance. Built to meet ANSI/UL 299, ANSI/UL 711, CAN/ULC-S504, and CAN/ULC-S508 standards, the SF-ABC340 carries both UL and ULC listings and U.S.C.G. approval, making it suitable for land, vehicle, and marine applications. A 6-year warranty and heavy-duty construction make it a dependable long-term investment for any job site safety program.

Technical Specifications

Strike First ABC Series — Full Model Comparison

The SF-ABC340 distinguishes itself within the 5 lb. class by delivering a significantly higher 40-B flammable liquid rating compared to the SF-ABC310's 10-B rating — making it the preferred choice when flammable liquid and gas hazards are a primary concern on the job site. Its 195 PSI charge, 14.5-second discharge time, and extreme temperature range of -65°F to 120°F ensure reliable performance across demanding outdoor and indoor environments. Manufactured by Strike First, a company with over 35 years of fire equipment manufacturing experience, the SF-ABC340 is built to NFPA 10 and D.O.T. requirements for broad compliance.

Key Features & Benefits

Modified Universal Valve Body

The modified universal valve body accepts both pin and fork wall hooks, giving contractors flexibility in mounting configurations across different job site setups. This reduces the need to source separate hardware for different bracket types.

Oversized Pull Pin with Retaining Strap

The oversized pull pin with retaining strap is engineered for easier and faster activation under stress — critical when seconds count in an emergency. This design reduces fumbling during high-pressure situations, improving response time.

Waterproof Stainless Steel Gauge

The waterproof stainless steel pressure gauge maintains readability and accuracy in wet, dusty, or corrosive job site environments. Contractors can perform quick visual pressure checks without concern for gauge degradation over time.

Super Durable Polyester Powder Paint Finish

The steel cylinder is finished with a super durable polyester powder paint coating that provides superior corrosion resistance. This extends the service life of the extinguisher in harsh outdoor or high-humidity environments.

Full Grip Hardcoat Anodized Aluminum Handle

The reinforced, full grip hardcoat anodized aluminum handle provides a secure, comfortable hold during discharge. The hardcoat anodizing adds durability and resistance to wear from repeated handling and storage.

Color and Bar Coded Labels

Color and bar coded labels support accurate service and inspection tracking, simplifying compliance with NFPA 10 service record requirements. This is particularly useful for contractors managing multiple extinguishers across large job sites.

Extreme Temperature Range

Rated from -65°F to 120°F (-54°C to 49°C), the SF-ABC340 remains operational in extreme cold and heat conditions. This makes it suitable for year-round use in northern climates, cold storage facilities, and hot outdoor environments.

Common Applications

Construction Job Sites

Provides multi-class fire protection where wood framing, flammable adhesives, solvents, and temporary electrical equipment are all present simultaneously.

Vehicle and Equipment Mounting

U.S.C.G.-approved and compatible with vehicle/marine standard brackets, making it suitable for mounting on trucks, heavy equipment, and work vehicles.

Marine and Watercraft

U.S.C.G. approval (Type A Size II, Type B:C Size I) qualifies the SF-ABC340 for use aboard vessels where flammable fuel and electrical fire risks are present.

Electrical Hazard Areas

Class C rating makes it appropriate for use near electrical panels, generators, and powered equipment commonly found on commercial and industrial job sites.

Flammable Liquid Storage Areas

The 40-B rating provides substantial suppression capacity for areas where fuels, solvents, paints, or other flammable liquids are stored or used.

Wall-Mounted Facility Safety Stations

Compatible with UB5, UB5-DB, UP5-MD, and HDVB-1 optional brackets for permanent wall-mount installation in warehouses, shops, and facilities.

Compatible Materials

• Wood, paper, and cloth (Class A)
• Flammable liquids (Class B) — fuels, solvents, paints, adhesives
• Flammable gases (Class B)
• Electrical equipment (Class C) — panels, generators, powered tools

Product Documents

• Strike First ABC Dry Chemical Product Sheet (PDF)

Frequently Asked Questions

Q: What is the difference between the SF-ABC310 and the SF-ABC340 if both are 5 lb. extinguishers?
A: The SF-ABC340 carries a 3-A:40-B:C rating versus the SF-ABC310's 3-A:10-B:C rating. The SF-ABC340 provides four times the flammable liquid (Class B) suppression capacity, making it the better choice where fuel, solvent, or gas fire hazards are a primary concern.

Q: Is the SF-ABC340 approved for use on boats or marine vessels?
A: Yes. The SF-ABC340 carries U.S.C.G. approval as Type A Size II and Type B:C Size I, and its standard bracket is rated for vehicle/marine mounting.

Q: What standards does the SF-ABC340 meet?
A: It meets or exceeds ANSI/UL 299, ANSI/UL 711, CAN/ULC-S504, and CAN/ULC-S508, and complies with NFPA 10 and D.O.T. requirements. It is both UL Listed and ULC Listed.

Q: Can the SF-ABC340 be used in extreme cold weather conditions?
A: Yes. The SF-ABC340 is rated for operation down to -65°F (-54°C), making it suitable for cold climate job sites and cold storage environments.

Q: What mounting bracket options are available for the SF-ABC340?
A: The SF-ABC340 comes with a standard wall or vehicle/marine bracket. Optional brackets include the UB5, UB5-DB, UP5-MD, and HDVB-1.

Q: What is the warranty on the SF-ABC340?
A: The SF-ABC340 is backed by a 6-year manufacturer's warranty.
