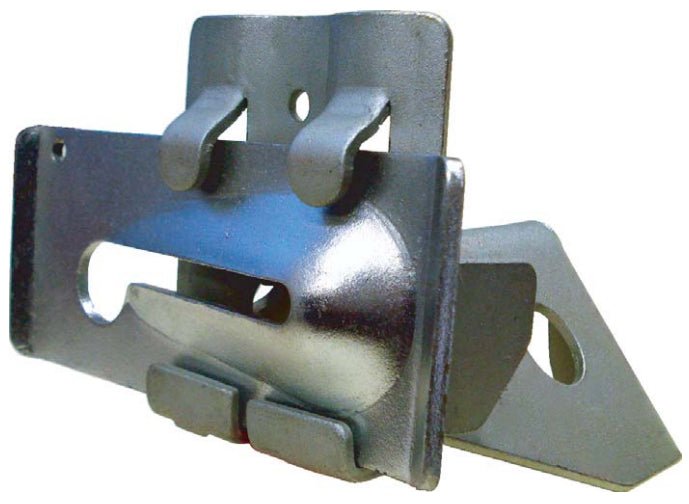

• Easy installation - Can be installed horizontally, vertically, and inverted with a 2X4 kicker plate. The brackets can be installed before or after the wales have been placed.
  • Weather resistant - Fabricated from heavy guage galvanized steel for the body and a cadmium-plated wedge for excellent corrosion protection.
  • The Snap Bracket uses 4-3/4" Snap Ties(4-3/4" Lumber and Wedge)
  • Accommodates lumber variations - sliding wedge has a 5/8" adjustment range or take-up. Can be used with 3/4" or 5/8" plywood.
  • Nail holes in wedge and body - Can be used to secure the wedge when vibrating and to keep the bracket from falling when stripping.
  • Using Hex Head Snap Ties in conjunction with Snap Brackets - Hex Head Snap Ties can be broken swiftly with the Snap Brackets and the forms in place. Snap Ties will break off inside the concrete leaving clean holes. This combination absolutely minimizes stripping time and labor.
OCM Part No. Bucket Qty Weight per pcs lbs Finish
OCM-SB 50 1.2 Plated
