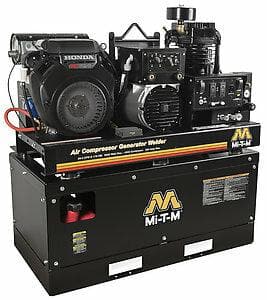

Two Stage Gasoline 20-Gallon Compressor/Generator/Welder
SKU# AGW-SH22-20M
Couldn't load pickup availability
Safe & Secure Payments.
Finance this today with .png)
Apply Here
Two Stage Gasoline 20-Gallon Compressor/Generator/Welder
The combination air compressor, generator, and arc welder is the ideal tool for field repairs in remote locations
Dependability of high quality equipment is vital in every industry, so is working with equipment that can save both time and money. The combination air compressor, generator, and arc welder is the ideal tool for field repairs in remote locations. Save room on your service truck with this versatile all-in-one solution.

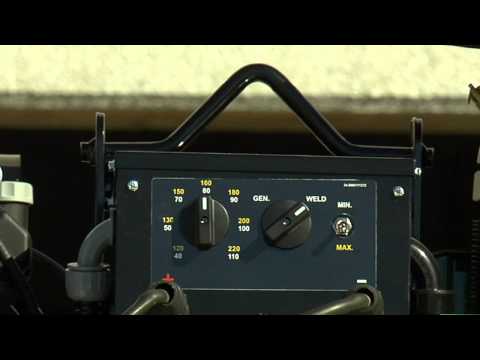

AGW Series Operation
Generator Mode:AC current only · Selector switch set to idle down · Switch is set to full throttle
Welder Mode:DC current only · Engine must be running full throttle · Selector switch must be set to full throttle
Features
Compressor Pump:Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
Generator:Brush-type 2 pole 120V/240V alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings
Welder:Amperage selection switch, 170A or 220A maximum
Frame:Powder coated ASME coded receiver tanks · 14-gauge powder coated belt guard
Components:Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16.5-inch fly wheel
*Equipped with 150-PSI maximum rated regulator.
Specifications
-
Displacement/ Engine
688cc Honda GX690 OHV with Electric Start - Battery Cables Included; Battery Not Included
-
Rated Speed
3600 RPM
-
CFM @ 90 PSI
30.5
-
CFM @ 175 PSI*
29.0
-
Compressor
Two Stage, Cast Iron
-
Tank Size
20-Gallon Receiver Tank
-
Max. AC Output
5000 watts
-
Rated AC Output
4500 watts
-
Alternator Wattage: Cont. On-Load @ 90 PSI
4500 watts
-
Alternator Wattage: Cont. On-Load @ 175 PSI
4500 watts
-
Frequency/Voltage
60Hz/120V/240V
-
Max. Amps (120V/240V)
41.5/20.8
-
Cont. Amps (120V/240V)
37.5/18.8
-
Receptacles
(2) 120V, 20A GFCI Duplex; (1) 120V/240V, 20A Twist Lock
-
Duty Cycle (10 Min. Run Time)
220A @ 40%, 190A @ 60%, 150A @ 100%
-
DC Voltage
50-220A Working Range
-
Fuel Tank
10.0 gallon
Weights & Dimensions
-
Net Weight
803.00 lbs.
-
Shipping Weight
870.00 lbs.
-
Length
47.00 in.
-
Width
24.00 in.
-
Height
50.00 in.
Options
-
IX-0001 Vibration Isolator Pads
Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications
