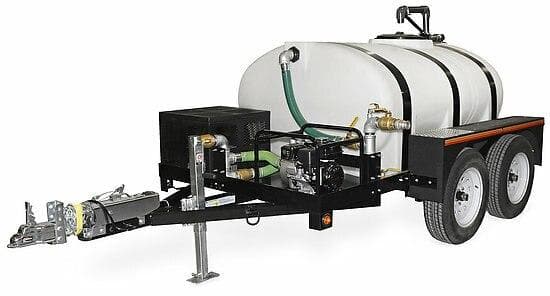

MWT-0510-2MHD Water Trailer great for cleaning parking lots and transporting water to remote locations

Might have a long lead time - best to call for details.

The dual-axle water trailer features a 510-gallon water tank and features rear spray, fire and garden hose hook-ups and hydrant fill capabilities. It is great for dust control, cleaning parking lots and transporting water to remote locations.


  • 510-gallon elliptical low profile 3/8-inch thick polyethylene
  • 16-inch manhole with 4-inch vent and a sump pump

Central Manifold:

  • Easy to operate butterfly brass valves


  • 1 1/2-inch fire hose hook-up with 50-foot x 1 1/2-inch hose and fog nozzle
  • Break-away hydrant fill with 25-foot x 2 1/2-inch hose
  • Dual rear spray heads
  • Garden hose connector
  • Manifold discharge system
  • Water hammer prevention valve


  • DOT approved
  • 12-inch under-clearance at axle
  • 7,000-lb. side-mount crank jack
  • Dual leaf spring suspension
  • Rubber mounted sealed lights
  • Wire storage basket
  • Two safety chains with snap hooks

Semi-Trash Pump:

  • 2-inch suction and discharge that handles solids up to 3/4-inch diameter
  • Heavy-duty powder coated wraparound frame with 1-inch steel tubing
  • Silicon carbide mechanical seals
  • Precision molded cast iron impeller and volute for reduced vibration and wear


  • Displacement/ Engine: 118cc Honda GX120 OHV
  • Pump: 2 in. Semi-Trash
  • Hitch: 2 in. Ball
  • Tires: (4) ST225-75 15 in.
  • Axle: (2) 3,500 lb. Tandem with Hydraulic Surge Brakes
  • Bed Frame: 5 ft. x 8 ft.
  • Trailer Weight (Loaded): 5,900 lb.

    Weights & Dimensions

    • Net Weight:

      1580.00 lbs.
    • Shipping Weight

      : 0.00 lbs.
    • Length:

      163.00 in.
    • Width:

      82.00 in.
    • Height:

      70.00 in.


      • TX-0008 Hard Suction Option: Allows you to draw water from an auxiliary source (pond, water pit, etc.). The fire hose is designed to be used with pressurized water and lays flat for easy storage.
      • TX-0010 Adjustable Trailer Coupler Hitch: Replaces the standard 2-inch ball hitch with a 2-inch trailer hitch with pin-style fastener trailer coupler and hinged ball socket
      • TX-0019 Lunette Ring Hitch: Replaces the standard 2-inch ball hitch with an 3-inch integrated lunette ring for use with pintle hitches
